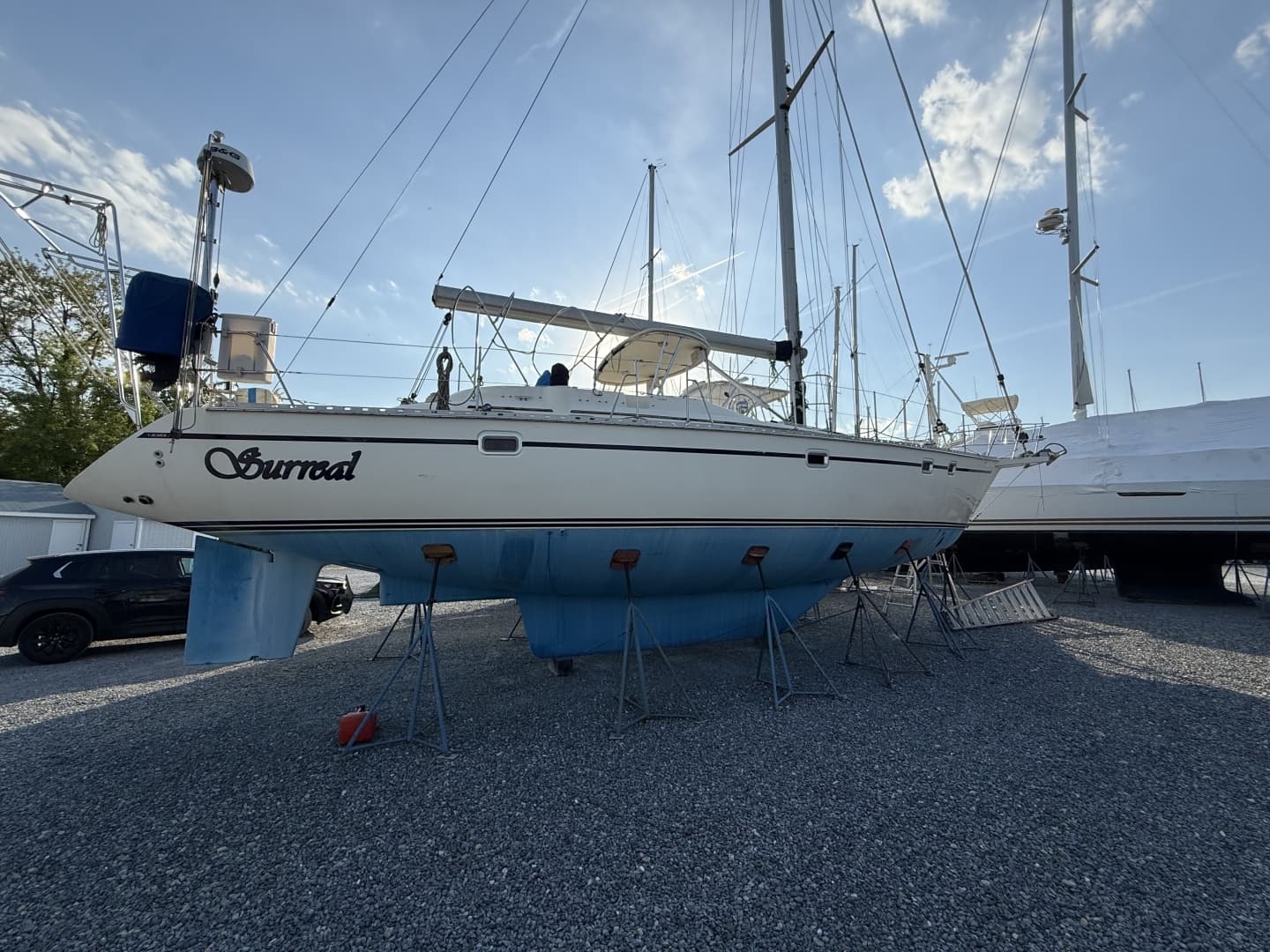

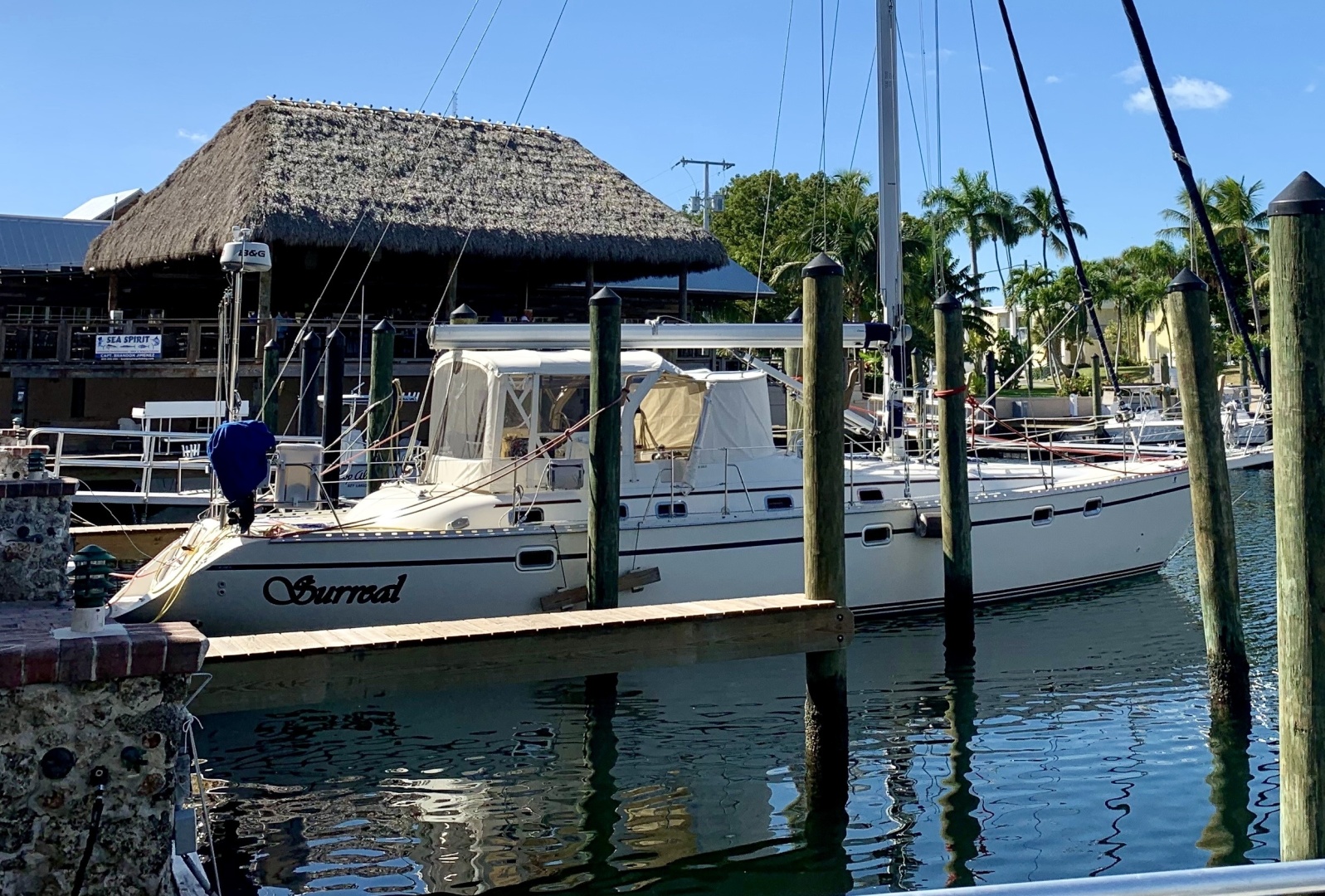

2001 Caliber 47LRC

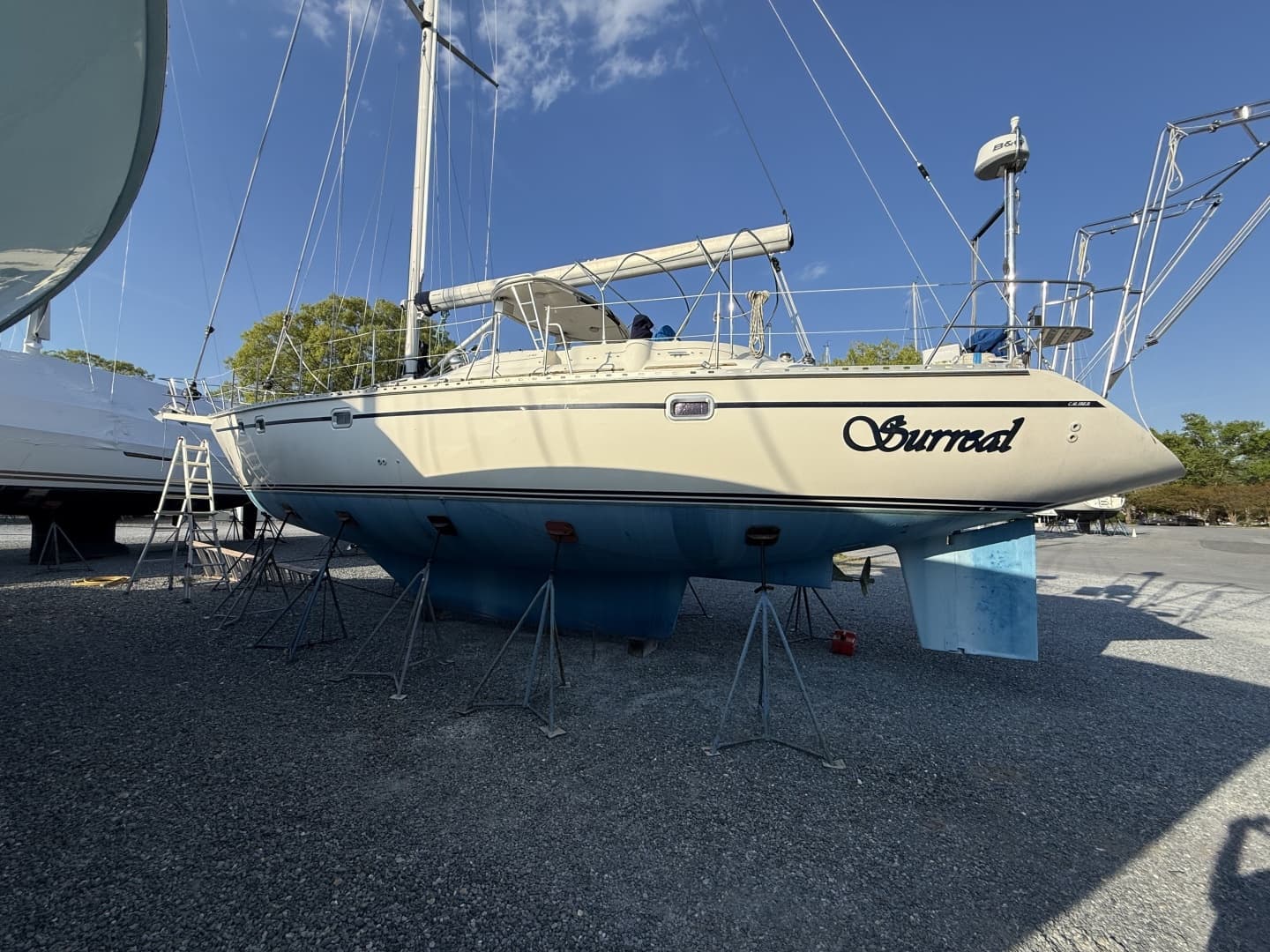

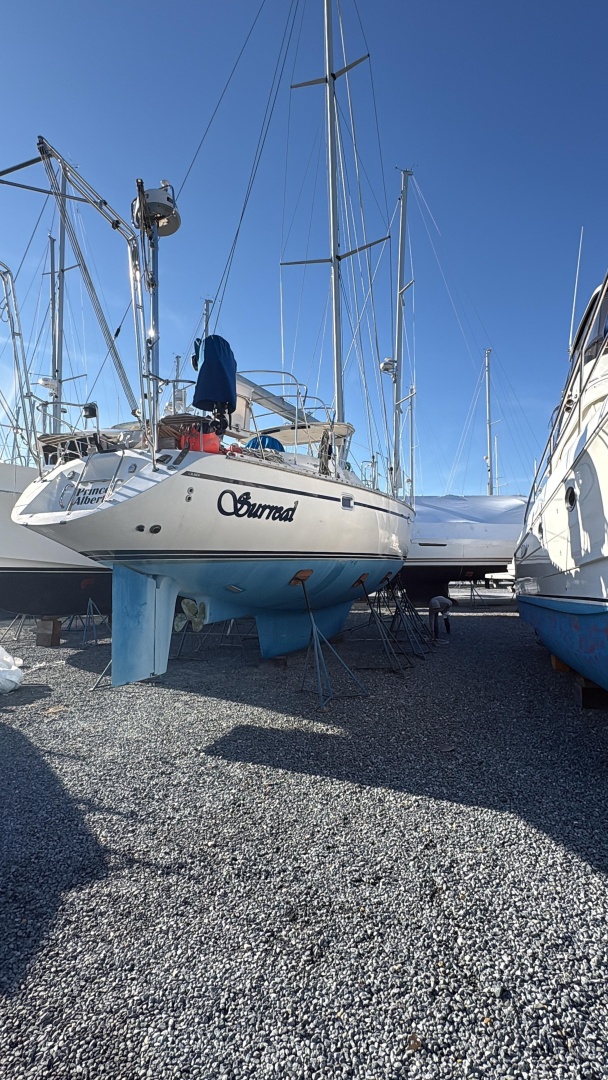

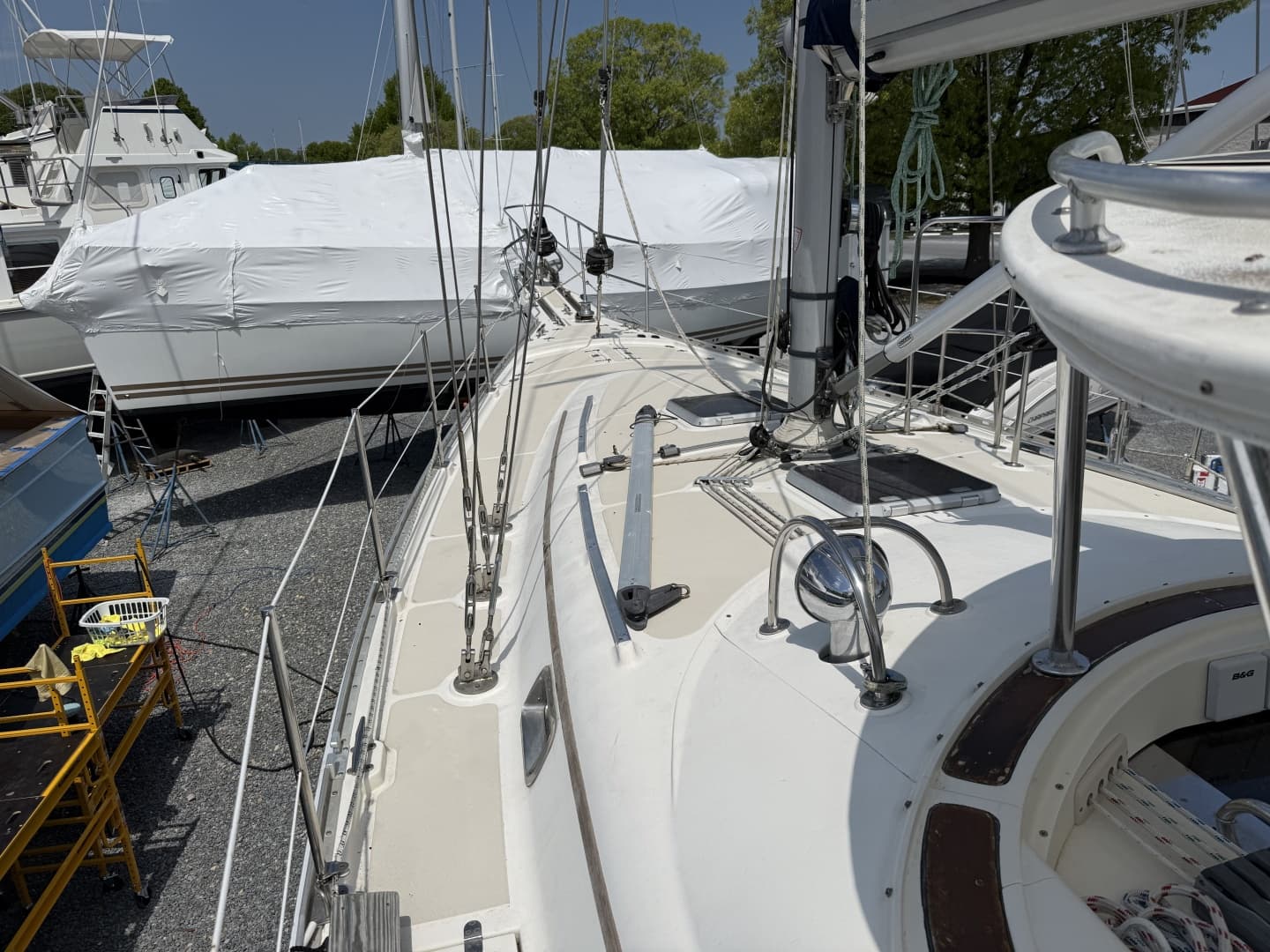

Deck and Hull

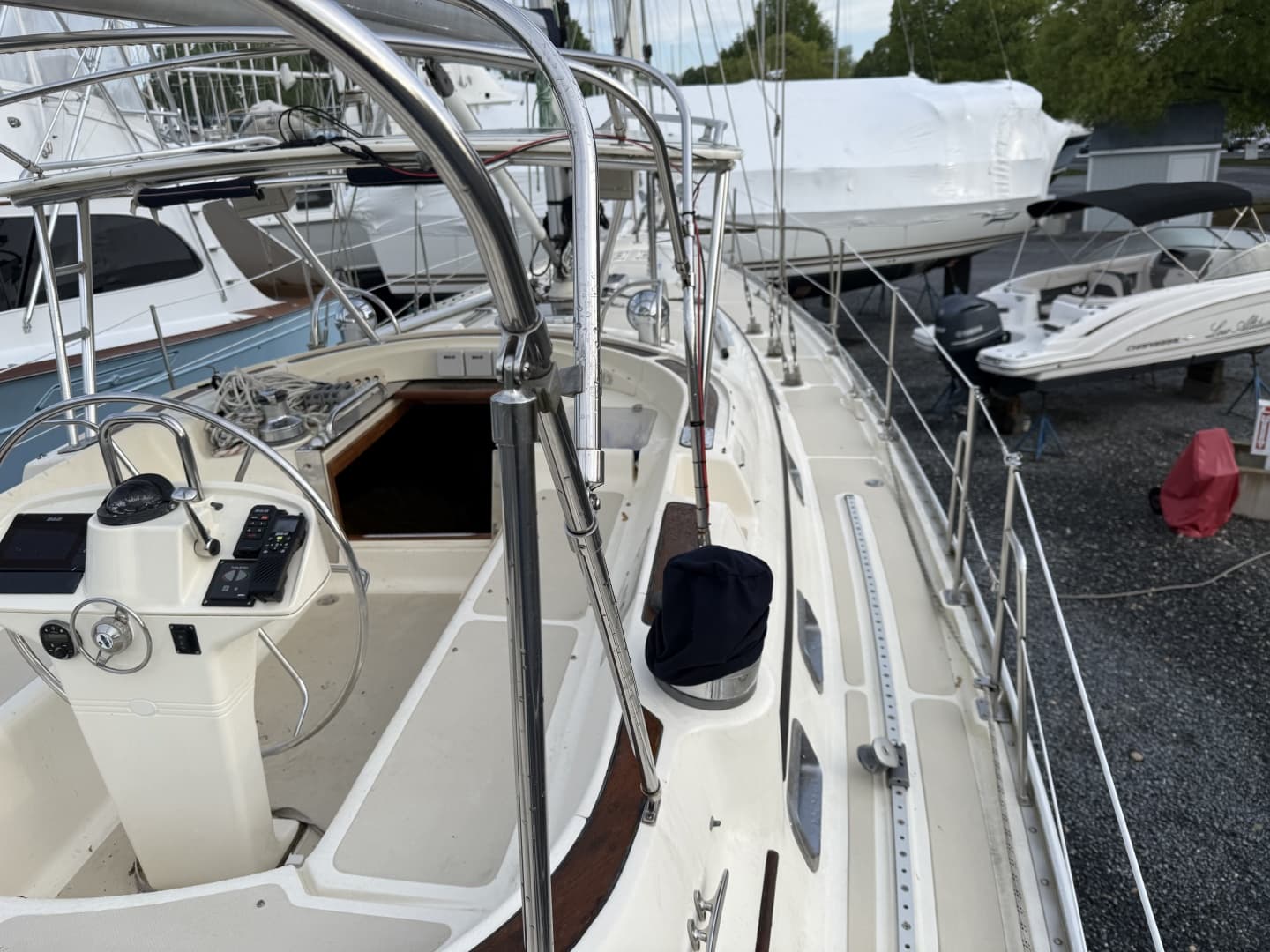

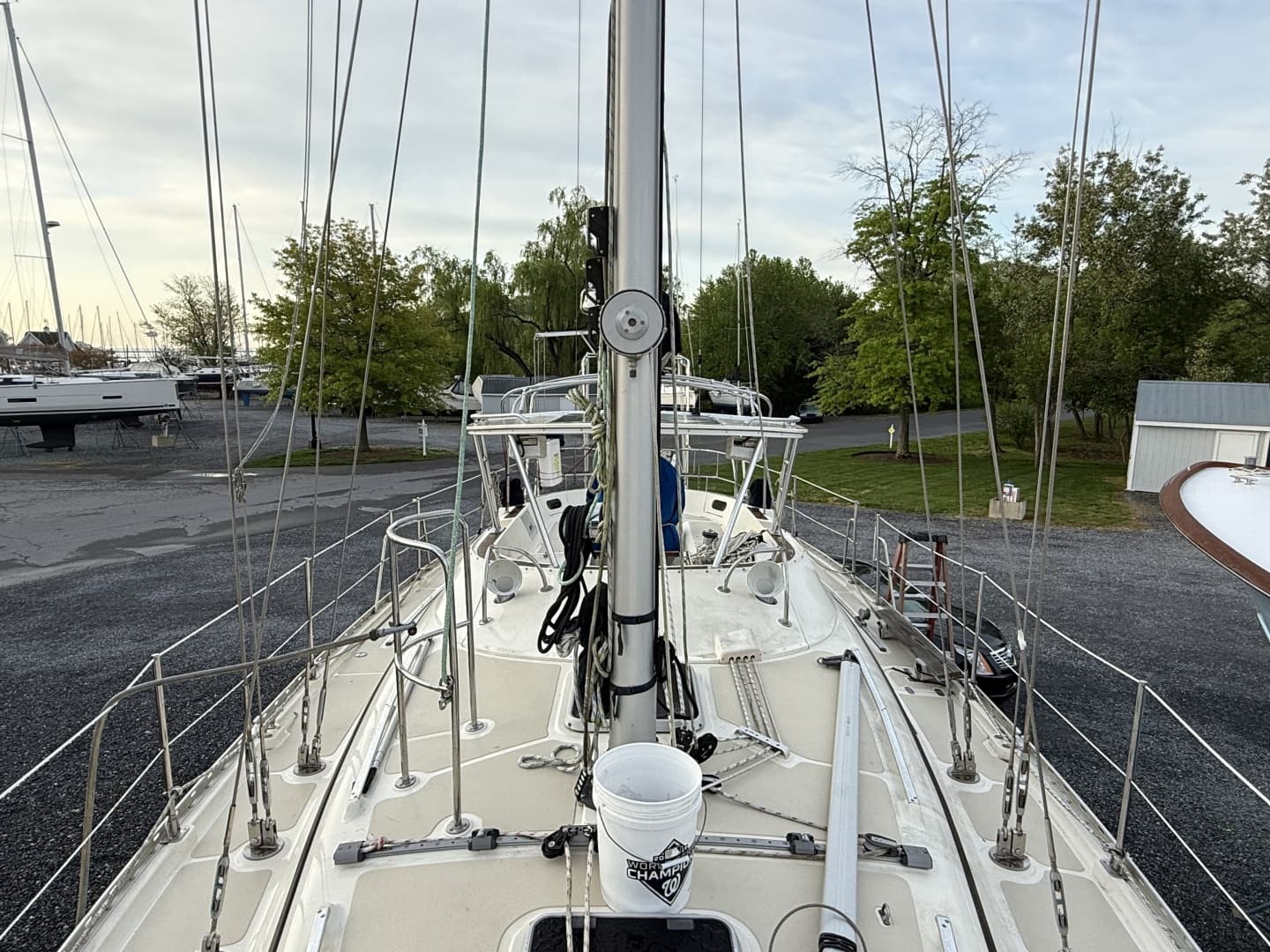

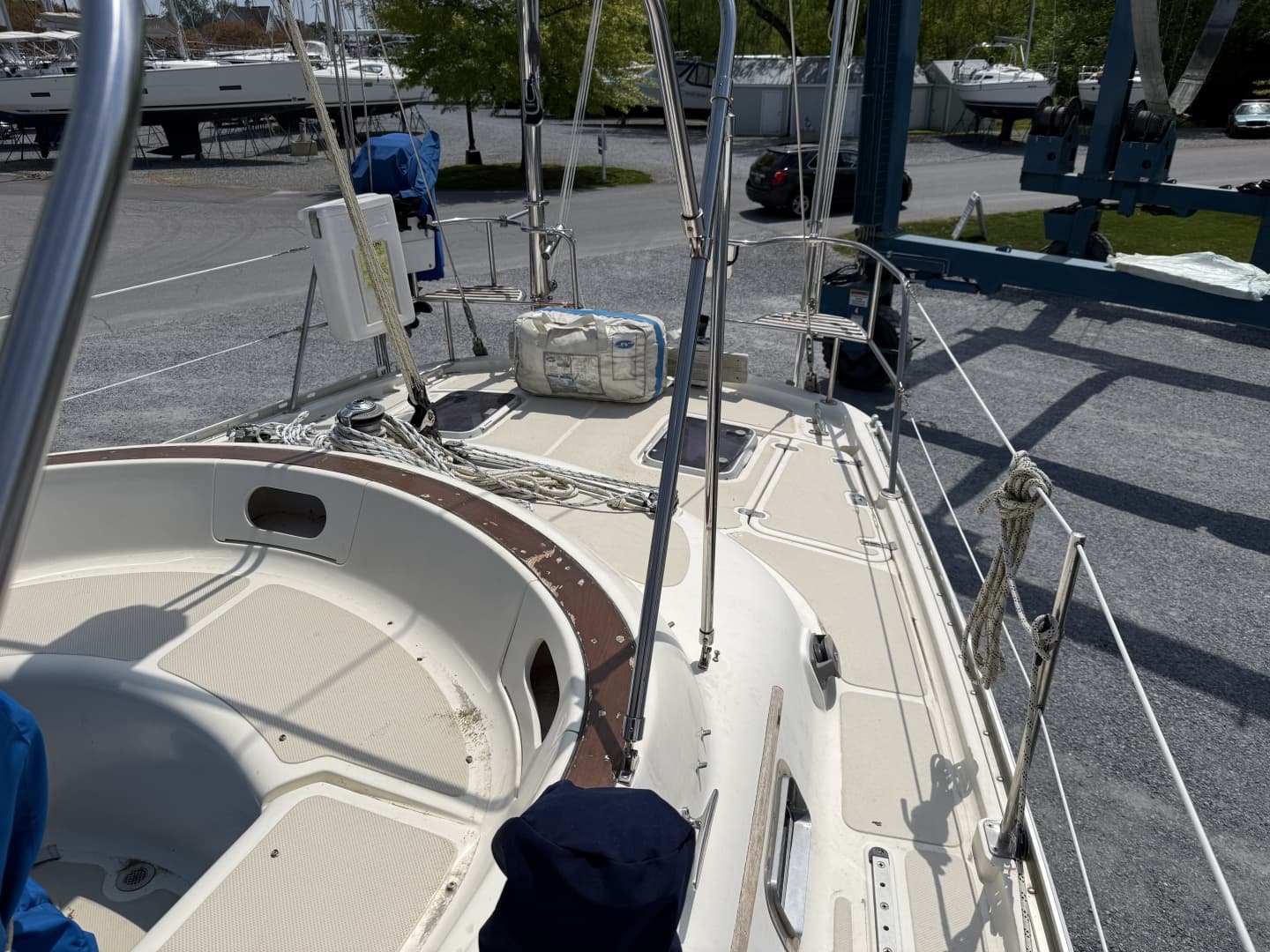

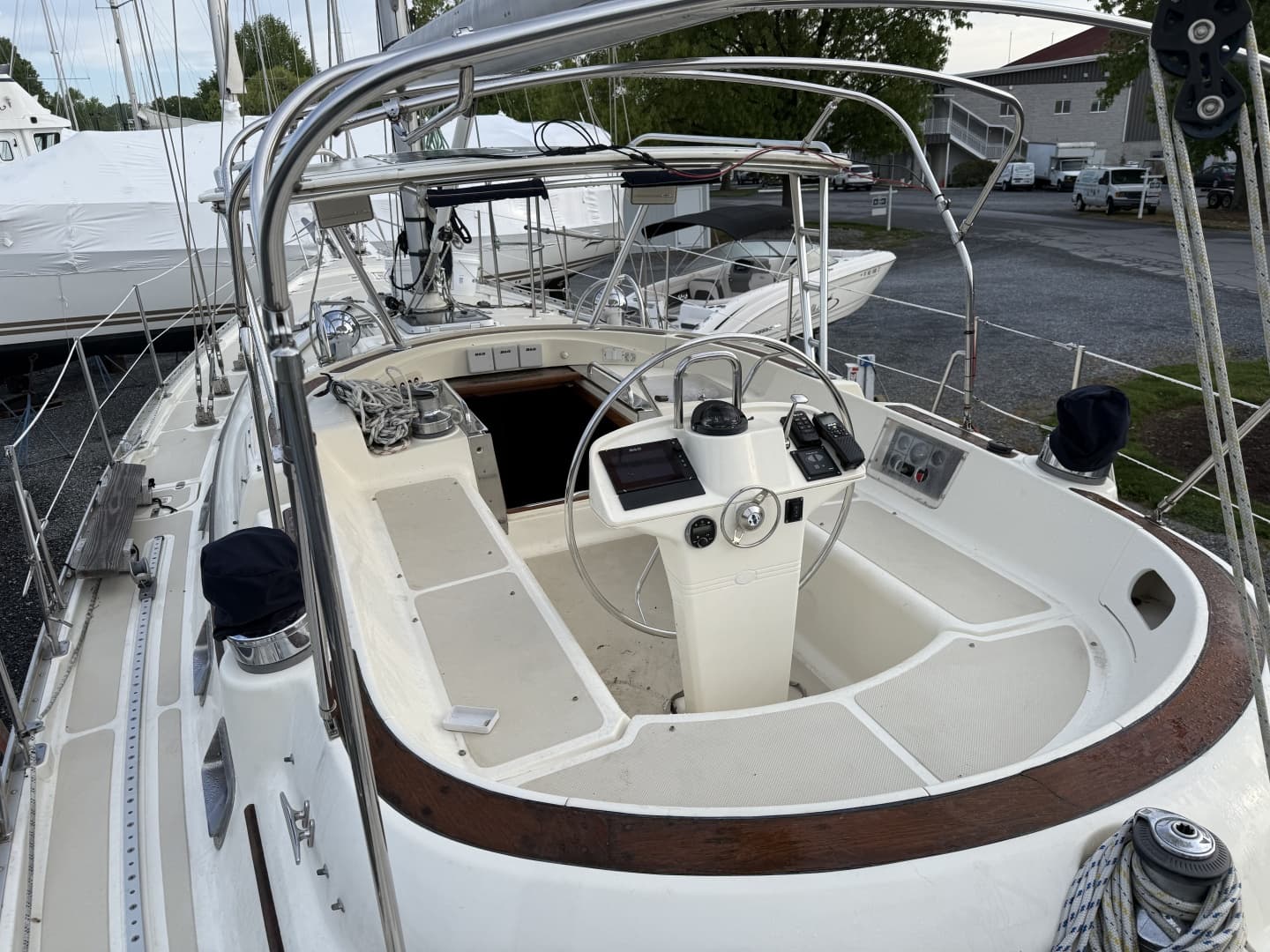

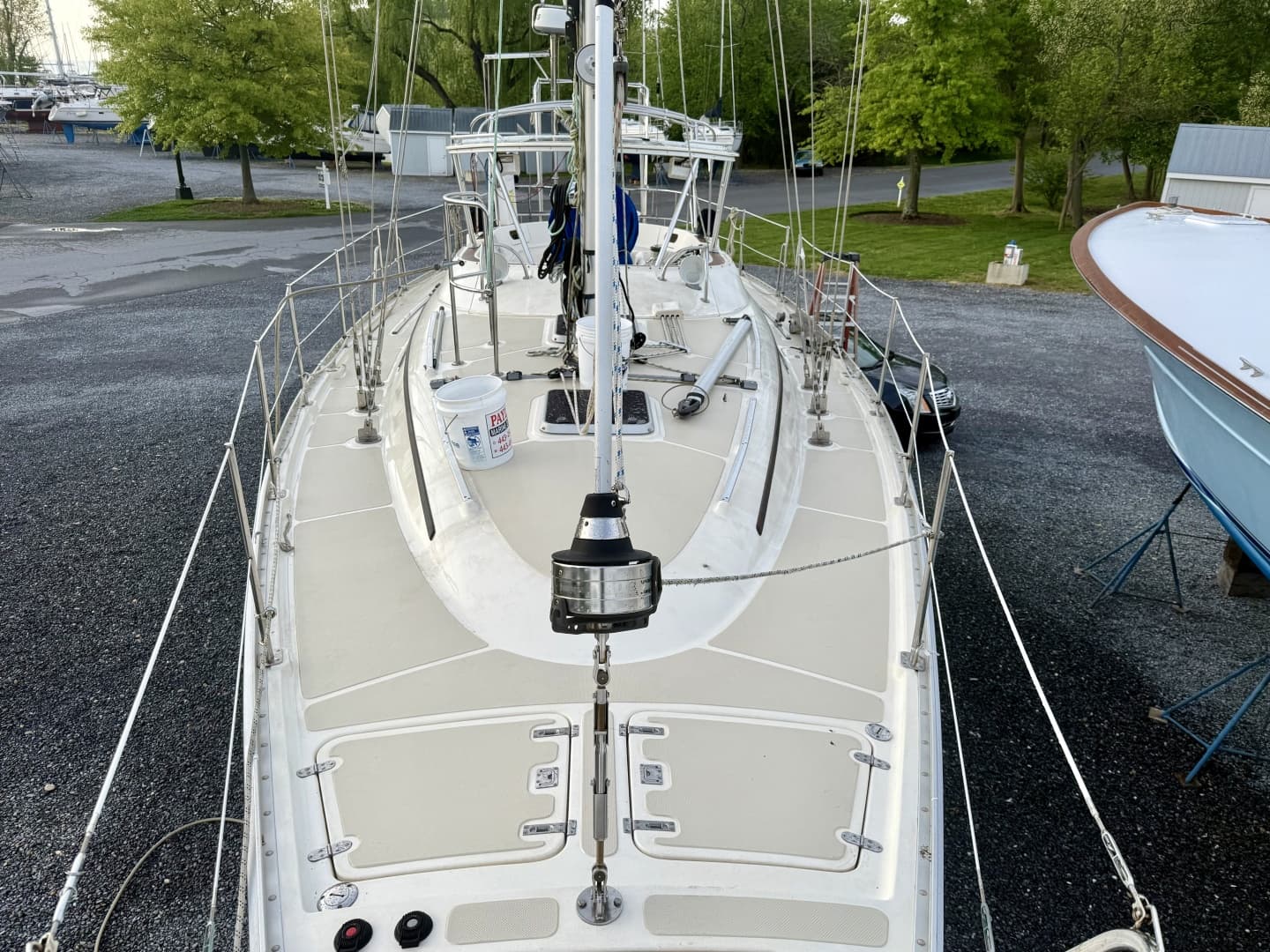

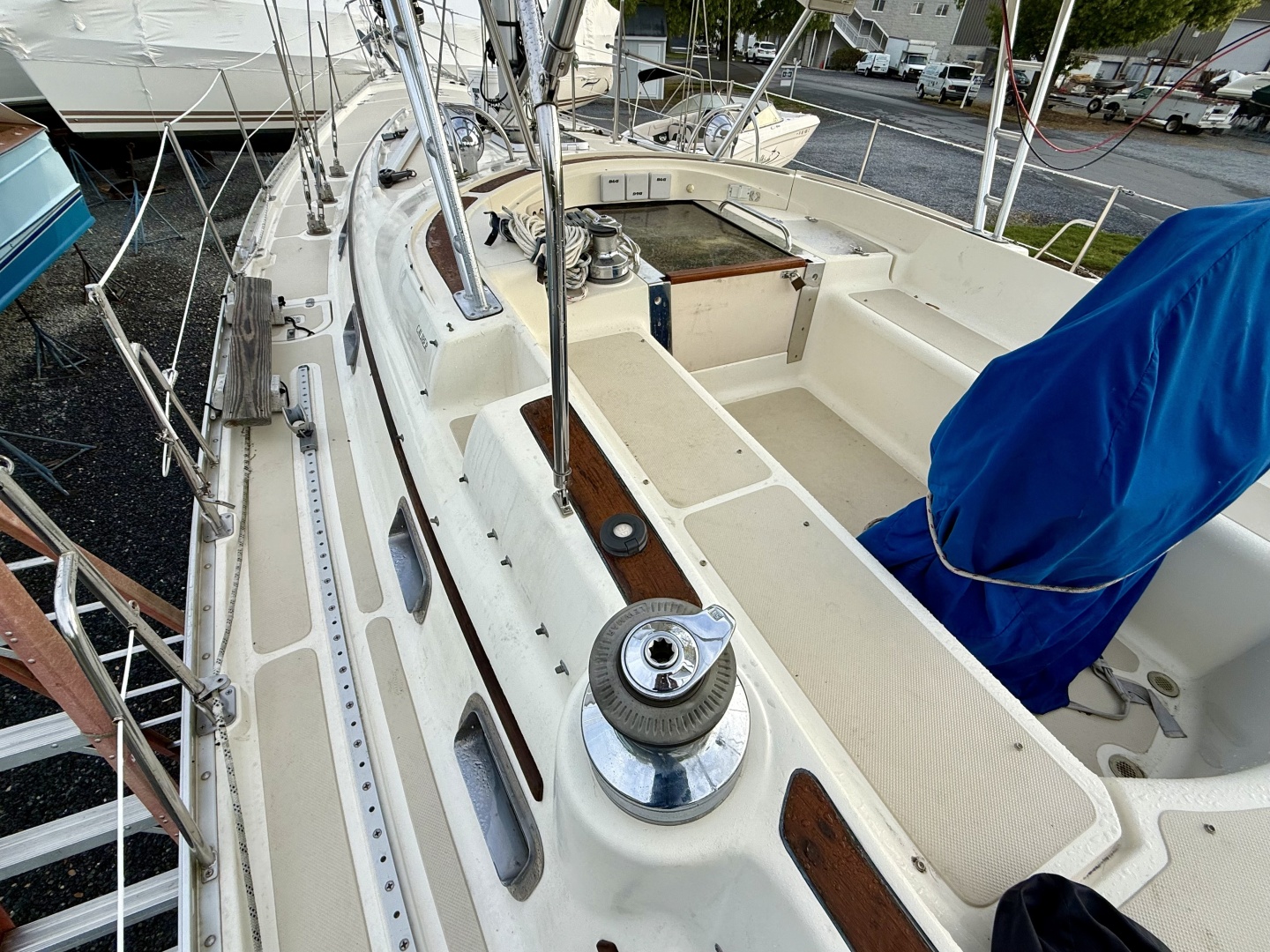

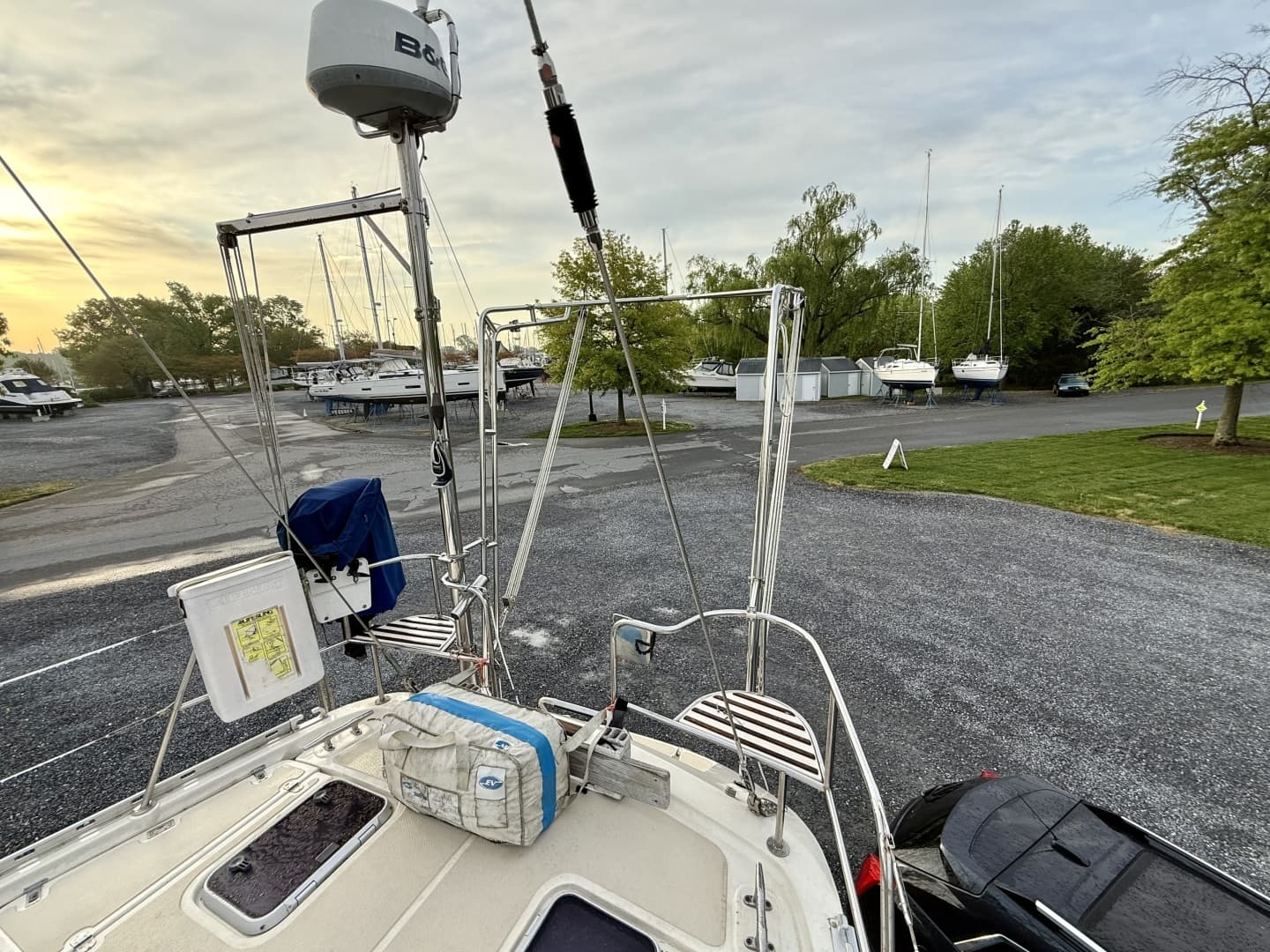

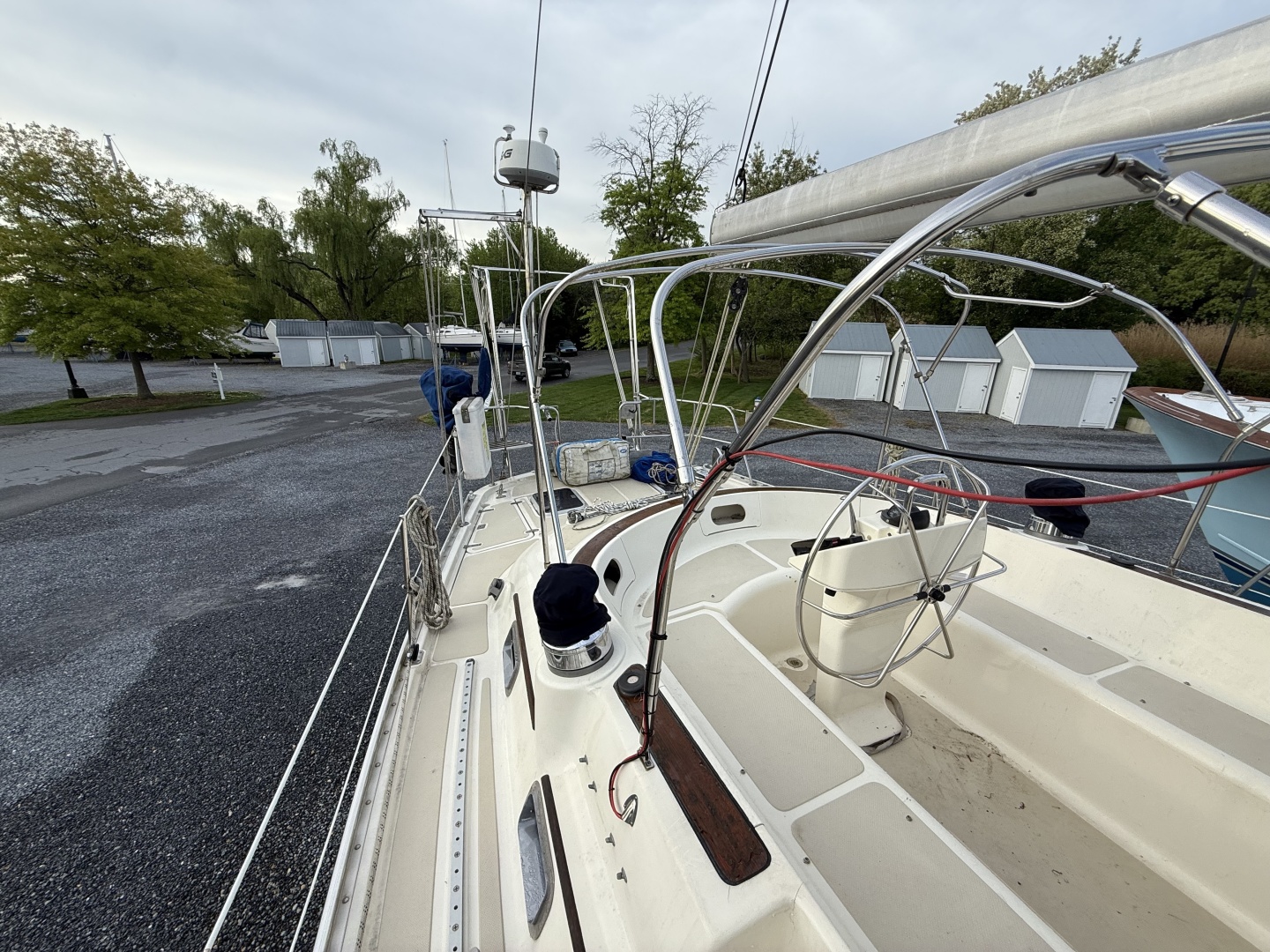

Hulls are built for outstanding resistance to collisions, with extra layers of solid fiberglass at potential impact points. In case of damage to the bow or rudder, a Watertight Collision Bulkhead and Rudder Dam are designed to minimize flooding. When rough water makes most sailors miserable, a Caliber owner can cruise in comfort. And with confidence. The Caliber moves more steadily in heavy seas. And due to her high ballast-to-displacement ratio, the Caliber is very stable. The cockpit is arranged to provide the captain complete control with ease and efficiency for short-handed sailing. The innovative steering pedestal, designed with for housings for all your cockpit mounted instruments. In addition other instrument displays are mounted over the companionway for easy viewing from anywhere in the cockpit. The hardtop dodger allows for great visibility and protection from the elements and serves to support two 100W solar panels. Deck stowage space is a rare commodity on many center-cockpit boats. It is abundant on the Caliber 47. Two deck lockers forward and two aft can accommodate large items. In addition a sizable anchor well at the bow features separate tackle compartments for two anchors. The extra strong anchor platform simplifies anchor handling. A swim ladder and boarding platform built into the transom make it easy to board a dinghy or take a swim.

Accommodations

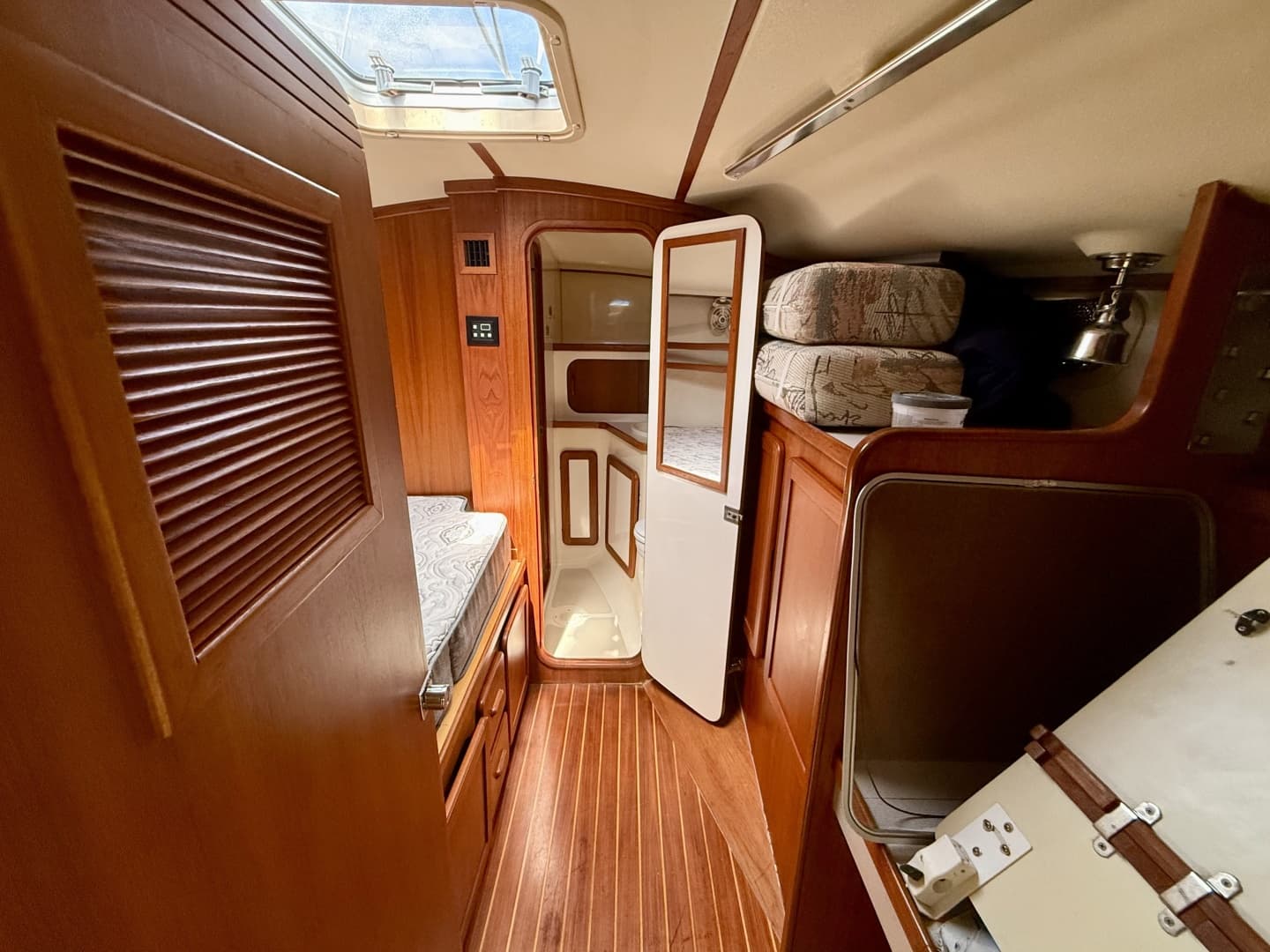

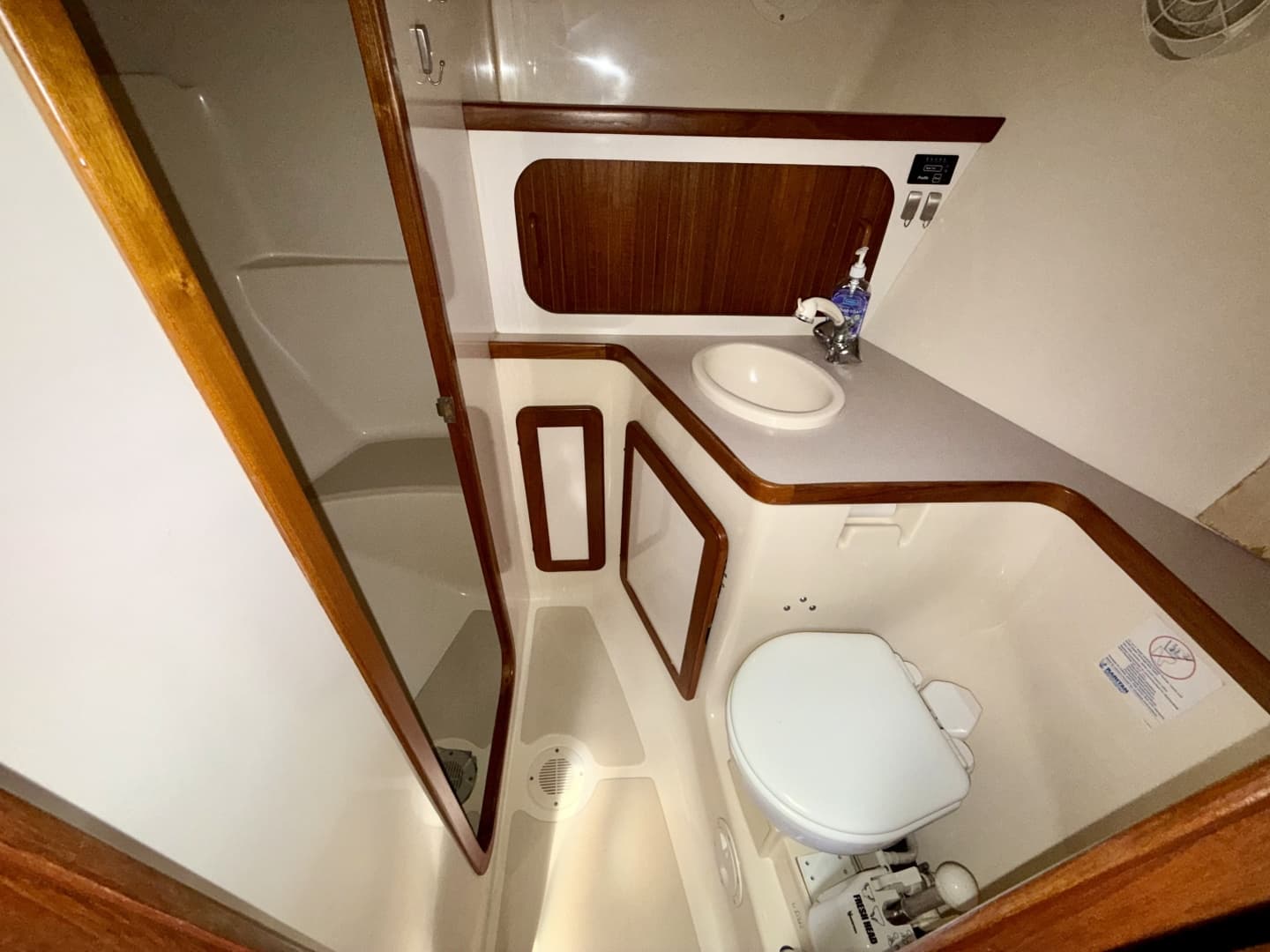

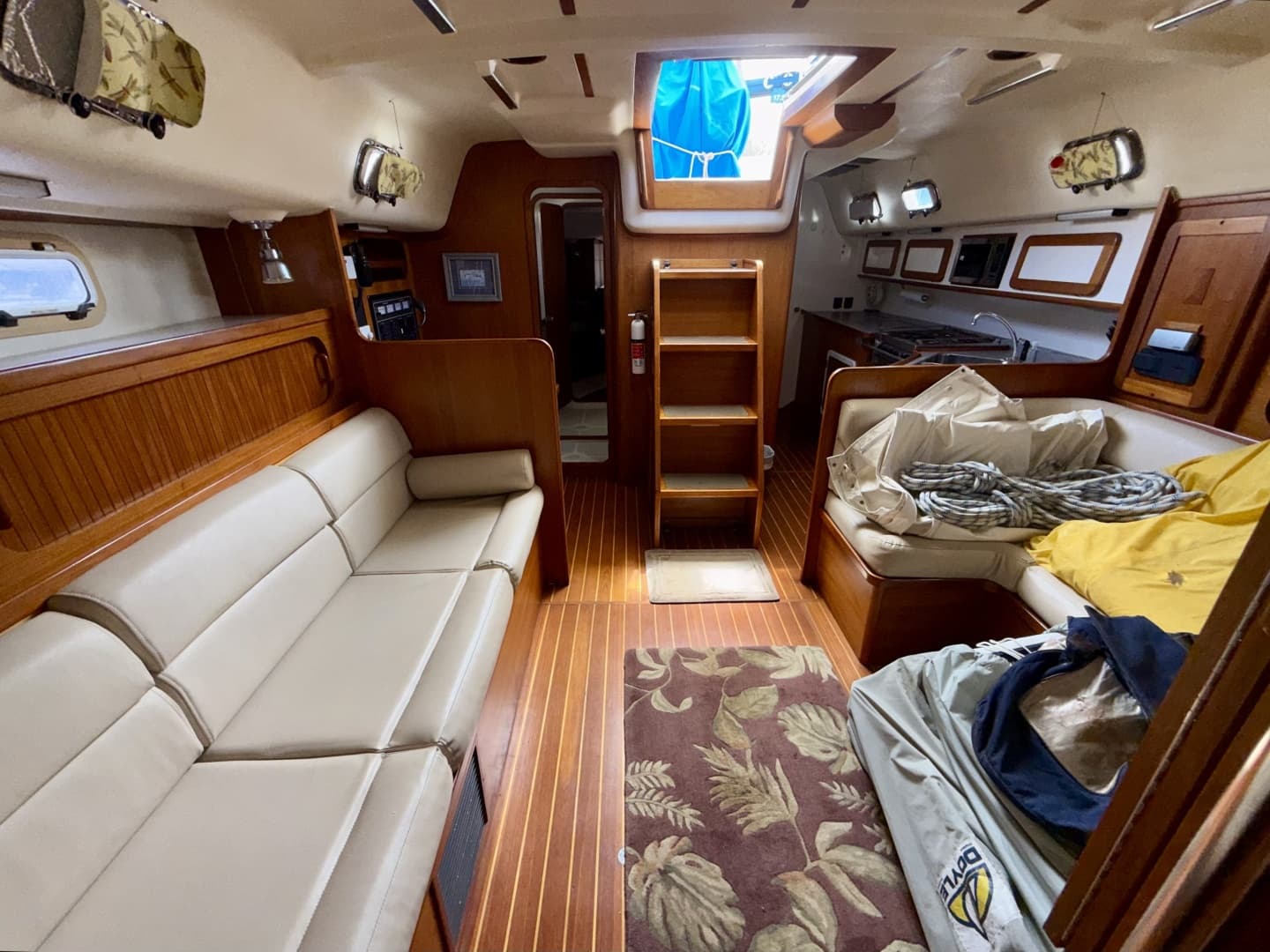

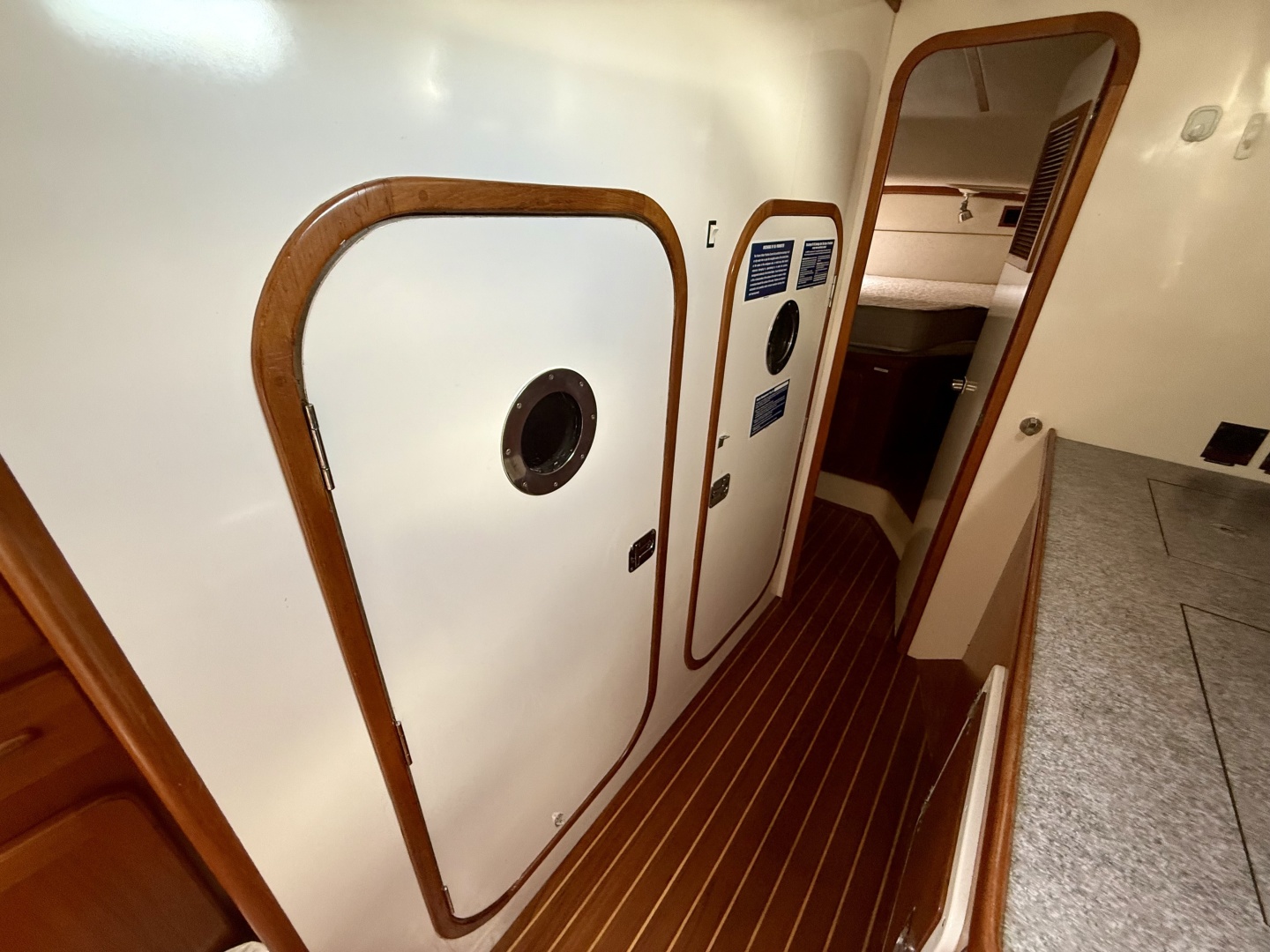

Luxurious accommodations in two staterooms, each with private head and separate shower, plus twin settees in the main salon that can convert to real sea berths. The port L settee is also convertible to a double. A large teak drop leaf table is bulkhead mounted to port. There is a dedicated nav station and excellent seagoing galley. All tanks are located below the sole, so storage is ample and accessible. Ventilation is superb through 18 opening ports, 4 overhead hatches, and Hella cabin fans. Teak and holly sole, navy blue upholstery, and varnished teak bulkheads enhance Surreal's ambiance.

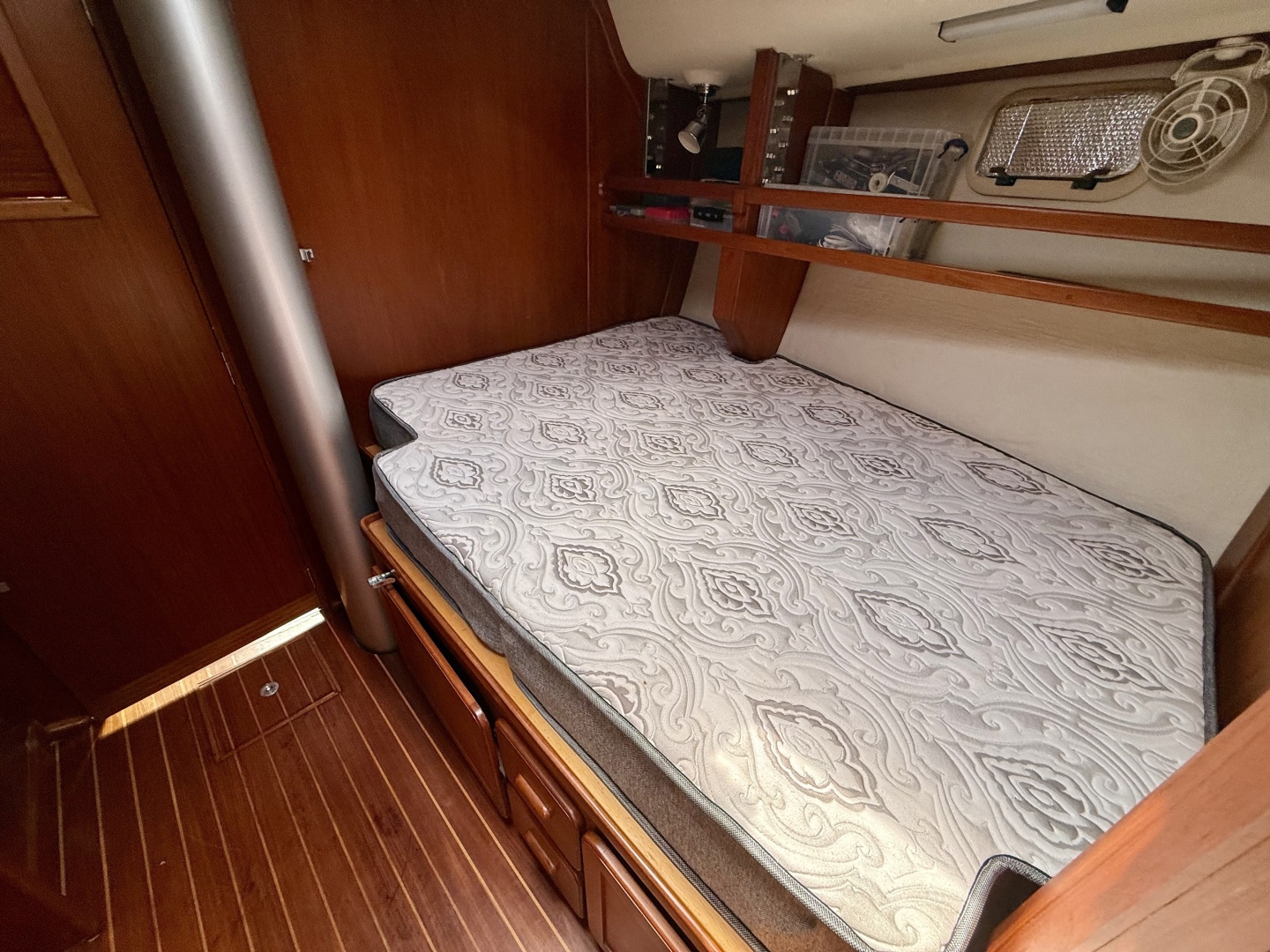

• Forward berth is 6'4" x 4'8"

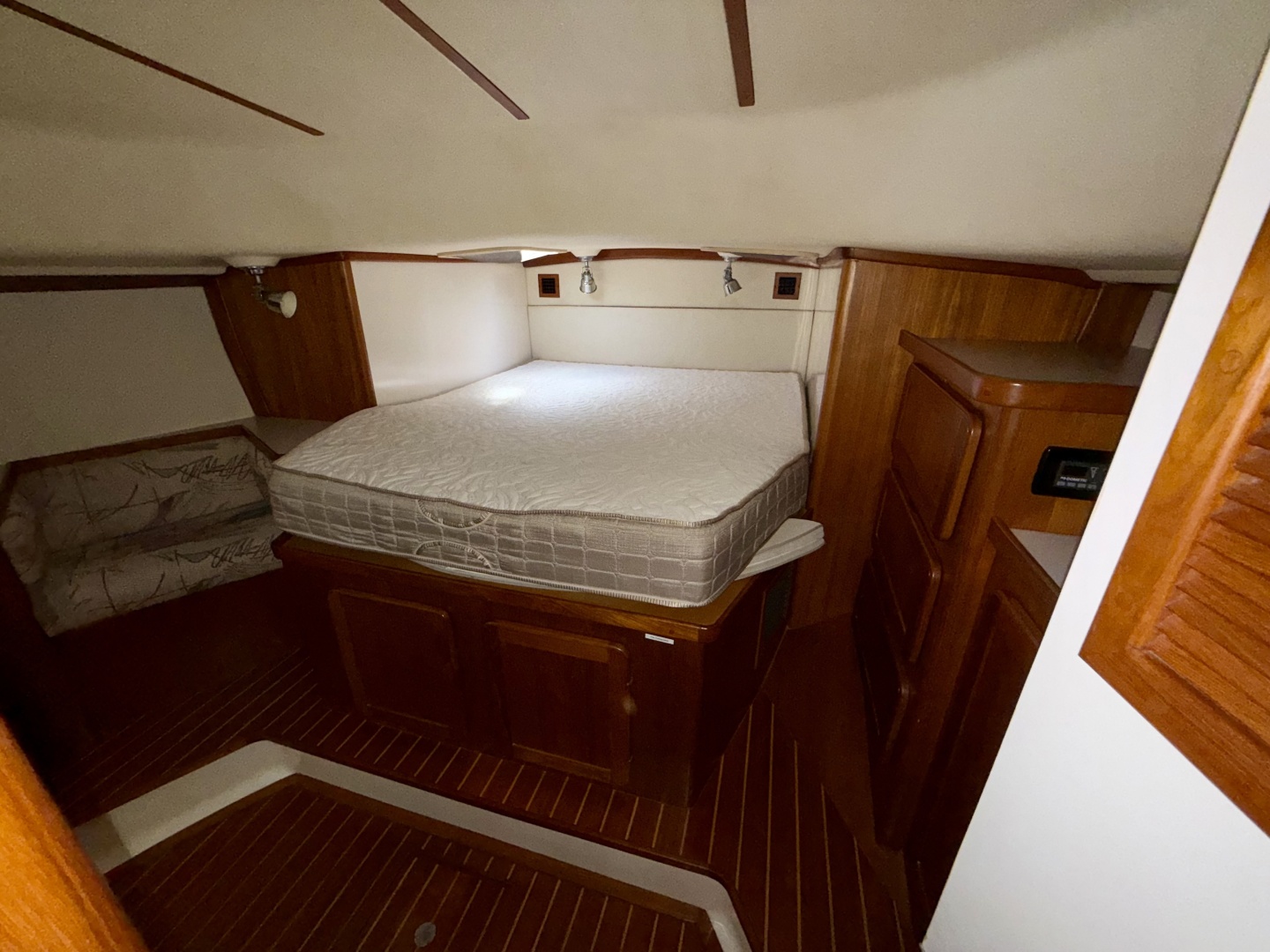

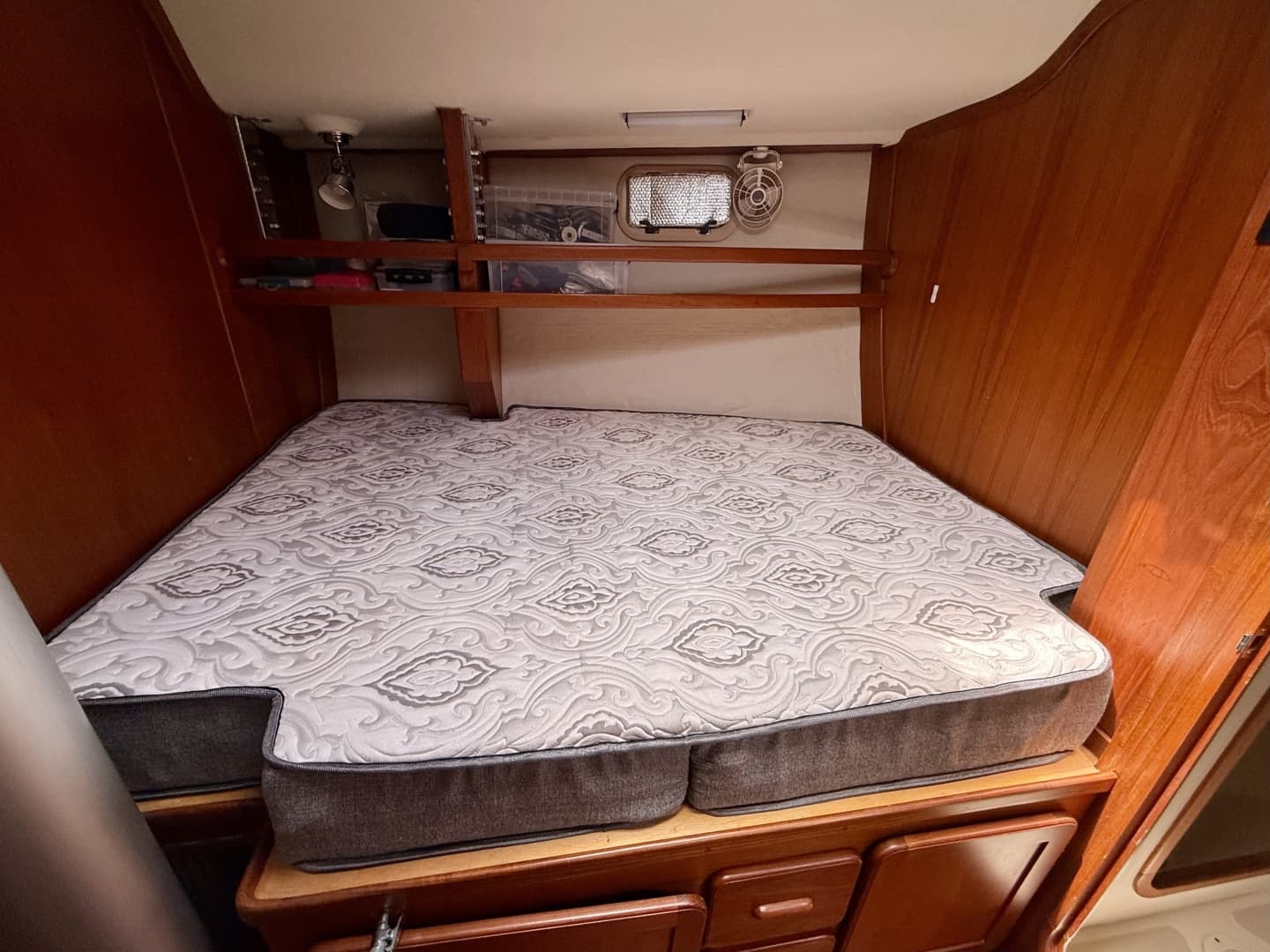

• Master berth aft 6' 9" x 5'4"
• Cedar lined hanging lockers and bureaus in each cabin

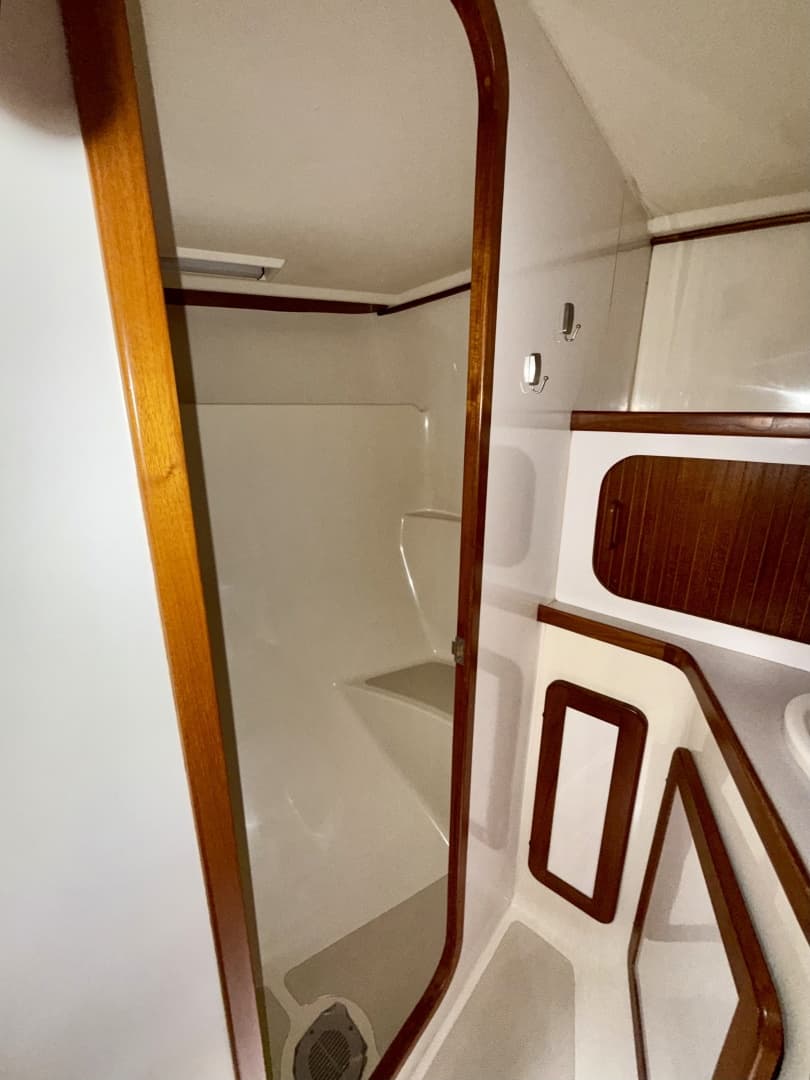

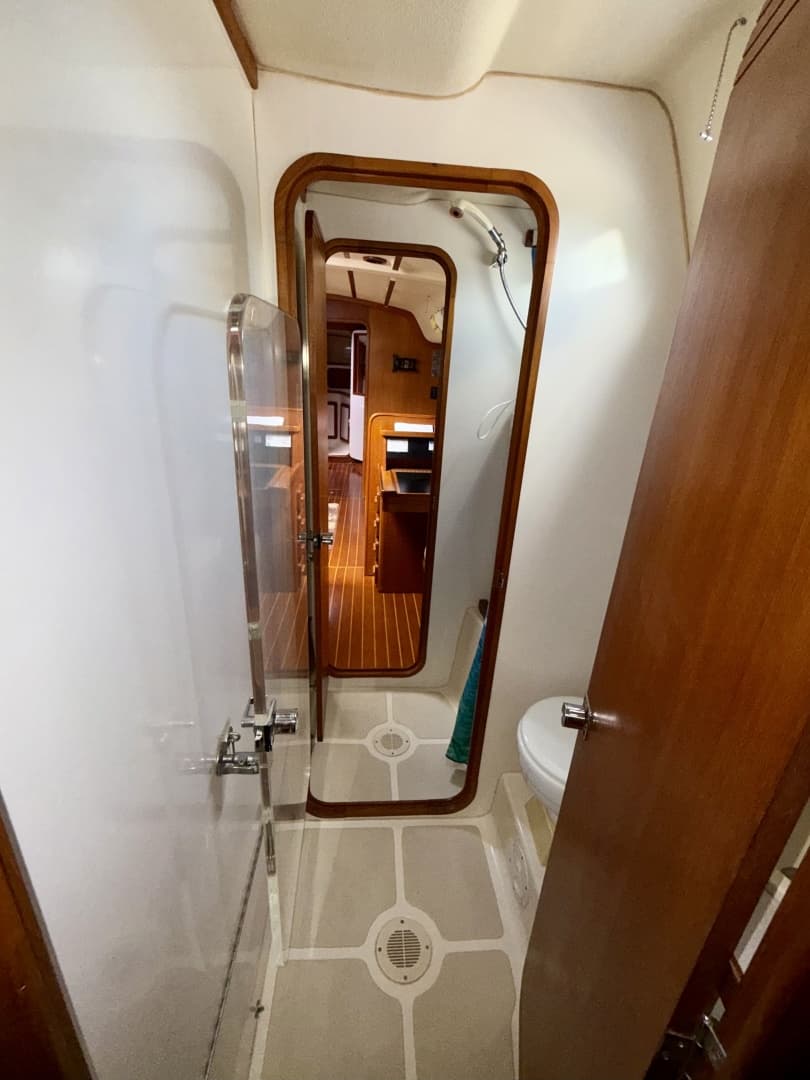

• Showers each have plexiglas doors
• Heads and galley are off-white laminate for easy care

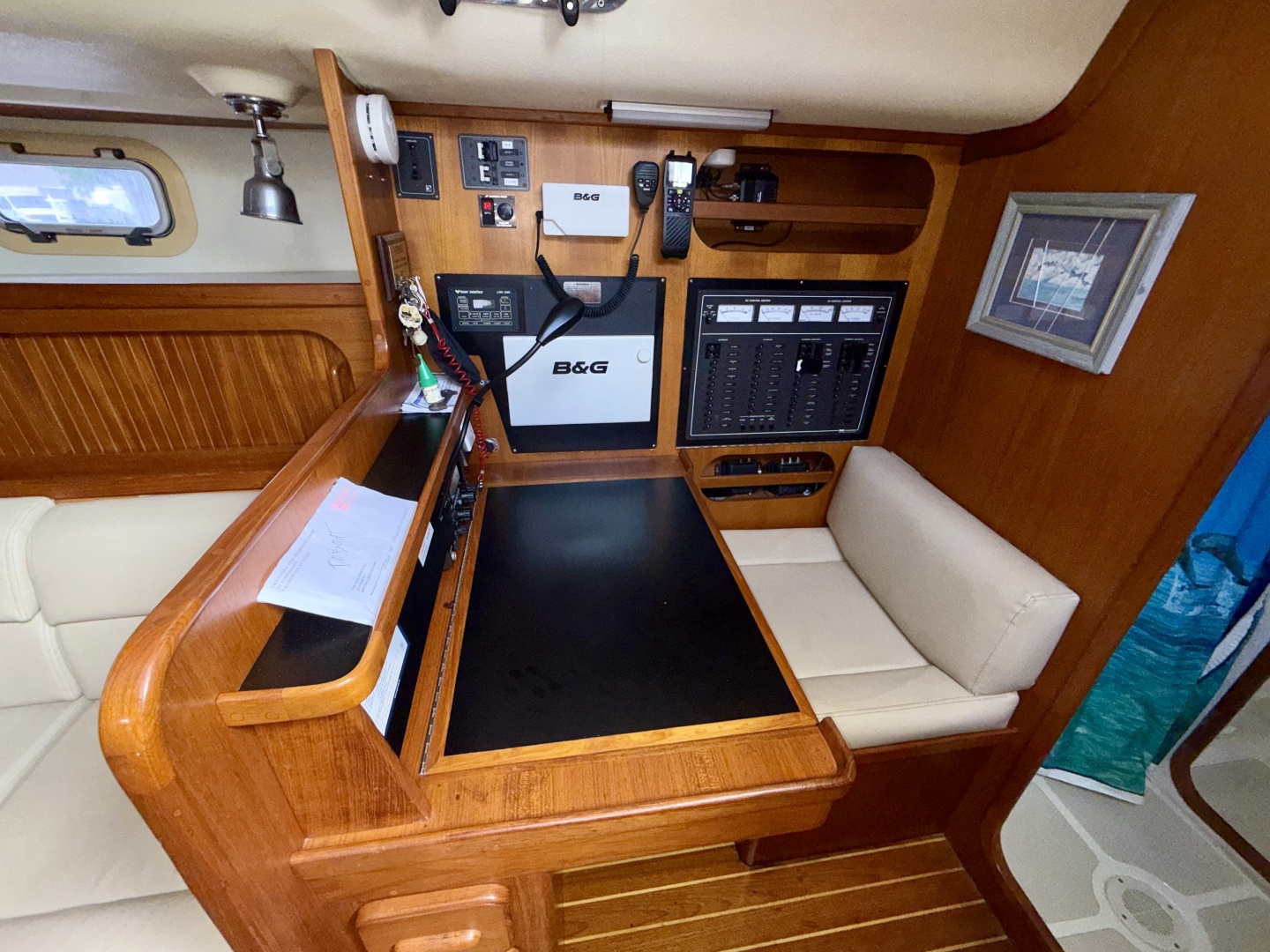

• Large navigator's station faces forward, with excellent workspace and storage for books and manuals

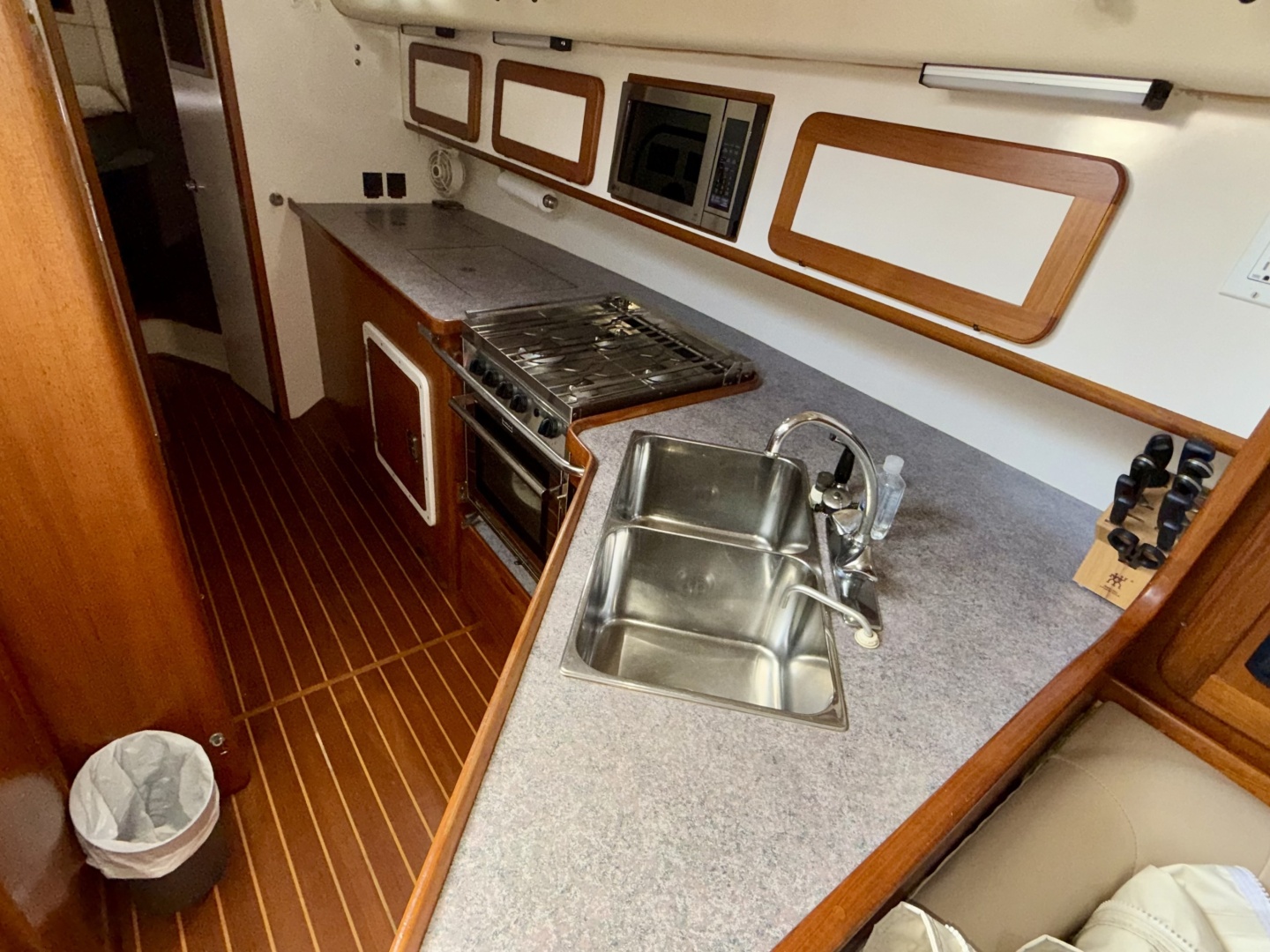

Galley

• Over 9' counter space
• Separate refrigerator and freezer
• Refrigerator w/top and front loading

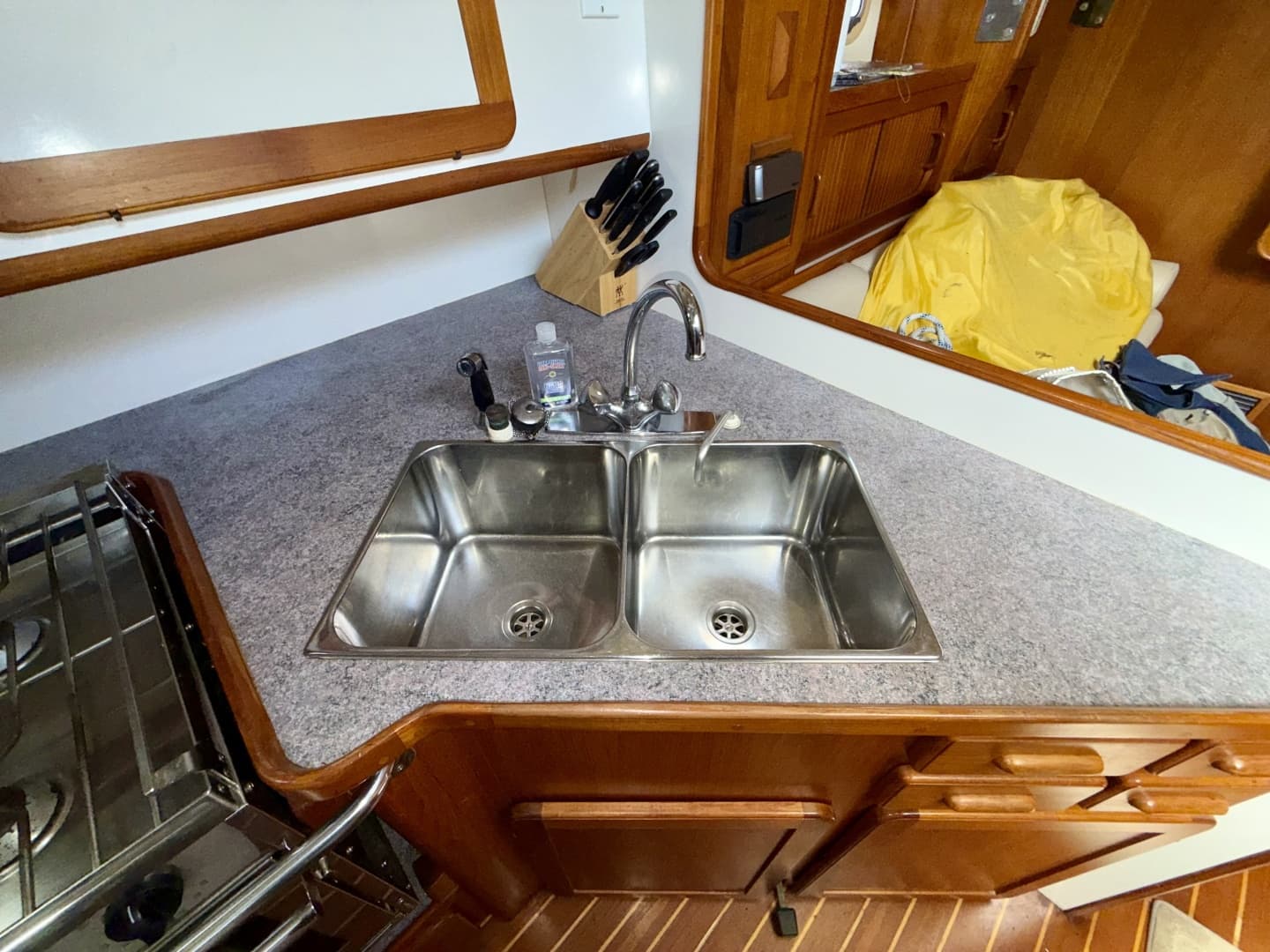

• Twin deep sinks
• Built in microwave

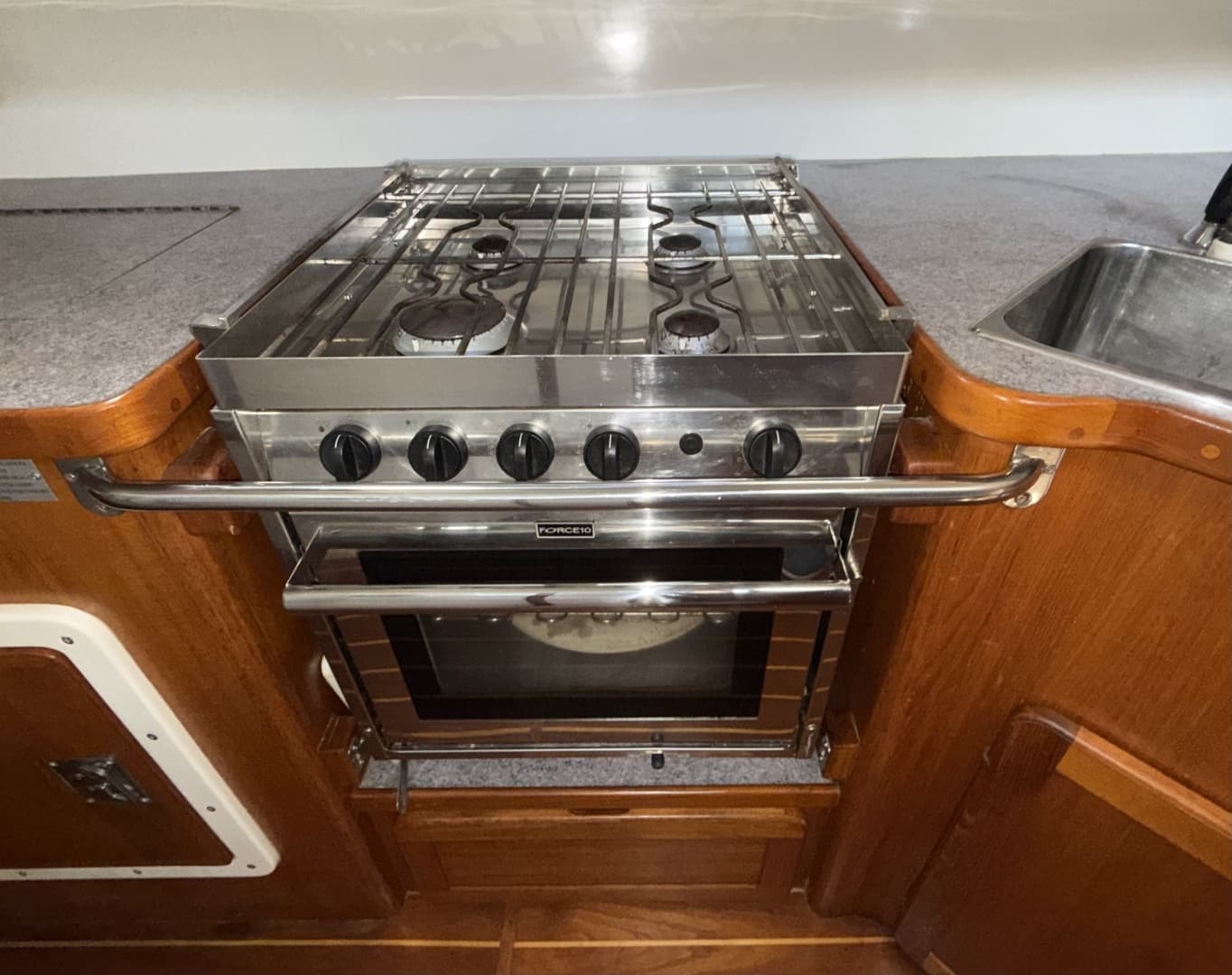

• Force 10 LPG 4 burner stove w/oven

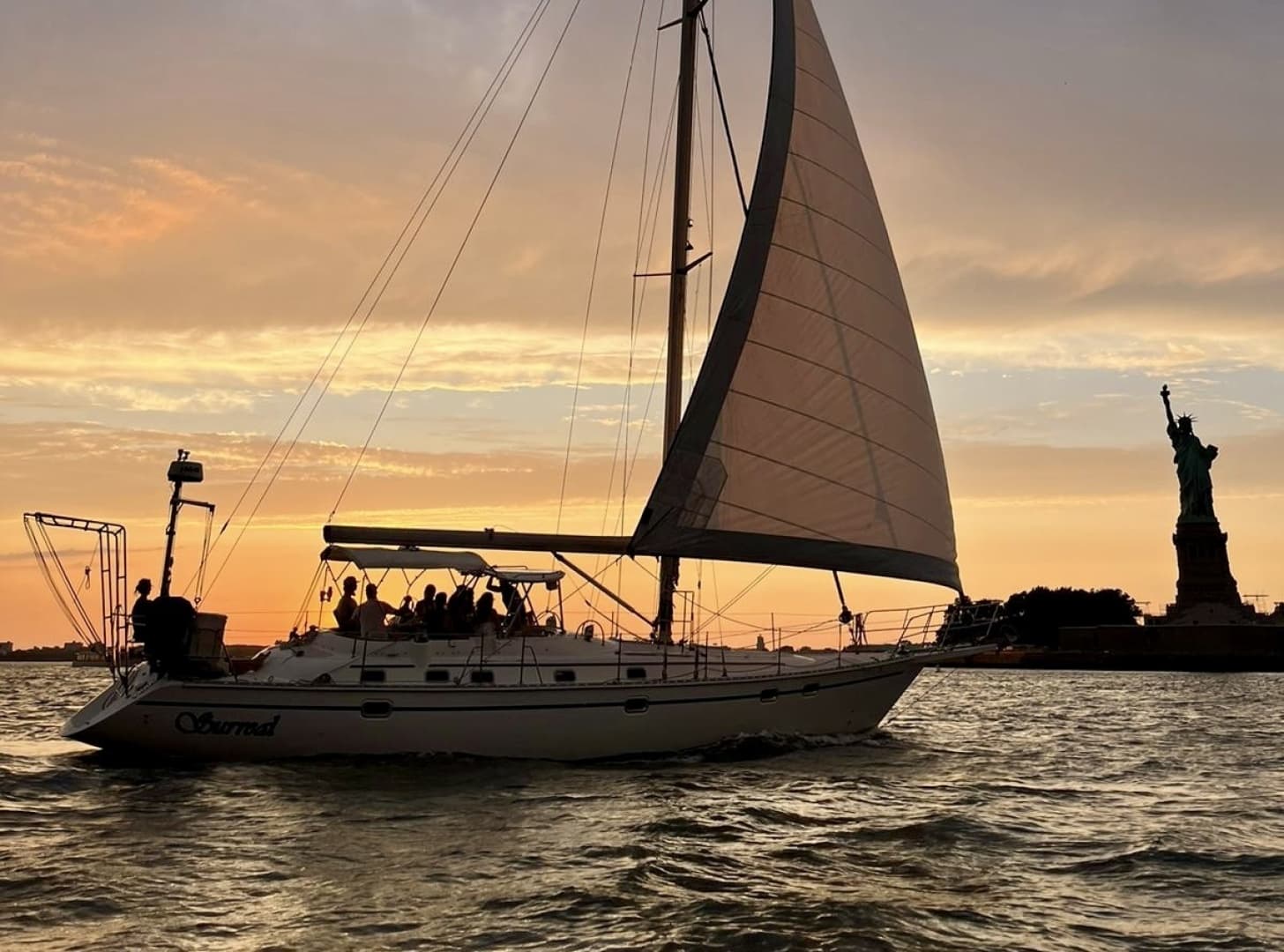

Sails and Rigging

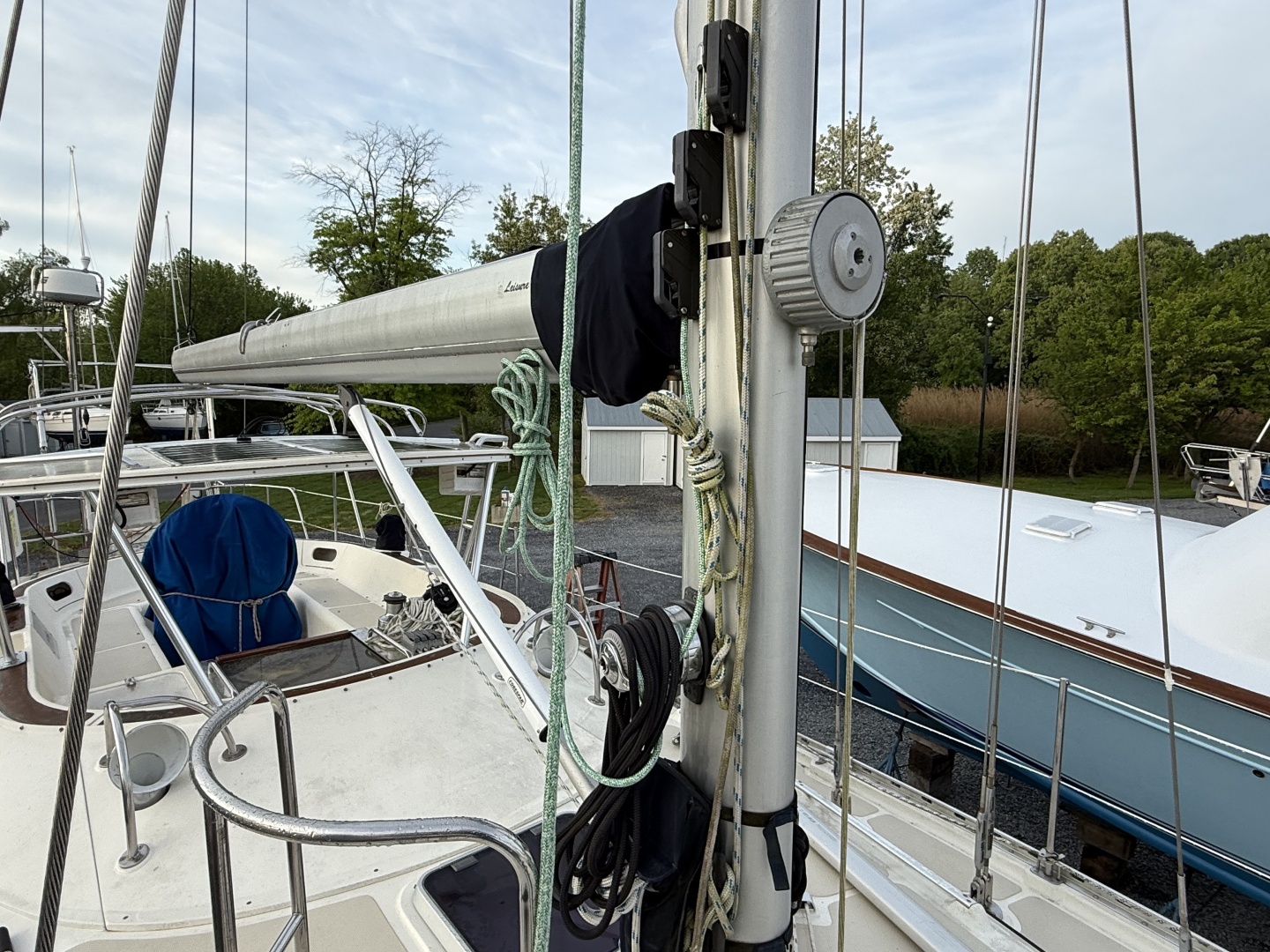

• Keel stepped aluminum Selden mast w/ double spreaders, fore & aft lowers
• Inboard shrouds for upwind sailing
• LeisureFurl Boom
• Twin backstays
• Insulated backstay for SSB usage
• Selden roller furling for headsails
• 1,014 sq ft sail area
• Sails by Doyle

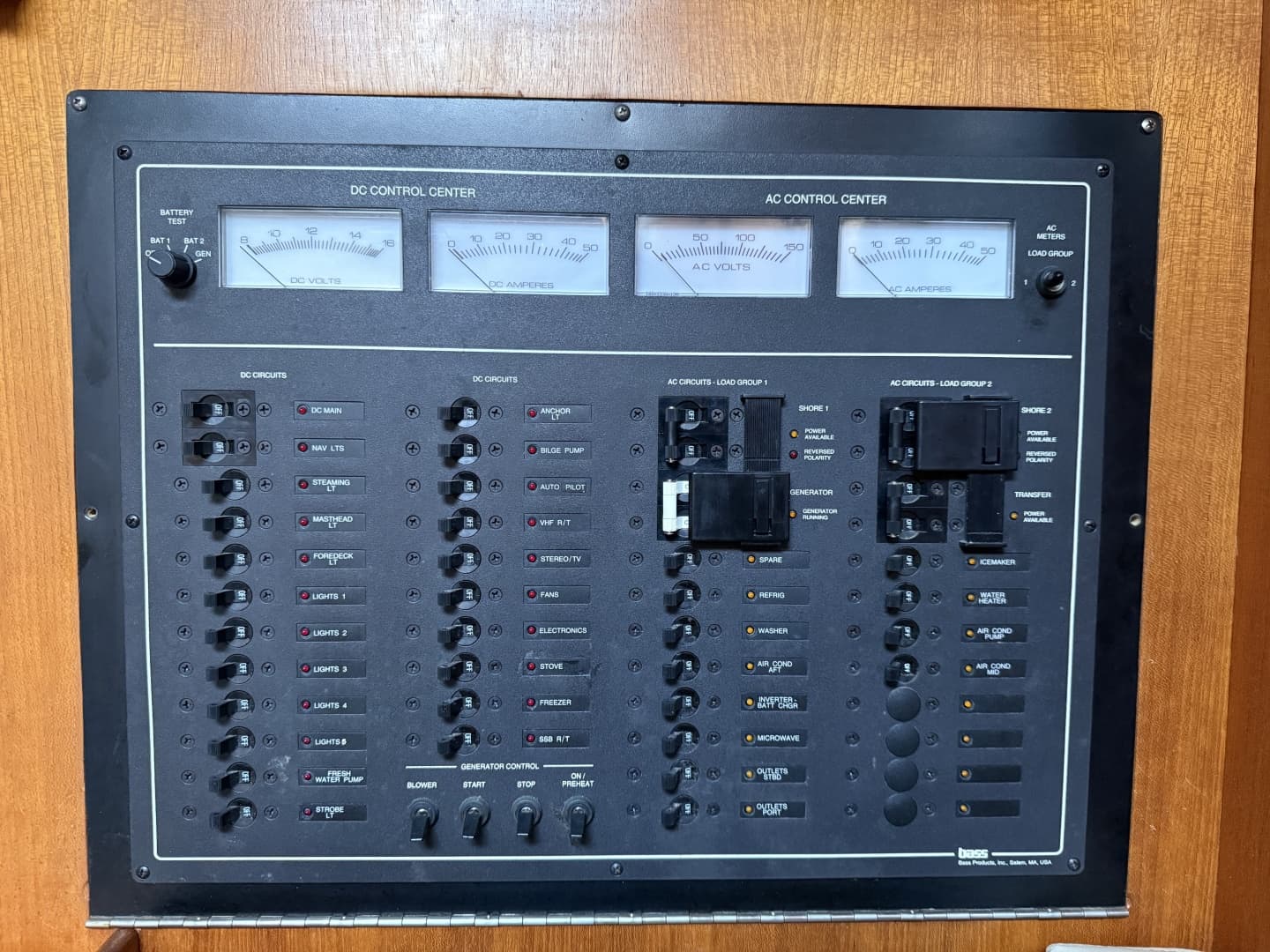

Electrical

• House Battery Bank - Two (2) Lifeline 8D 255AH AGM Batteries

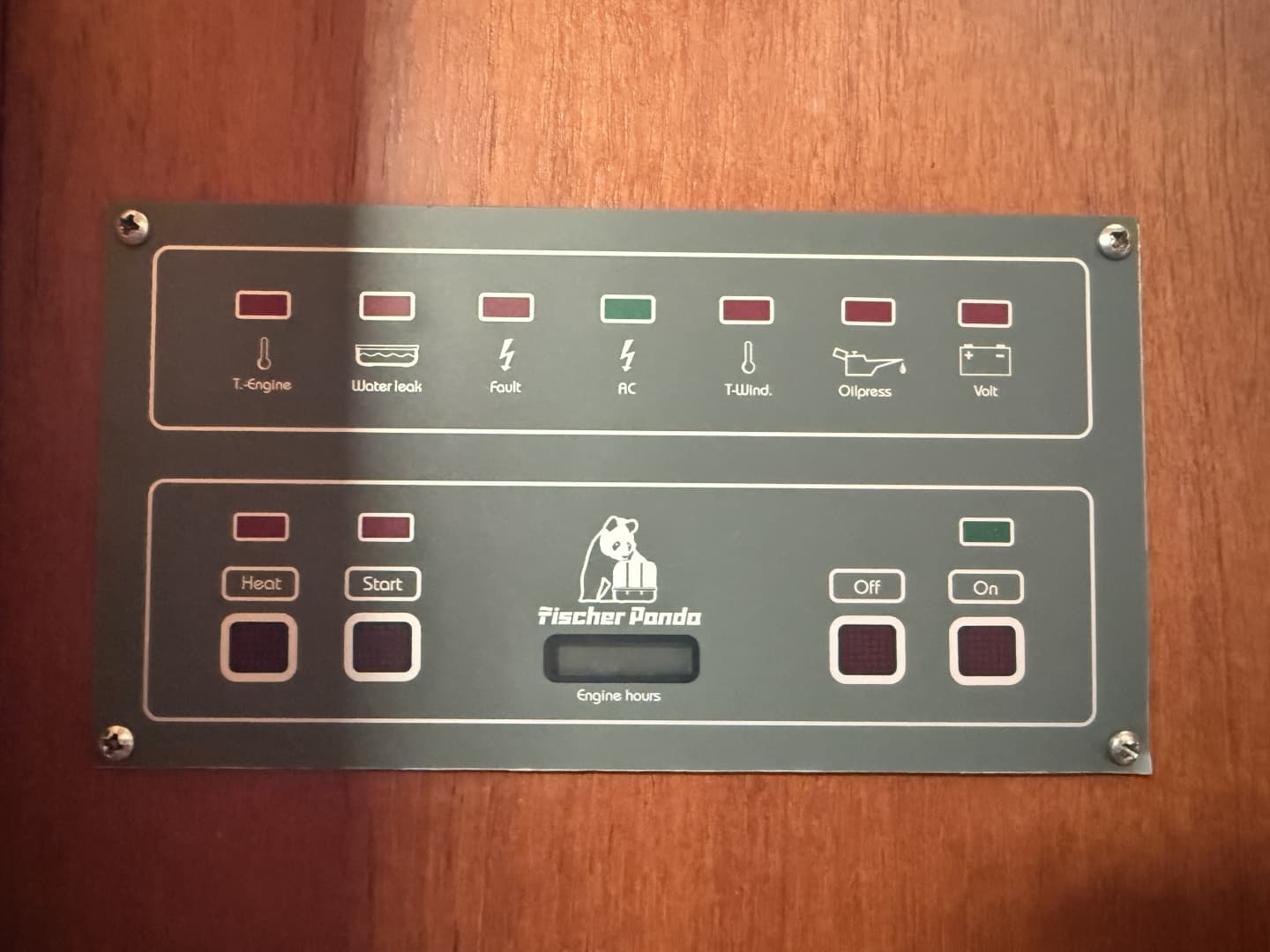

• Engine & GenSet Start - Group 31 AGM

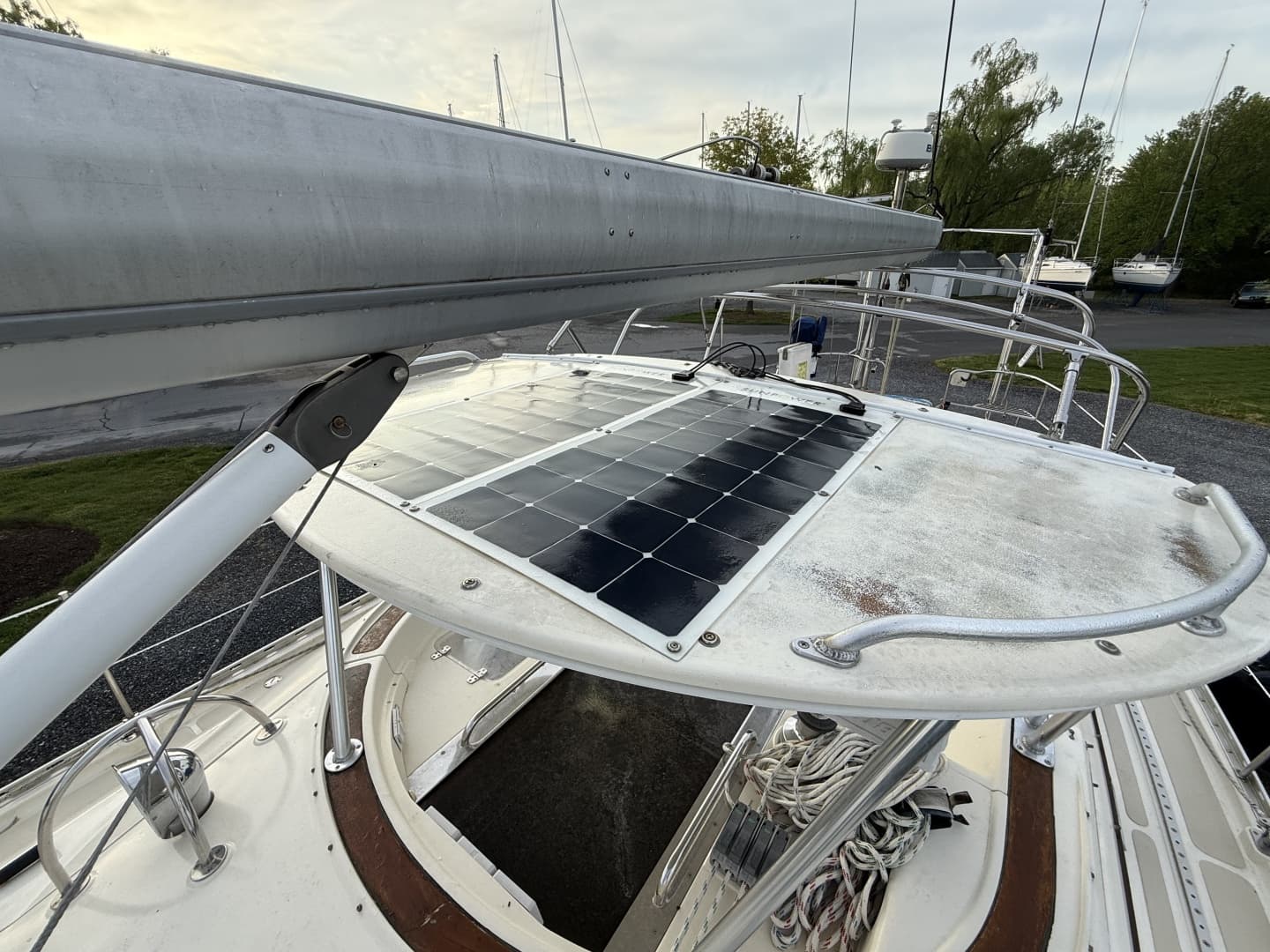

• Two (2) Sun Power 100W Flexible Solar Panels Mounted on Hard Dodger
• Victron MPPT 150/85 Solar Controlled
• Smartplug Shorepower Inlets

Electronics

NavSta & Salon

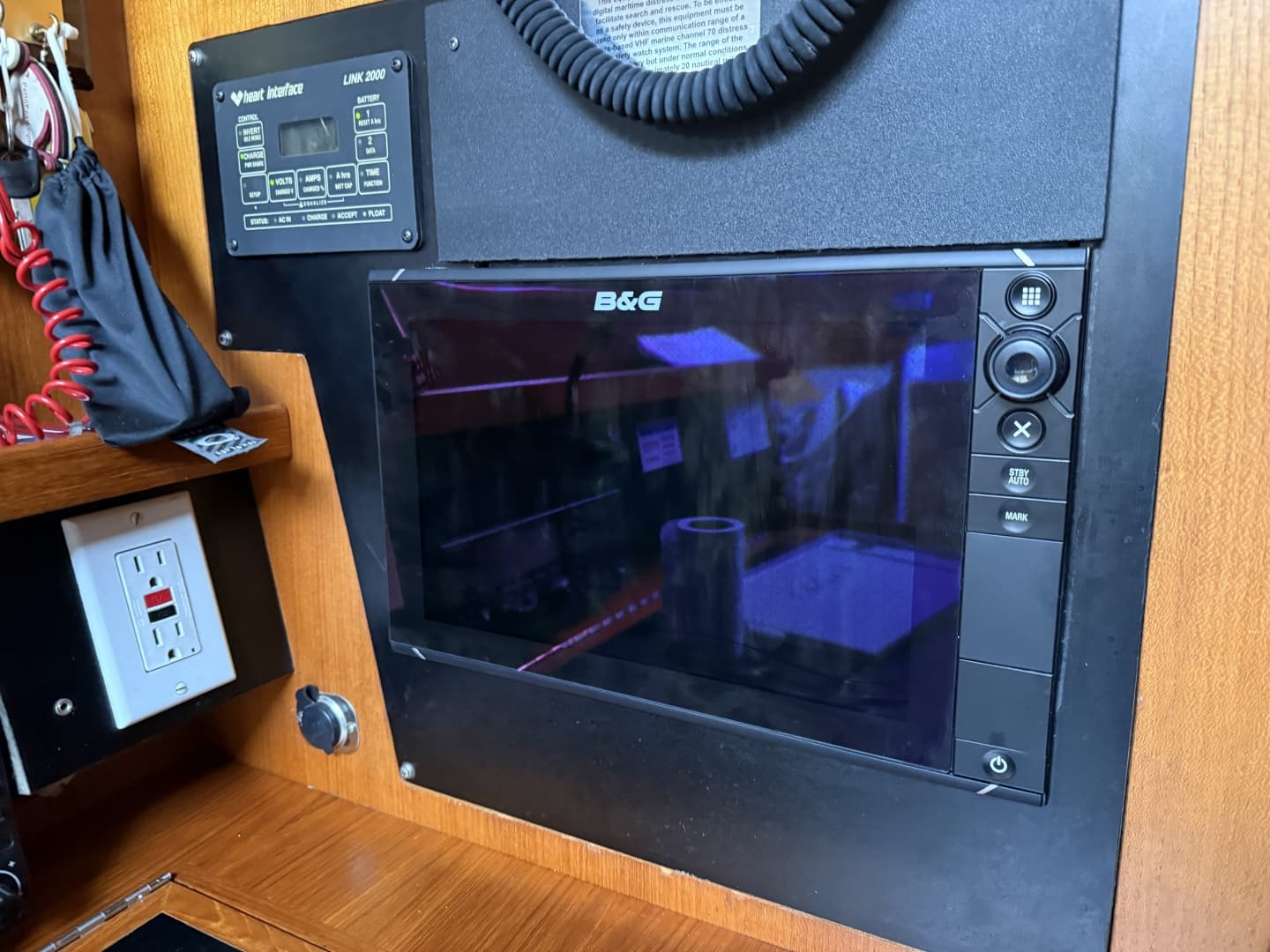

• B&G 12" Zeus Chartplotter

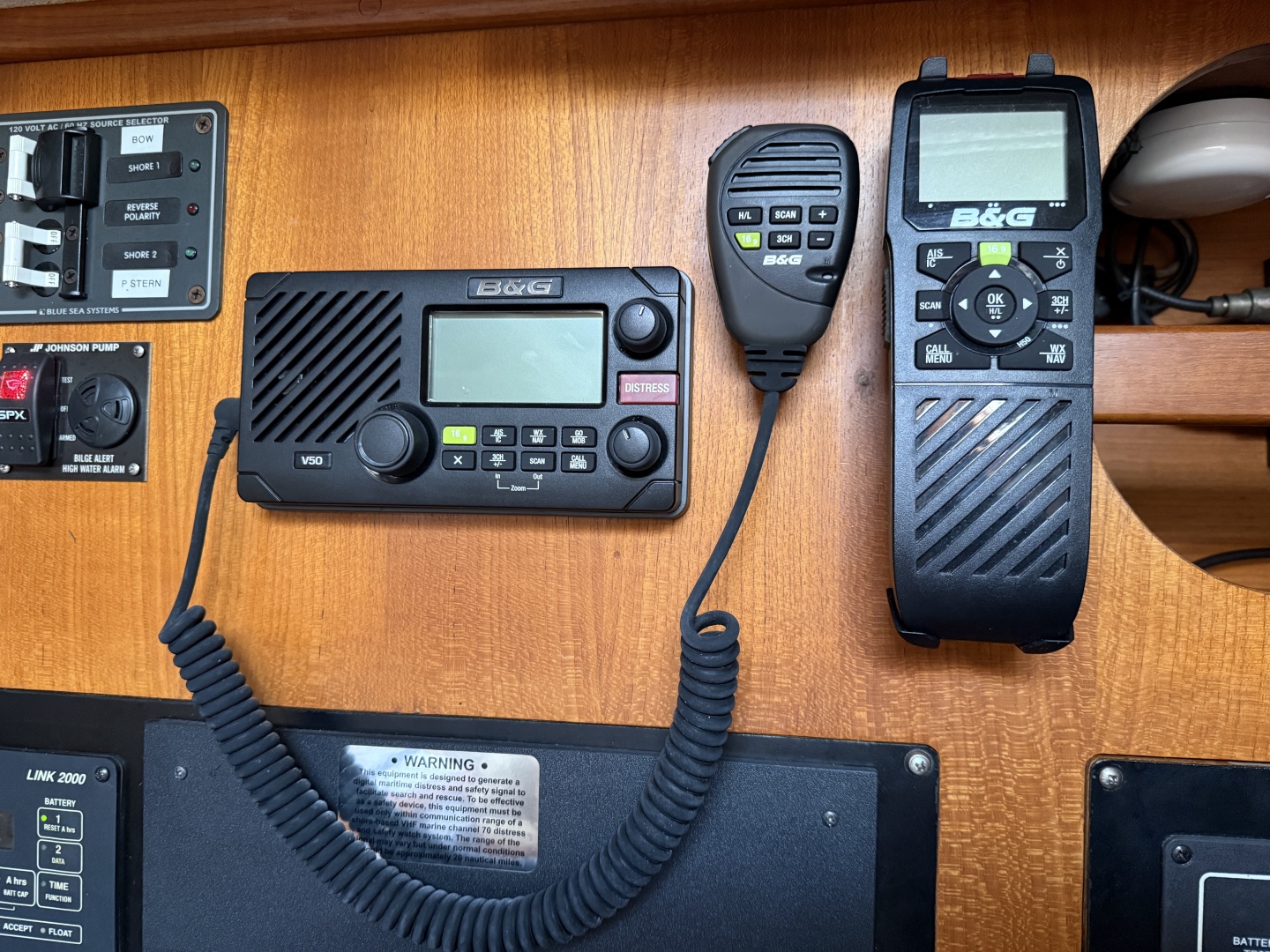

• B&G V50 VHF w/ Wireless Remote Mic

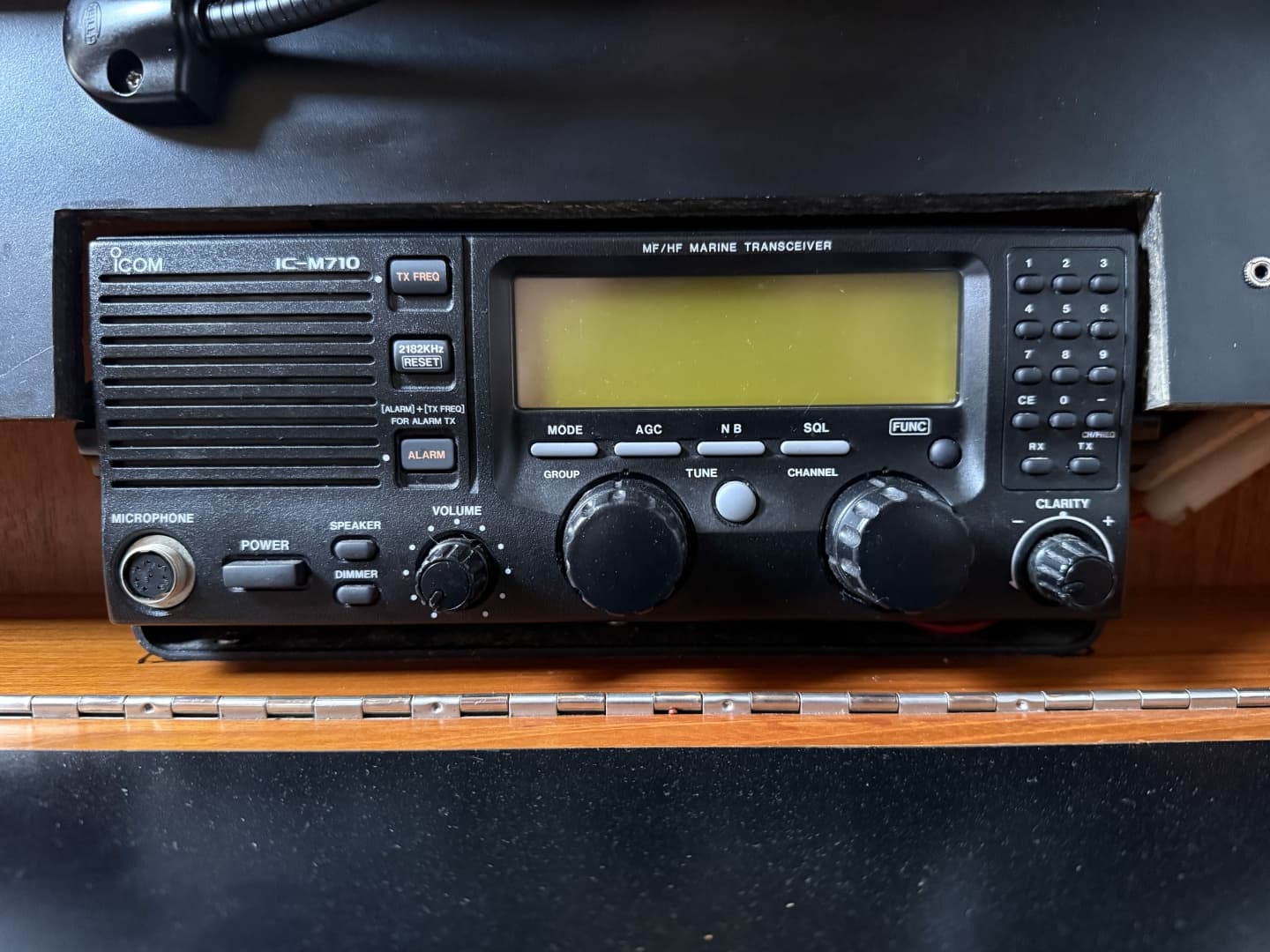

• Icom IC-M710 SSB
• Simrad NAIS-500 AIS Transceiver
• Simard NSPL-500 Antenna Splitter (VHF/AIS)
• Fusion Bluetooth Stereo System
• Vetus Bow Thruster Control

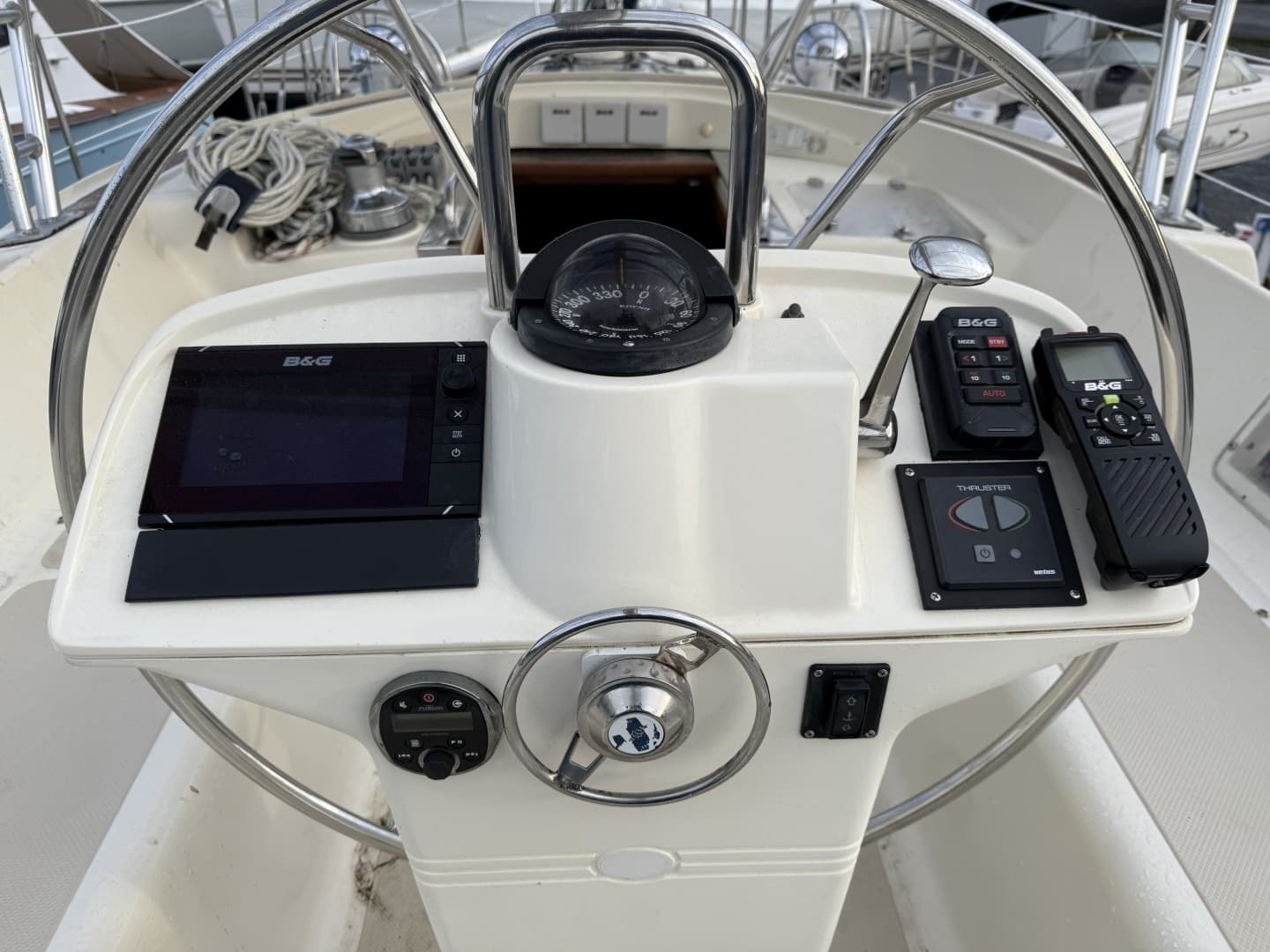

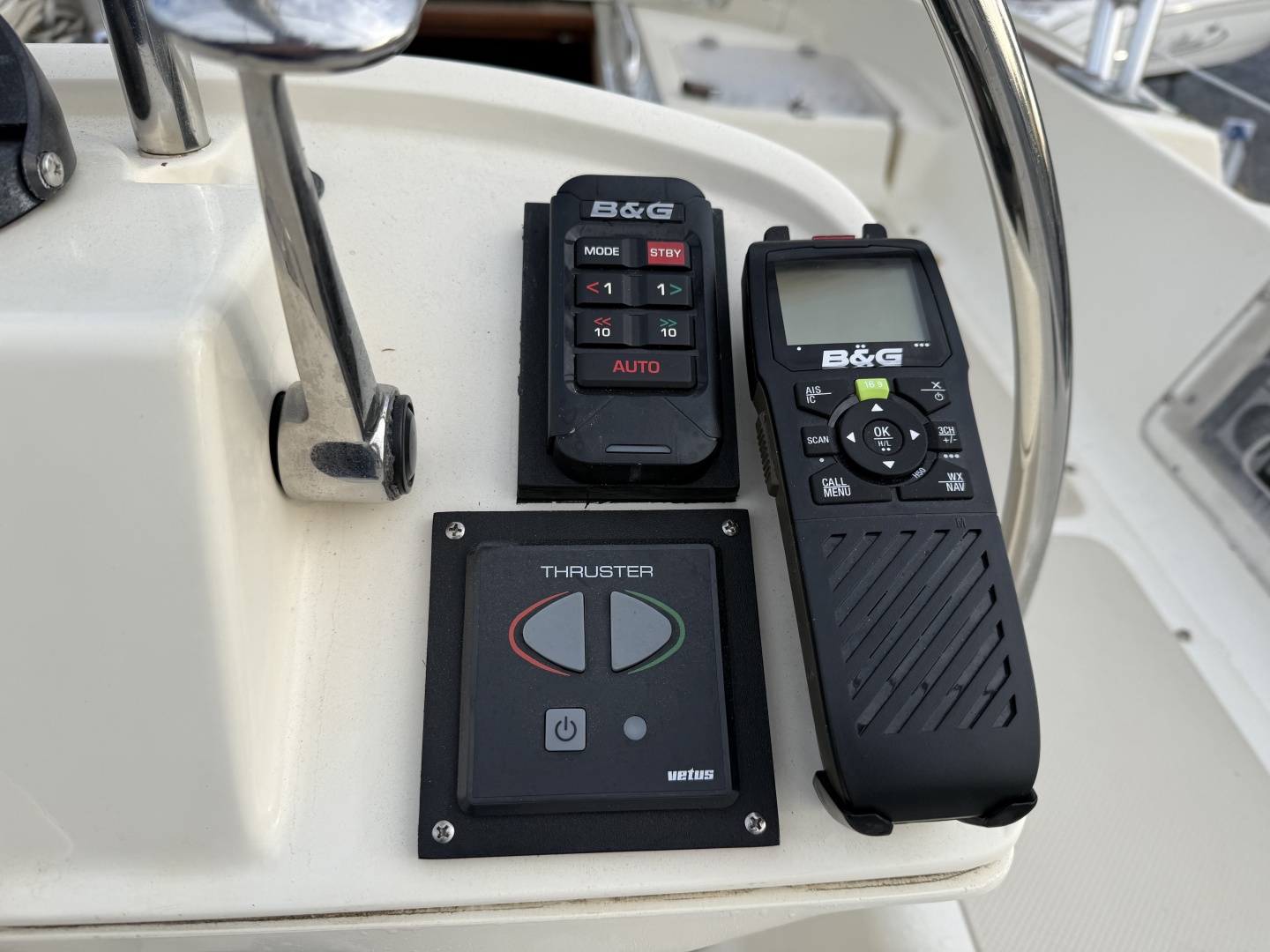

Cockpit/Helm

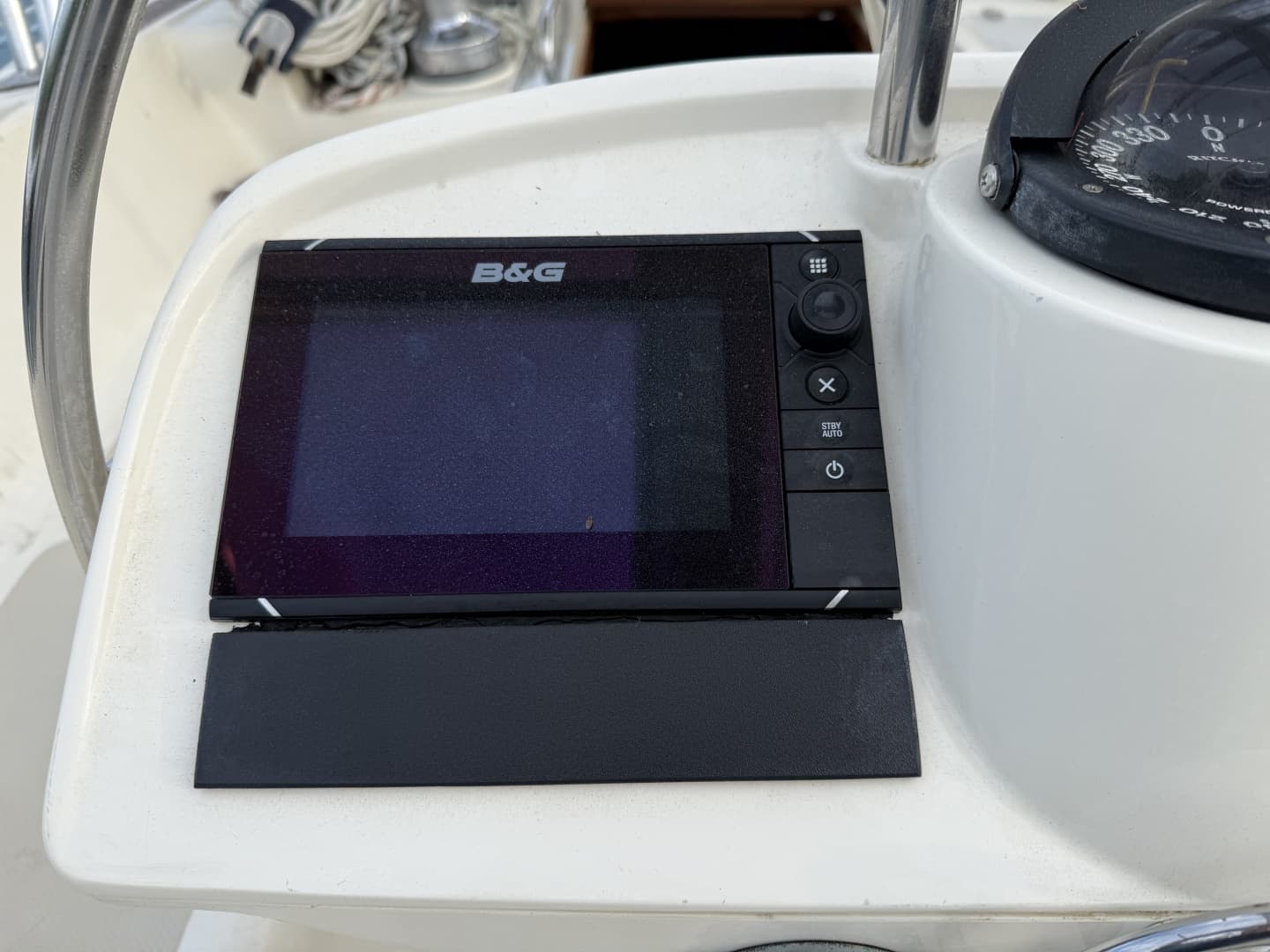

• Zeus 7" Chartplotter

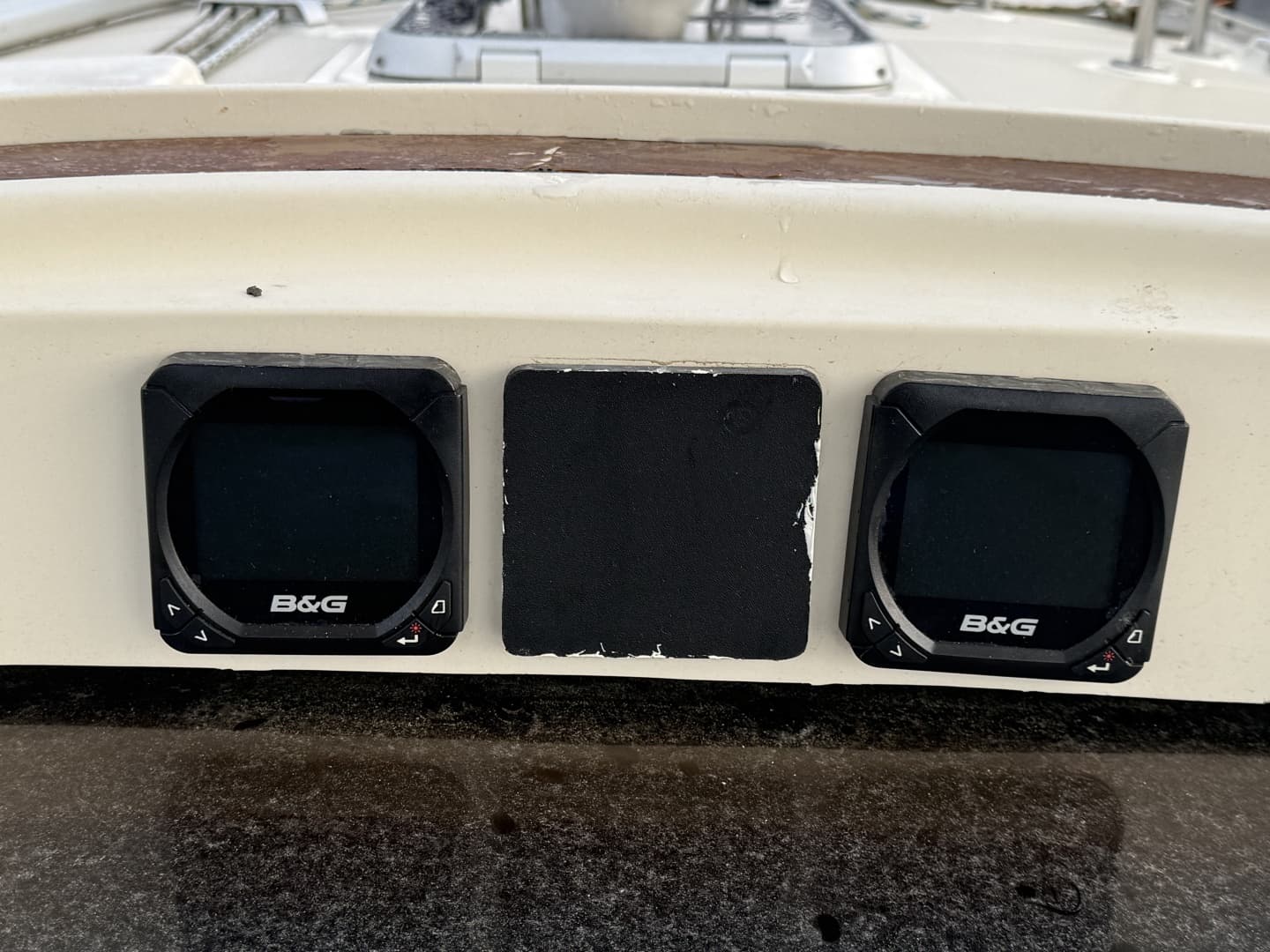

• Two B&G MFD Above Companionway
• B&G Autopilot Control
• Wireless Remote Mic Mount
• Windlass Remote
• Fusion Stereo Remote
• Bow Thruster Control
• Pole Mounted B&G Broadband Radar

Mechanical/Plumbing

• Fresh Water Pressure Pump
• Bilge Pumps
• Three Zone Reverse Cycle AC/Heat w/ dedicated units for Salon & Galley, Forward Berth and Aft Berth
• SeaFrost Refrigeration 12V & 120V - Massive Cold Plate in Freezer

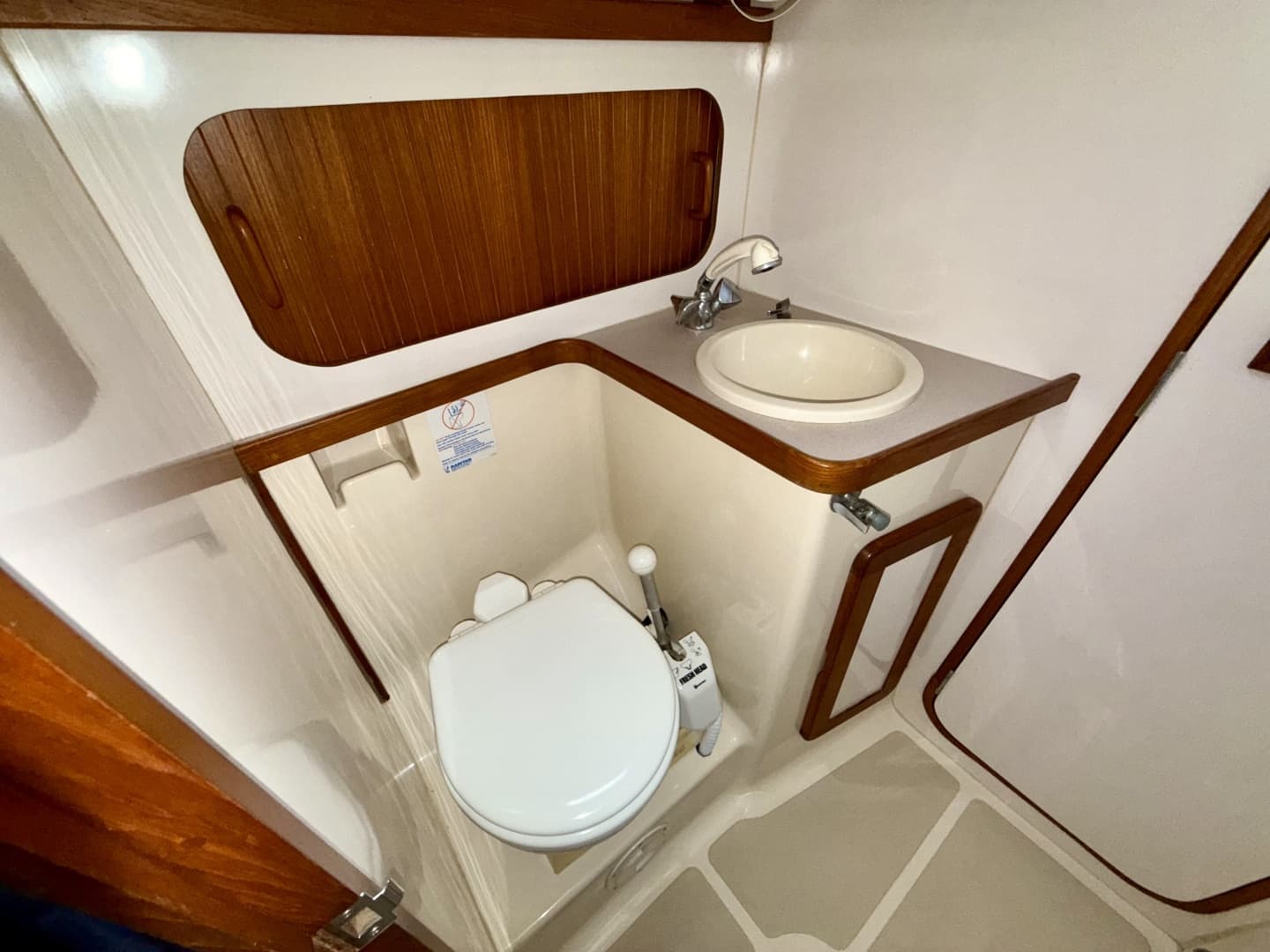

• Raritan Fresh Head Marine Toilets in Forward and Aft Heads

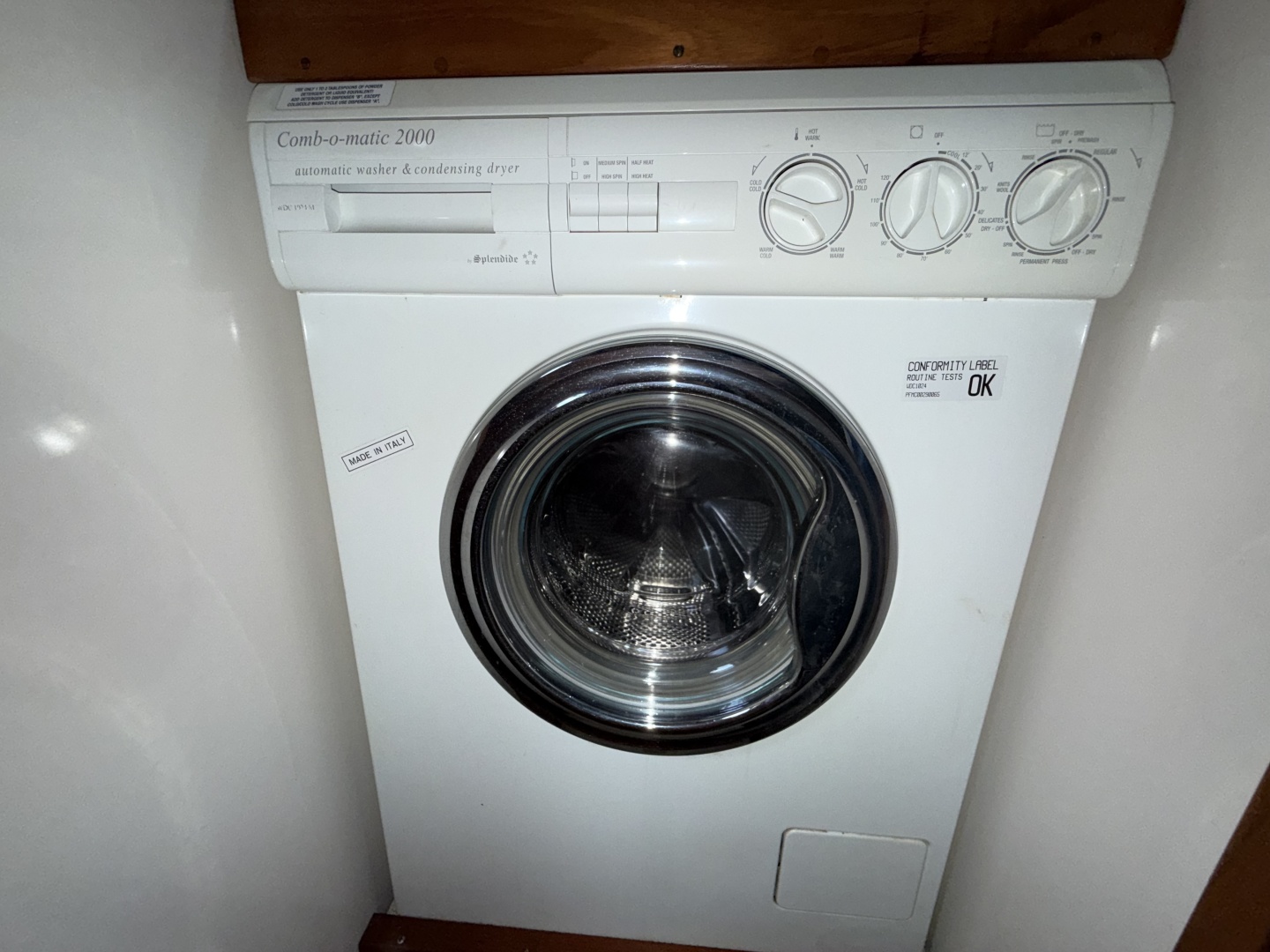

• Splendide Combo Washer/Dryer
• Dual Racor & Fuel Polishing System
• Aux Electric Fuel Pump

Ground Tackle

• Dual Anchor Roller

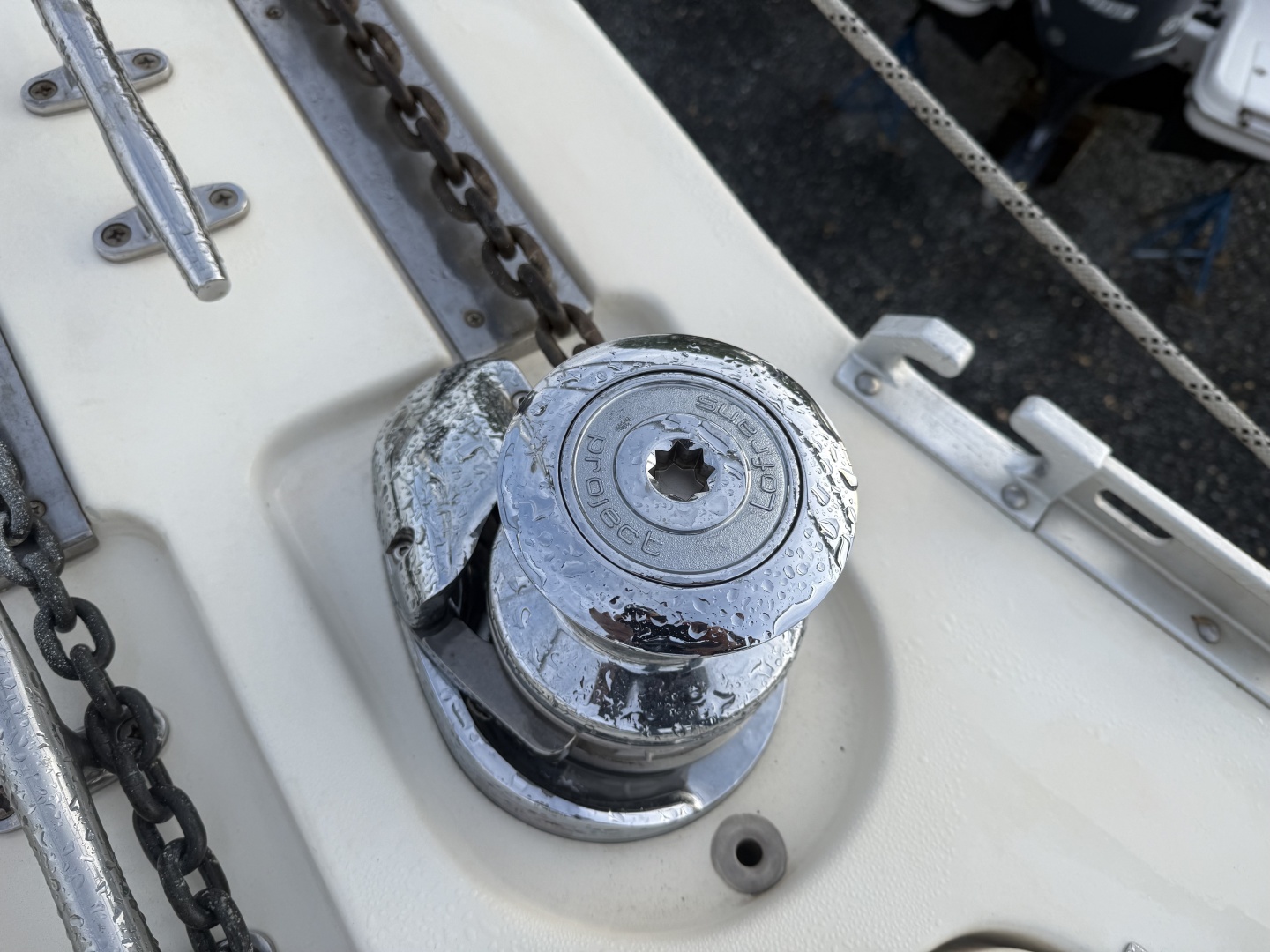

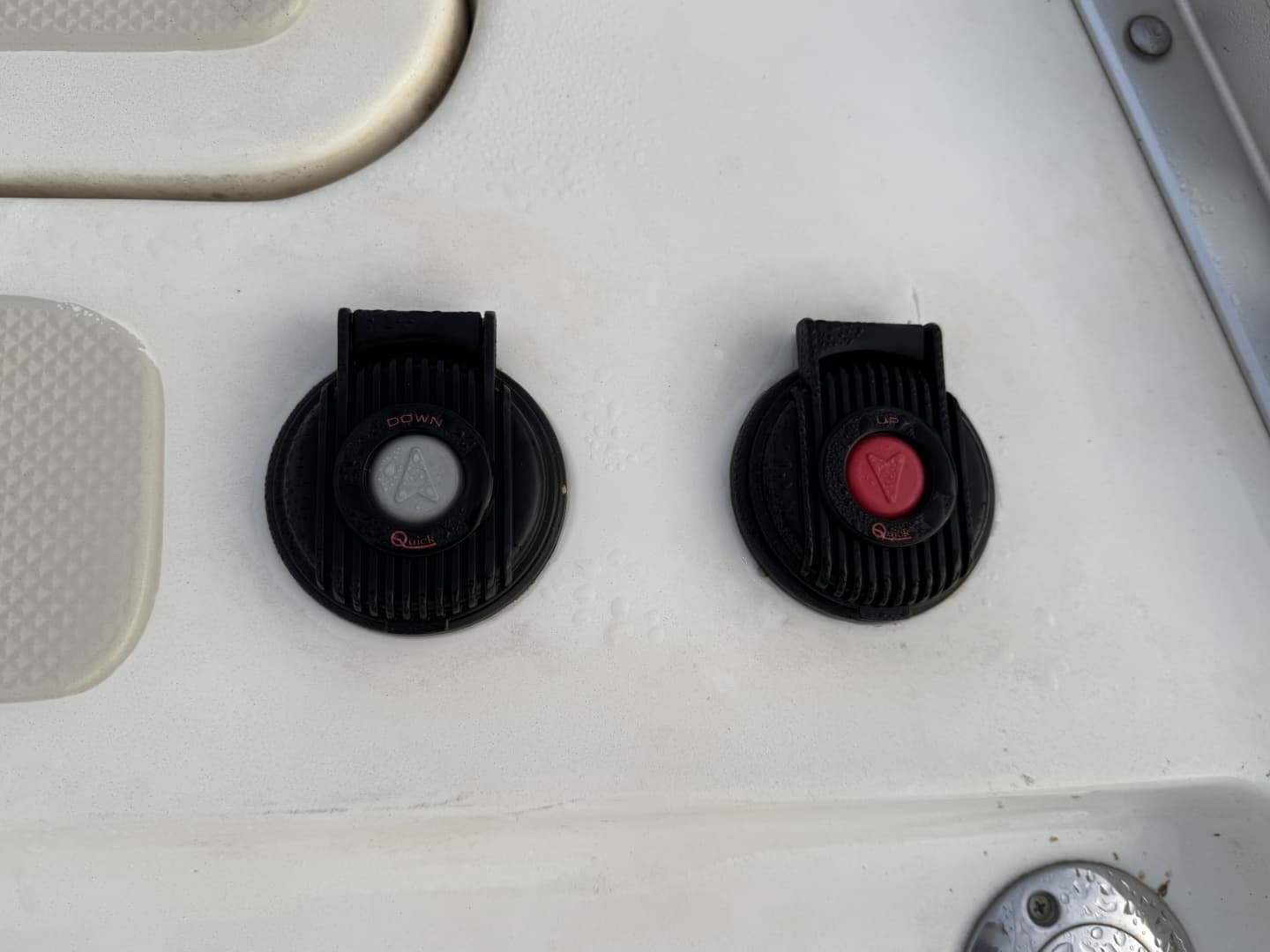

• Lofrans Vertical Windlass w/ Foot Controls and Cockpit Remote
• 55 lb Rocna w/ 150' Chain
• 45 lb CQR
