Overmarine

2008 Overmarine Mangusta 108

"GRAZIADIU"

109'Length

2008Year

23' 4"Beam

4Cabins

DieselFuel

Key Specifications

Length109' (109' 0" LOA)

Beam23' 4"

Draft3' 4"

Year2008

CategoryMotor Yachts

TypePower

Hull MaterialGRP

Fuel TypeDiesel

Cruise Speed32 Knots

Max Speed37 Knots

Weight & Displacement

Displacement105 lbs

Gross Tonnage181 tons

Accommodation

Cabins4

Sleeps10

Heads0

Tank Capacities

Fuel3,434 gal

Fresh Water528 gal

Holding0 gal

Highlights & Features

About This Yacht

DH Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Northrop and Johnson. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

Propulsion

Engine 1MTU 12V 4000 M90

Power2,730 HPPower2036 KWHours1,566

Engine 2MTU 12V 4000 M90

Power2,730 HPPower2036 KWHours1,566

Engine 3Kohler 33EFOZ

00Hours3,599

Engine 4Kohler 33EFOZ

00Hours3,092

Registration

HIN/IMO8747630

Full Details

Overview

Builder: Overmarine
Model: Mangusta 108
Length: 33.48.m (109’ 58”)
Construction: GRP
Year: 2008
Refit: 2025
Guests: 10 in 4 Cabins
Crew: 5 in 3 cabins
Cruise Speed: 32 Knots
Top Speed: 35Knots
Range: 460 nm
Exterior Designer: Stefano Righini Design
Classification: Bureau Veritas
Flag: Cayman Island
Commercial Compliance: MCA (I 3/3 E, MACH, Charter Yacht /C)

Principal Dimensions

Length overall (incl. pulpit): 33.4m (109’ 58”)
Length overall (excl. pulpit): 28.5m (103’ 4”)
Beam: 7.12m (23' 3")
Draft: 1.3m (17' 3")
Gross Tonnage: 181 GRT
Net Tonnage: 54 T
Displacement: 110 T (Full Load)
Fuel capacity: 14,700 L (3,883 gallons)
Water capacity: 2,000 L (528 gallons)
Grey & Black Water: 1,600 L (422 gallons)

Broker’s Comments

GRAZIADIU is an exceptional example of the iconic Mangusta 108 series — a yacht that perfectly blends performance, style, and comfort. Measuring 109.9 feet (33.5 meters), she offers generous accommodations for up to 10 guests in four beautifully appointed cabins, each thoughtfully designed with light wood finishes and bold colours.

Crafted by the renowned Italian shipyard Overmarine, GRAZIADIU has been privately owned and maintained to the highest standards, reflecting the meticulous care by her captain and owners. With low engine hours and benefitting from the completion of her class survey in 2025, she is ready for her new owner.

Performance

Cruising Speed: 32.0 knots Maximum Speed: 35.0 knots
Range: 460nm

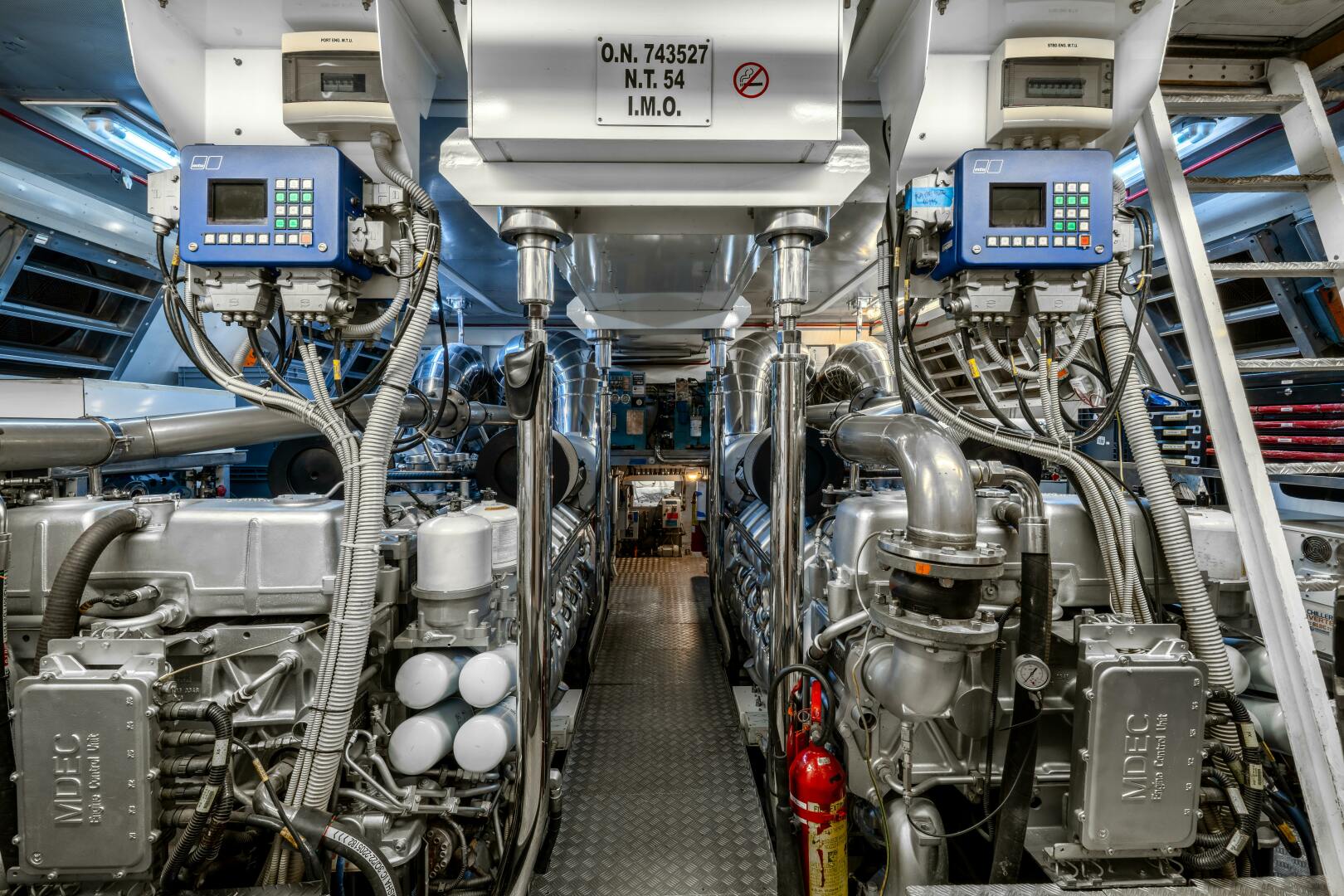

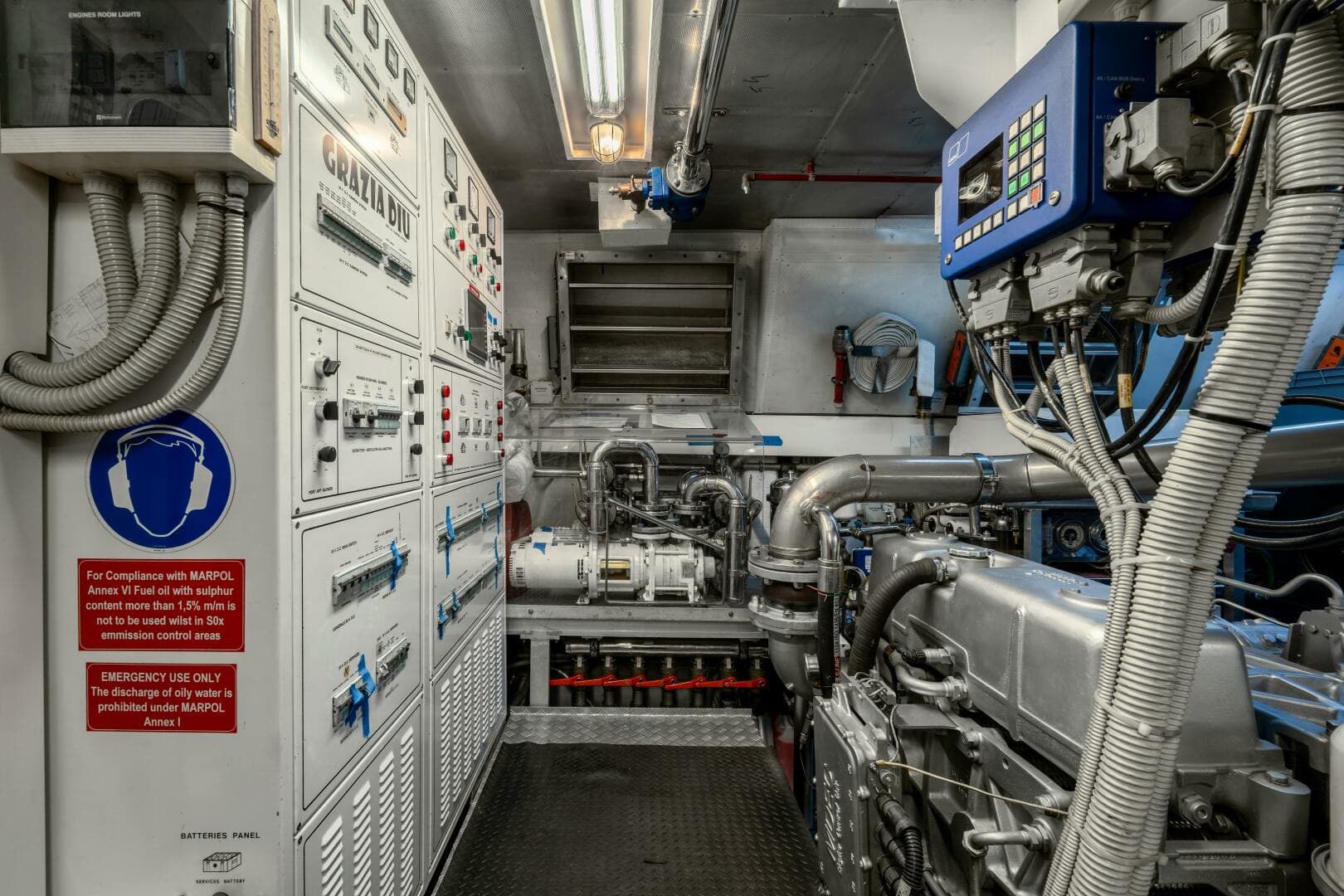

Machinery

Engines: 2 X MTU 12V 4000 M90 2040 kW 2730hp
Engine hours: Port: 1566 hrs / Stbd: 1566 hrs

Generators: 2 X KOHLER 33EFOZ @ 33kW each
Generator hours: Port: 3,599 hrs / Stbd: 3092 hrs

Propulsion & Steering

Propulsion: 2 x Kamewa 63 S3 Water Jets
Gearboxes: 2 x ZF BW 465
Hydraulic Bow Thruster BCS 47 kW

Onboard Systems

FUEL SYSTEM: RACOR fuel pre-filter supplied by MTU and WESTFALIA OTC 2 400 V Fuel purifier
Gianneschi bilge pumps and fire fighting
Frigomar Air conditioning

Deck Hardware

WINCHES, ANCHORS AND CAPSTANS
Two 5500 W Lofrans Ercole Verticale –
3kW/3 –phase/380V vertical anchor windlasses

ANCHORS & CHAINS
• 2 x SEC SHHP 154 KG
• 2 X 14 mm chain length of 120m galvanized

CAPSTANS
• 2 X Lofrans T2000 2.2 kW 400 V

GANGWAY
• Sanguineti hydraulic gangway and swim ladder MIZAR L Capacity 680 kg
• Teak grating walking surface
• Tilting capability
• Infrared remote controls

Deck Equipment

• 1 X Sanshin search lights
• 1 X Kahlenberg air horns
• Aft deck sun awning
• 1 X sun beds forward
• Swim platform
• Bow deck shower
• Electric Sun Roof

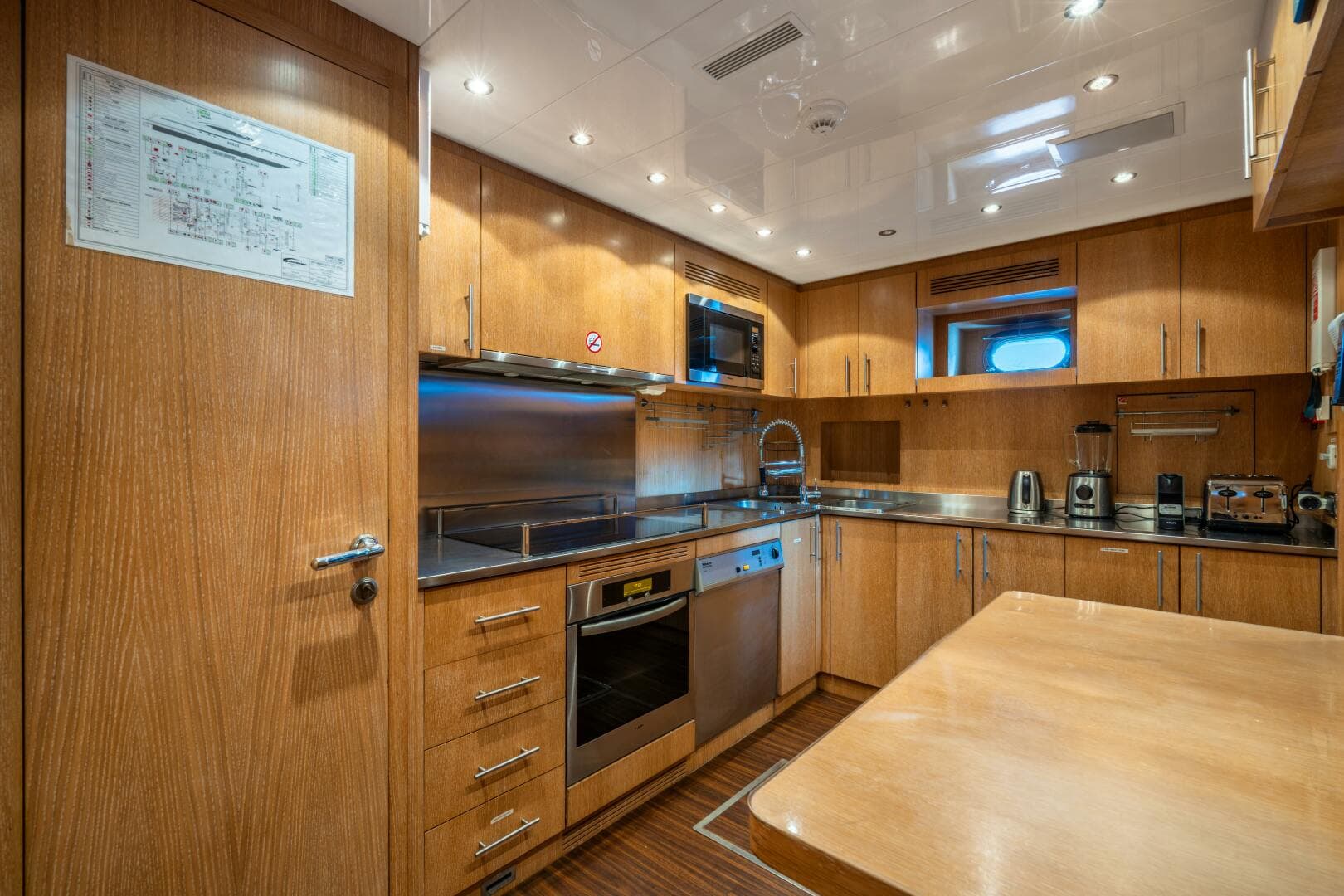

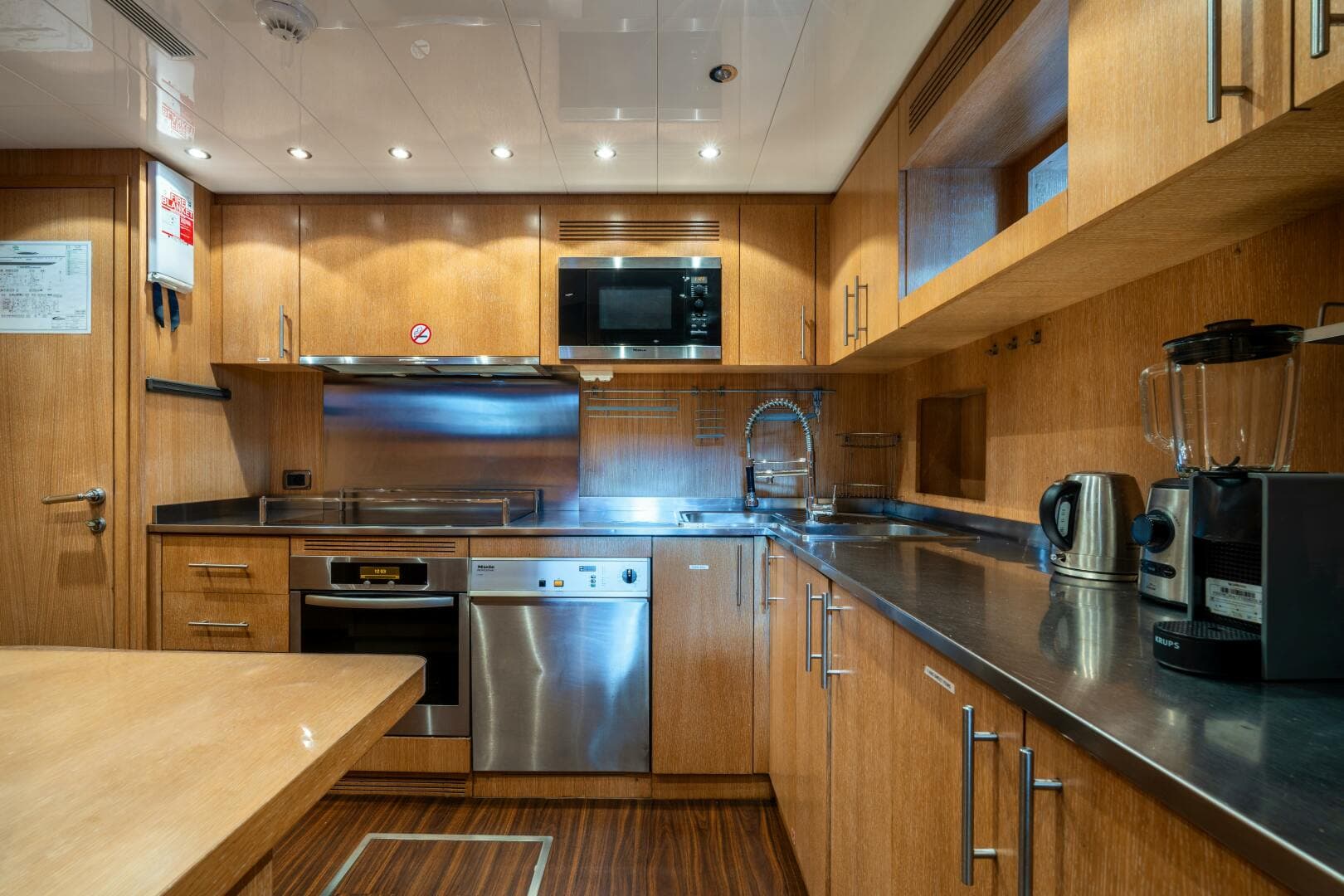

Galley

• 1 X Miele Oven
• 1 X Miele Microwave M8161 • 1 X Miele Exhaust hood
• 1 X Miele Dishwasher G78J6 • 4 X Frigit fridges
• 1 X Liebherr winecellar
• 1 X Gaggenau cooking top
• 2 X Frigit fridges
• 1 X Brema icemaker

Laundry

• Clothes washing machine PW 6065
• Condense dryer machine PT 7136

Safety Equipment

• 2 X Survitec Zodiac XTREM SOLAS; 10 person
• 1 X Survitec Zodiac XTREM SOLAS; 8 person
• 9 X dry powder fire extinguishers, 2 kg
• 5 X dry powder fire extinguishers, 6 kg
• 4 X dry powder fire extinguishers, 9LT
• 3 X C02 5kg
• Engine room C02 fire fighting system
• ACR EPIRB GME MT406FG

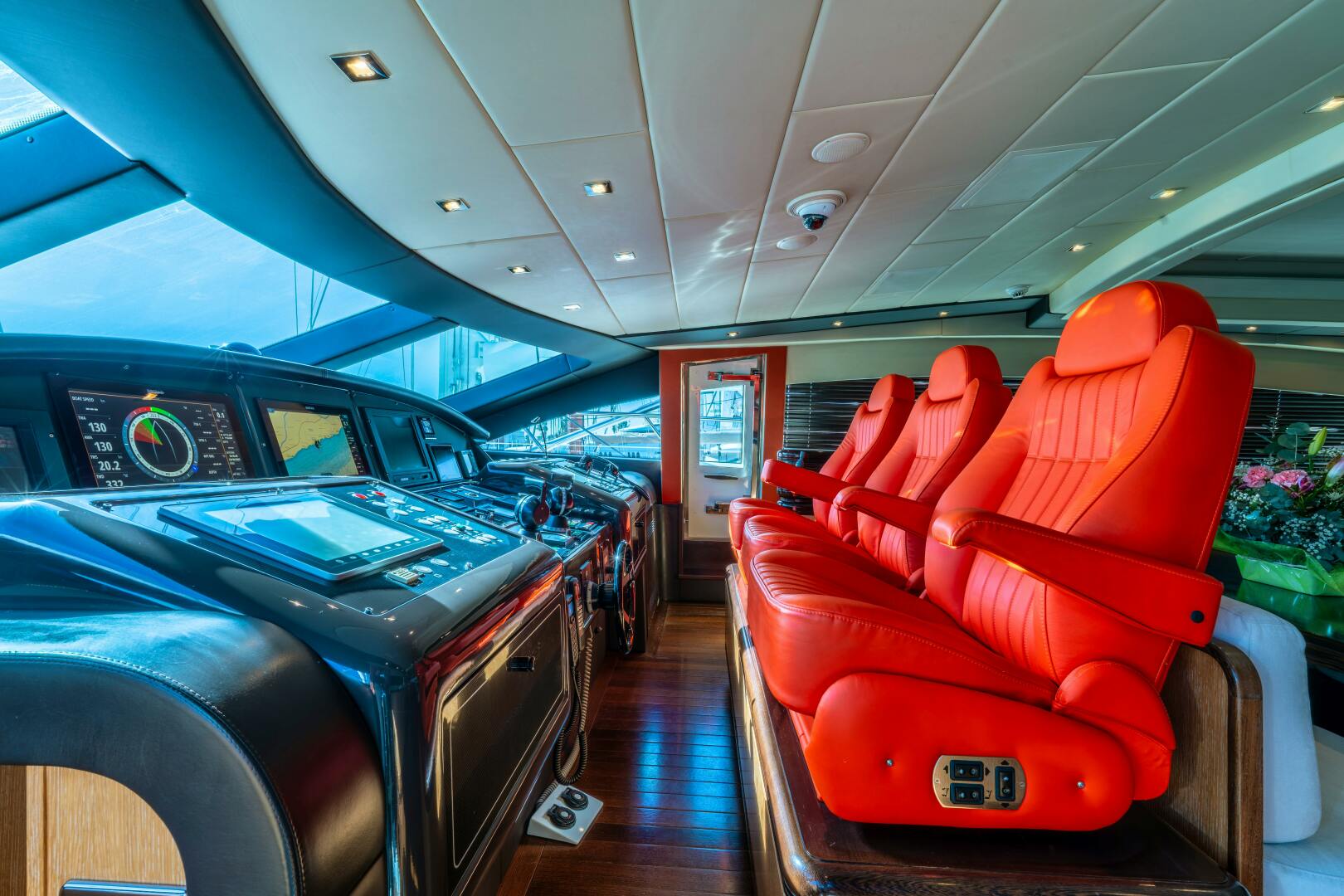

Navigation System & CCT

• Plotter: Time Zero Pro
• Radar Furuno FAR PPU013
• Sounder Furuno ETR610N
• Wind Airmar weather station
• Autopilota Roberson AP9 MK3
• Ais Fa150 Furuno
• VHF FM2721
• Navtex Fax30
• Satelite Compass Furuno SC702

Audio Video

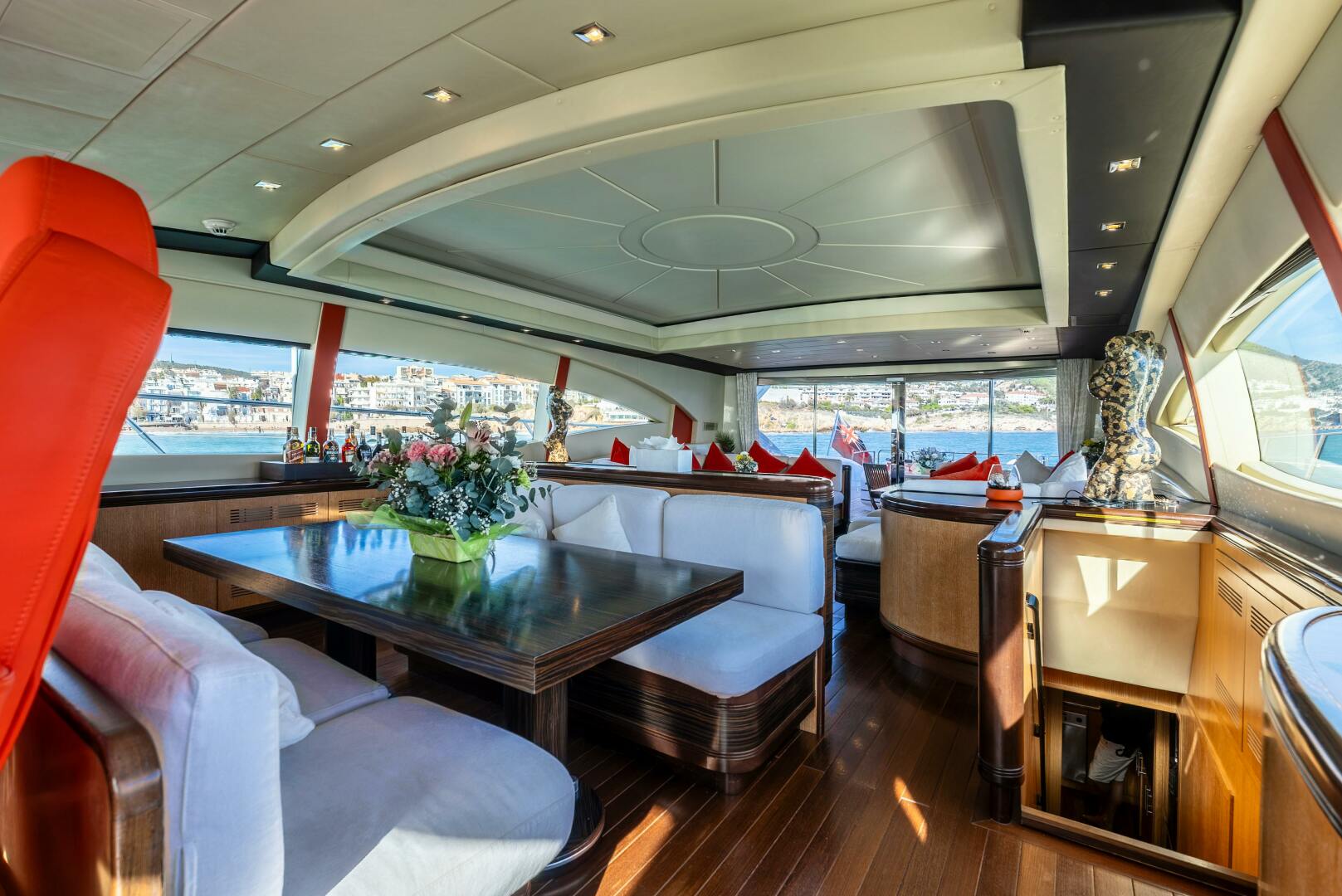

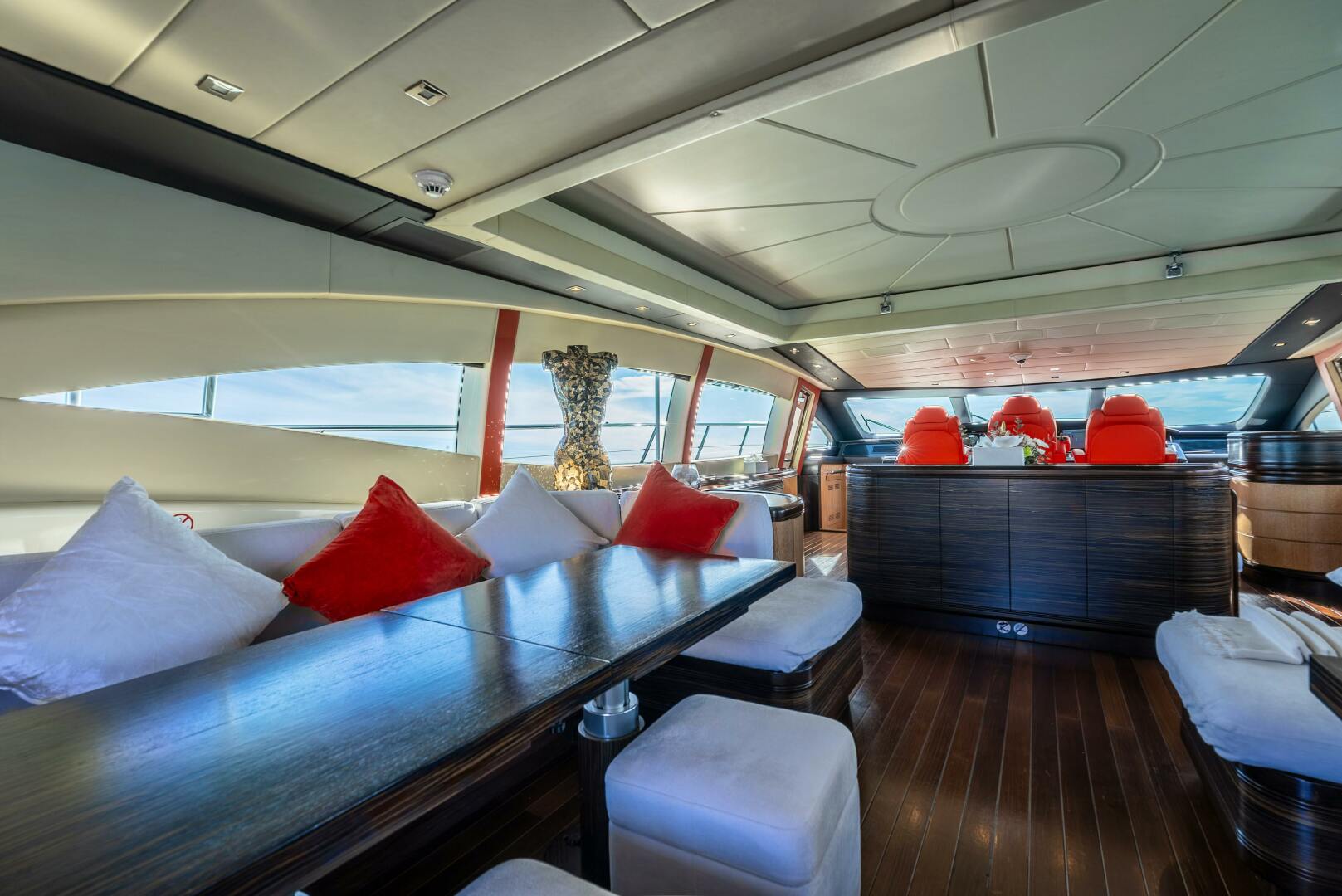

Main Deck Saloon
• Tv Samsung HD 55”
• Amplifier Denon
• Kaleidescape client media player
• Decoder sat sky
• Apple tv
• 5 X speaker Heartquake image 8 • Subwoofer JL Lab focal
• Remote control: Neo Control 4

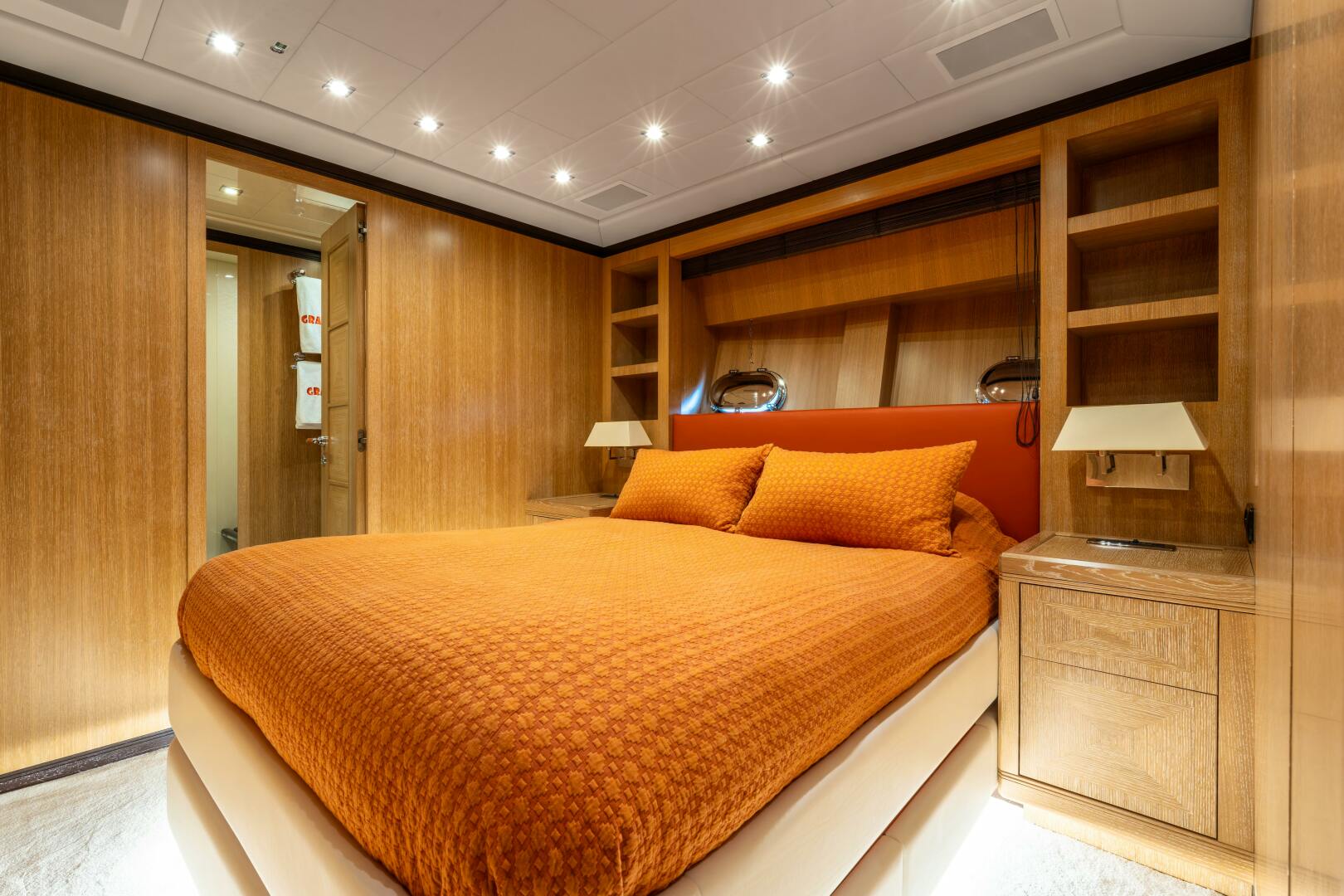

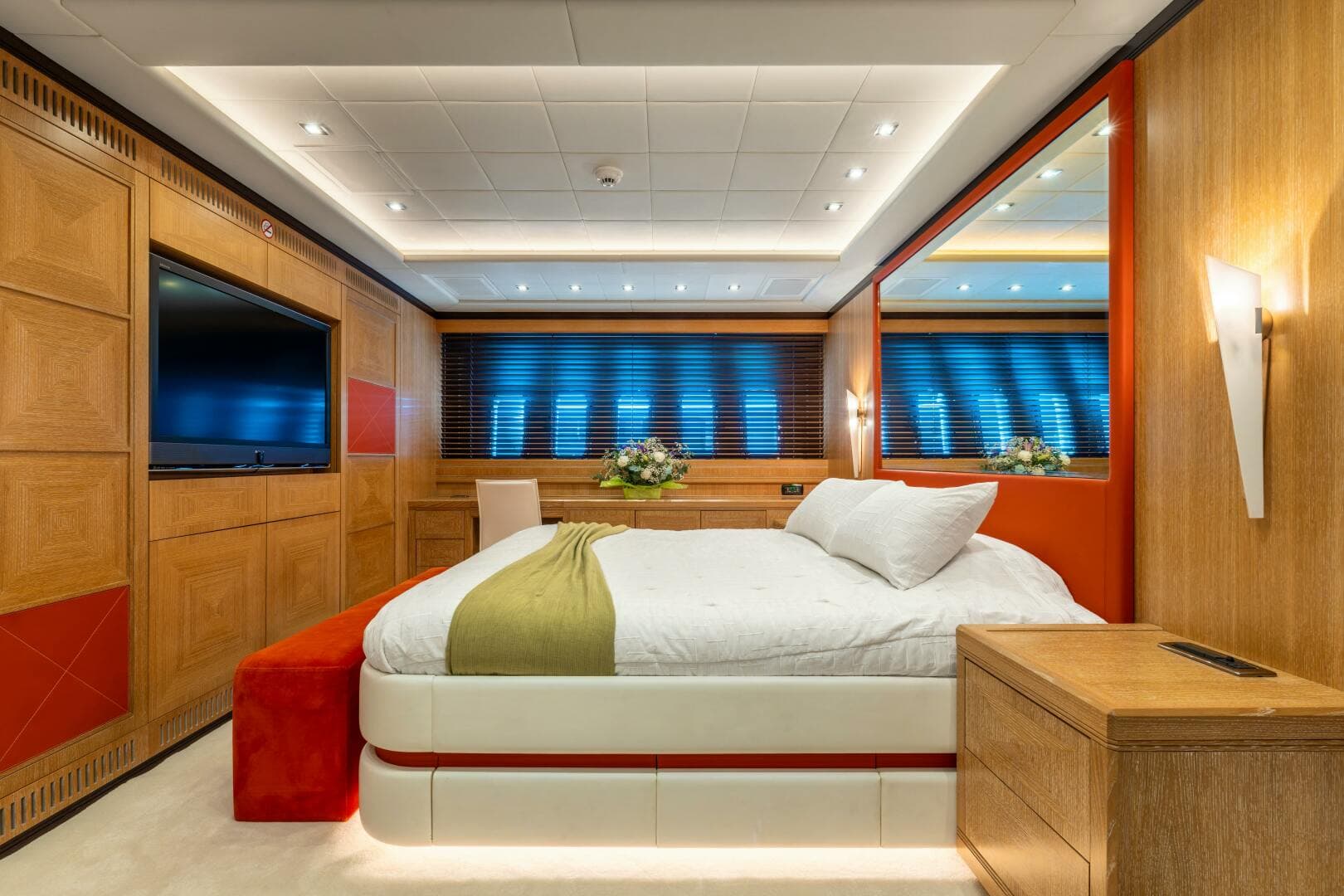

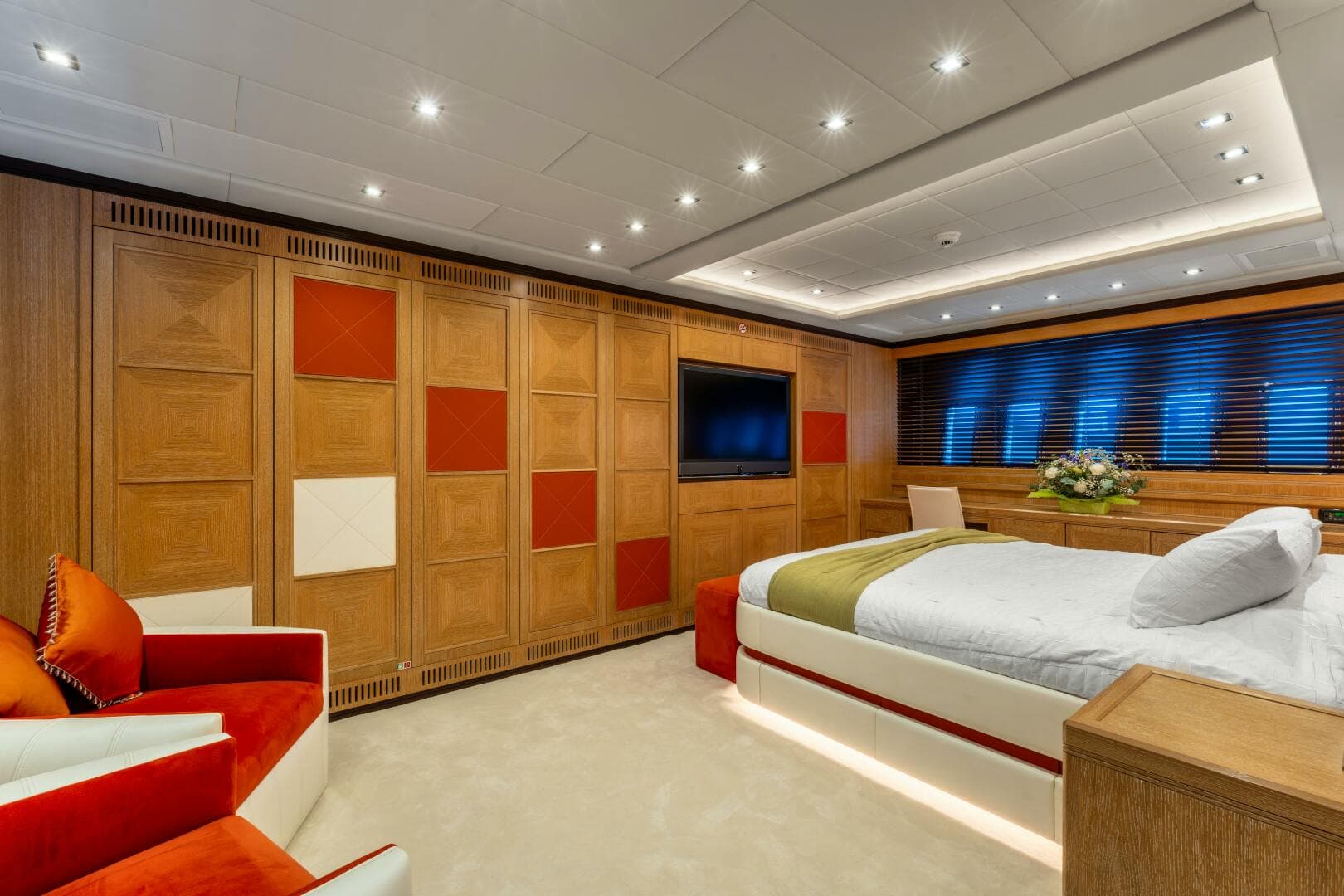

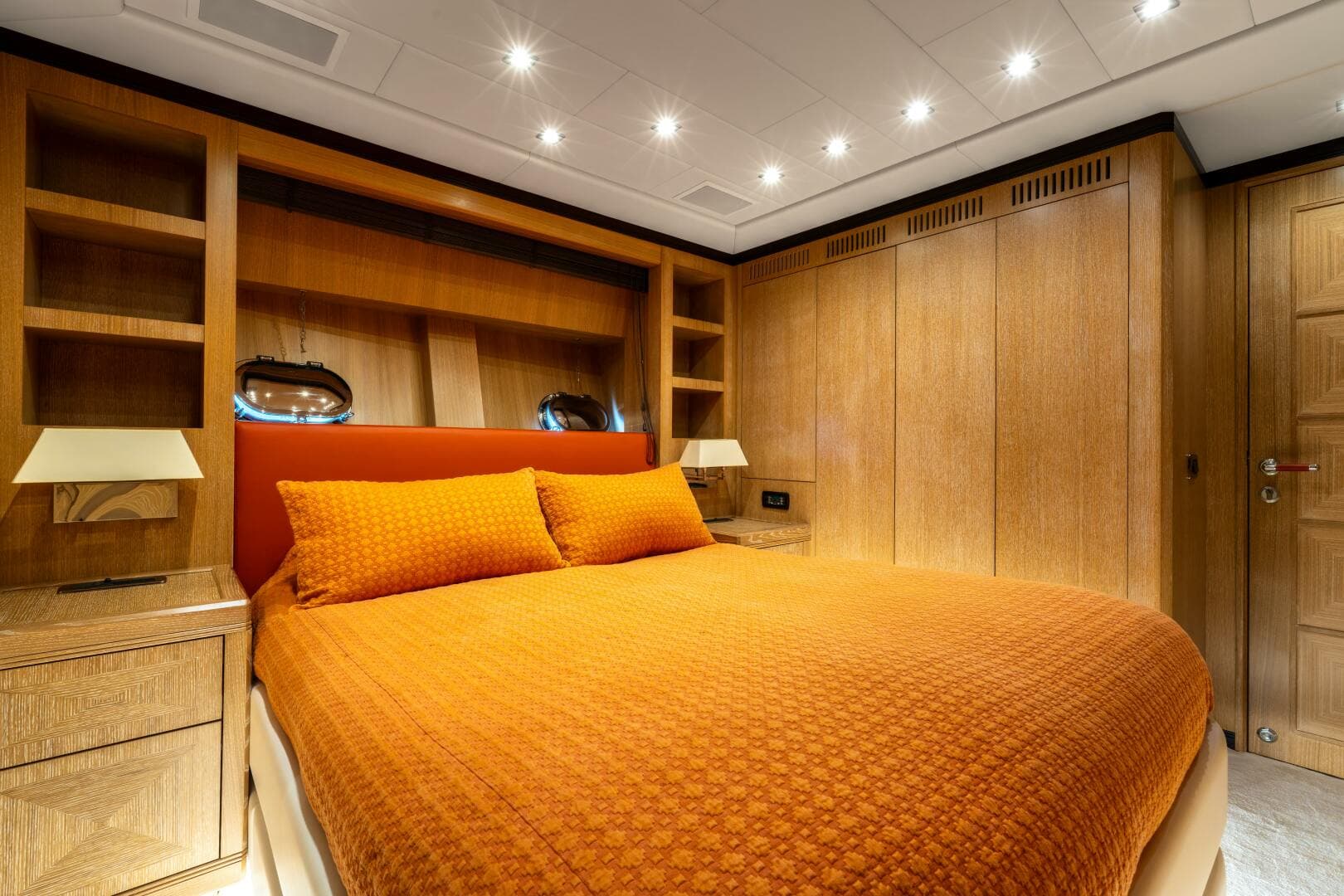

Owners cabin
• Tv Samsung HD 40”
• Apple TV
• Amplifier Marantz
• Kaleidescape client media player
• Decoder sat
• Apple tv
• 5 X speaker Heartquake image 8
• Subwoofer JL Lab focal
• Philips pronto tsu 9600 remote control

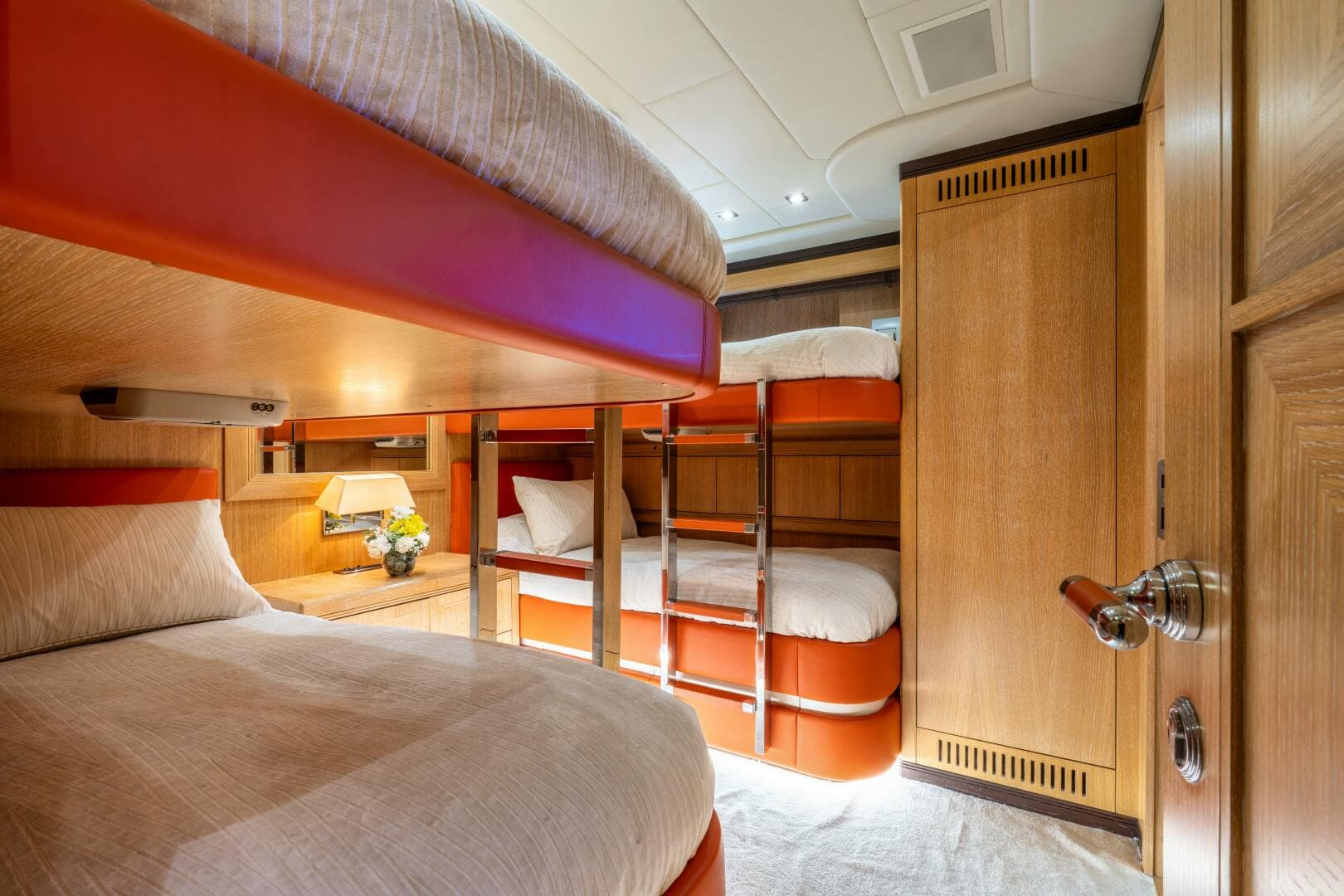

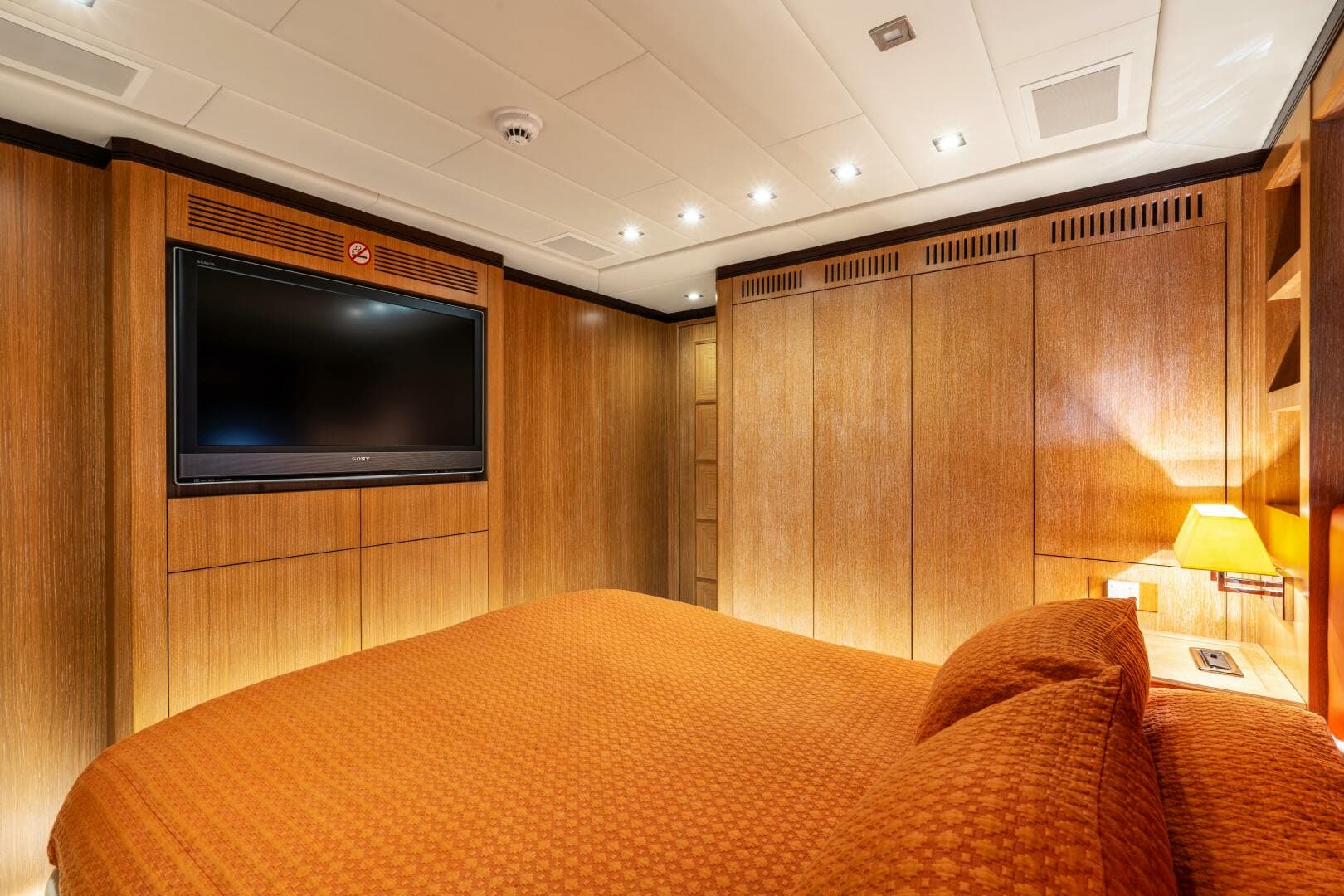

Guest Cabins
• Tv Sony 22”
• Apple TV
• Amplifier Marantz
• Subwoofer Denon
• 4 X speaker Heartquake image 6
• Decoder sat
• Remote control: Neo Control 4

Fore deck
• 2 X speaker 4”
• Crestron keypad control
• Amplifier Marantz
Aft Deck
• 6 X speaker Focal IC108
• Amplifier Marantz

Captain’s Cabin
• TV LG 20”
• Amplifier Marantz
• Subwoofer Denon
• Decoder sat
• 1 X 2 speaker Heartquake image 6
• Display 8” cctv
• Furuno RD30

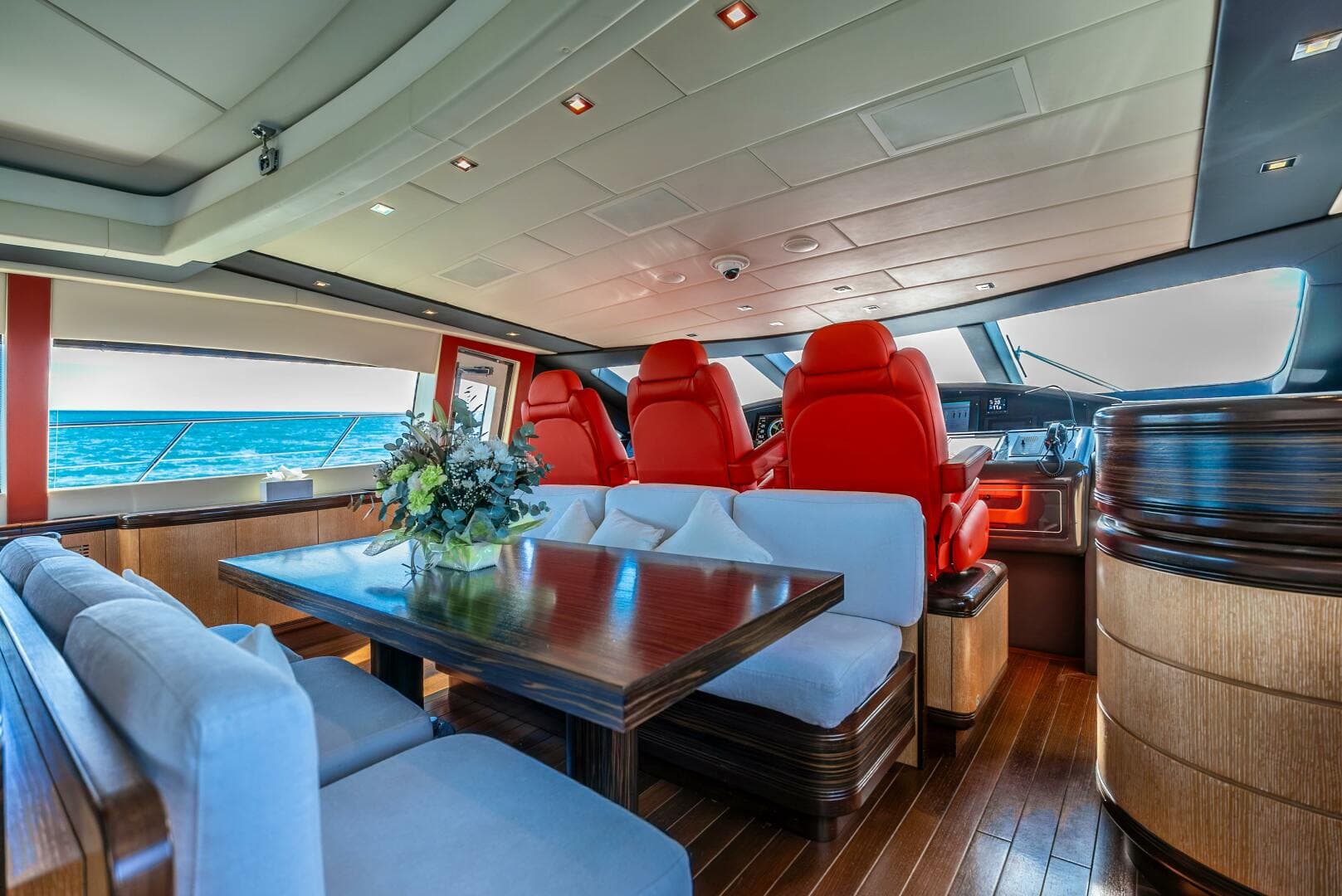

Dinette
• TV Samsung 32”
• Amplifier Marantz
• Decoder sat
• 1 X 2 speaker Heartquake image 6
• Display 10” cctv
• Furuno RD30

Crew Cabin
• 2 X TV LG 14”
• Amplifier Marantz
• Subwoofer Denon
• Decoder sat
• 2 X speaker Heartquake image 6
• Display 8” cctv
• Furuno RD30

Tech room & rack
• Router 4G Peplink max br1 mk2 • Control 4
• Crestron matrix PVID8X3 • Crestron matrix BIPAD 8 • Crestron FM tuner
• Quad Panasonic cctv
• Wi-fi Ubiquity Mesh kit
• 4 X access point Ubiquity
• Satellite BB server wired ocean • KVH TV8
