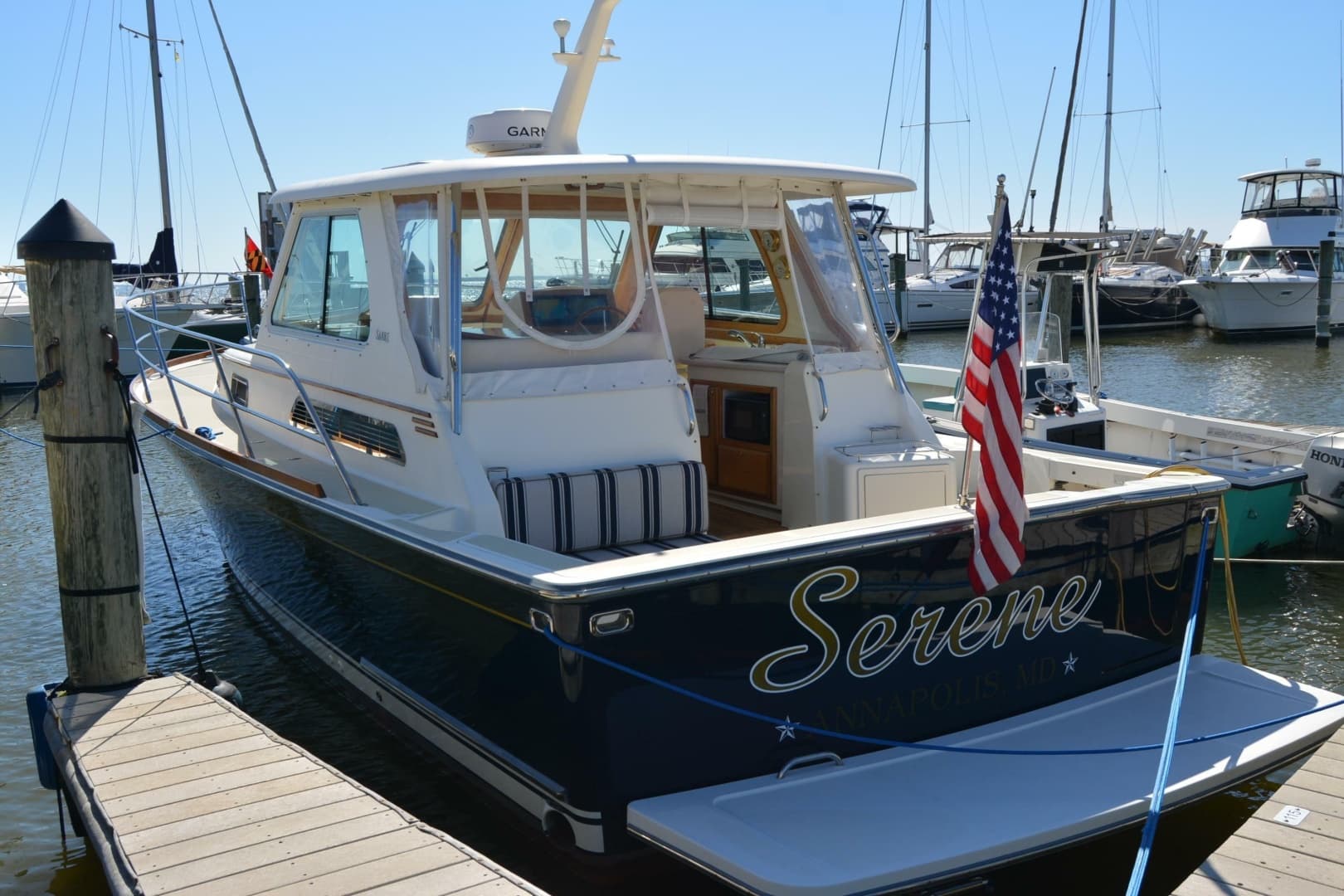

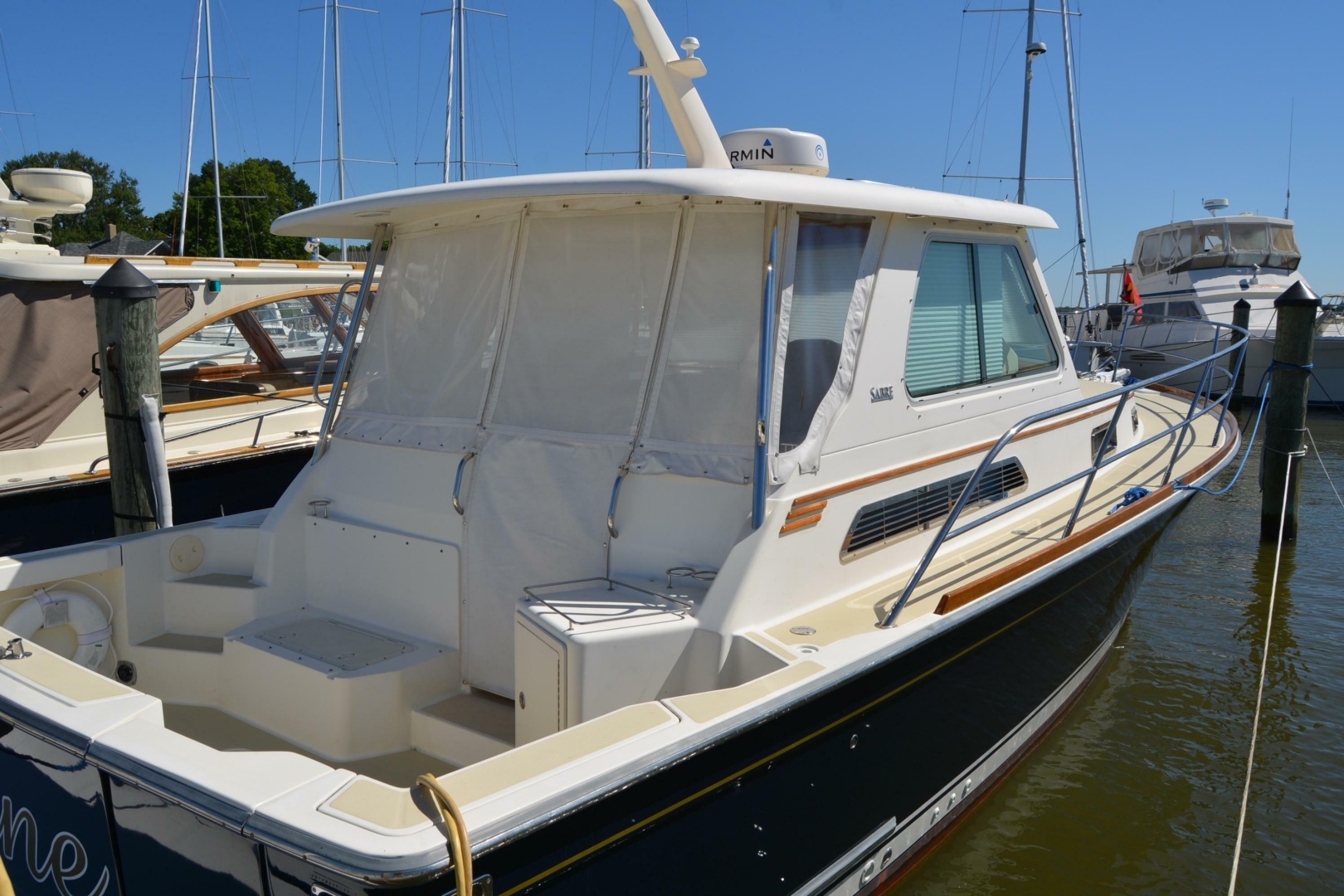

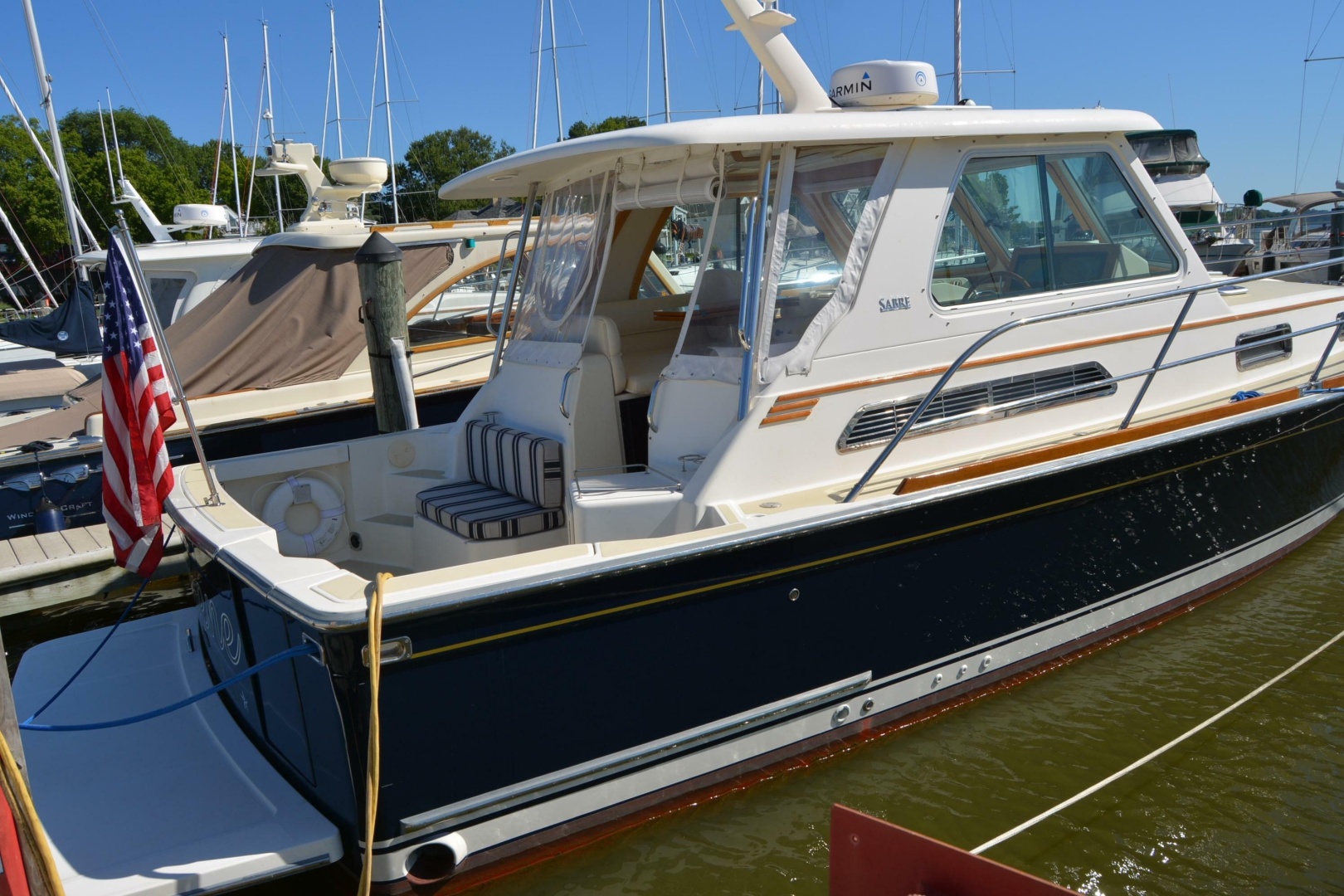

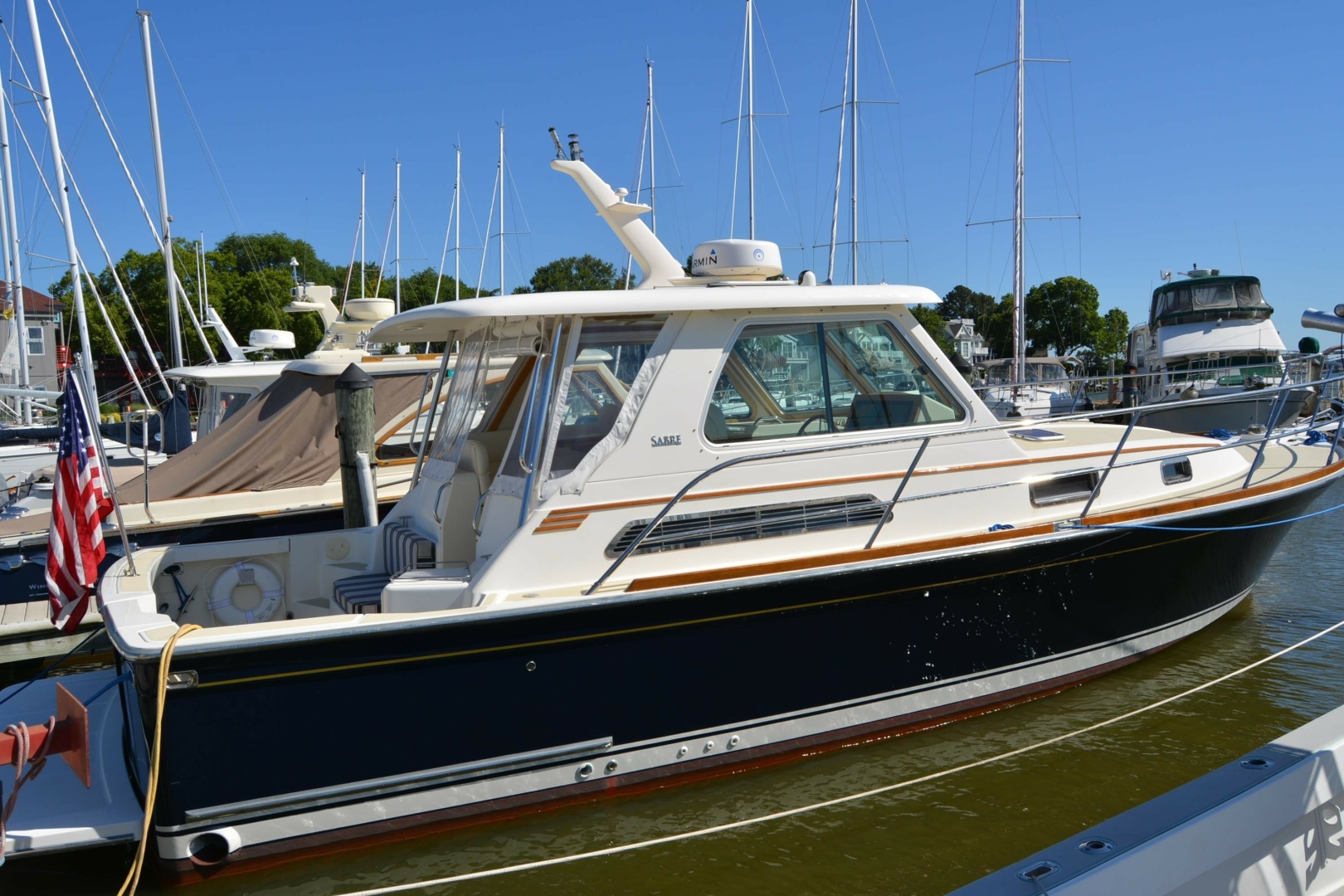

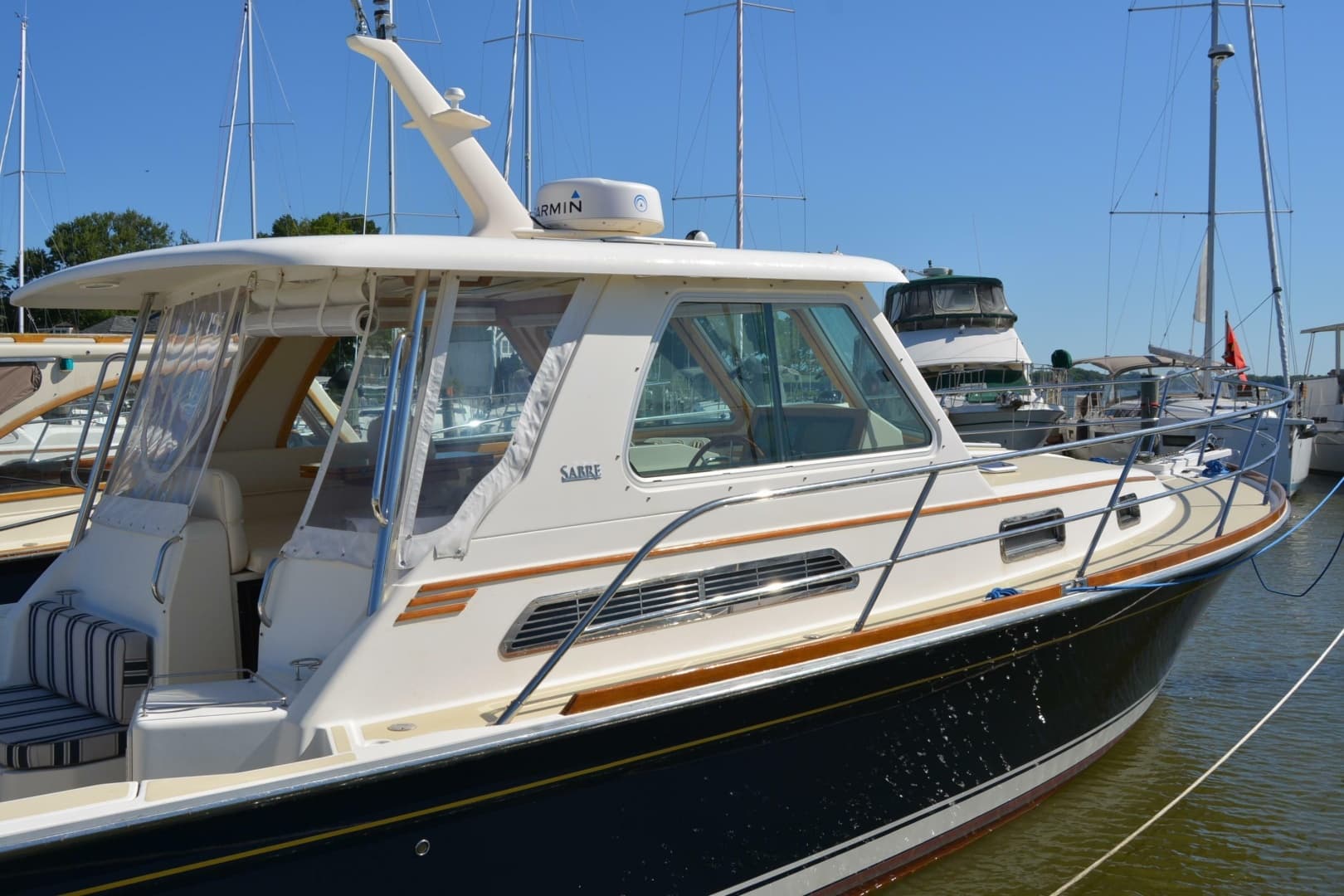

2009 Sabre 34 Express

Sabre 34 Details & Walkthrough

Built in Maine, home to America's finest yacht builders, the Sabre 34 Hard Top Express design offers the classic look and performance for which Sabre Yachts is so well known. But the Sabre 34 has even more of the elegance and creative details that boat buyers have come to expect from the Sabre Design Team. Her elevated helm deck offers clear sight lines from the Stidd helm chair and the elevated L-settee to port provides ample views for her crew and guests. A convertible back rest at the forward end of the settee creates a comfortable mate's seat. A fully functional galley is located to starboard aft of the helm seat.Standard power for the Sabre 34 is a pair of (optional) Yanmar 380 HP diesel engines with electronic controls and digital gauges. A generator and both helm deck and cabin air conditioning systems are aboard this vessel, so you will be cruising in comfort and style. Below deck, this 34 foot vessel is truly unique, designed as an open layout which creates a private owner's suite. A full, queen-sized berth, low to the cabin sole, is easy to access. To port and aft is a full head with separate shower stall. To starboard is a comfortable L-settee with ample storage throughout. She is a beautiful vessel not to be missed!

Recent Work

• New Farberware microwave installed, April 2026.
• Yanmar exhaust risers replaced, April 2026.
• Sionyx Night Vision Camera installed, April 2025.
• New Garmin Reactor 40 autopilot, April 2025.
• New Isotherm Refrigerator, March 2025.
• New Battery charger, September 2024.
• LED Navigation lights, July 2023.
• New window shades (exterior) July 2023.
• New engine starting batteries, April 2023.
• New transducer installed, January 2023.
• New shaft seal kits installed, January 2023.

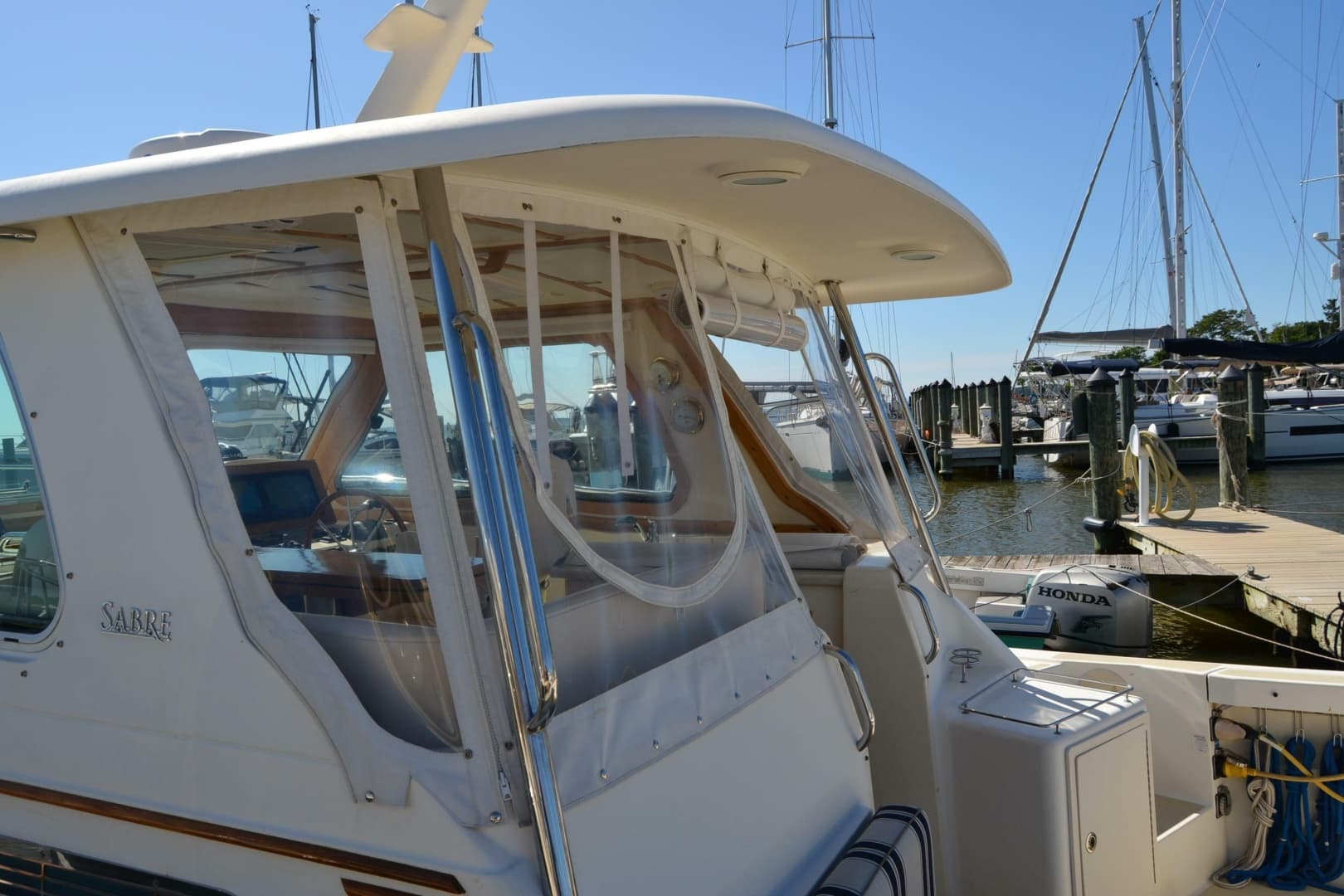

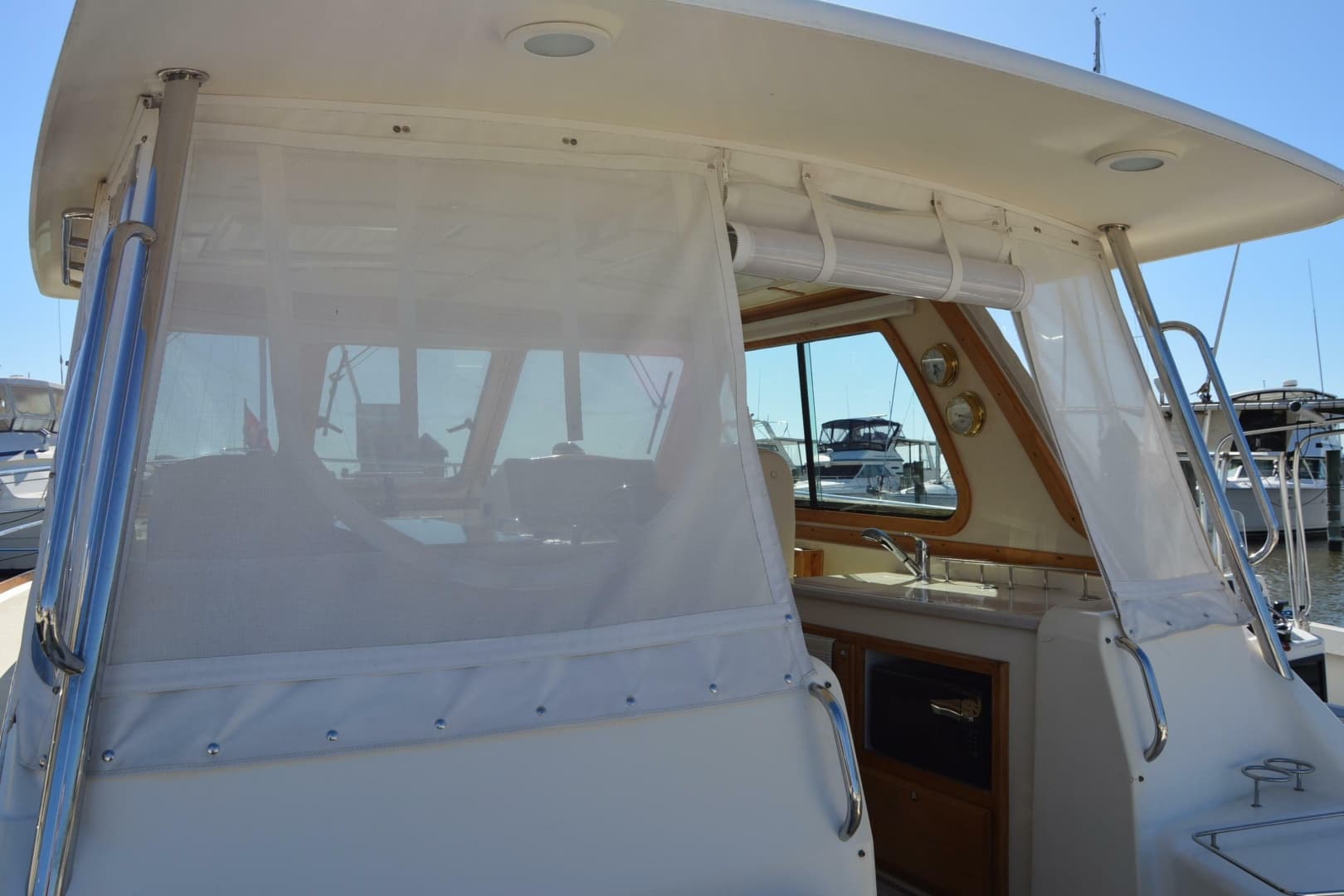

• New custom aft enclosure panels, January 2023.
• Re-upholster helm deck cushions, January 2023.
• Hull painted with Awlgrip, boot stripe, vinyl cove stripe, January 2023.
• Swim platform reset, new ladder installed, January 2023.

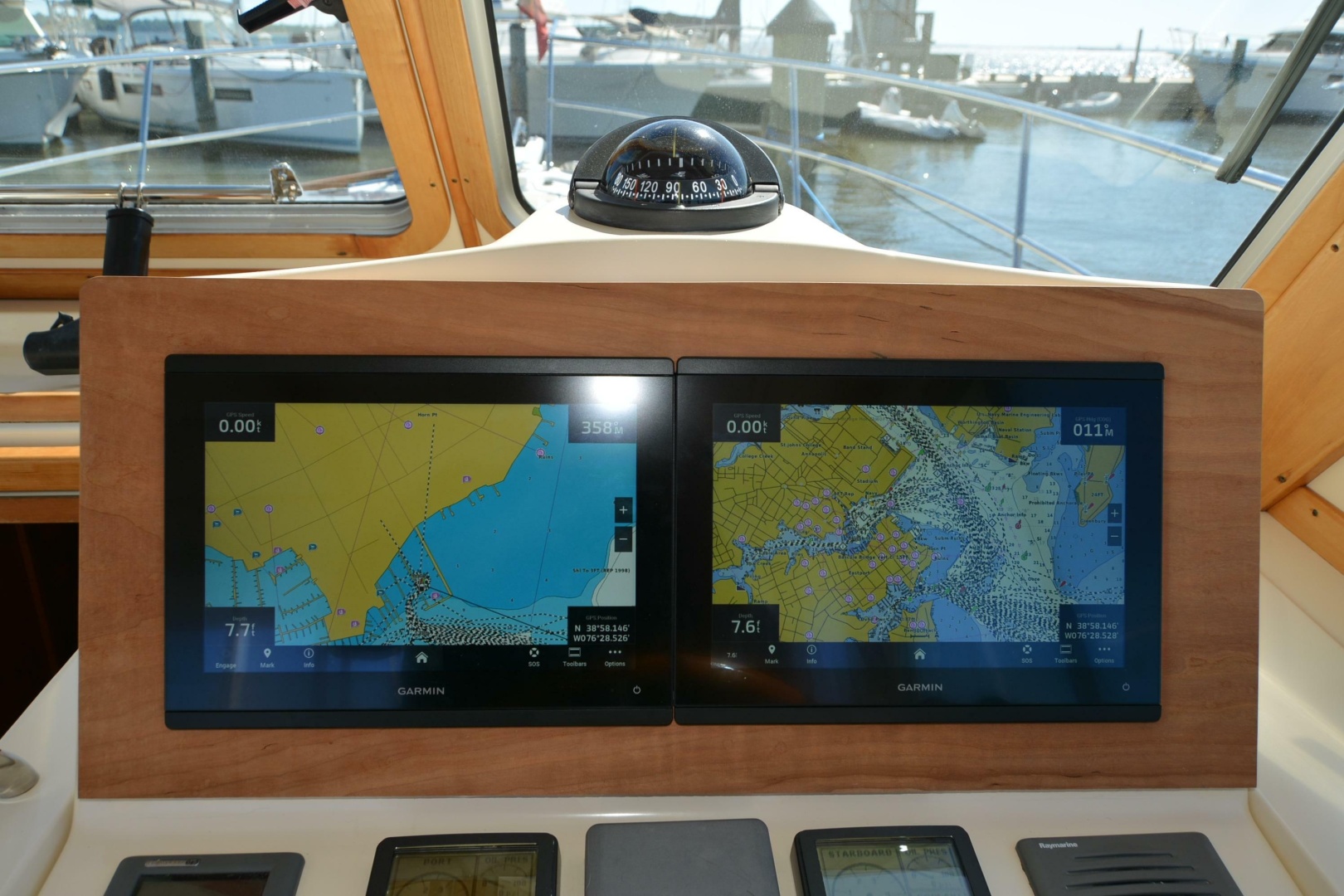

• New Garmin 1243xsv MFDs, August 2022.

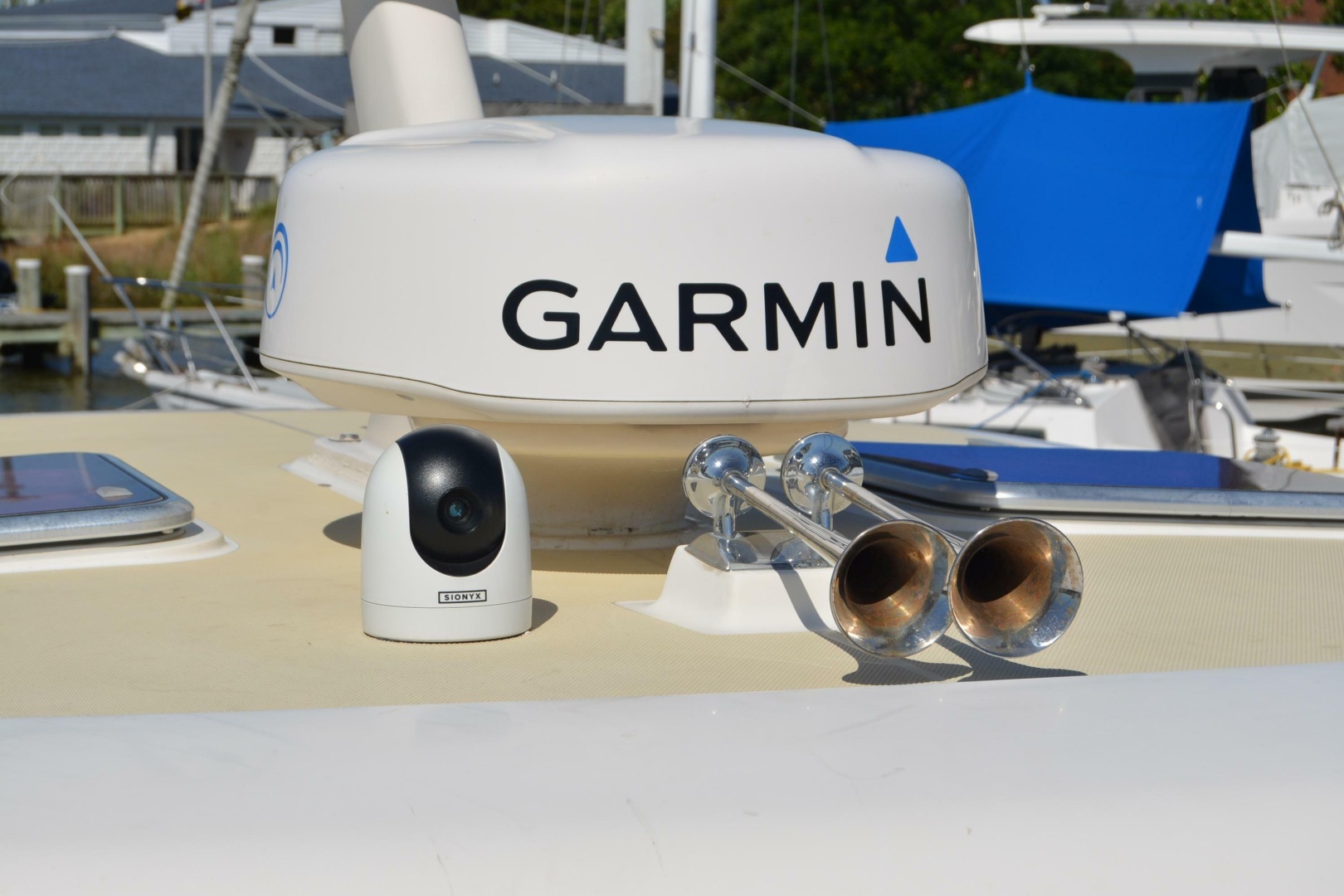

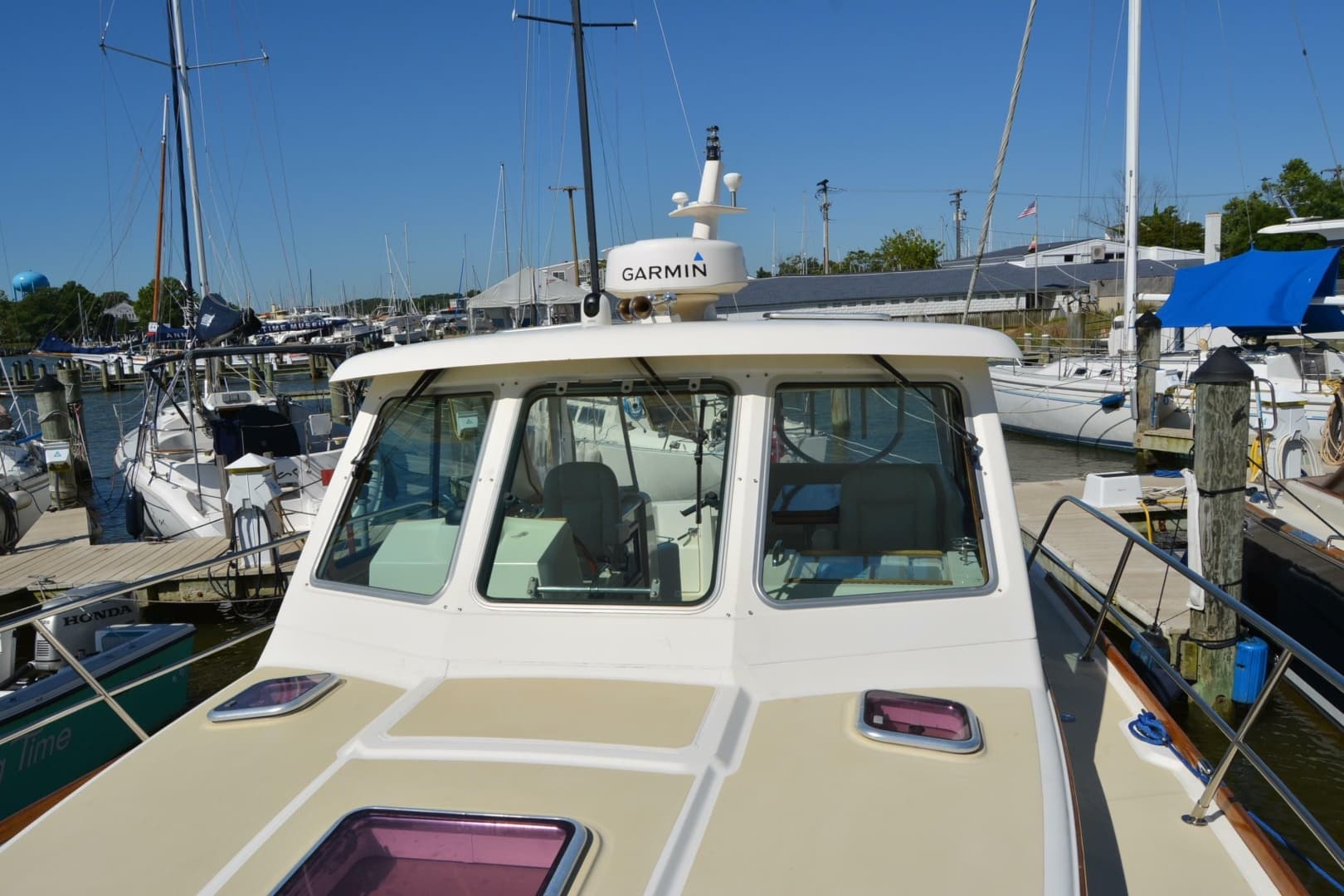

• New Garmin Fantom 24 Radar, August 2022.
• Garmin backbone, August 2022.
• New Fusion MS-RA70NSX stereo, August 2022.
• New Visio TV, August 2022.
• Replaced the control board on the generator, August 2022.
• Replaced the engine mounts and serviced transmissions, August 2022.
• Refinish woodwork at the helm, July 2022.
• Stidd seats re-upholstered by Stidd, July 2022.
• Exterior brightwork stripped & refinished late March, 2022.
• Superstructure & hull sides compounded and waxed late March, 2022.

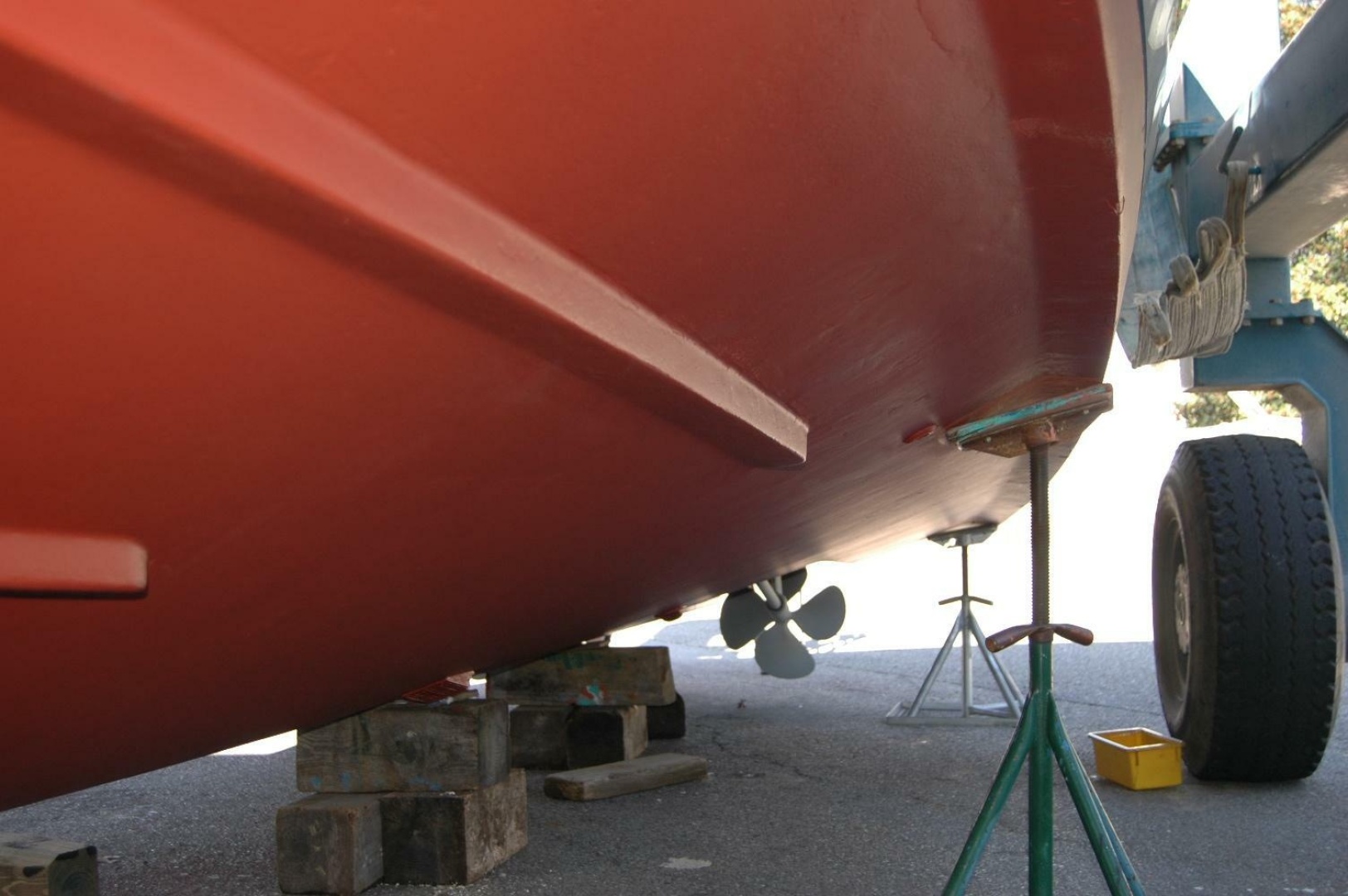

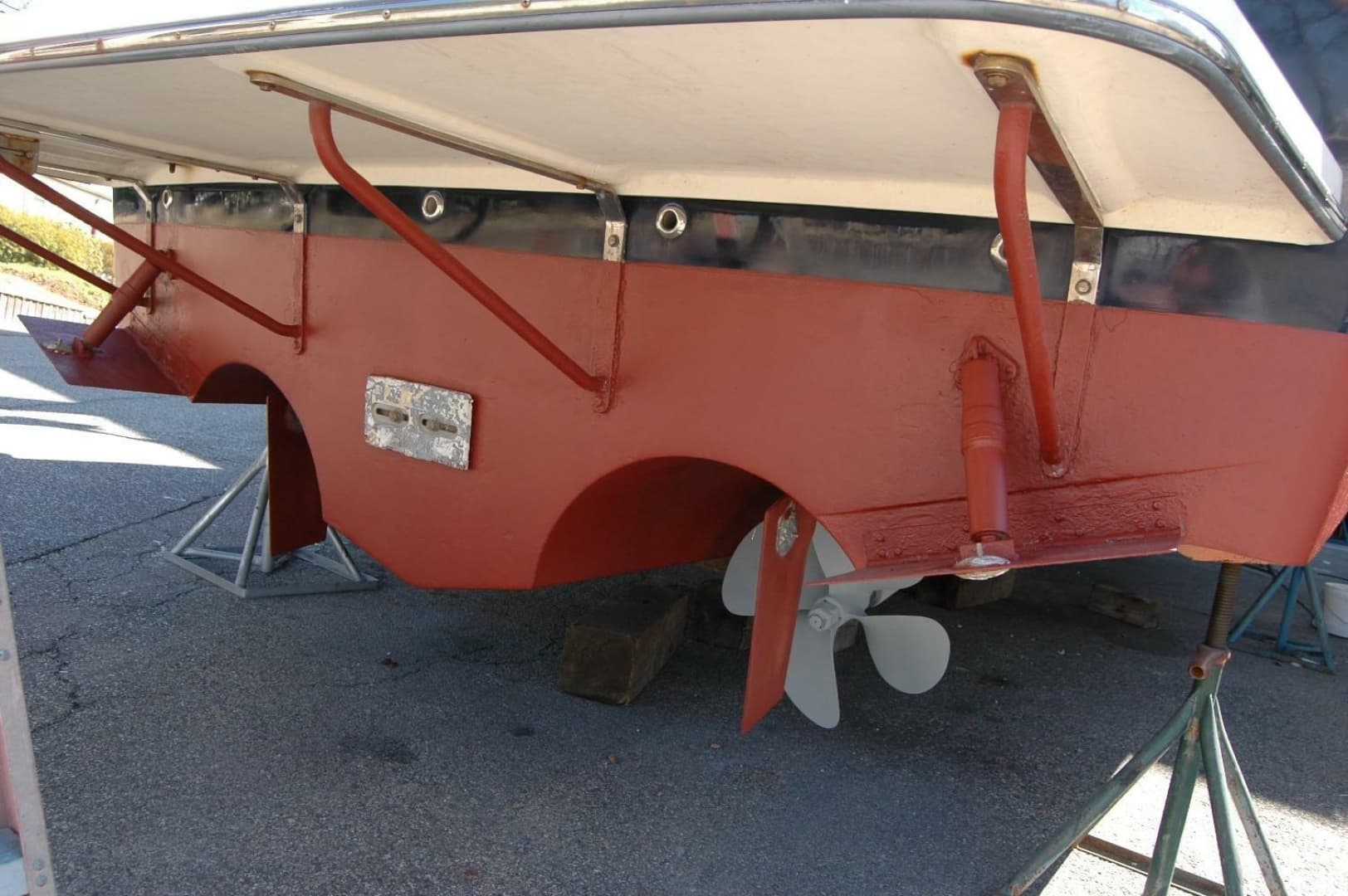

• Bottom & running gear painted late March, 2022.

Electronics

• (2) Garmin MFDs.
• Garmin Radar.
• Garmin Autopilot.
• Sionyx Night Vision Camera.

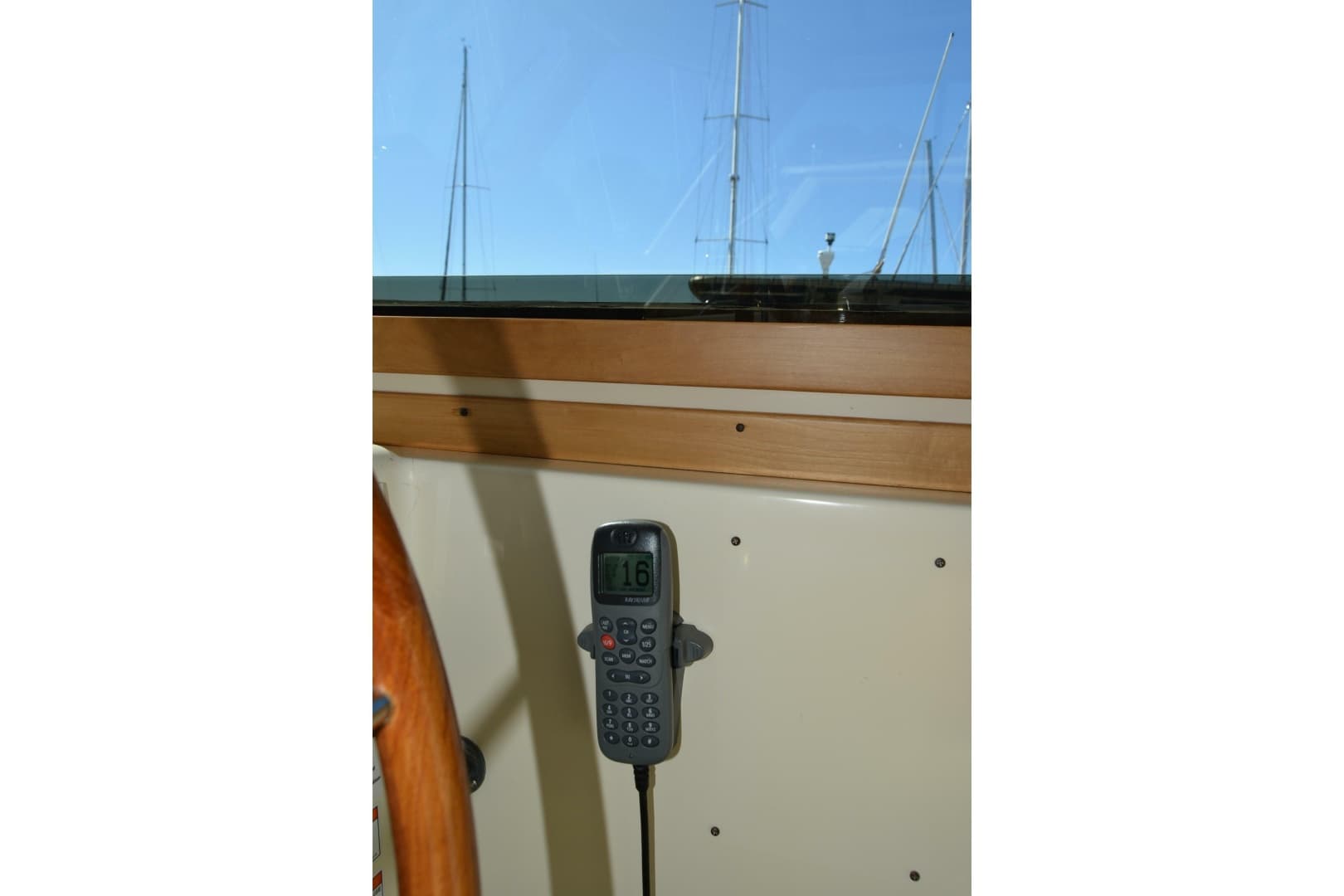

• Ray 240 VHF with remote speaker.
• VHF antenna replaced.
• Electronic engine synchronizer.
• Fusion stereo.
• Fusion stereo remote control (currently not connected to stereo).
• ACR searchlight control (currently not operational).
• Tilt Helm.

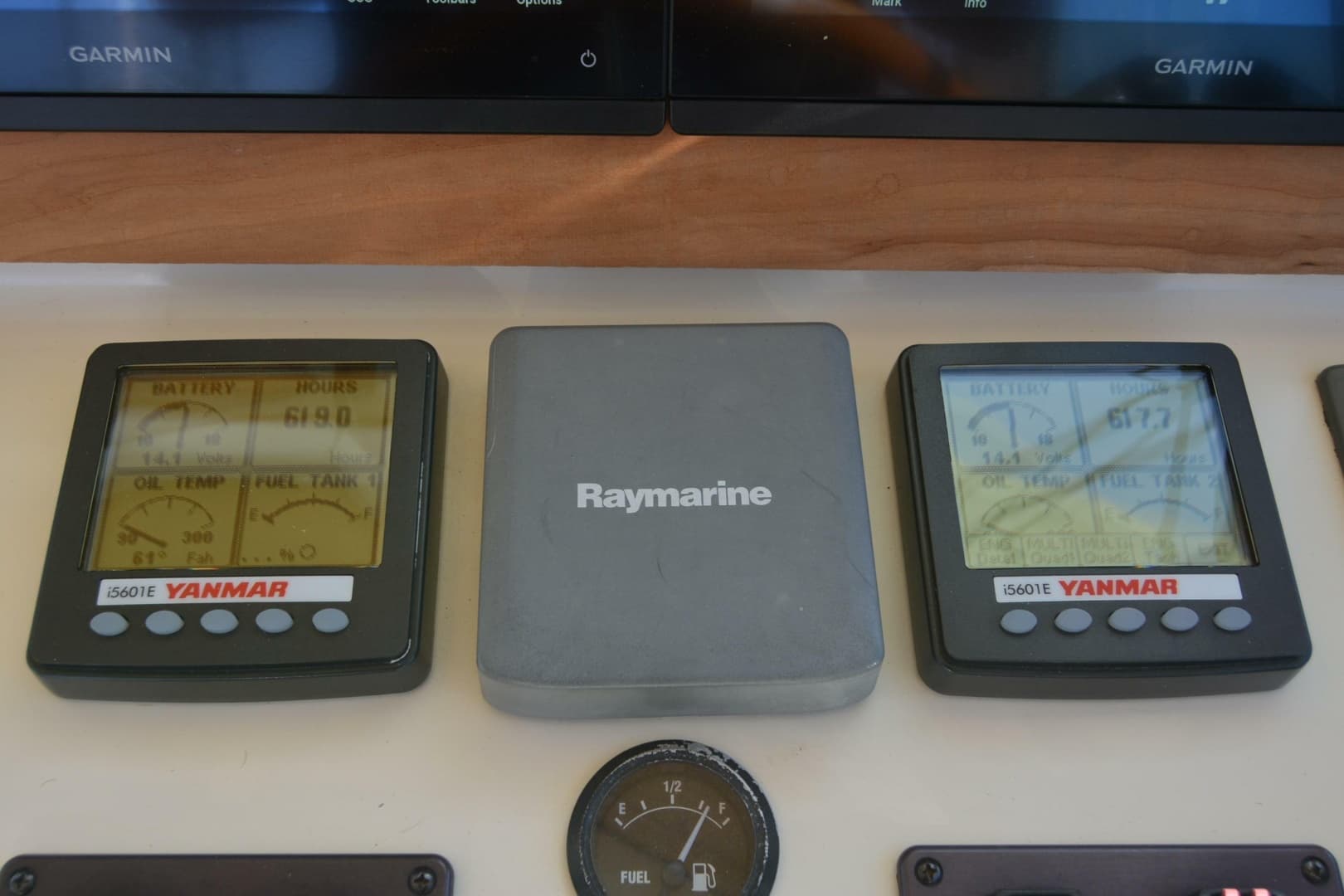

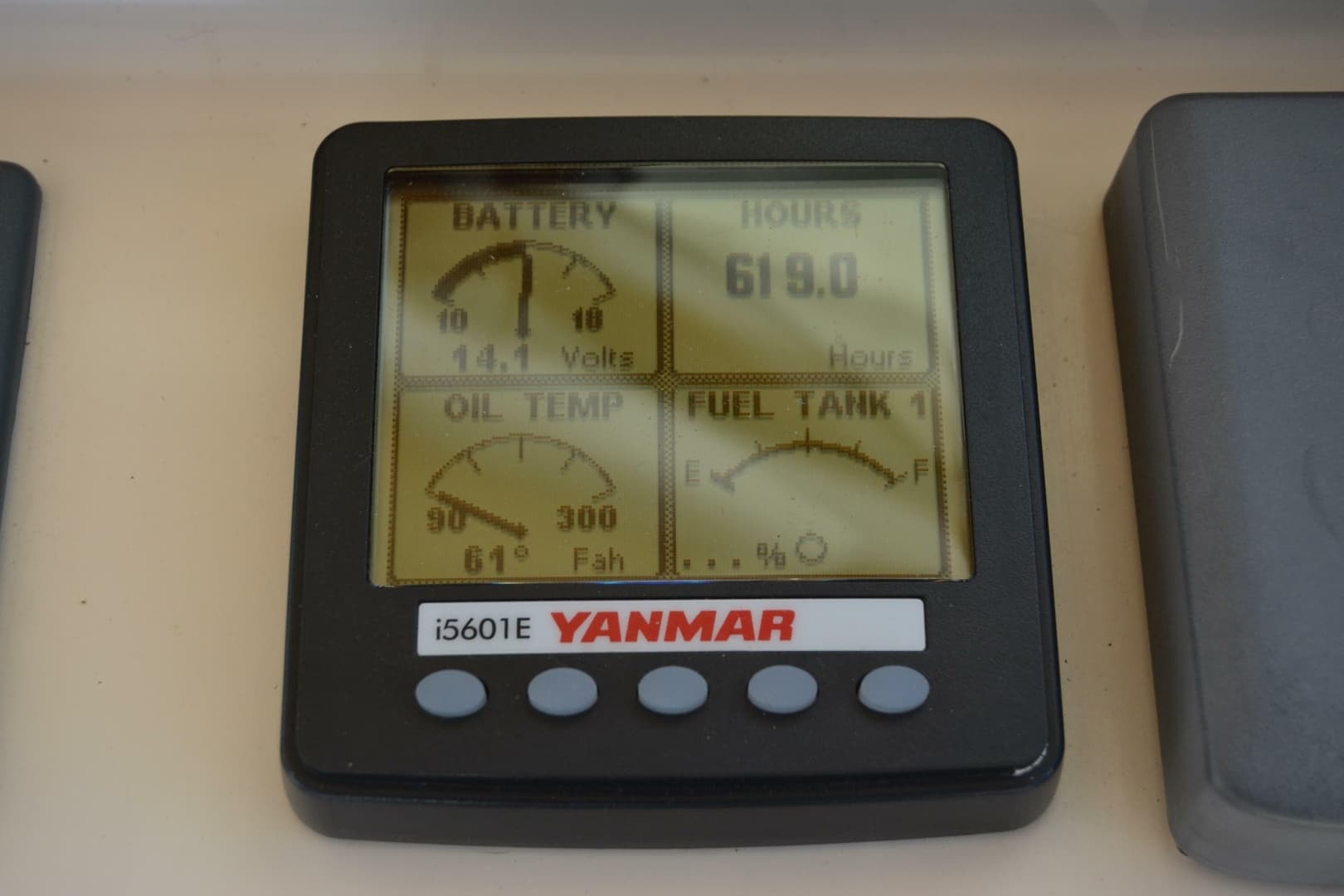

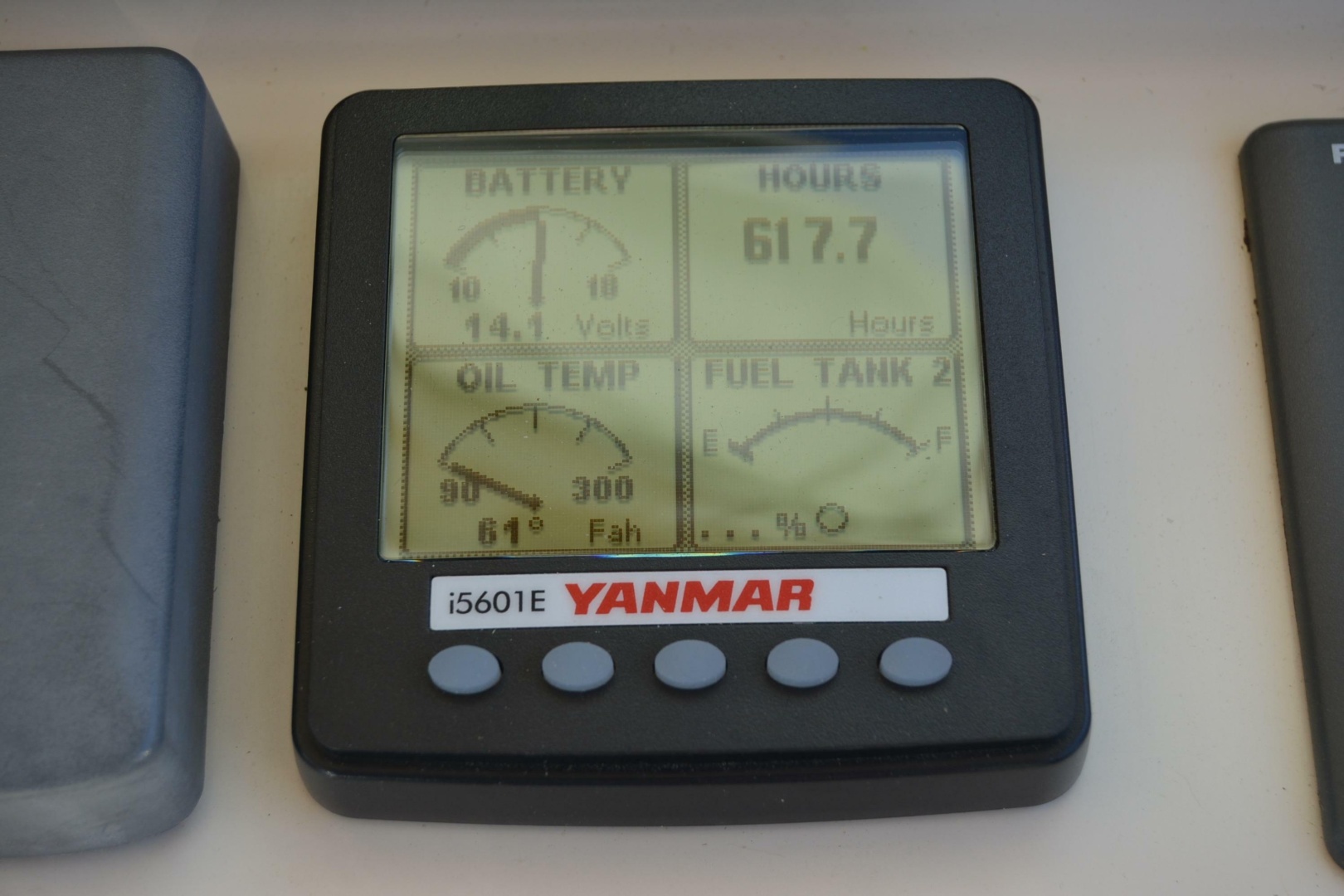

• Yanmar digital displays for each main engine.

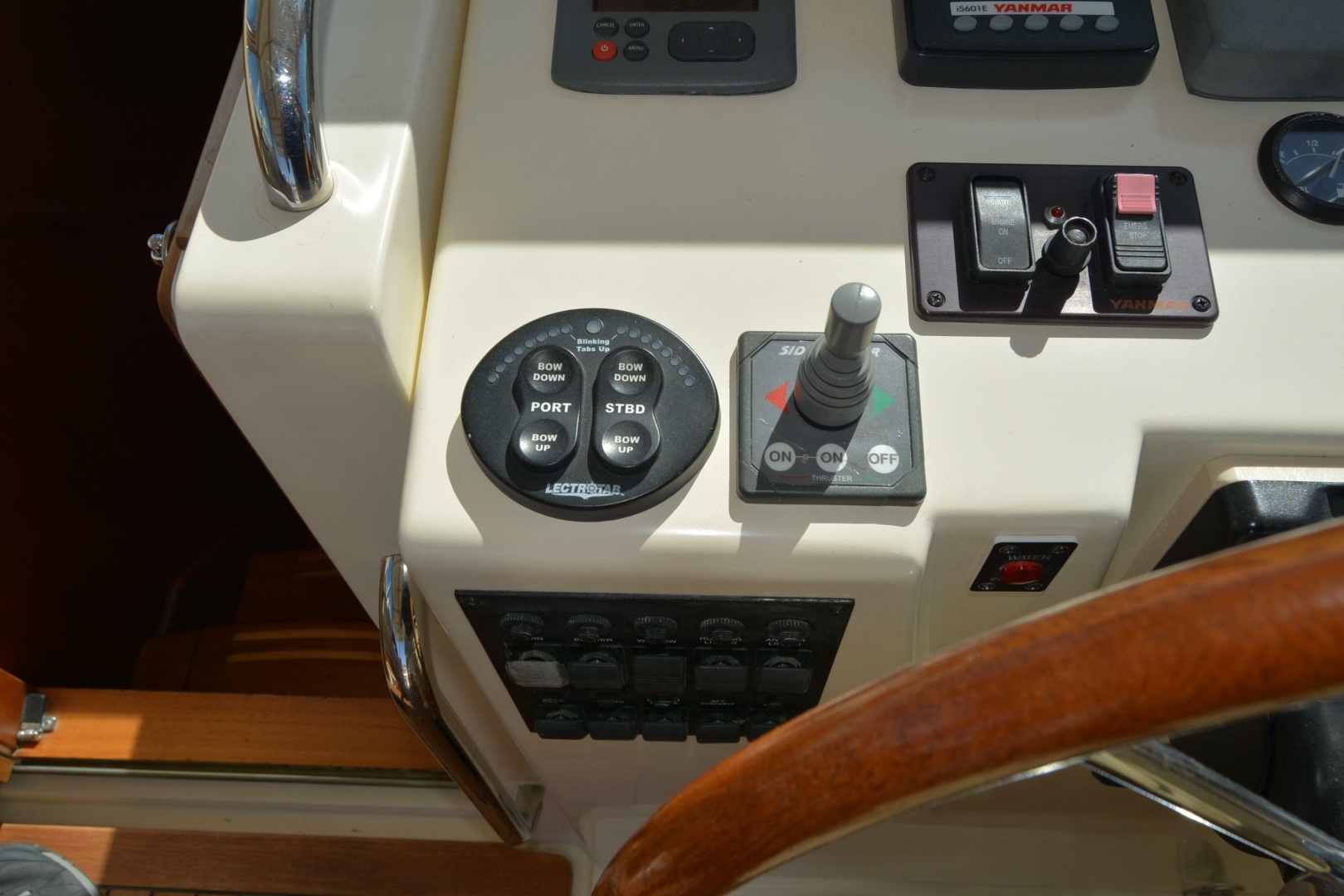

• Sidepower bow thruster control.
• Lectrotab trim tab control.
• Water in fuel warning lights.
•  Bilge pump switches.
• Visio Smart TV.

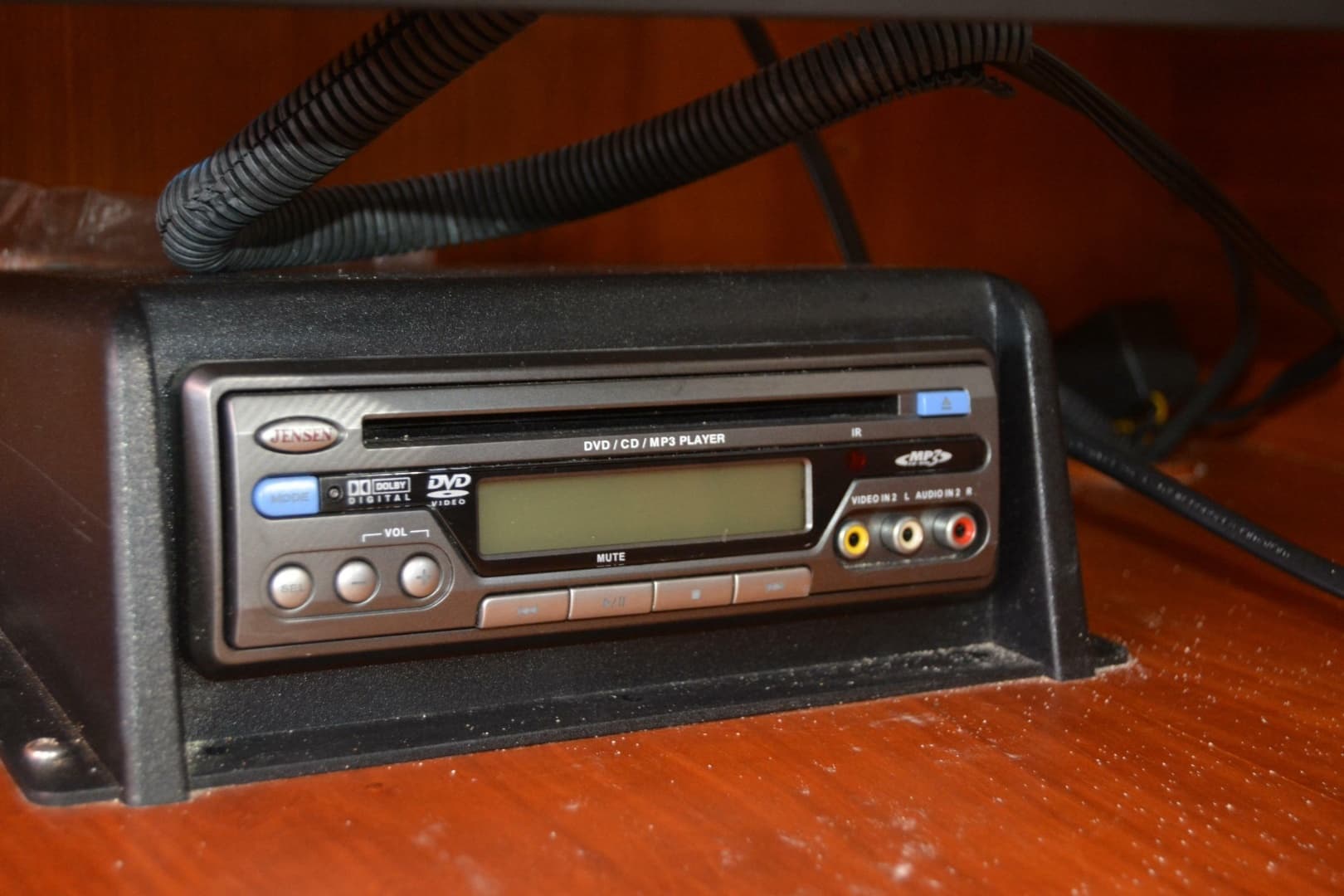

• Jensen CD/DVD player for TV.

Vessel Colors & Fabrics

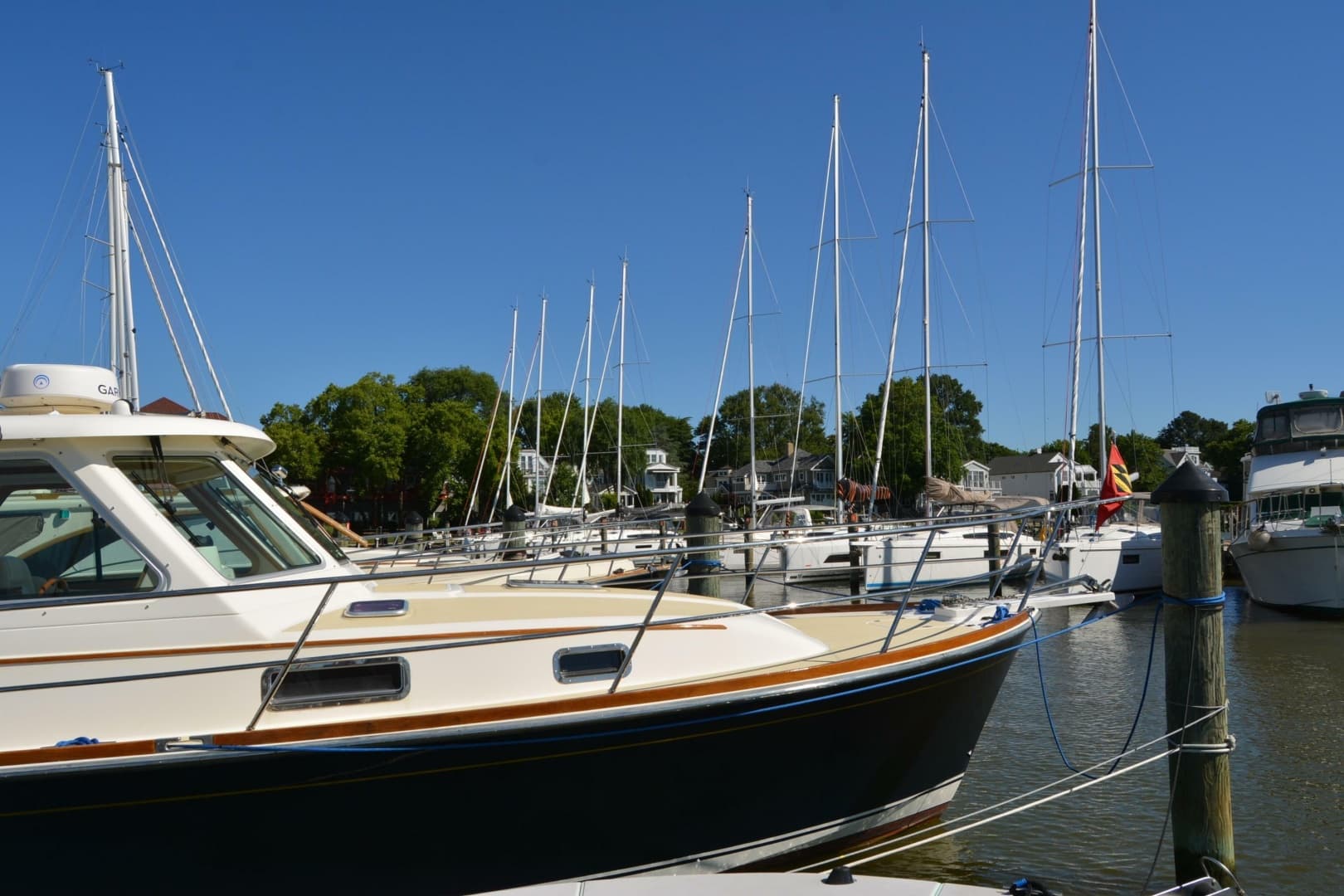

• Flag Blue Awlgrip painted hull.
• Sabre White boot stripe.
• Gold cove stripe with red outline.
• Sabre White deck with contrasting beige anti-skid.
• Sabre White swim platform.
• "Savannah" Helm Deck Corian.
• "Savannah" Head Corian.
• Cologne Ultrasuede in main salon.
• Ultraleather on all helm upholstery & seats.

Factory Options

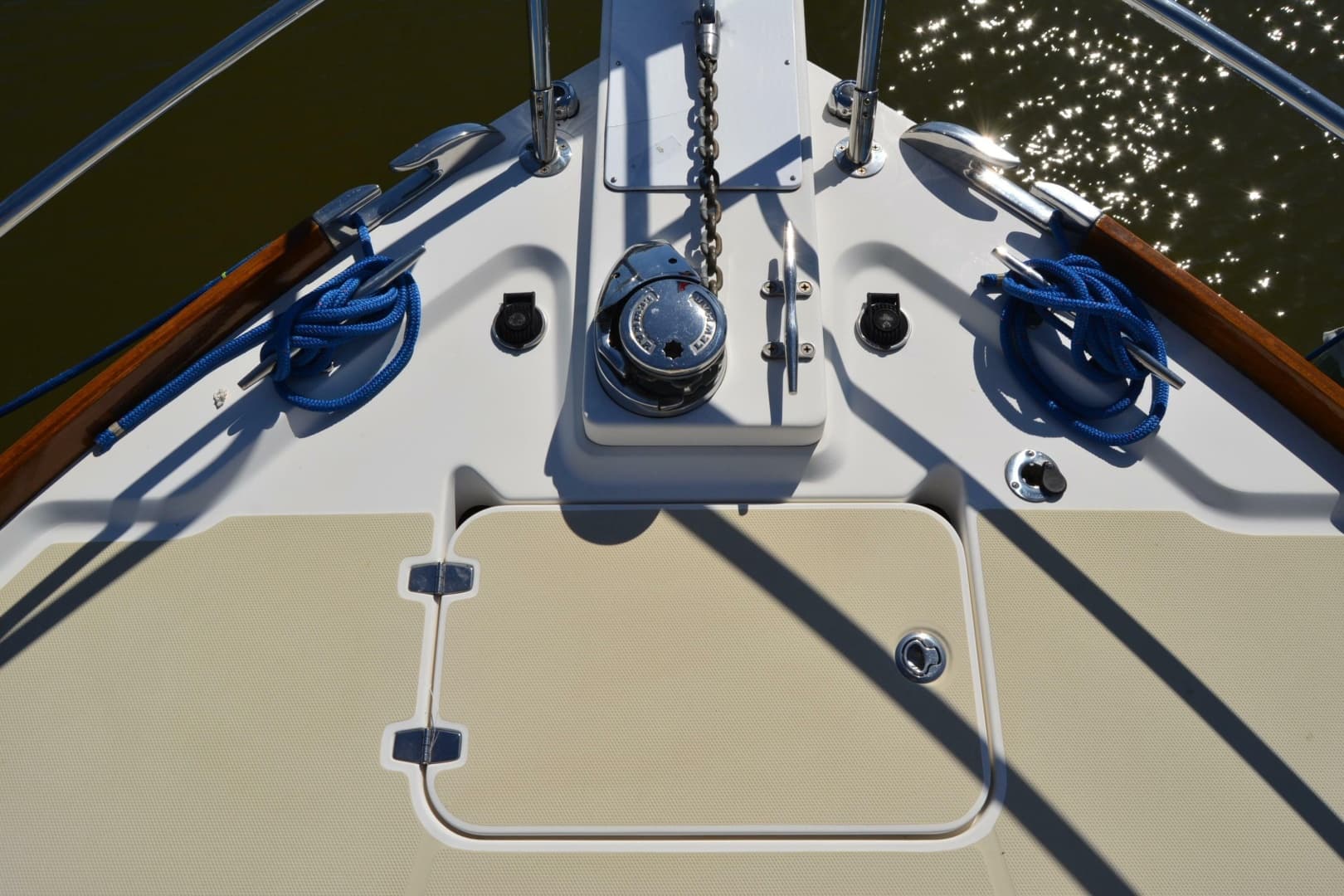

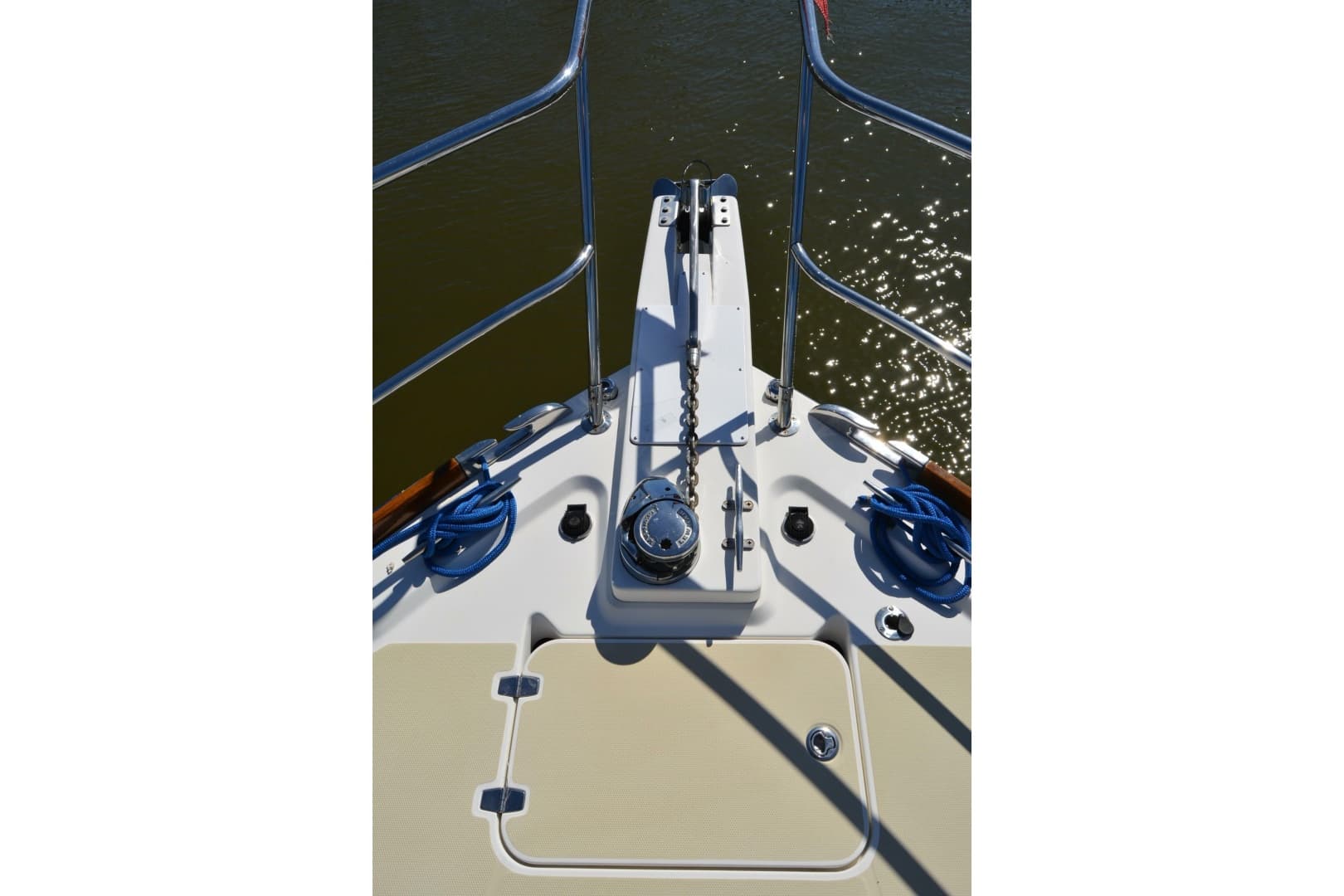

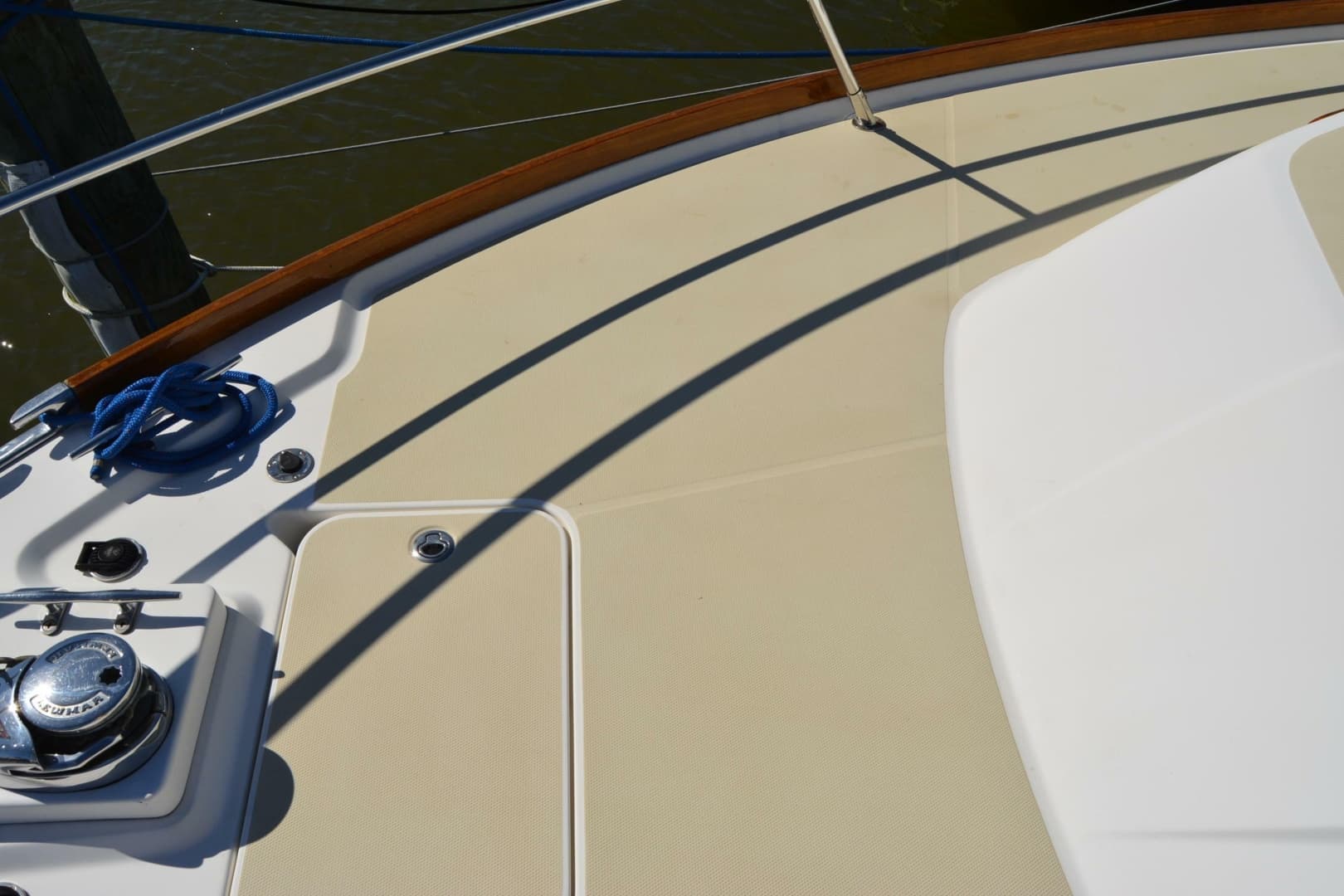

• Lewmar V3 Rope/chain windlass

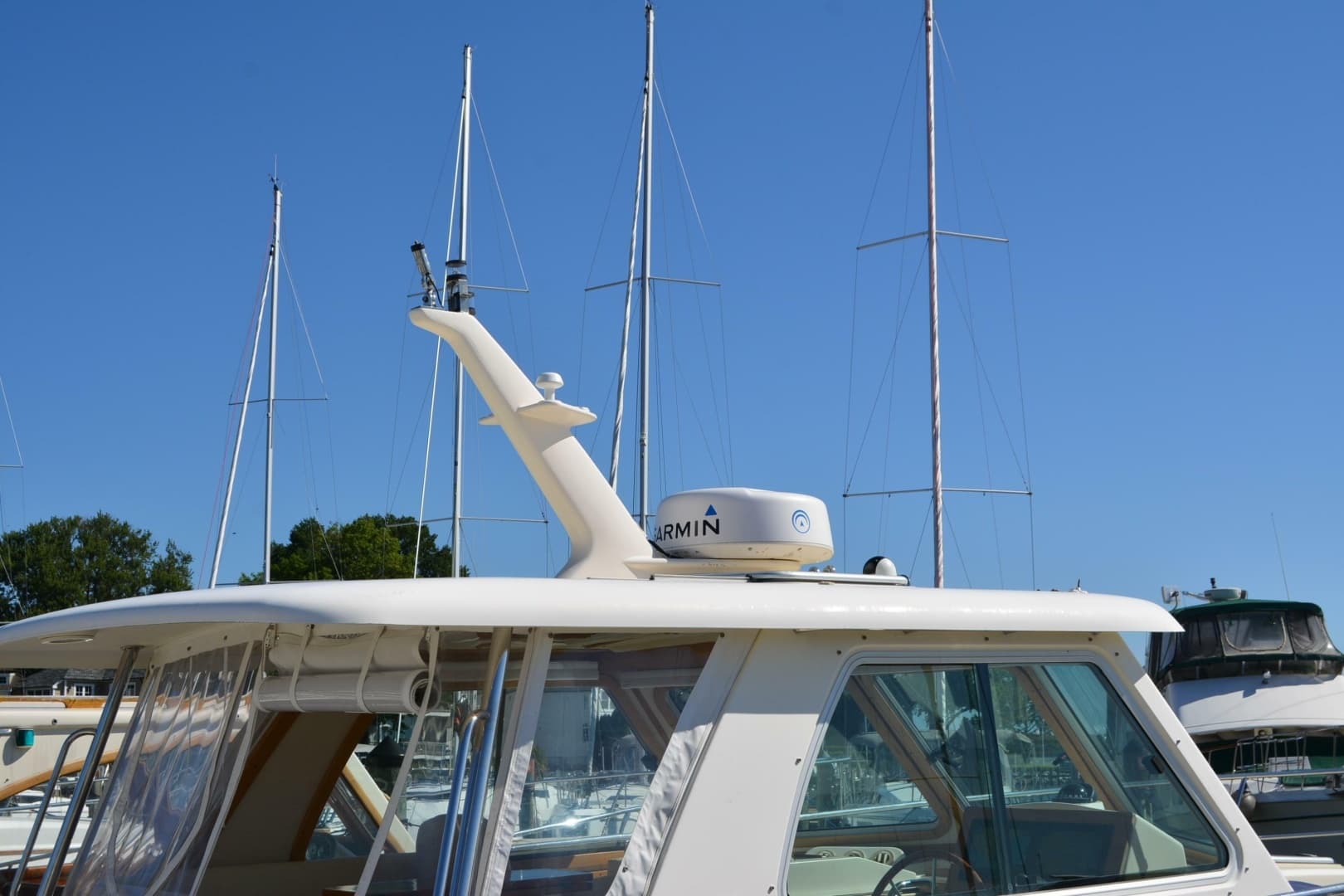

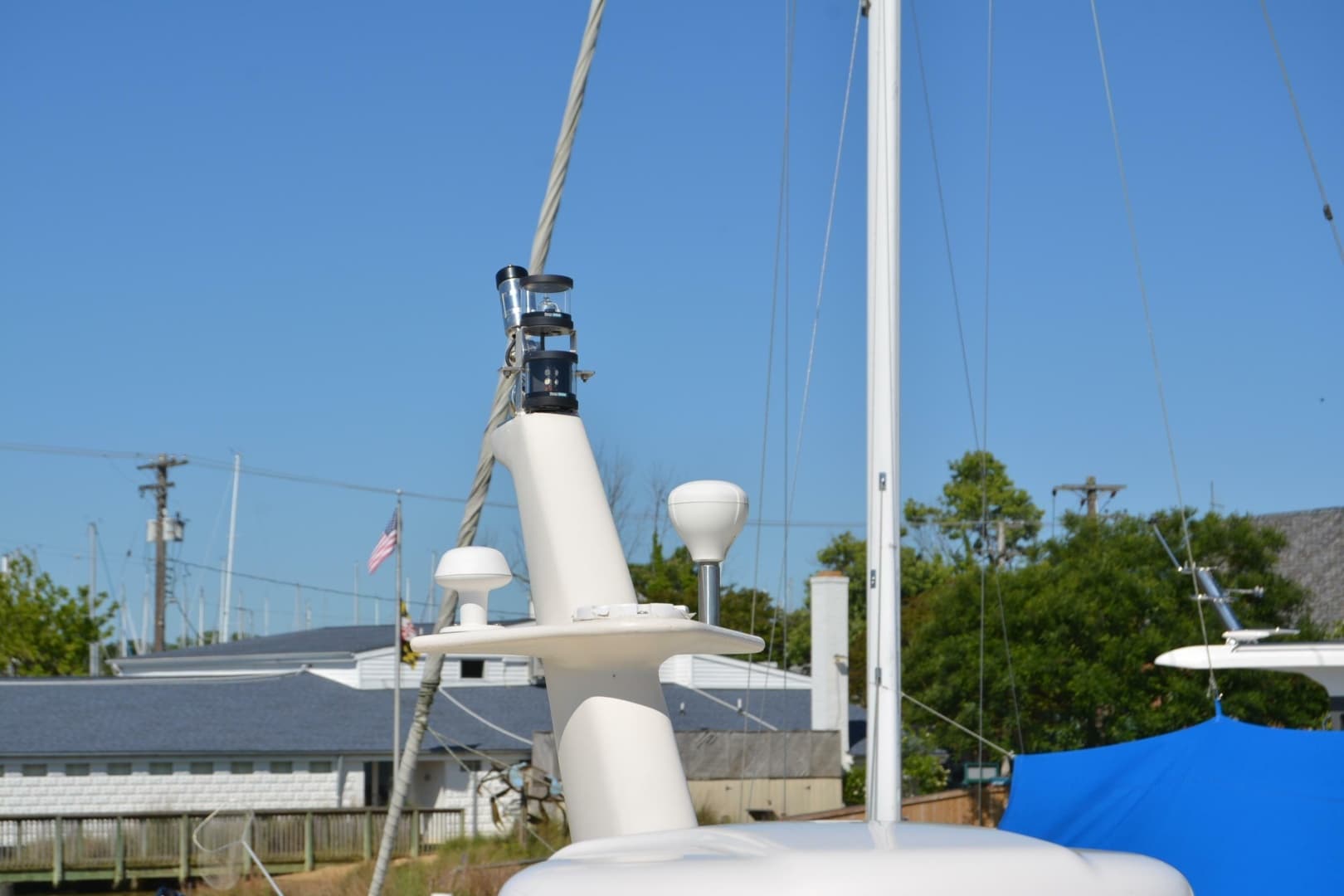

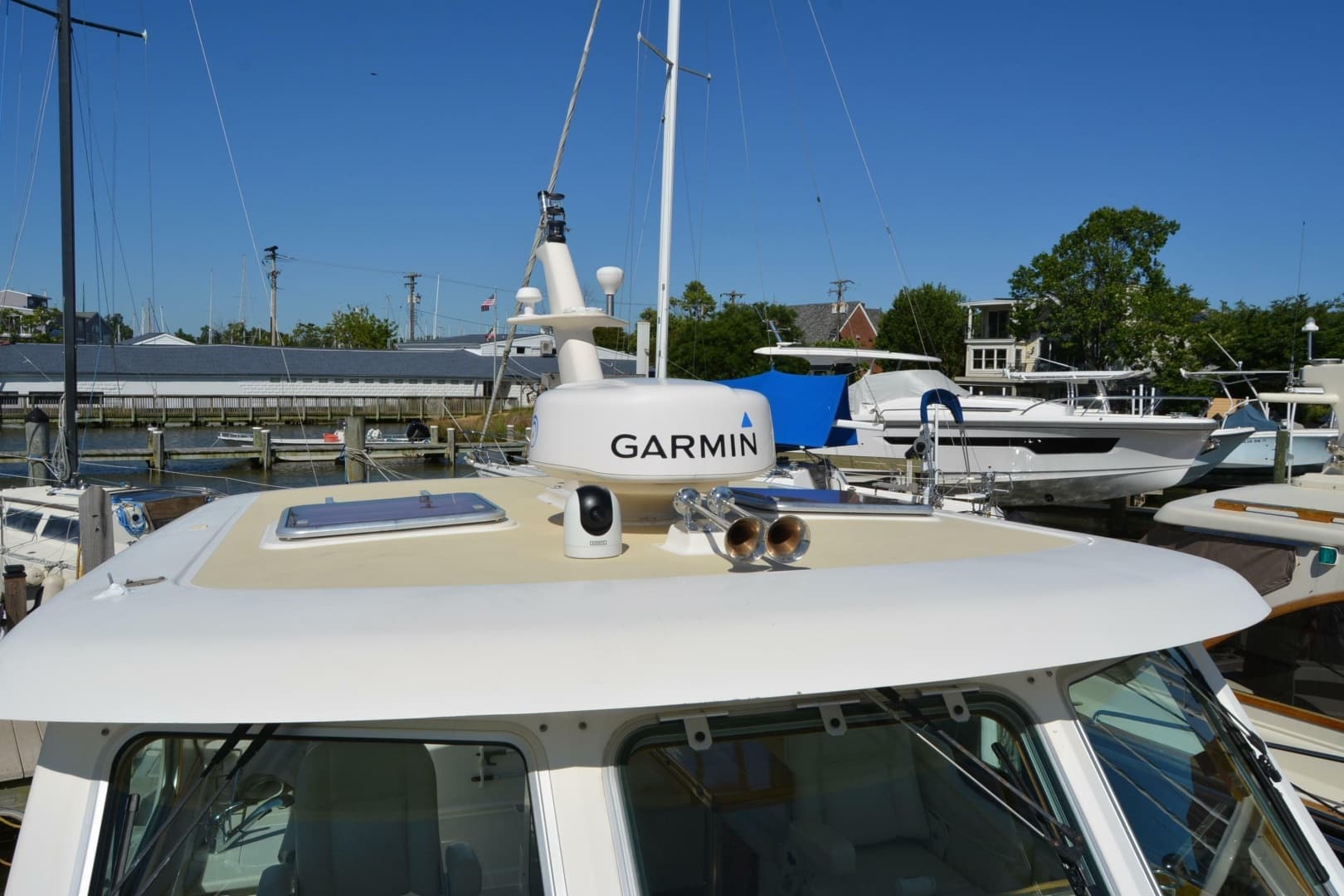

• Radar mast on hard top
• Teak decking on helm deck
• Dimmer switch for main salon lighting
• Contrasting anti-skid color
• Shades on all opening ports
• Ultrasuede upholstery in main salon
• Yanmar 380HP 6LY electronic engines which includes electronic engine controls and synchronizer

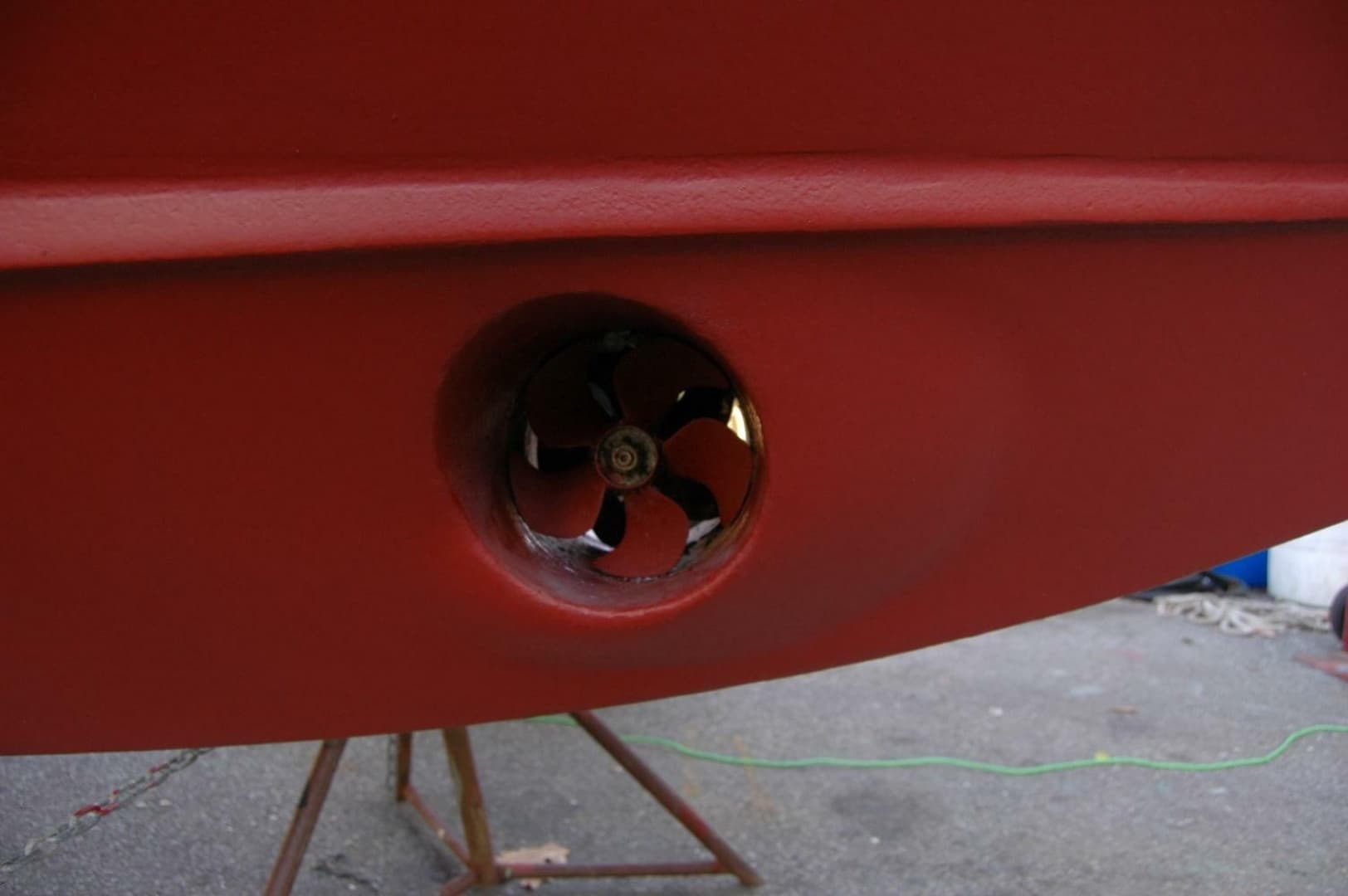

• Sidepower Bow Thruster SP75T
• Reverso oil change system
• Helm deck air conditioning
• Incremental tank gauge in head
• Groco bronze engine intake strainers with quick release plug
• ACR search light with controls at helm
• Fresh water washdown in anchor locker
• Hot & cold transom shower
• Shore water inlet
• Concorde Cantalupi lights in lieu of standard bulkhead lights
• Delete fwd fridge & make forward hanging locker with shelf in it's place

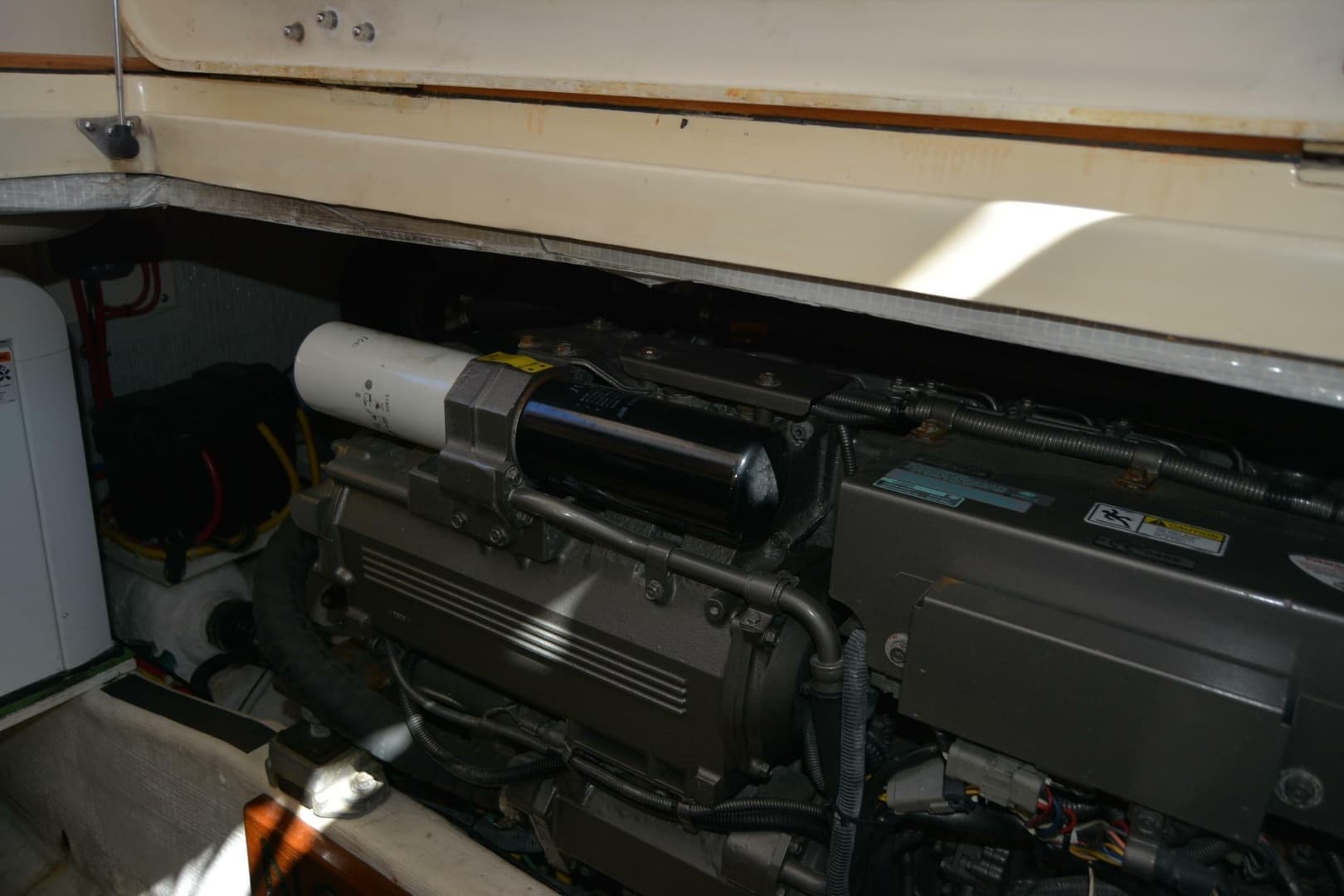

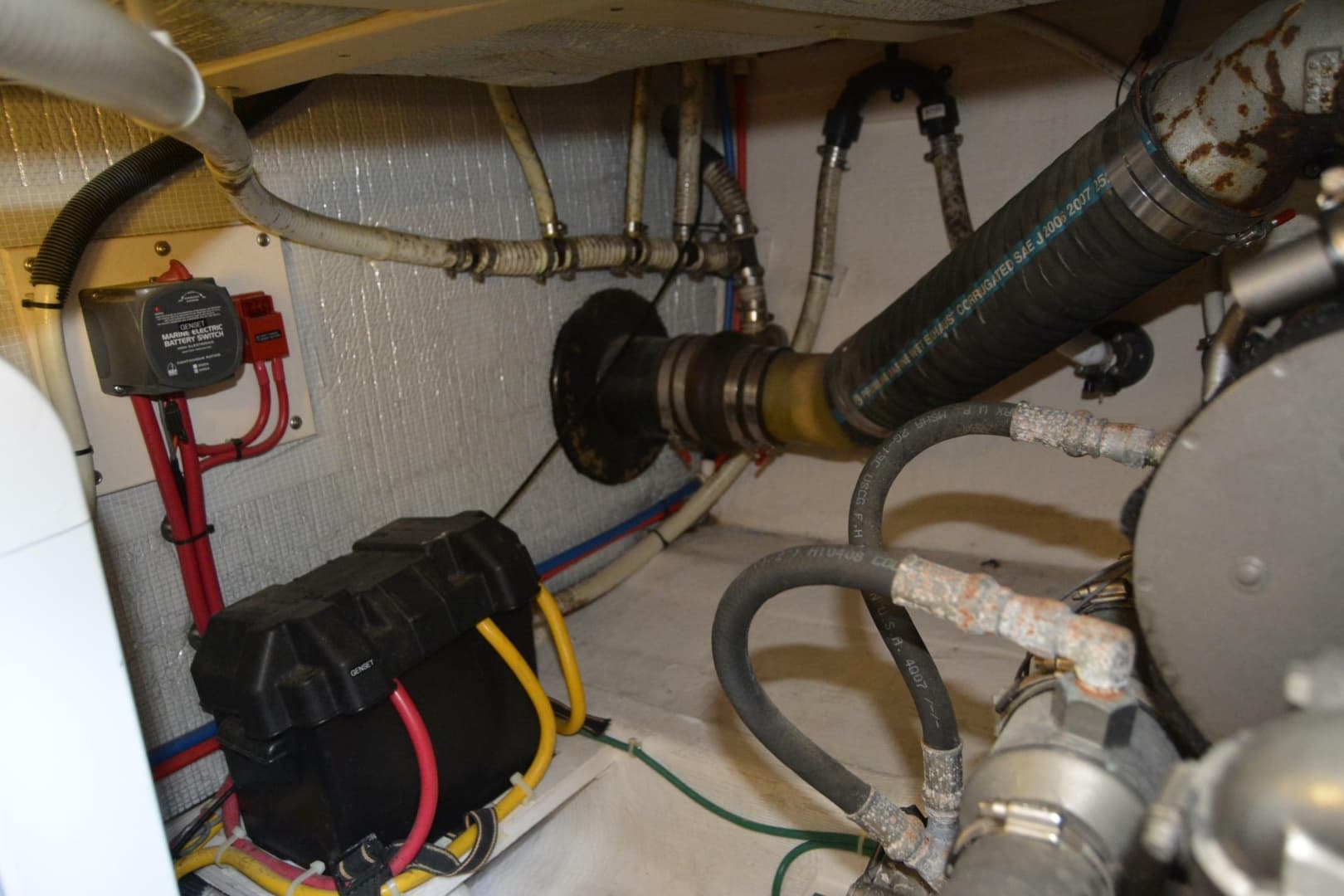

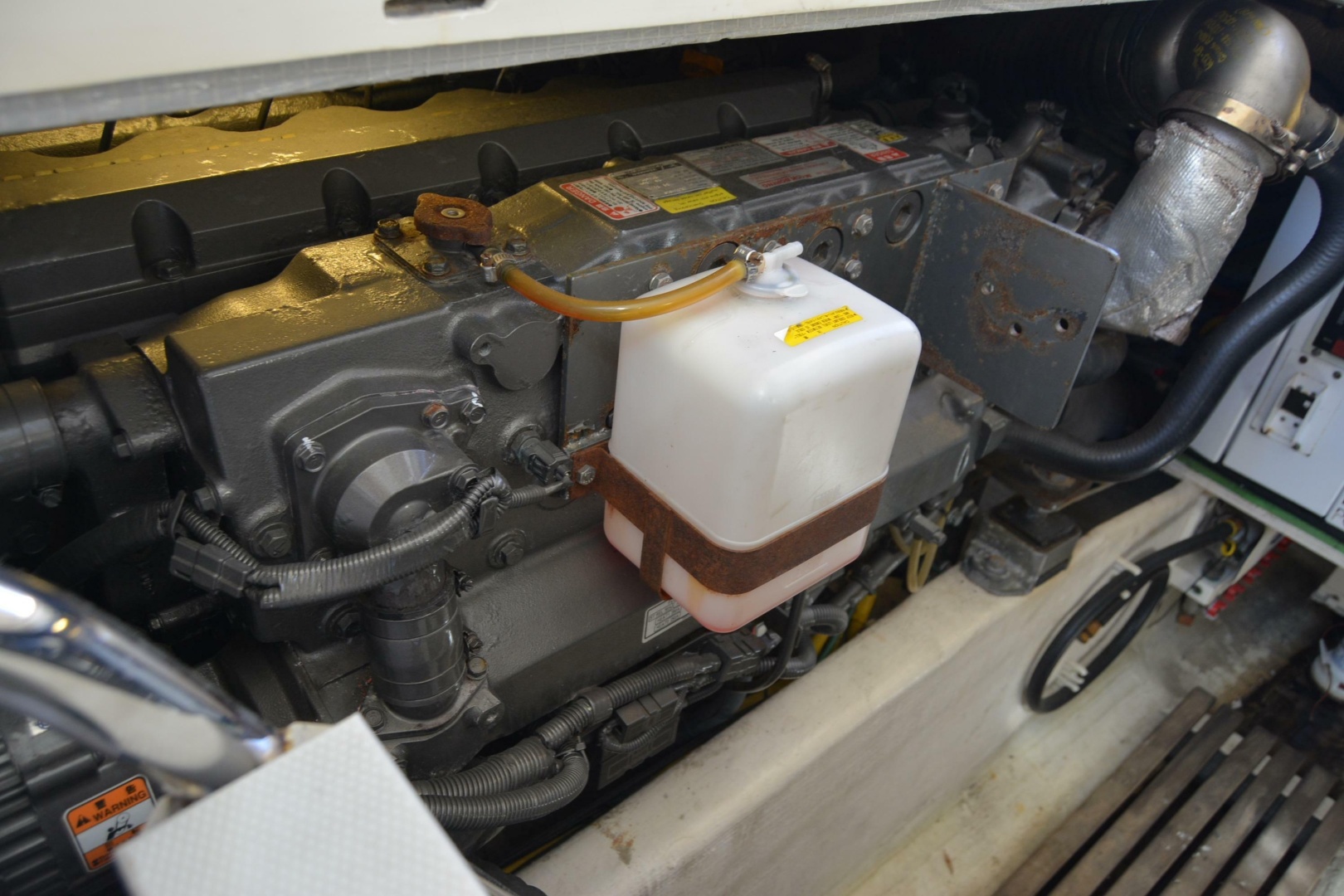

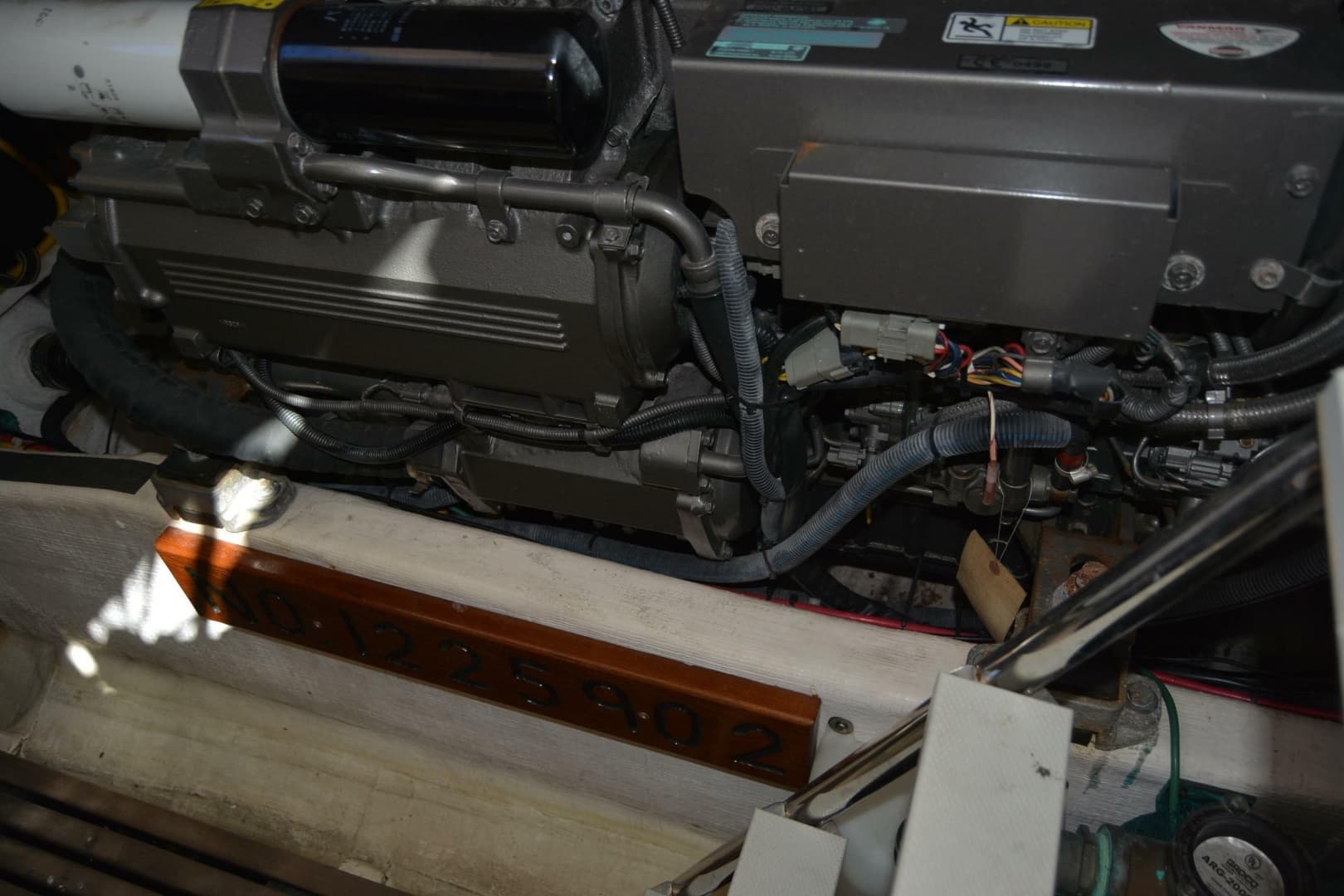

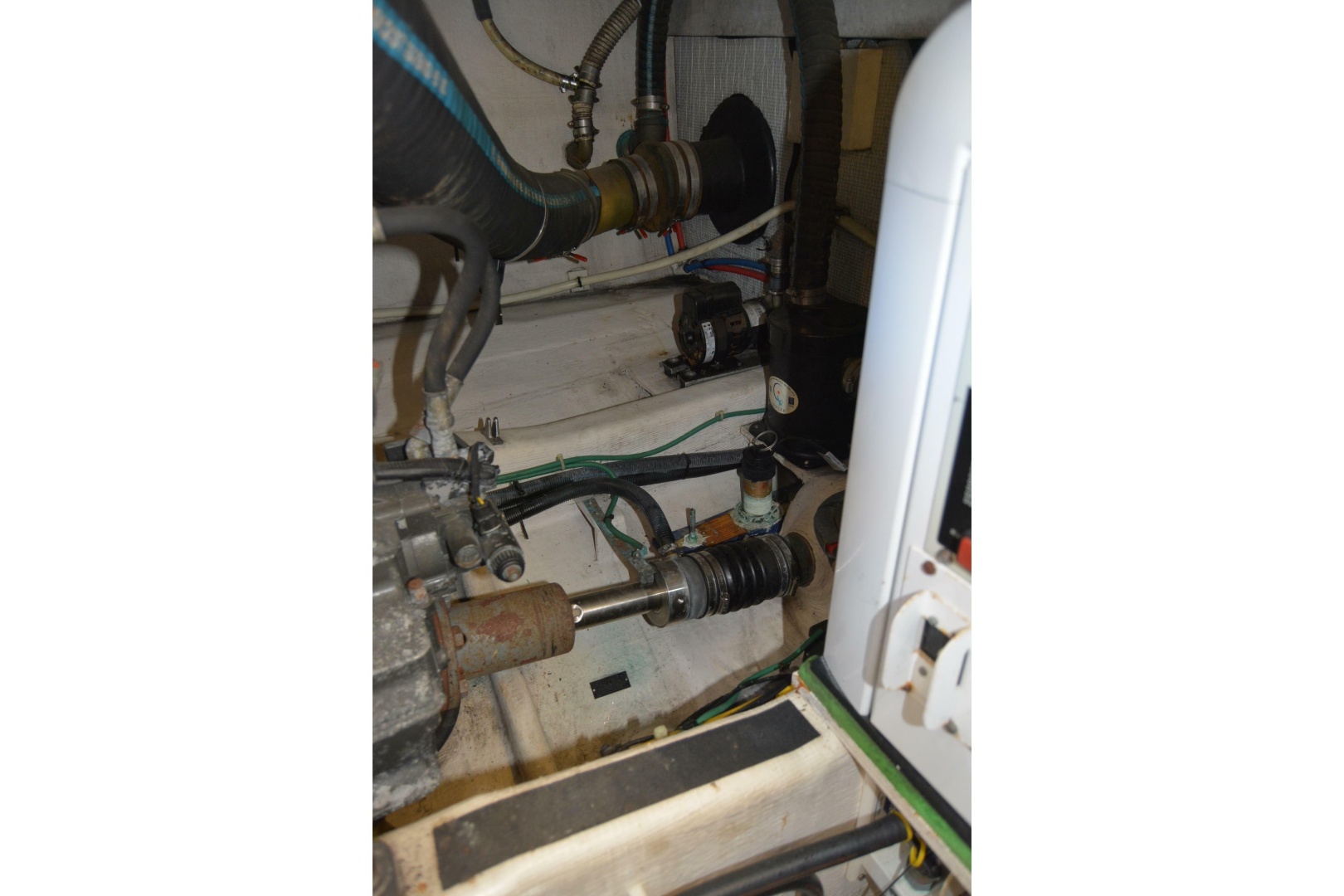

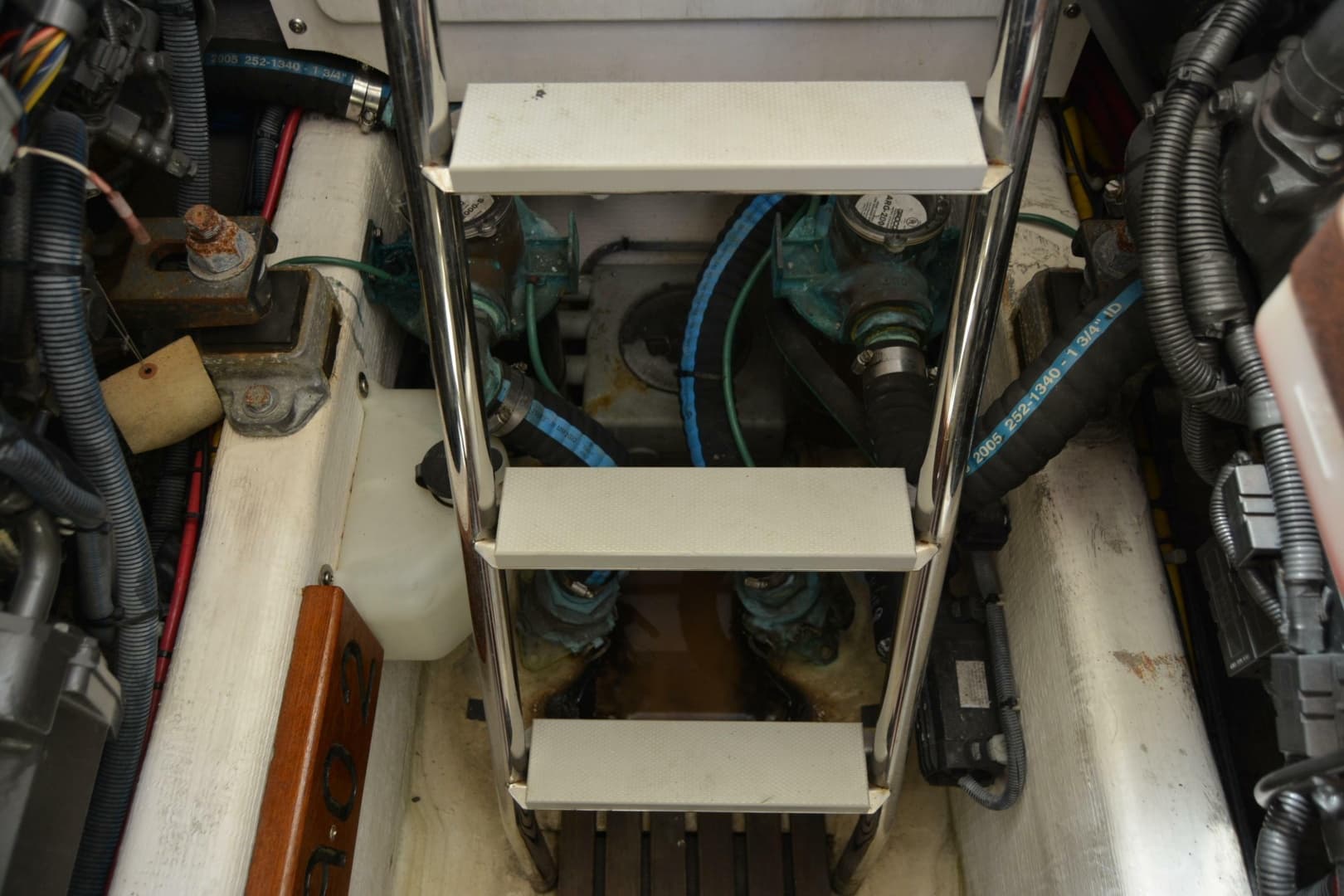

Yanmar Engines

• Optional Power Twin Yanmar 380hp engines with 620 hours at time of listing.
• Yanmar electronic controls and digital gauges.
• Fresh water-cooled.

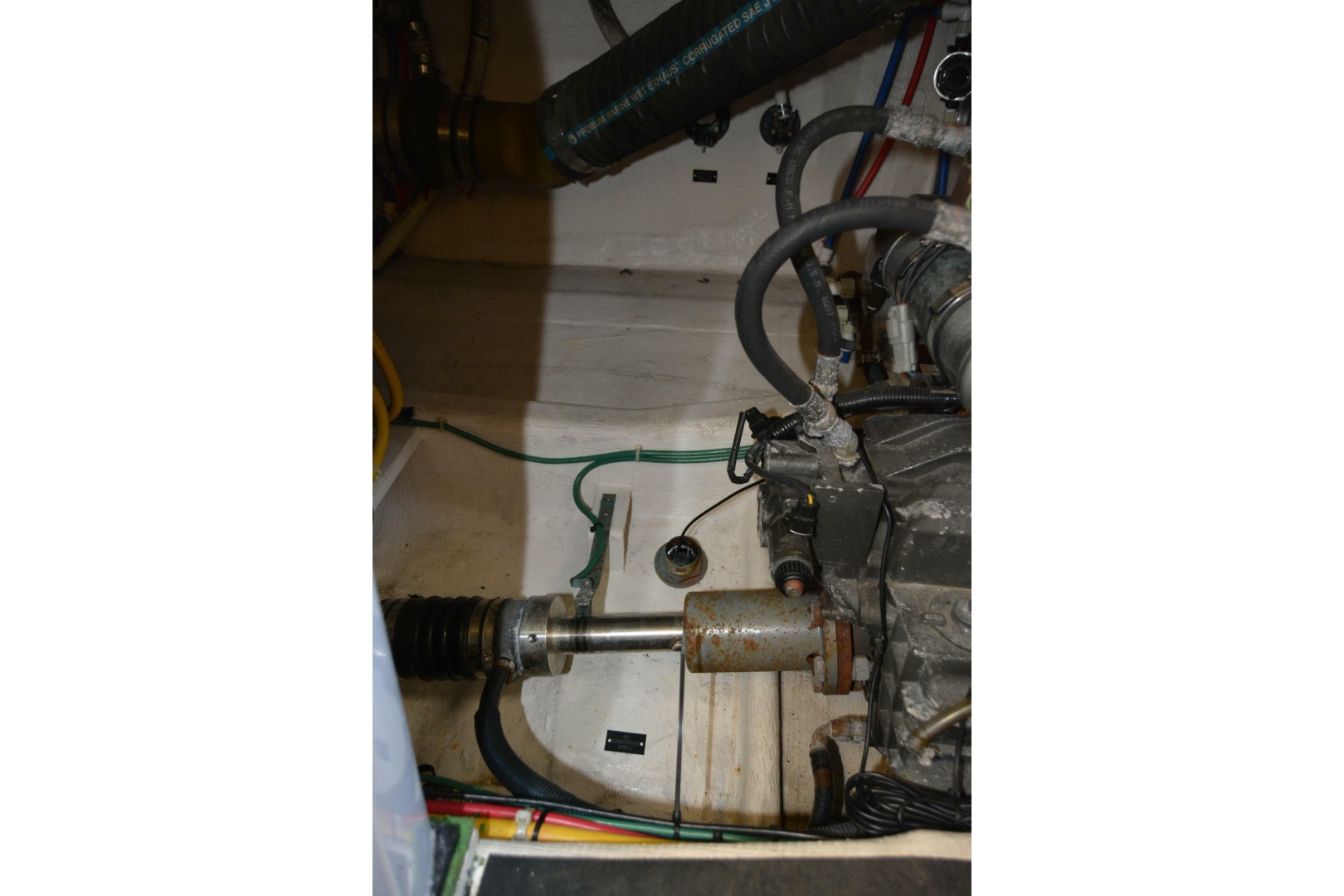

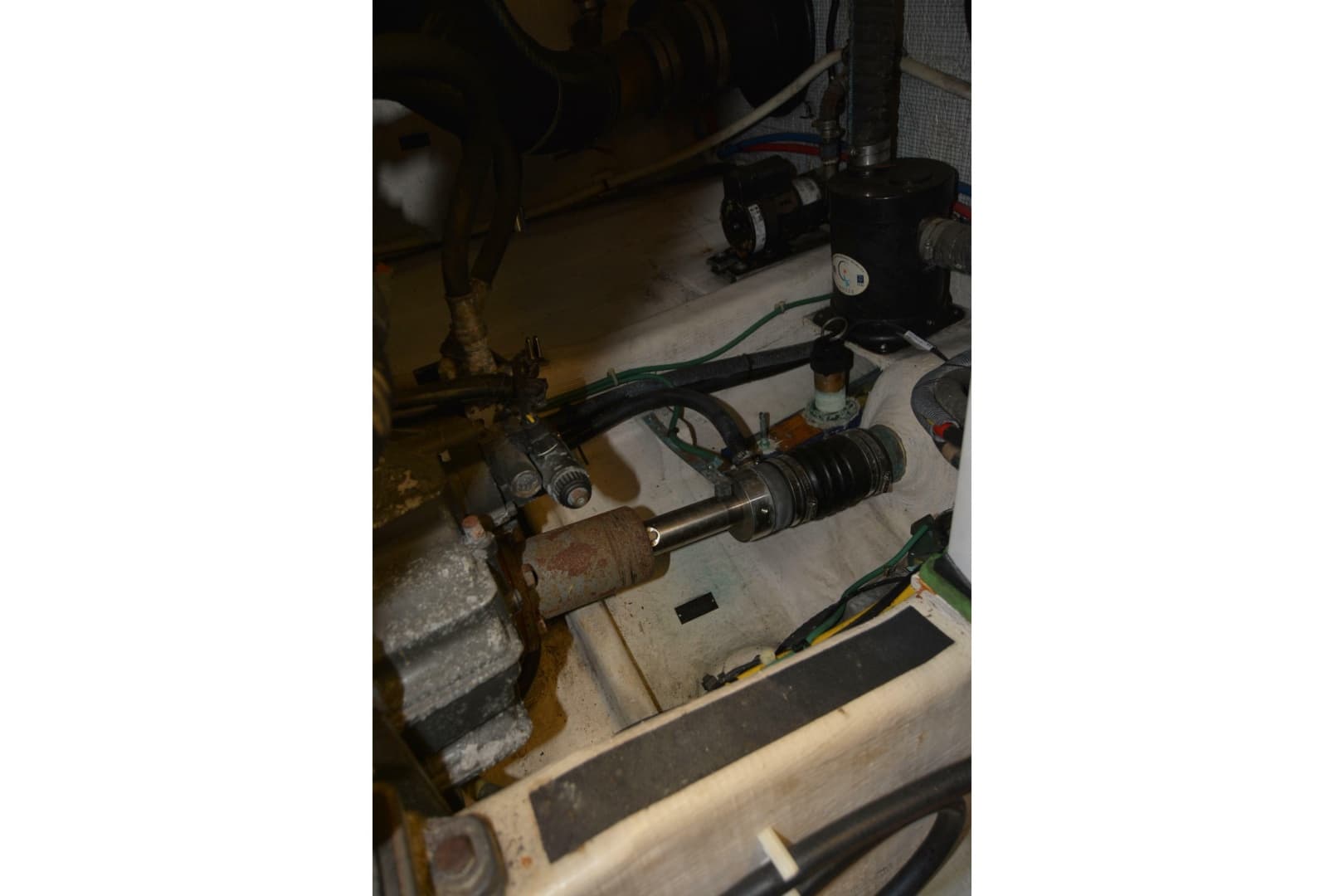

• Stainless Steel engine shafts w/PSS drip-less shaft seals.
• Manganese bronze struts with cutlass bearing.
• Four blade NiBrAl propellers to ISO Class S.
• 12V alternators each engine.
• Seawater cooled 6" side exhaust system.
• Groco raw water intake strainers.
• Engine room blower.
• Engine room vent ducts on deck side with stainless steel grill.
• Engine room floor with teak grate.
• White gelcoated engine room.
• White Mylar faced foam noise 1# barrier.

Fuel System

• 250 gal diesel fuel.
• Racor fuel filters.
• 2” “Diesel” stainless steel deck fill plate
• Fuel Level Indicator at helm.

Steering and Trim

• Teleflex hydraulic steering system
• Tilting Teleflex helm pump
• Vetus Simulation Mog Steering wheel with “Sabre” inset

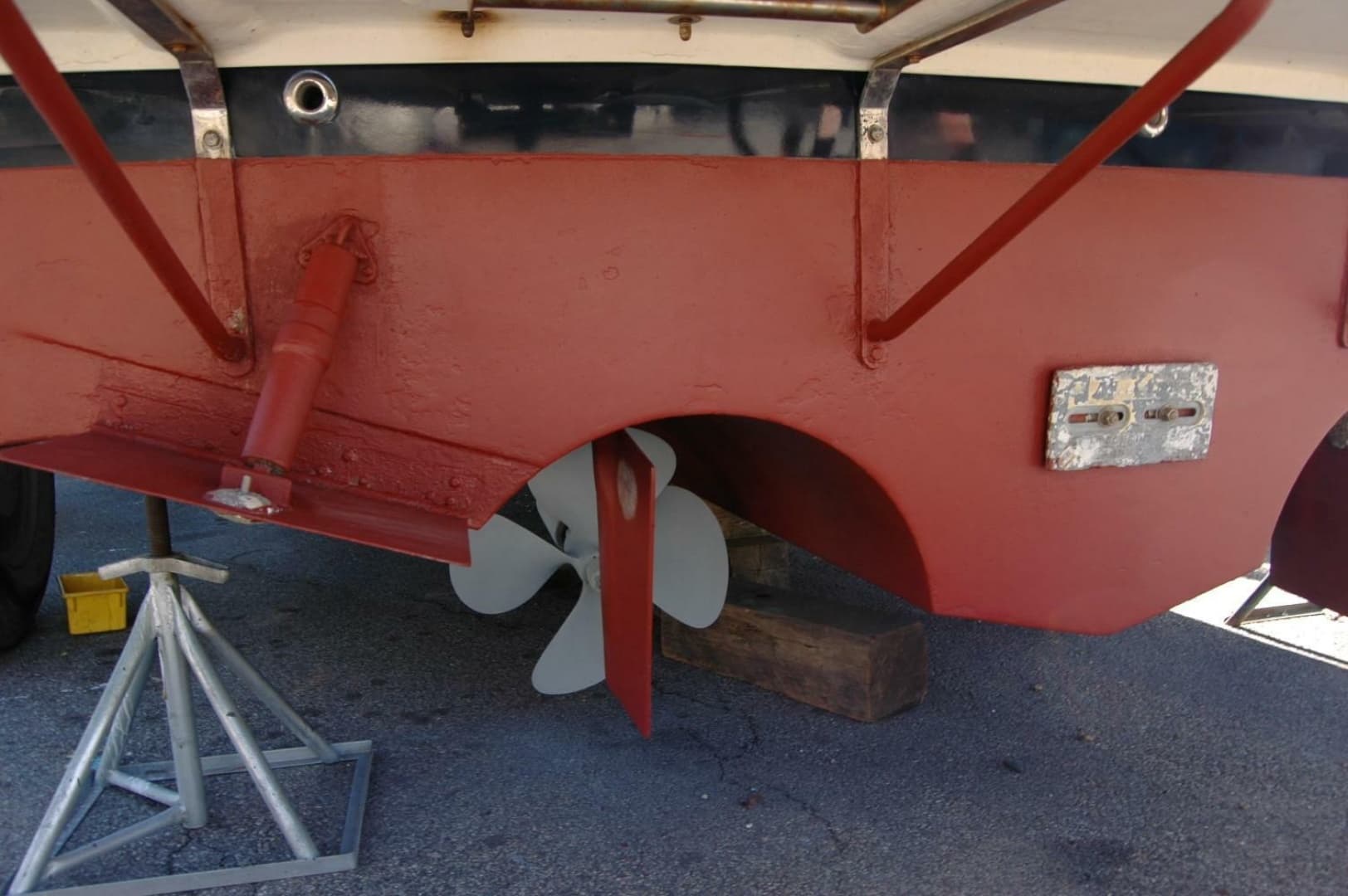

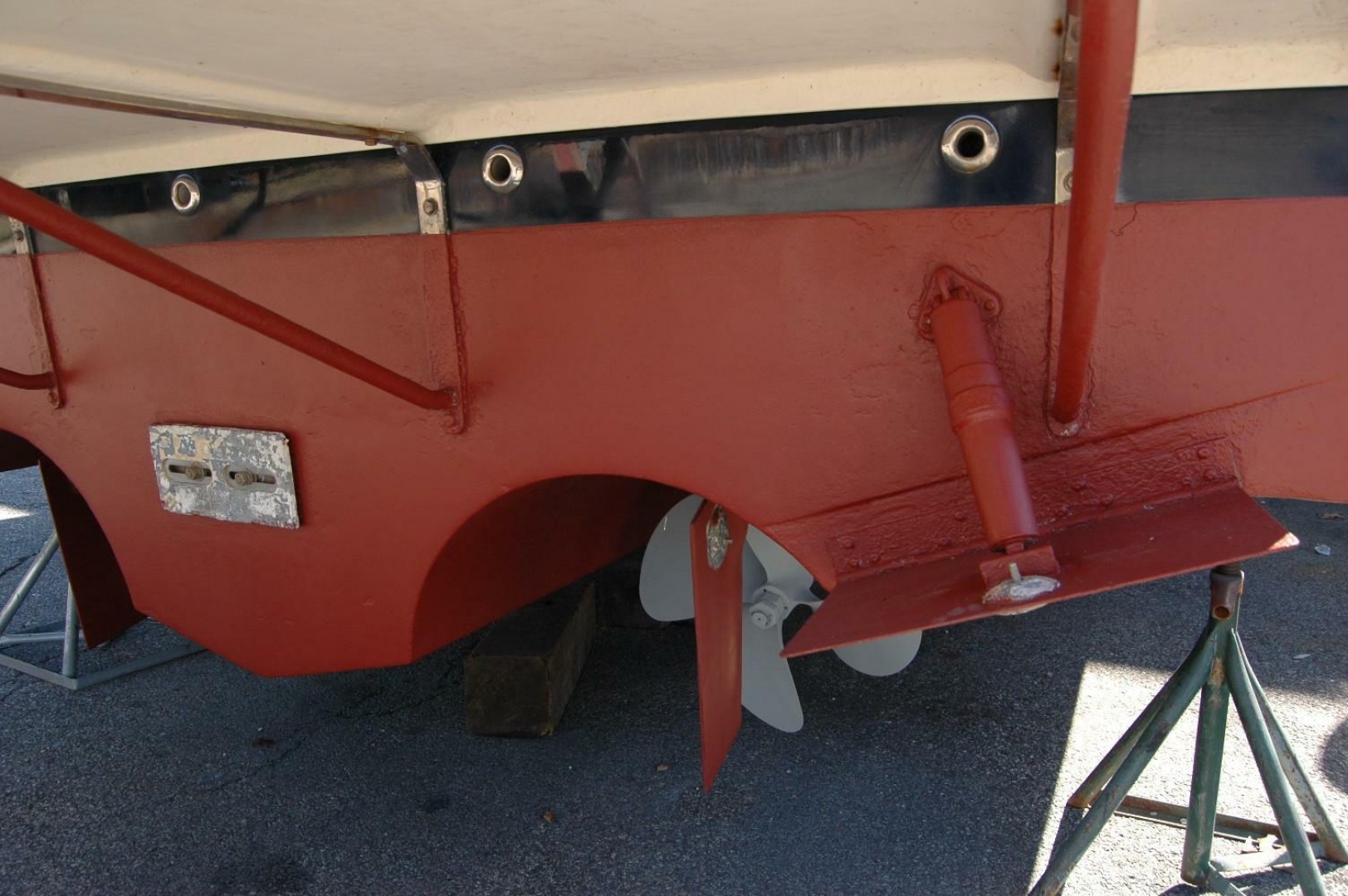

• Twin bronze rudders w/adjustable tie-rod. (1 3/8” dia.)
• Twin stainless steel trim tabs. (Lectro Tab)

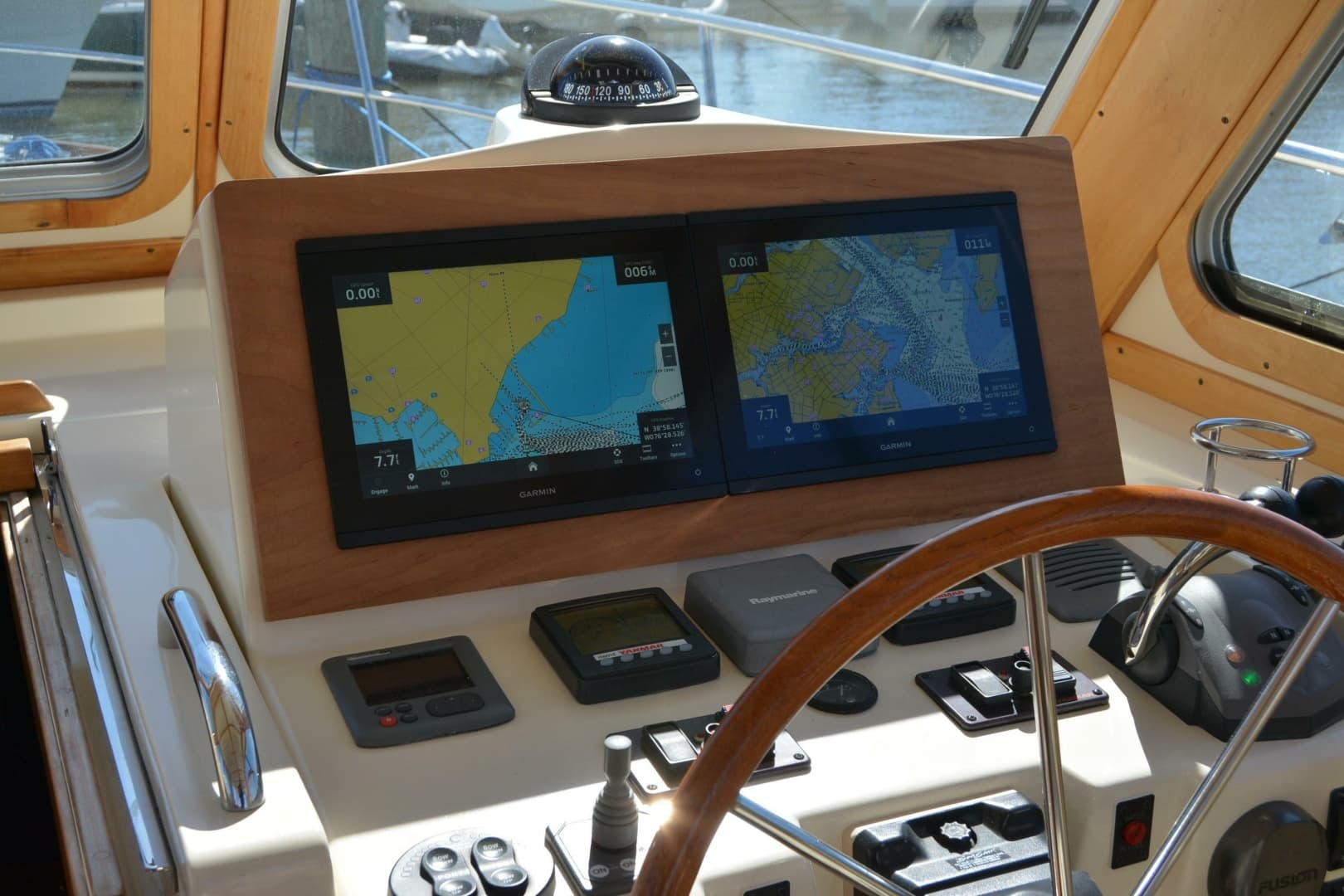

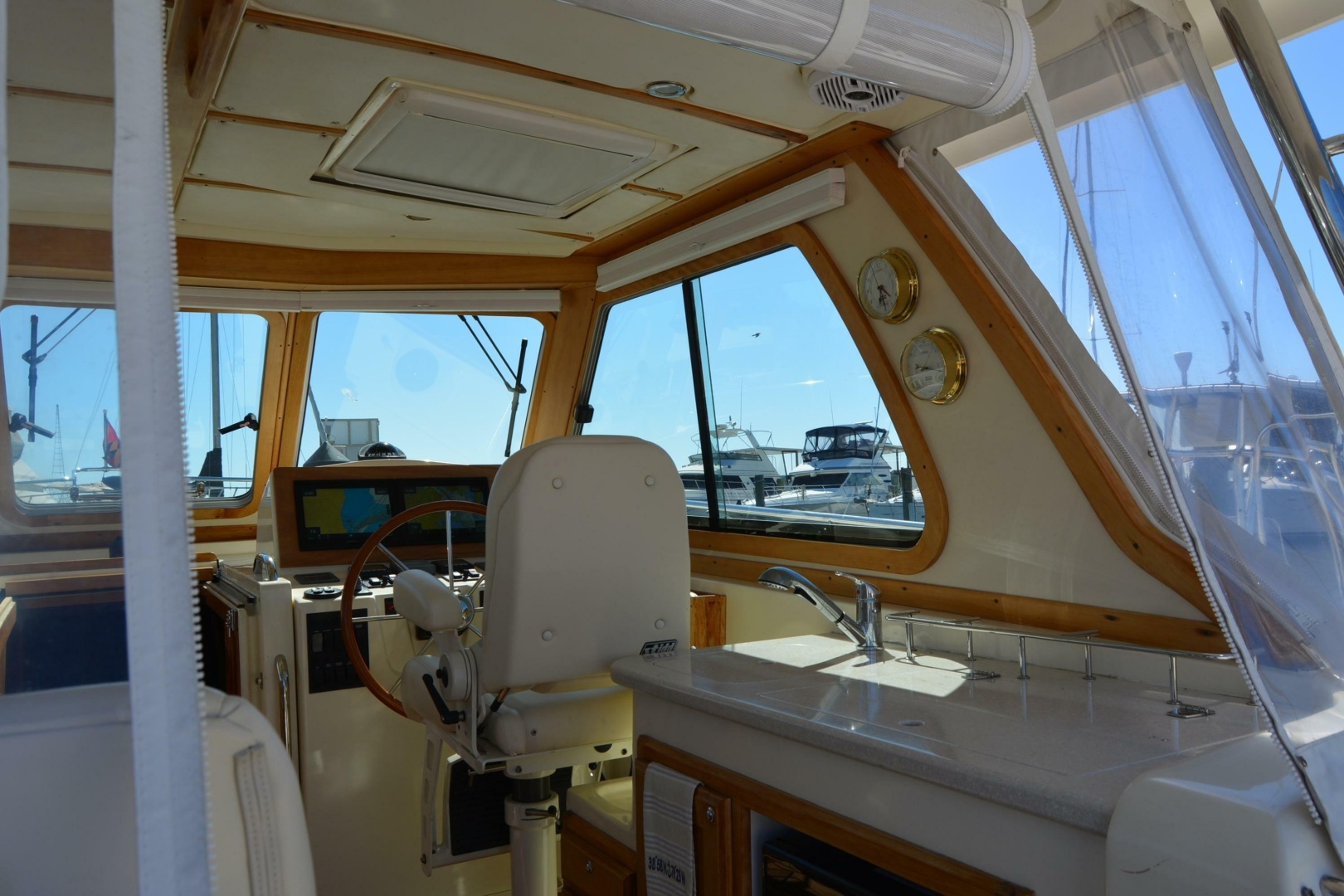

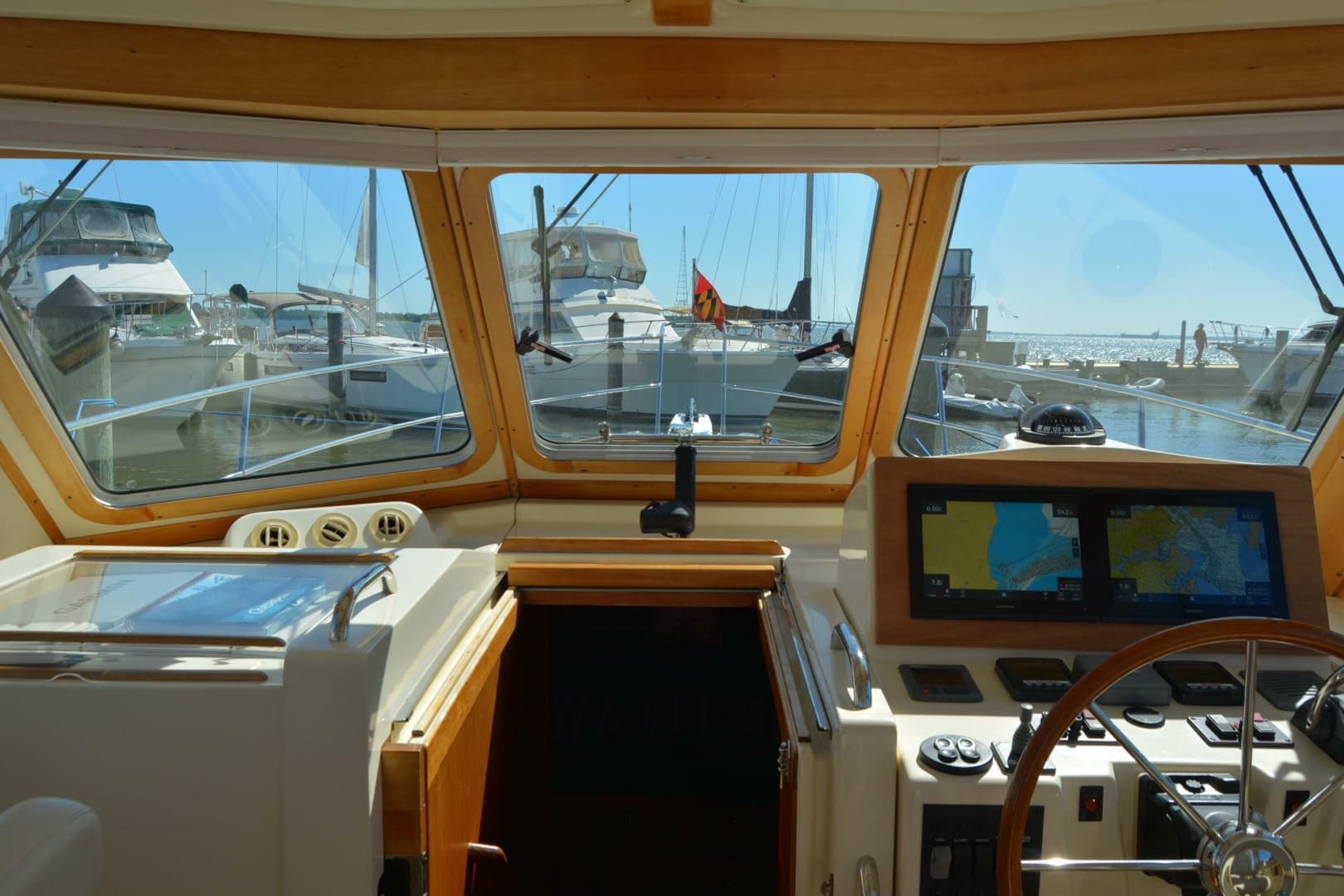

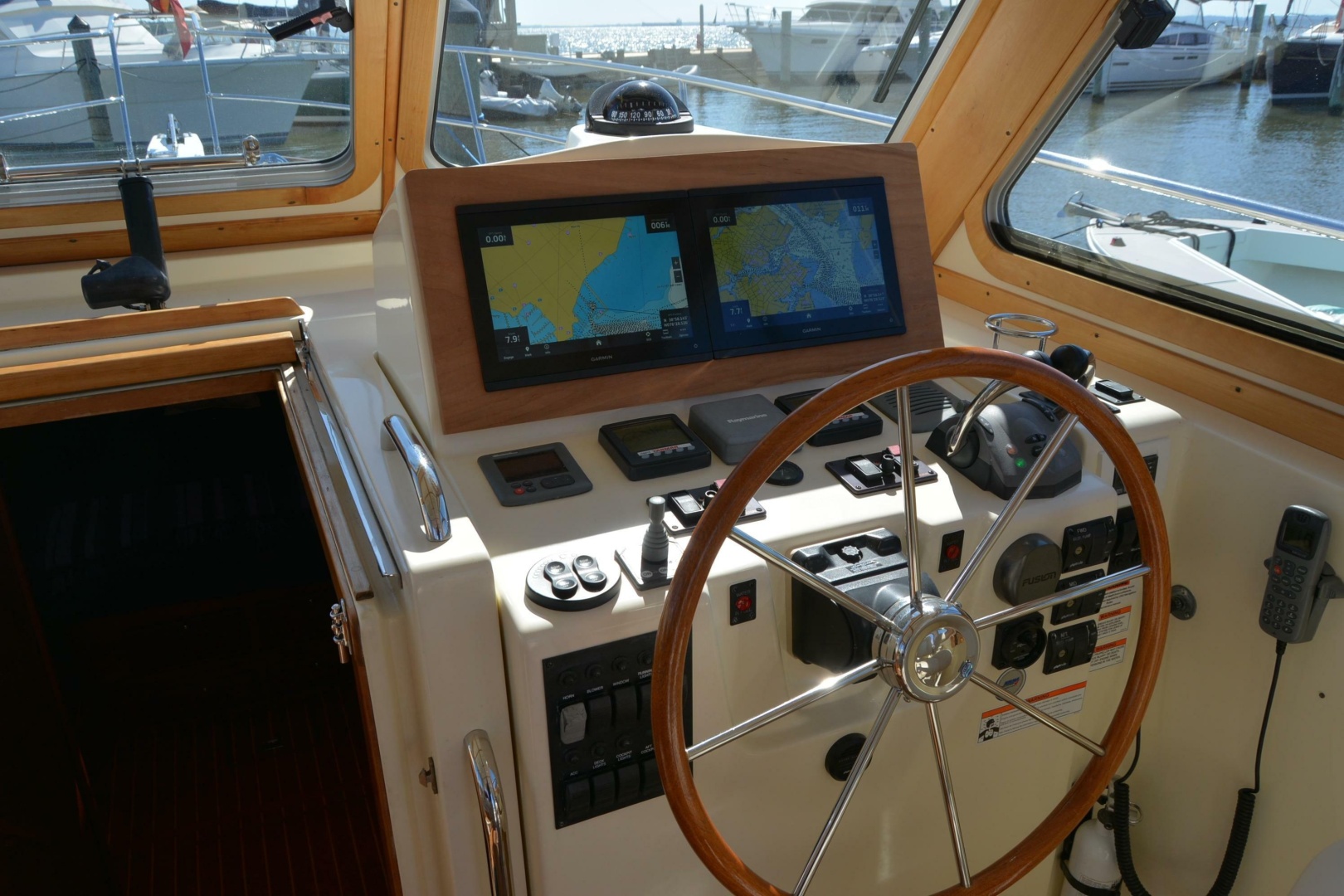

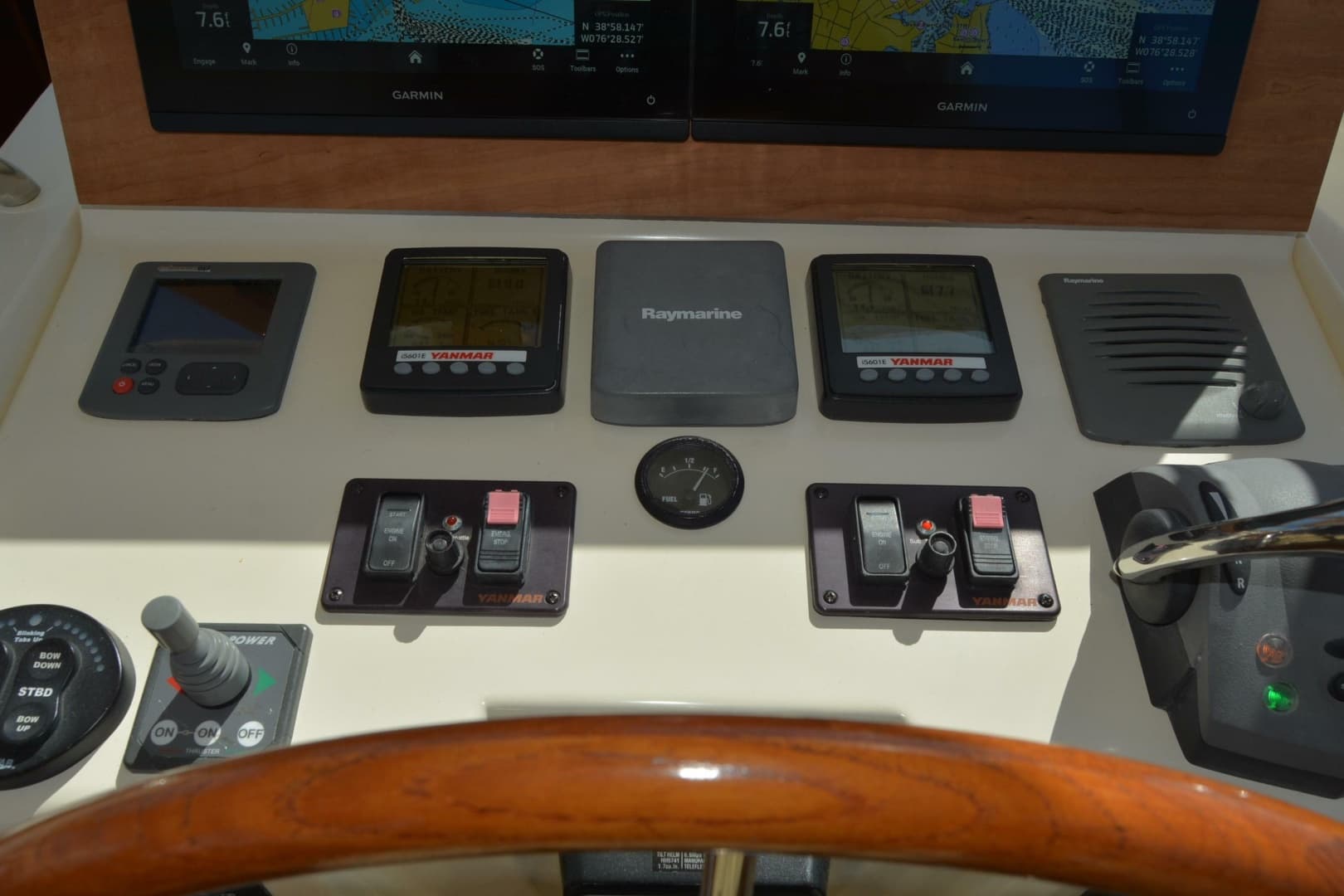

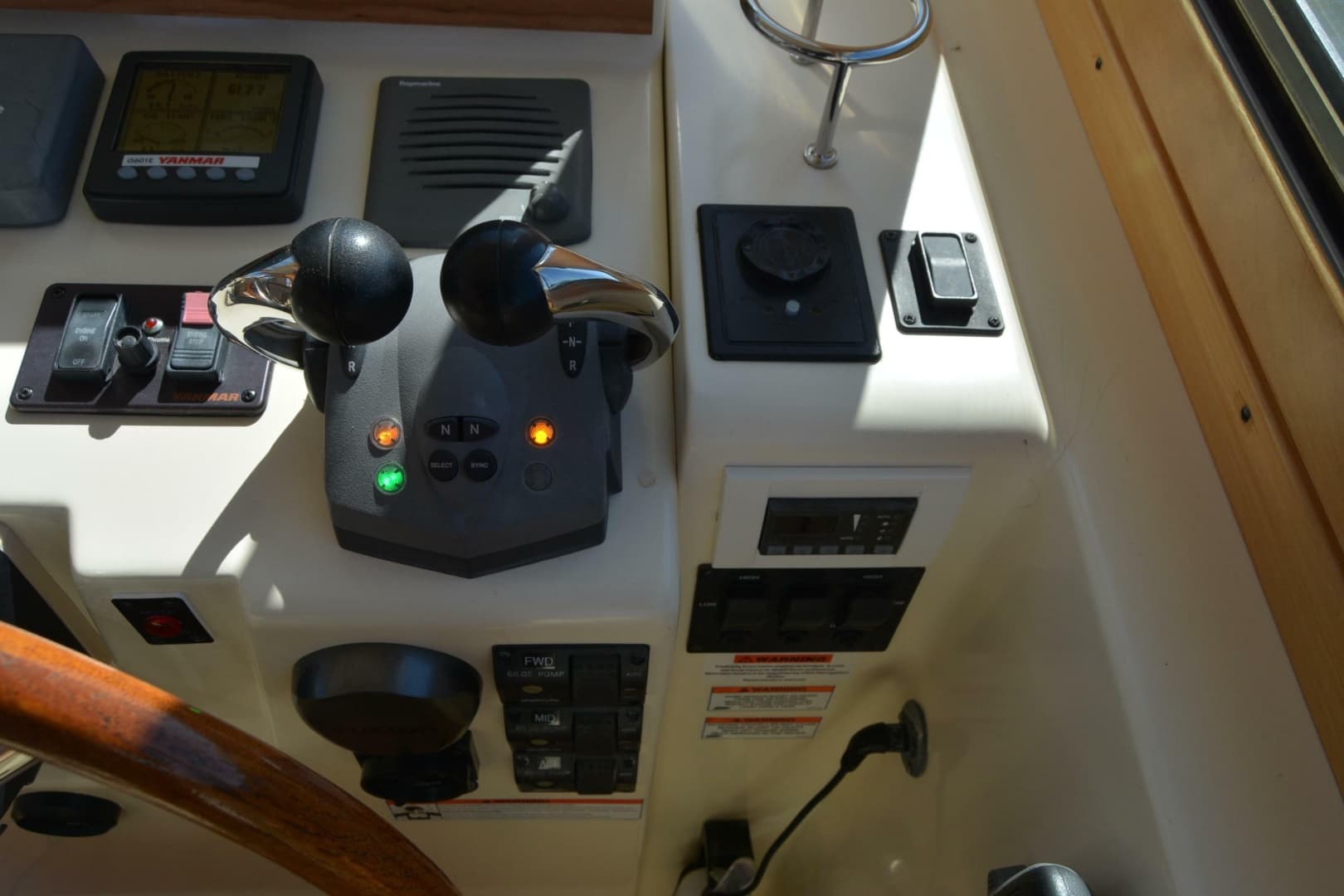

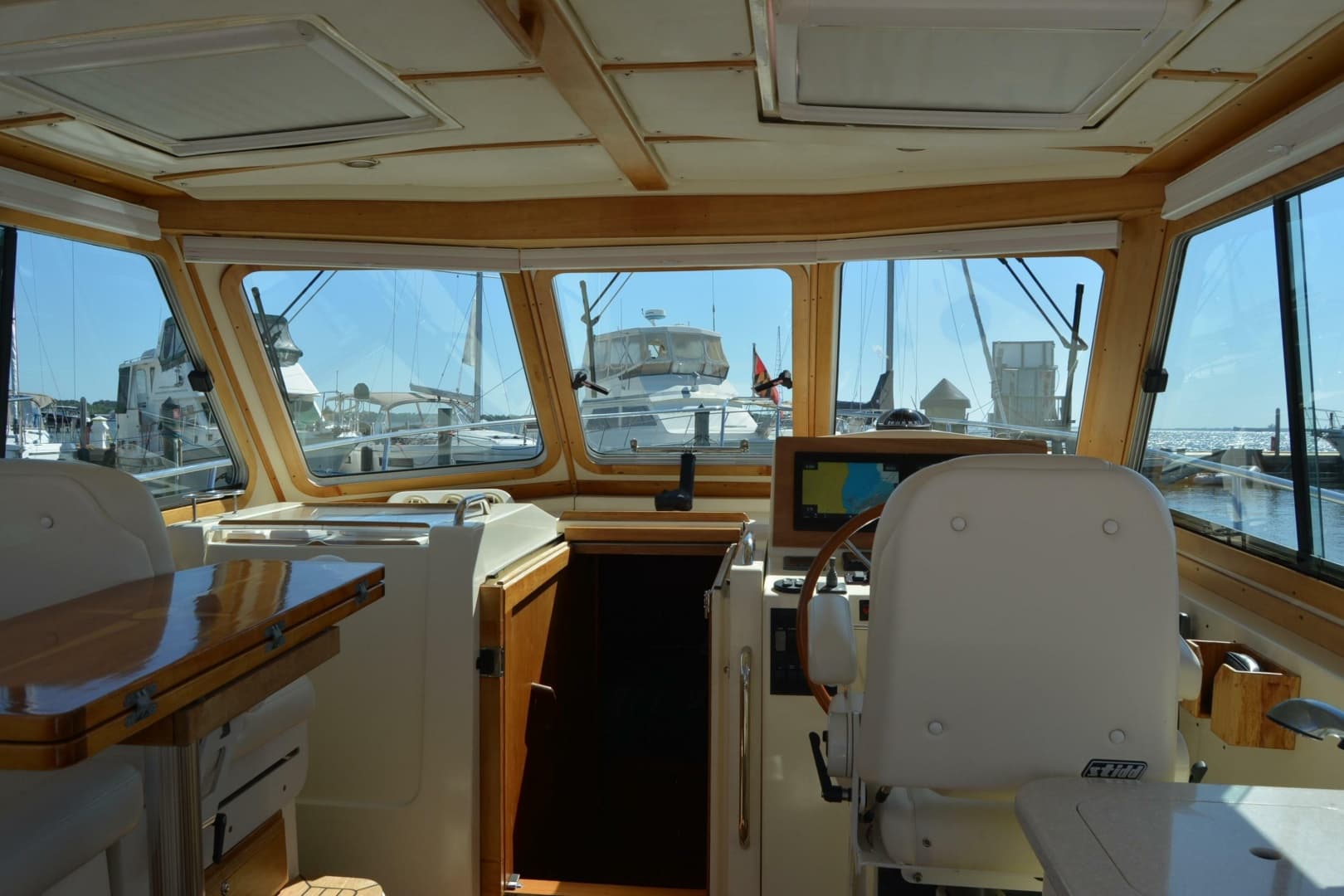

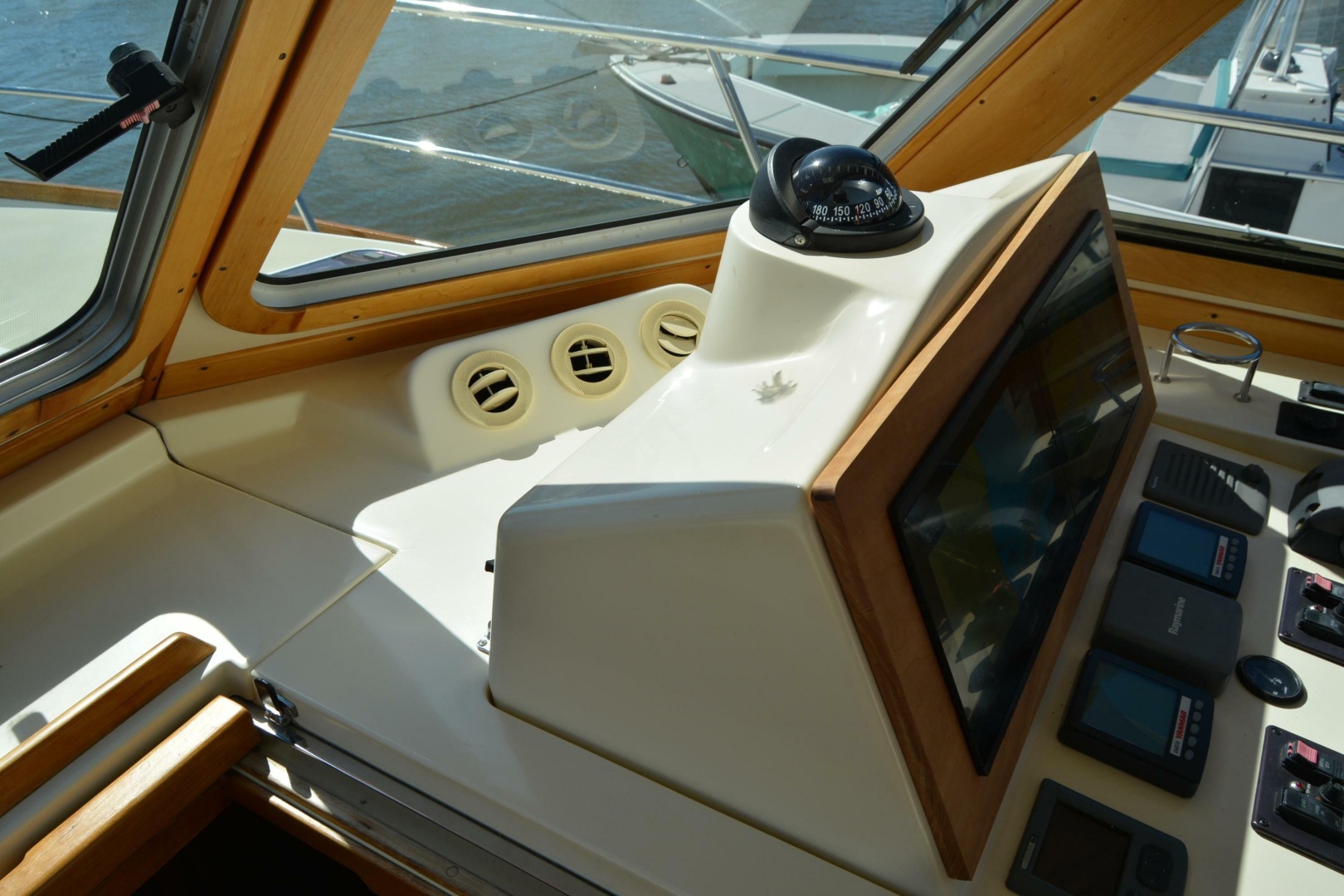

Helm Station

• Engine Start/Stop control panel.
• Digital engine gauge panel
• Water in fuel warning light.

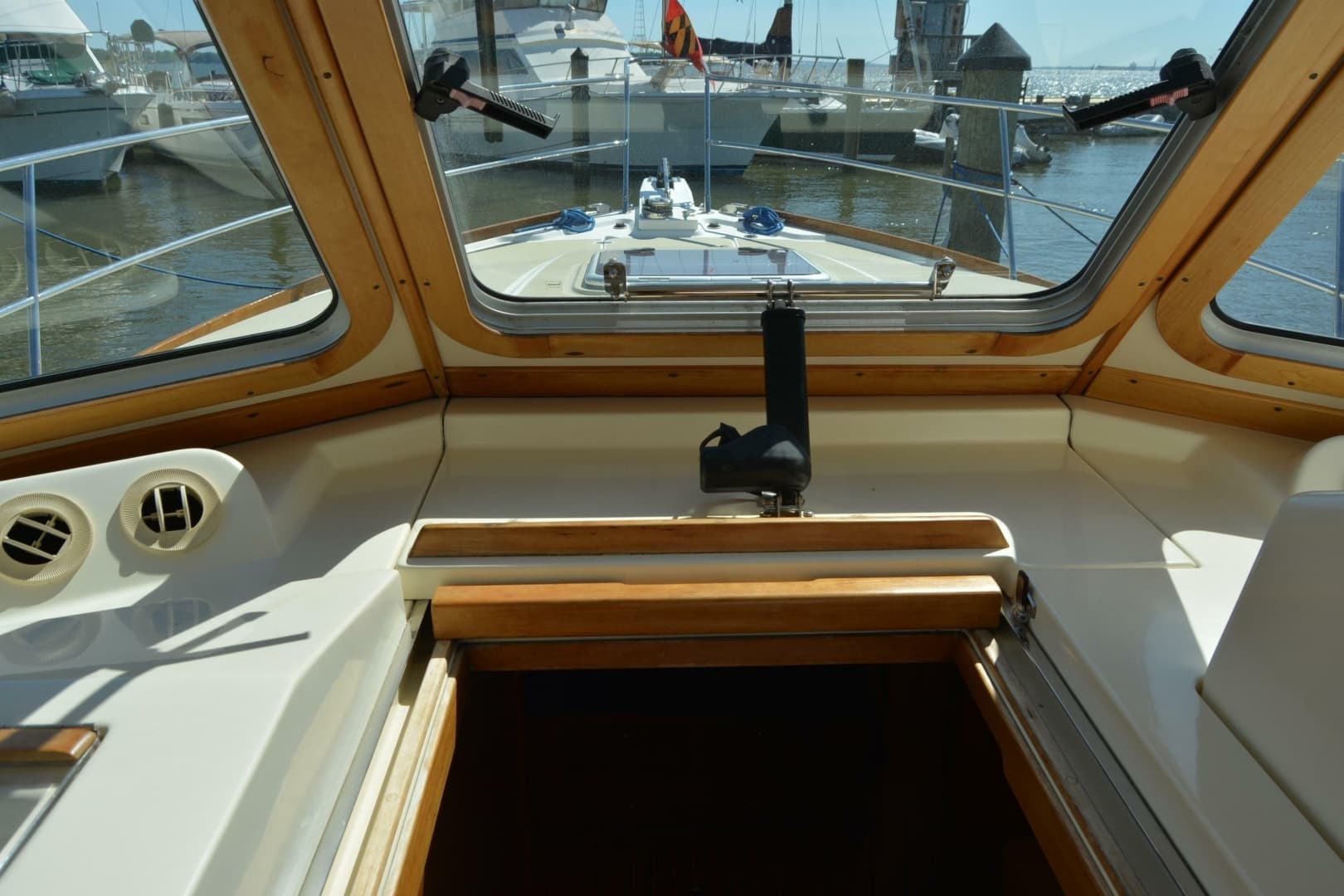

• Triple windshield wipers with washers.
• Ritchie Compass (with light).
• Switch controls for horn, running lights, anchor light, engine room blower and optional equipment.
• Tilting navigational electronics helm pod.

120V AC Electrical System

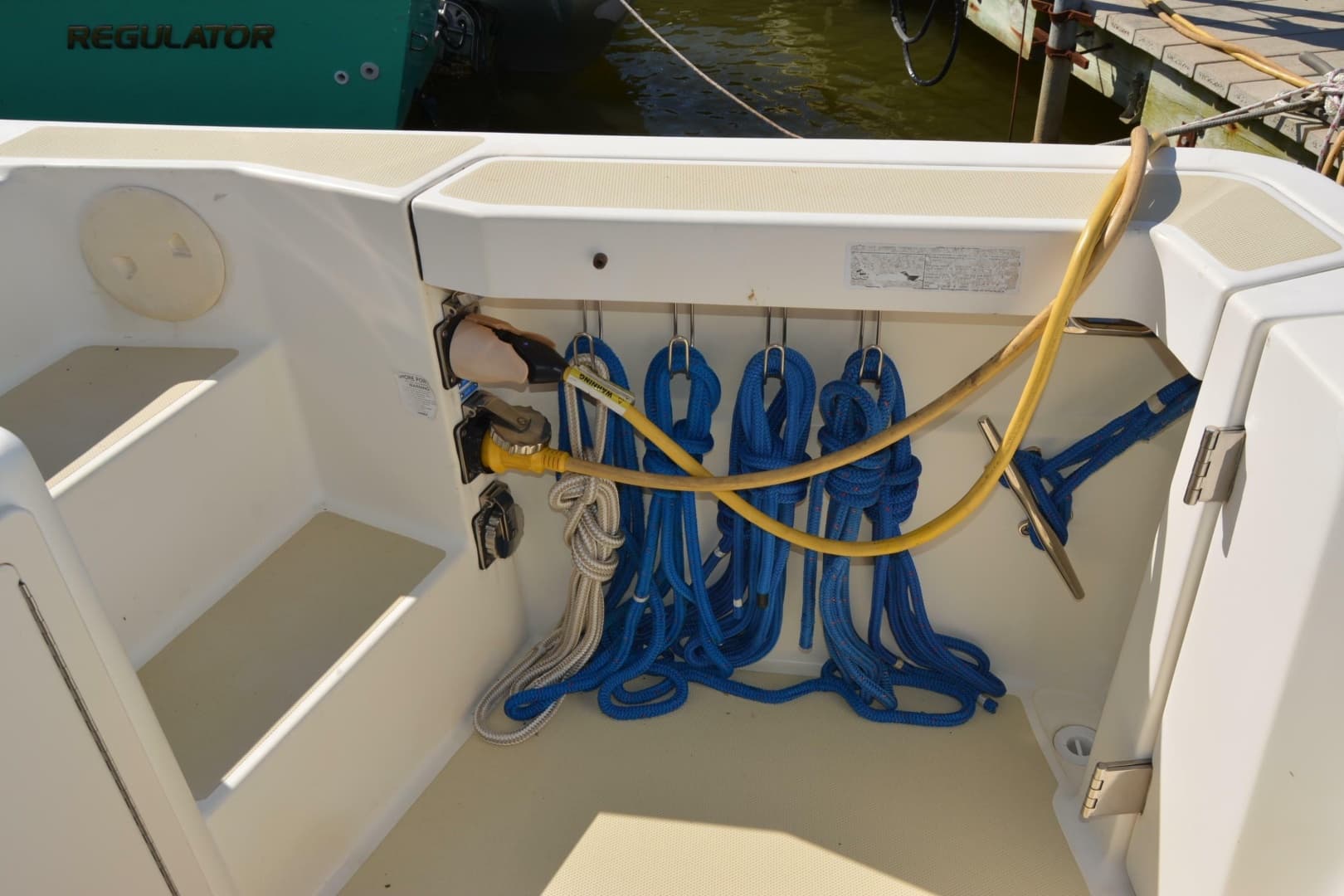

• Two 30 AMP AC shore power inlets and 50 ft. cord. located in starboard side of cockpit outboard of side deck steps.
• Galvanic isolator w/monitoring system.

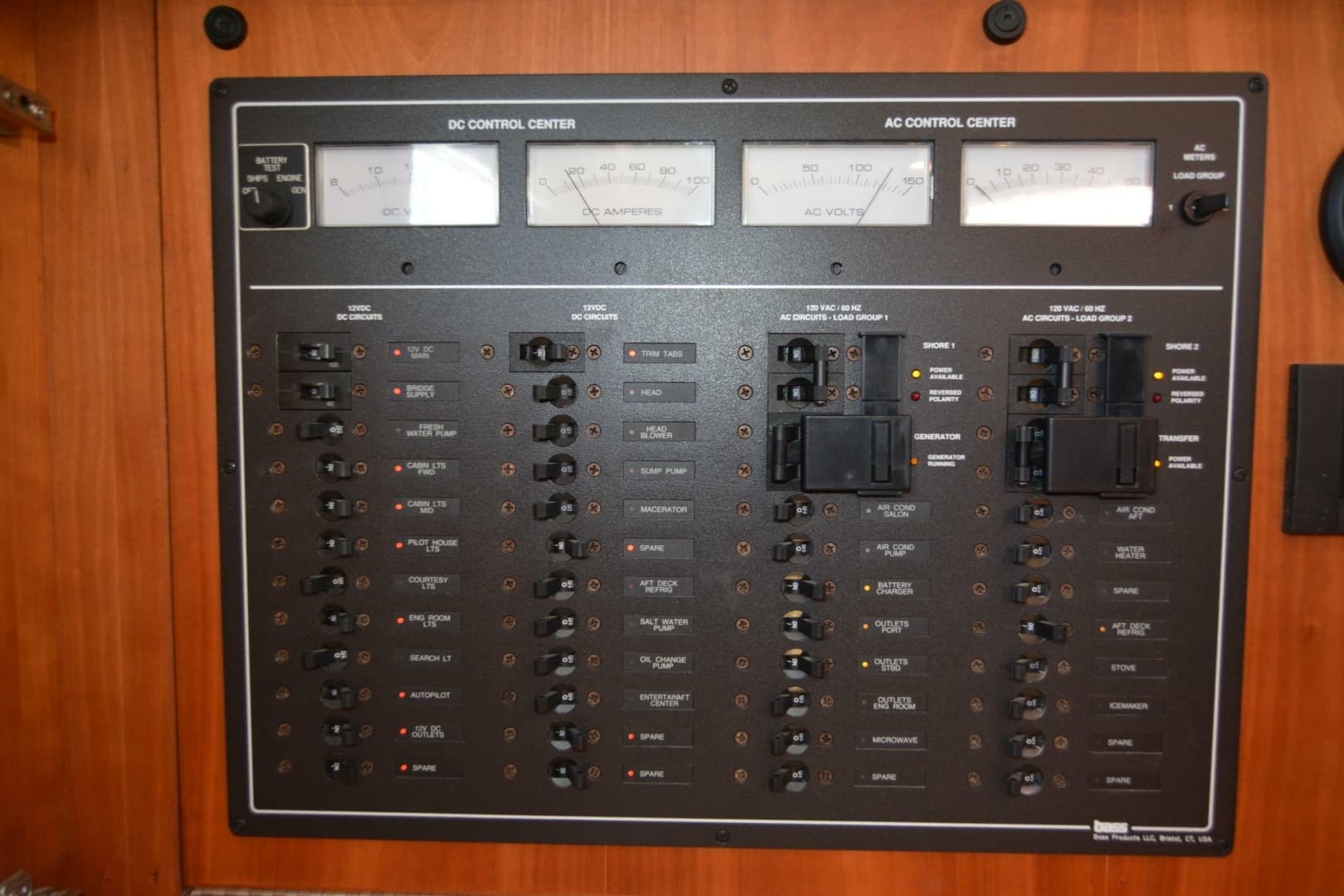

• Illuminated main circuit breaker distribution panel.
• 110V outlets in each cabin and one in engine room.
• All galley and head receptacles are GFI protected.

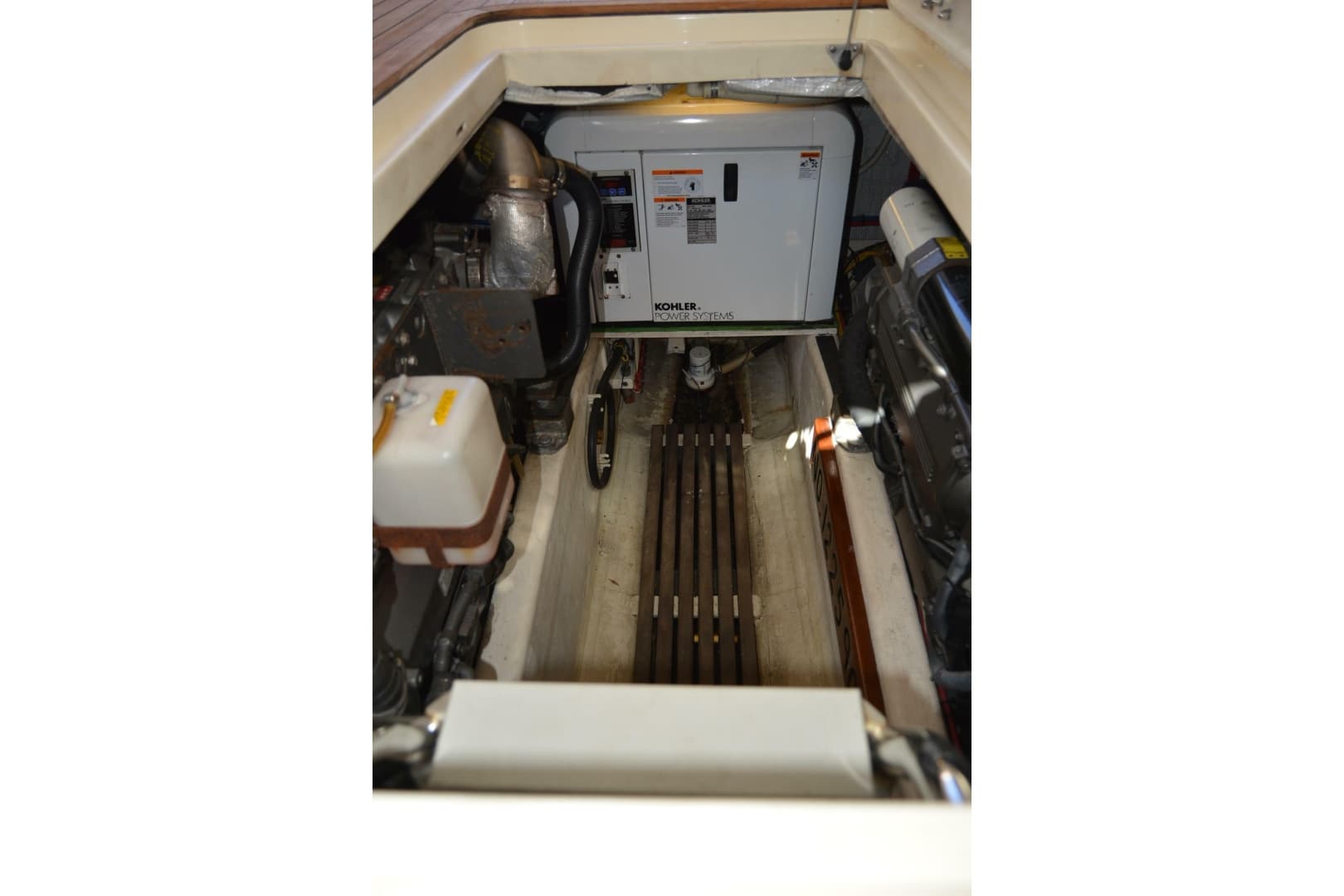

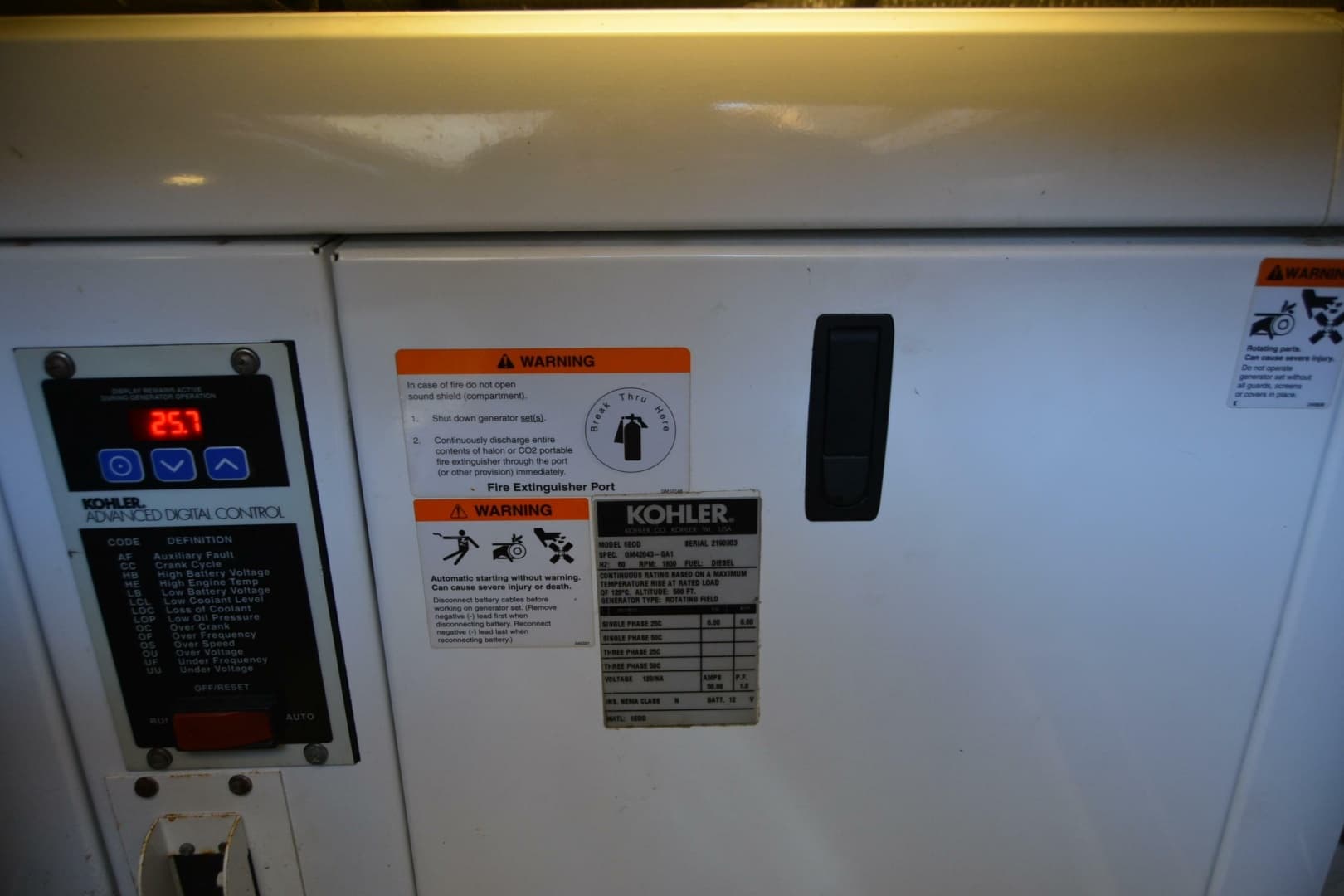

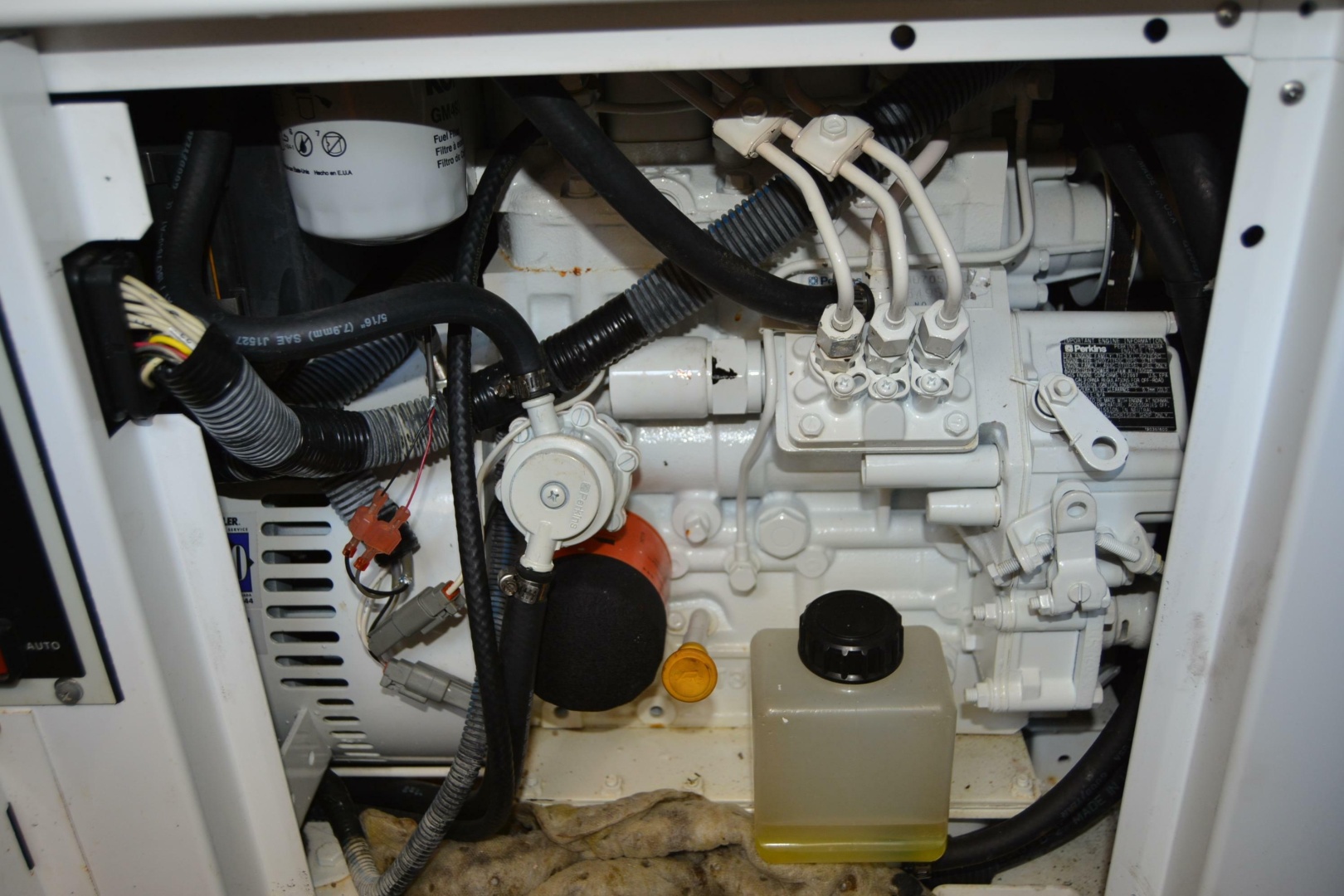

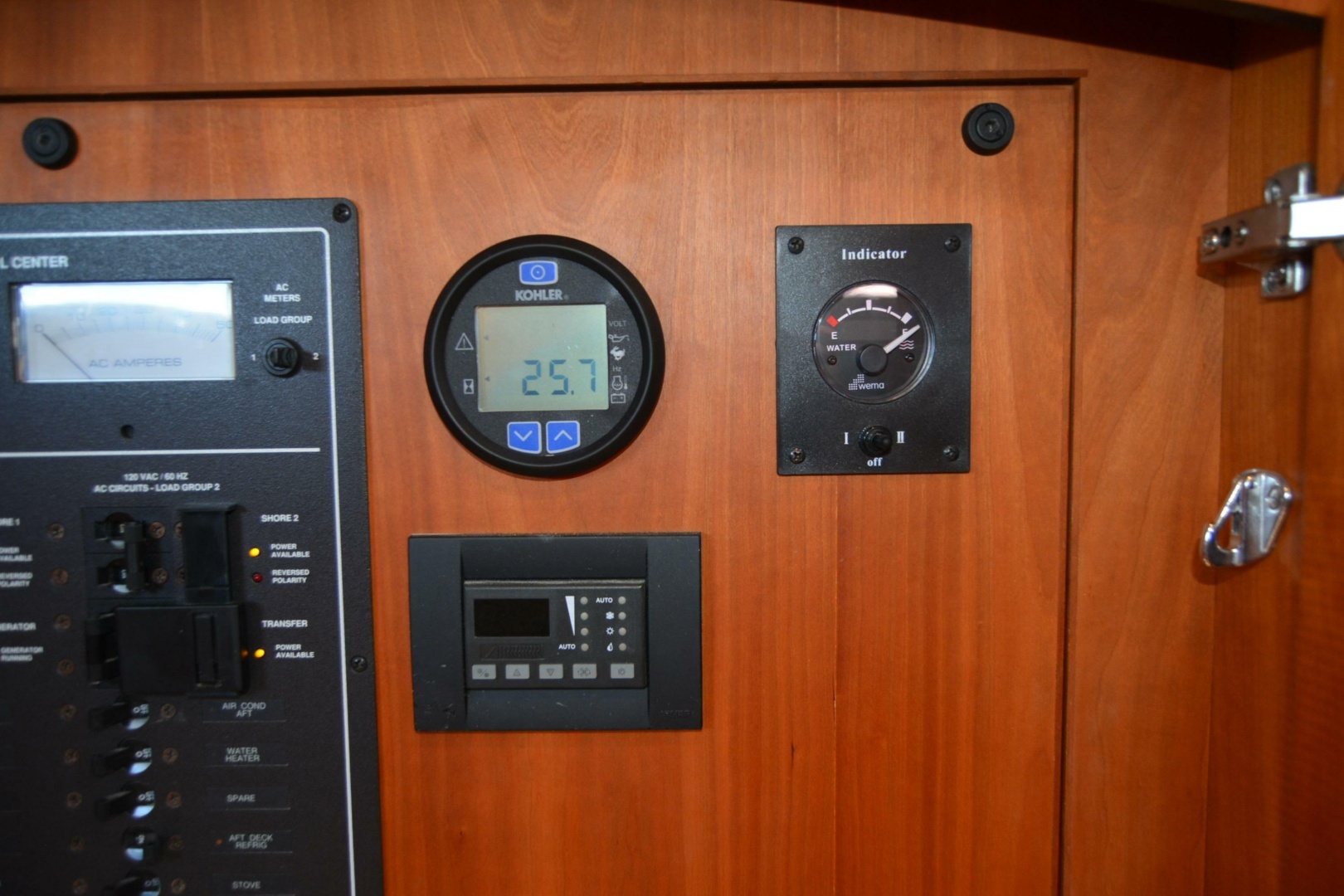

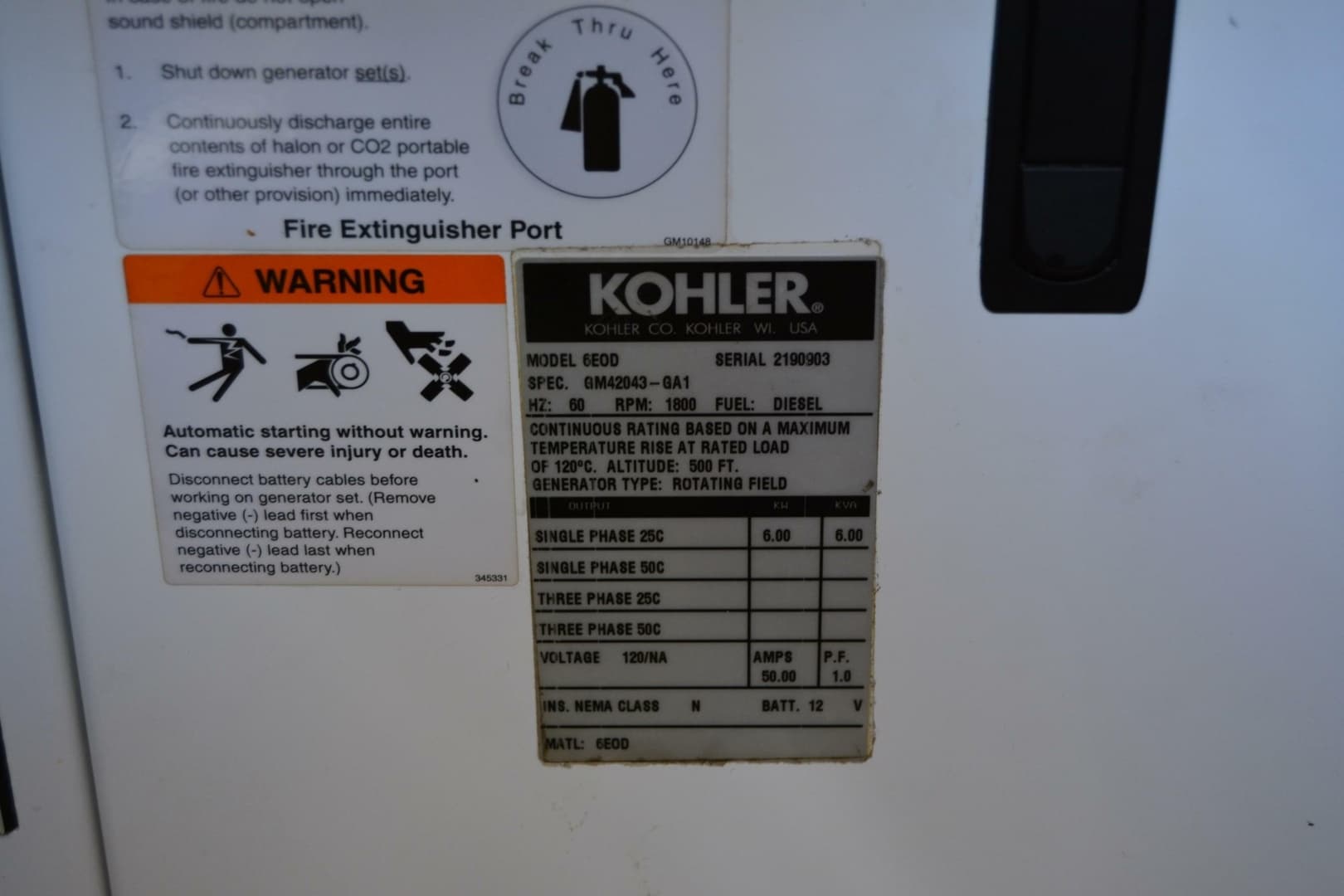

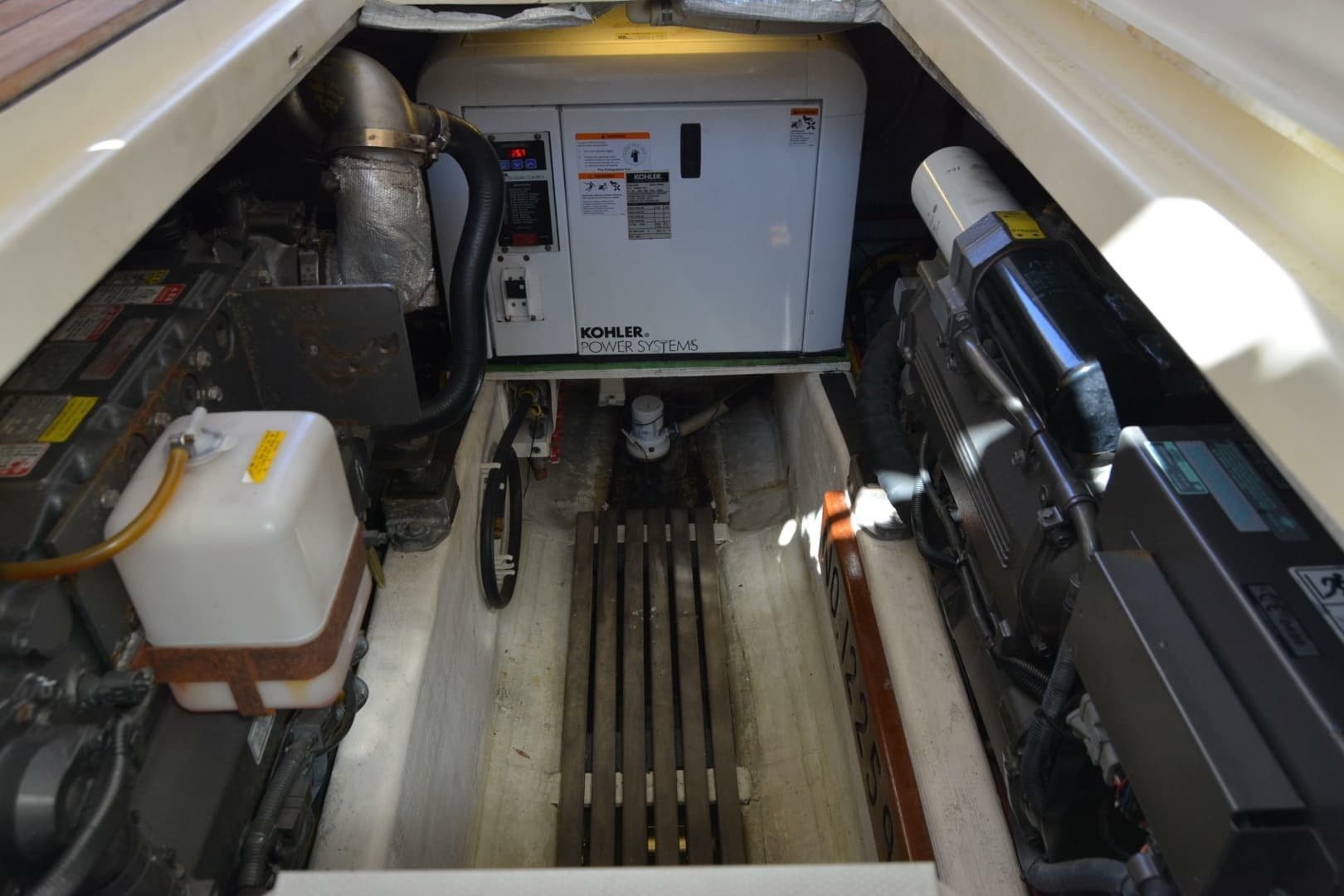

• Generator Kohler 6.5 KW.
• Reverse Cycle Air Conditioning below deck 12K BTU.
• Battery charger.

12V DC Electrical System

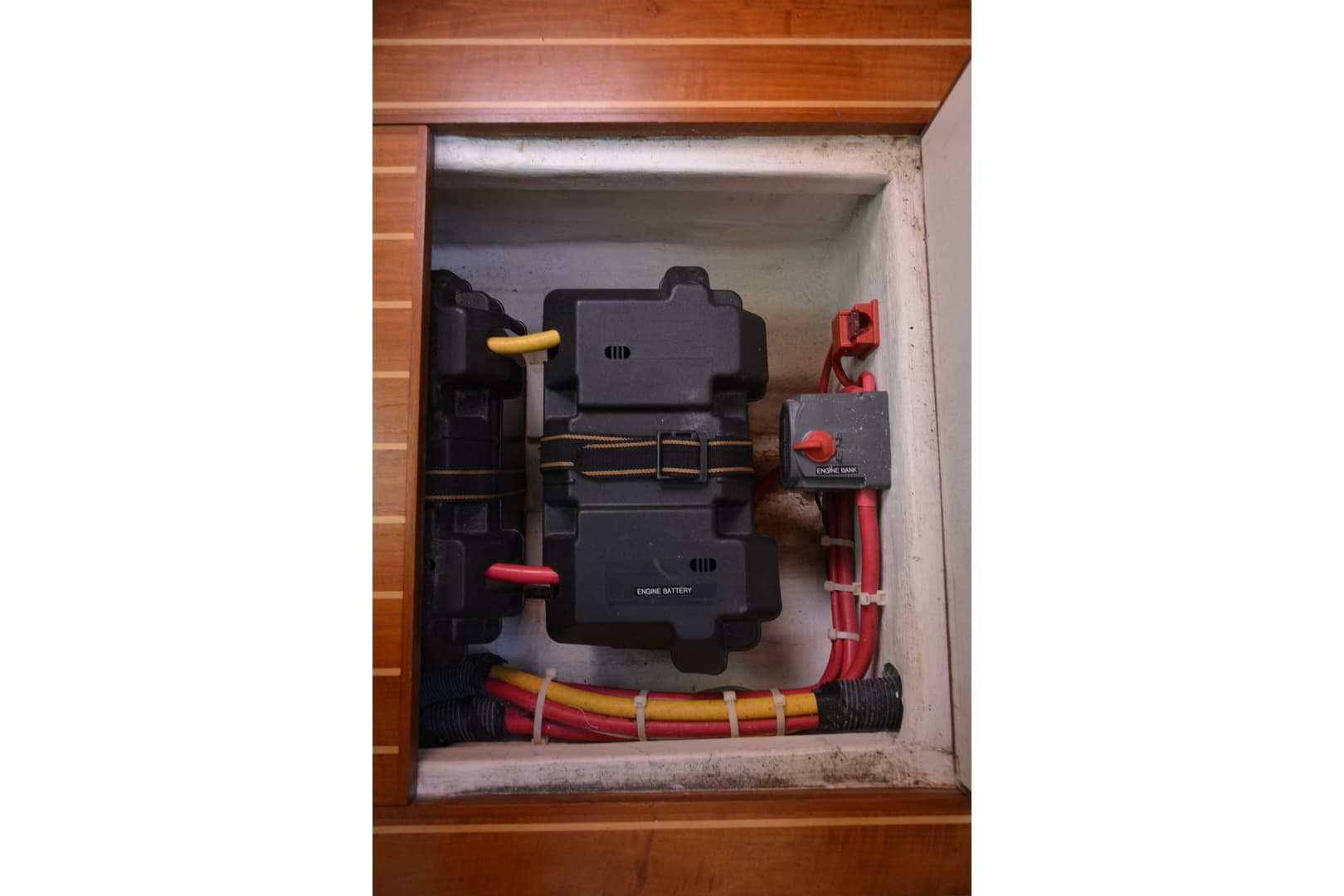

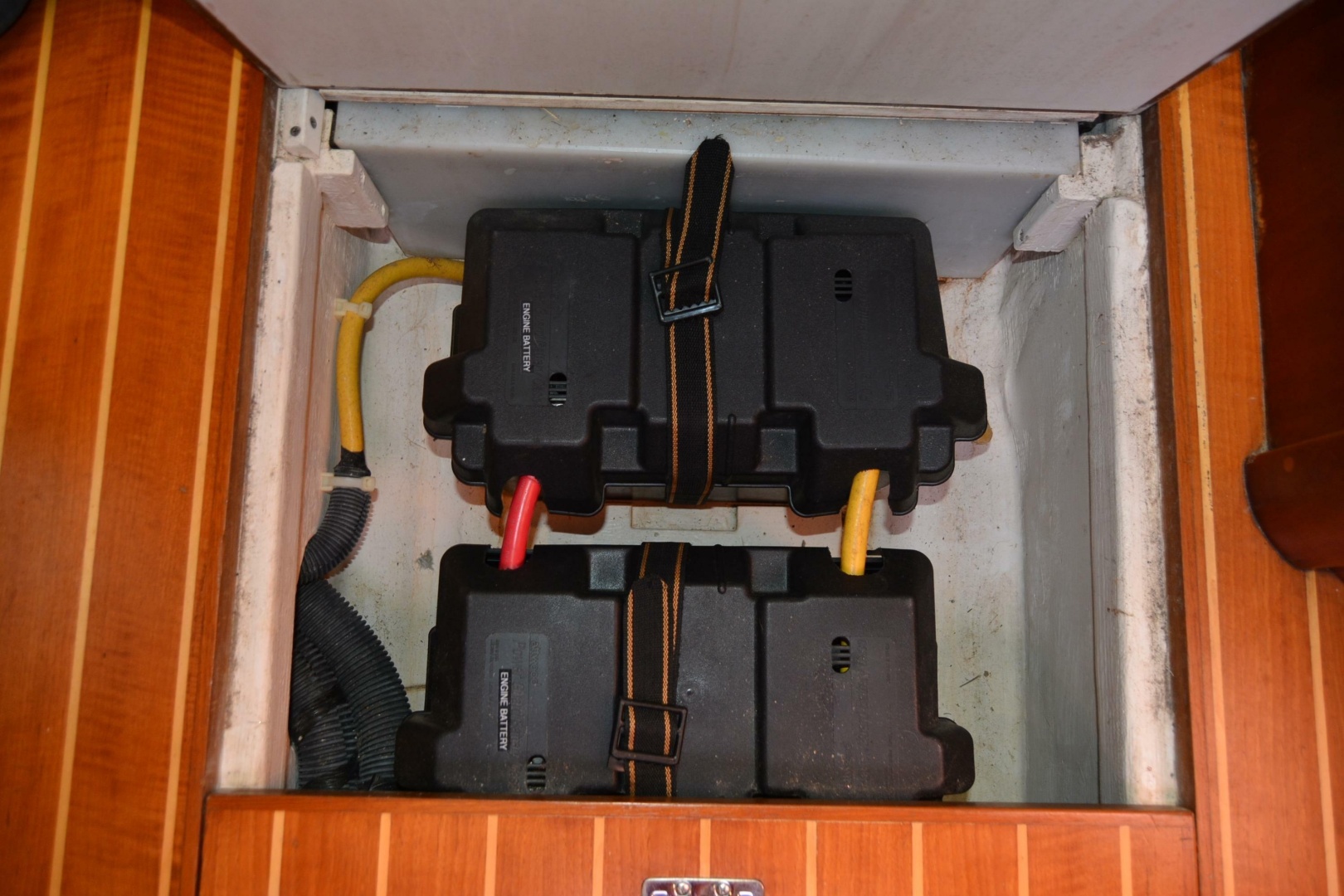

• Three engine start batteries. (Group 31)
• Two ship's service batteries. (4D)
• Battery Management panel located in companionway stairs.
• Emergency crossover switch.
• Ships power switch.
• Starting Battery switch.
• Illuminated main circuit breaker distribution panel w/battery condition gauge.
• 12v outlet at helm.
• Lighting:- Danish Cabin reading lights.- Cantalupi halogen lights in the overhead.- Halogen bar lighting.- Engine room lighting.- Cockpit courtesy lights w/remote switch at transom door.
• Tinned wire throughout.

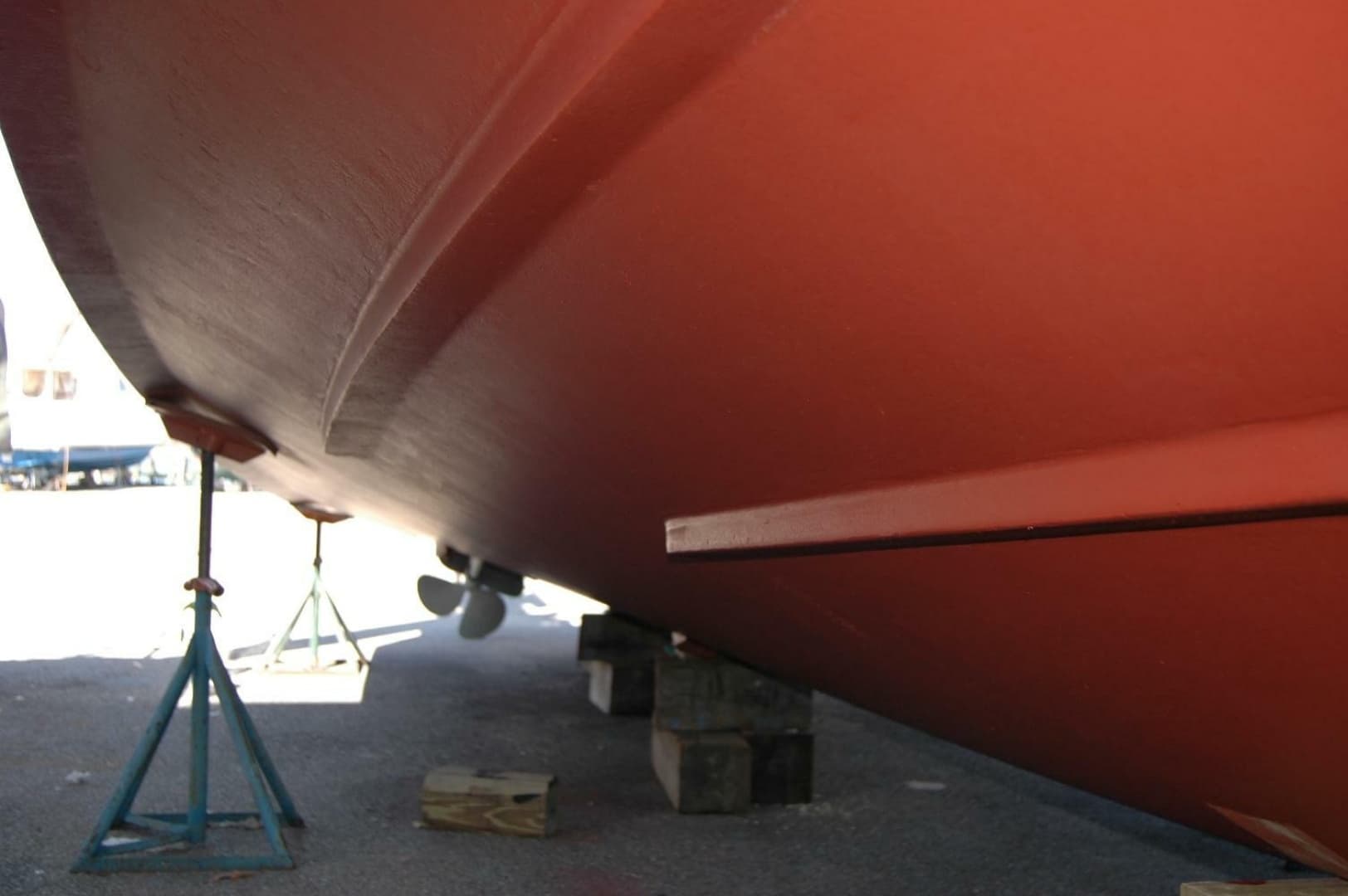

Hull Composite

• Modified “V” planing hull design with Shallow prop pockets.
• 23 degree deadrise amidships and 16 degrees aft.
• ISO NPG Sport Yacht white gel coat w/Vinylester back-up resin.
• Knitted Biaxial Structural E-Glass Reinforcements.
• Vacuum Bagged Divinycell foam core in hull bottom and topsides.
• Foam/plywood cored fiberglass stringer system.

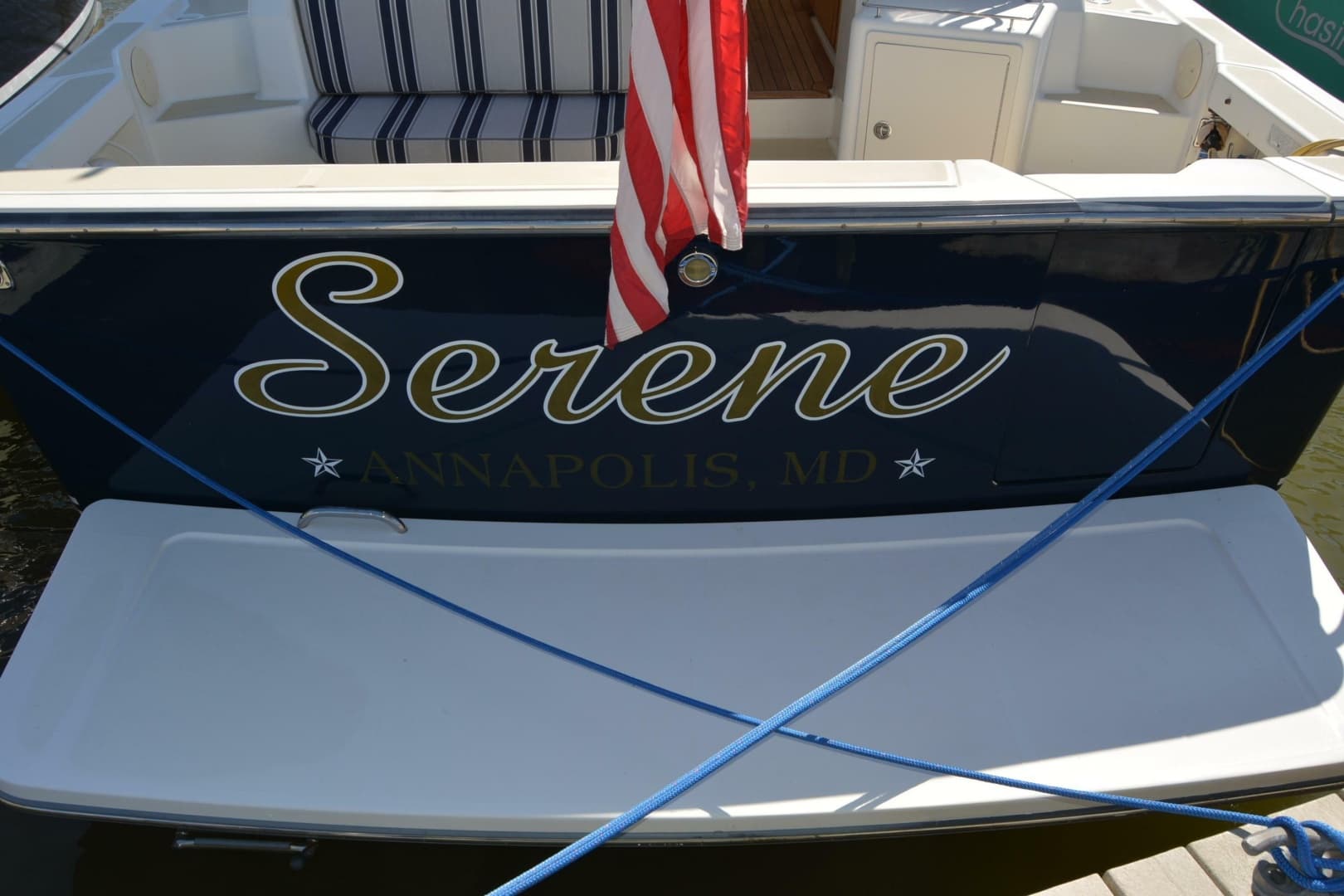

• Swim platform with under mounted telescoping ladder.
• Hull side rubbing strakes.
• PVC rub rail with stainless steel cap.
• Gold Cove Stripe.

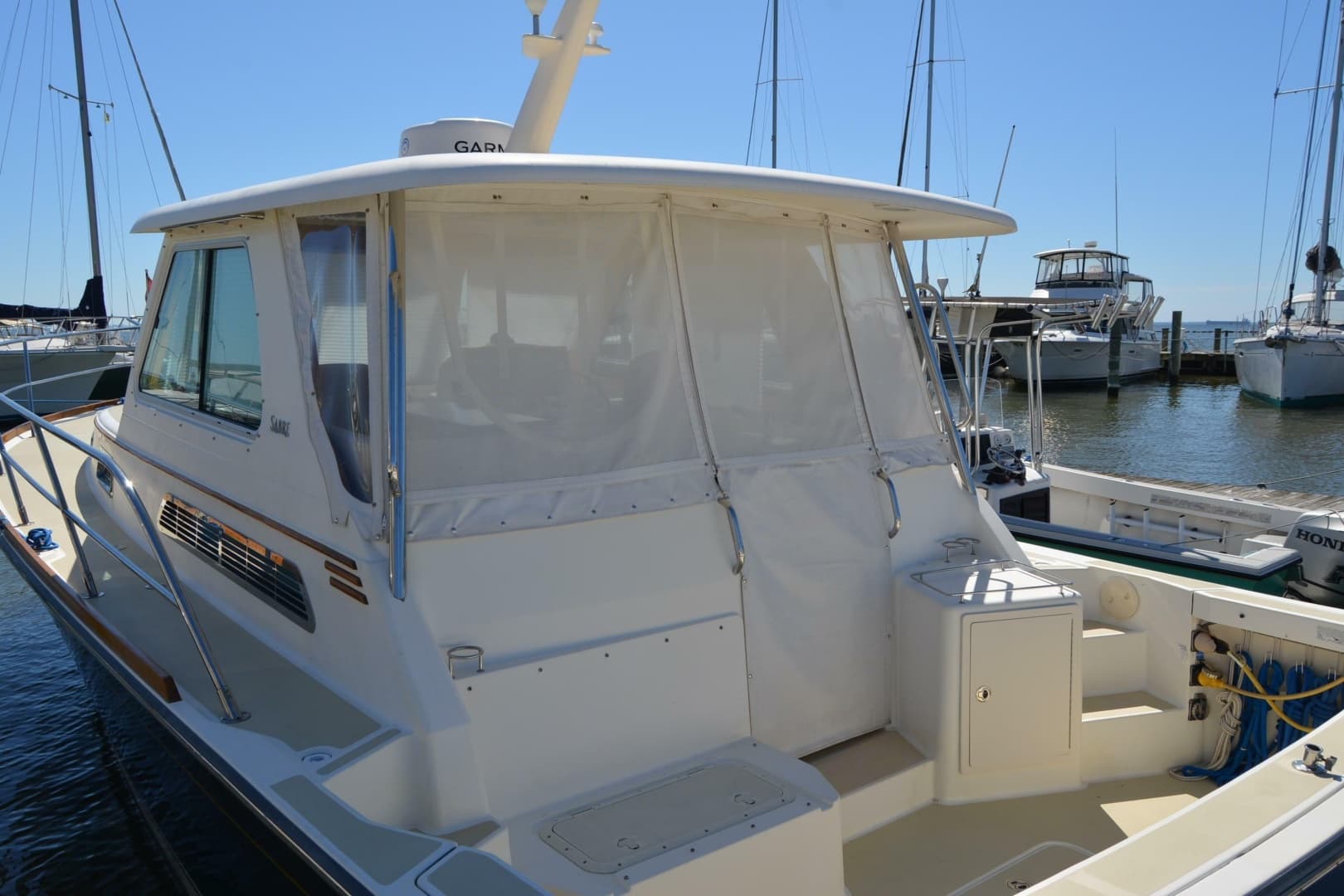

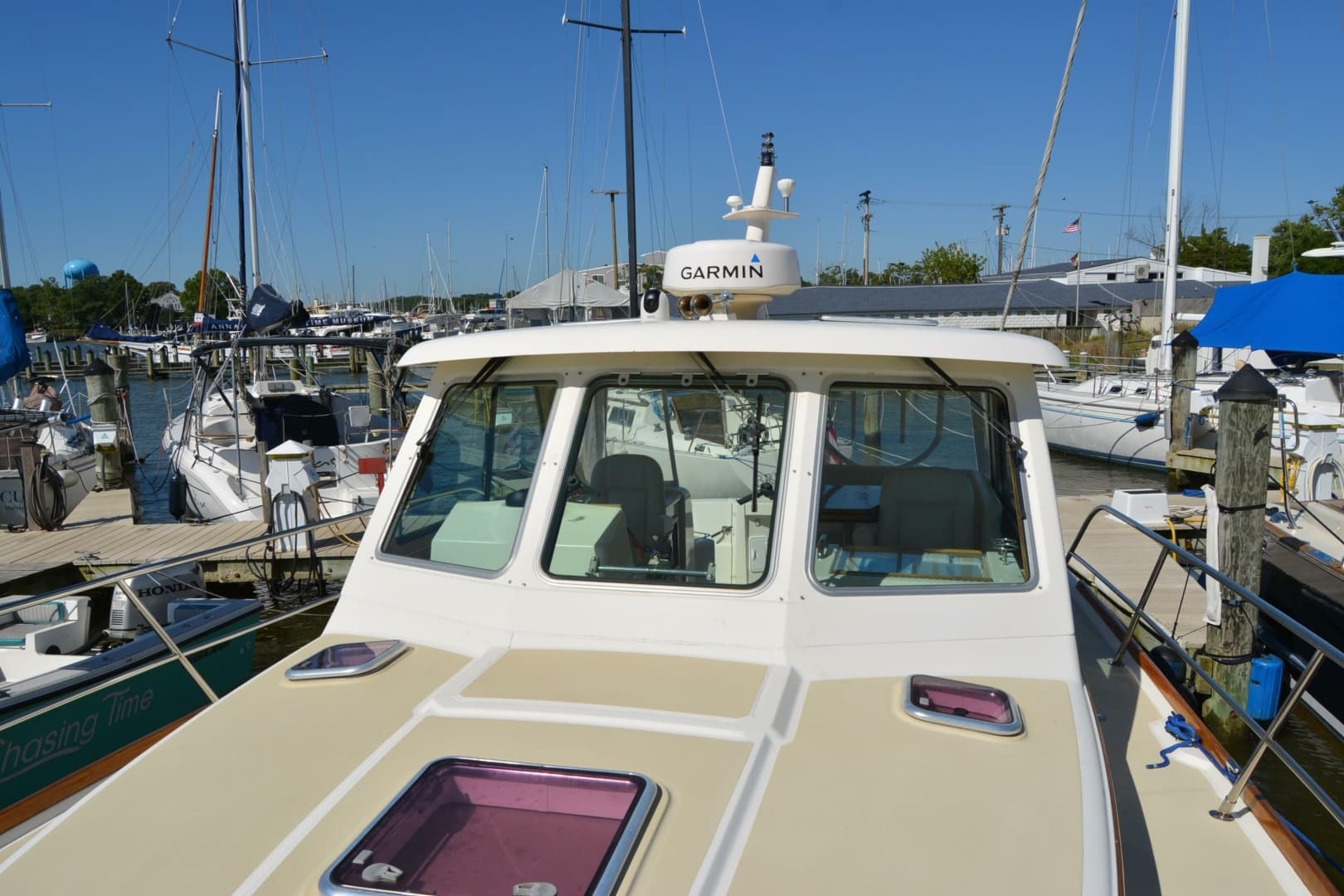

Deck Composite

• ISO NPG gelcoat.
• Knitted Biaxial Structural E-Glass Reinforcements with balsa coring.
• Nida Core used in areas above engine room and cockpit.

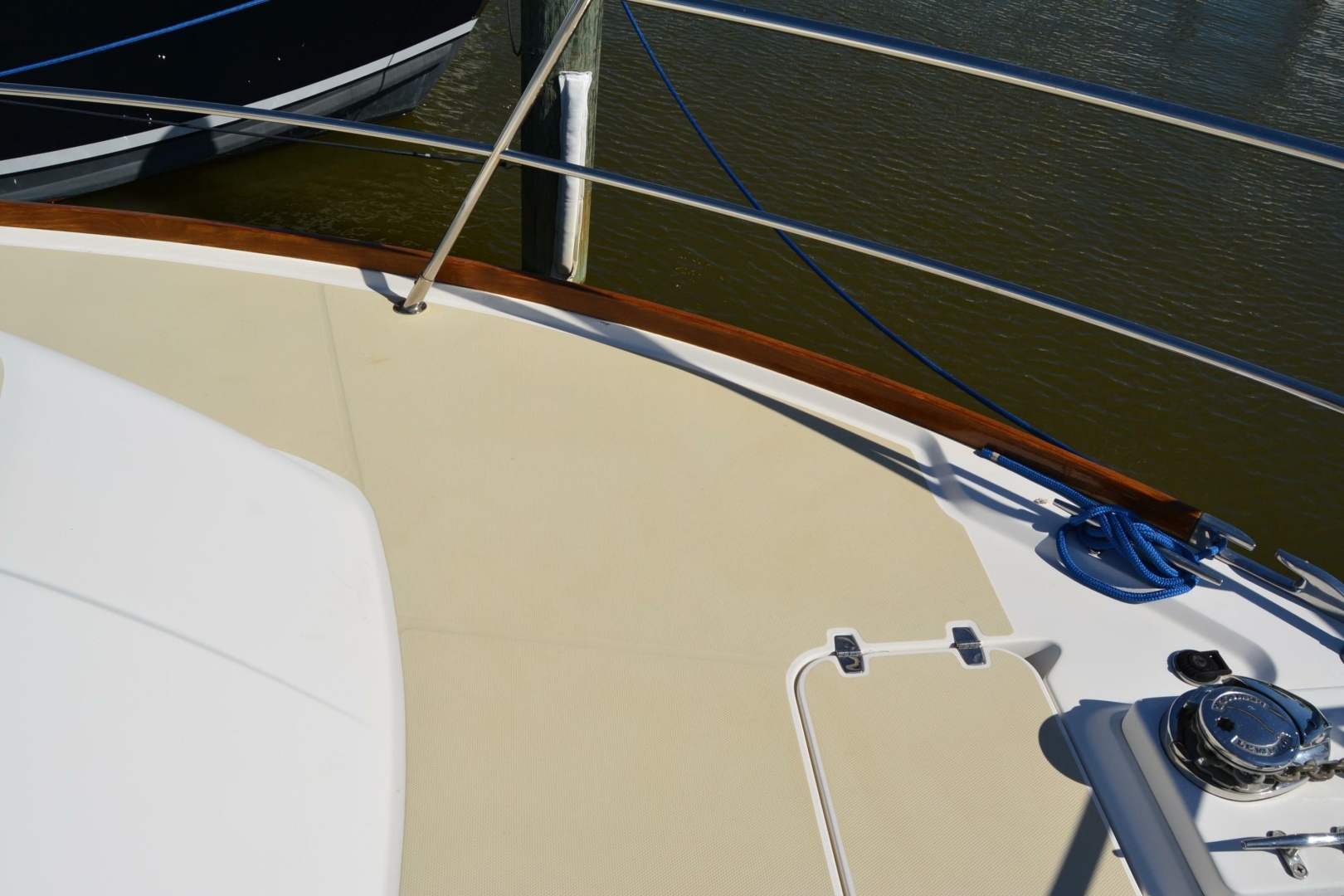

• Molded in anti-skid deck surfaces.

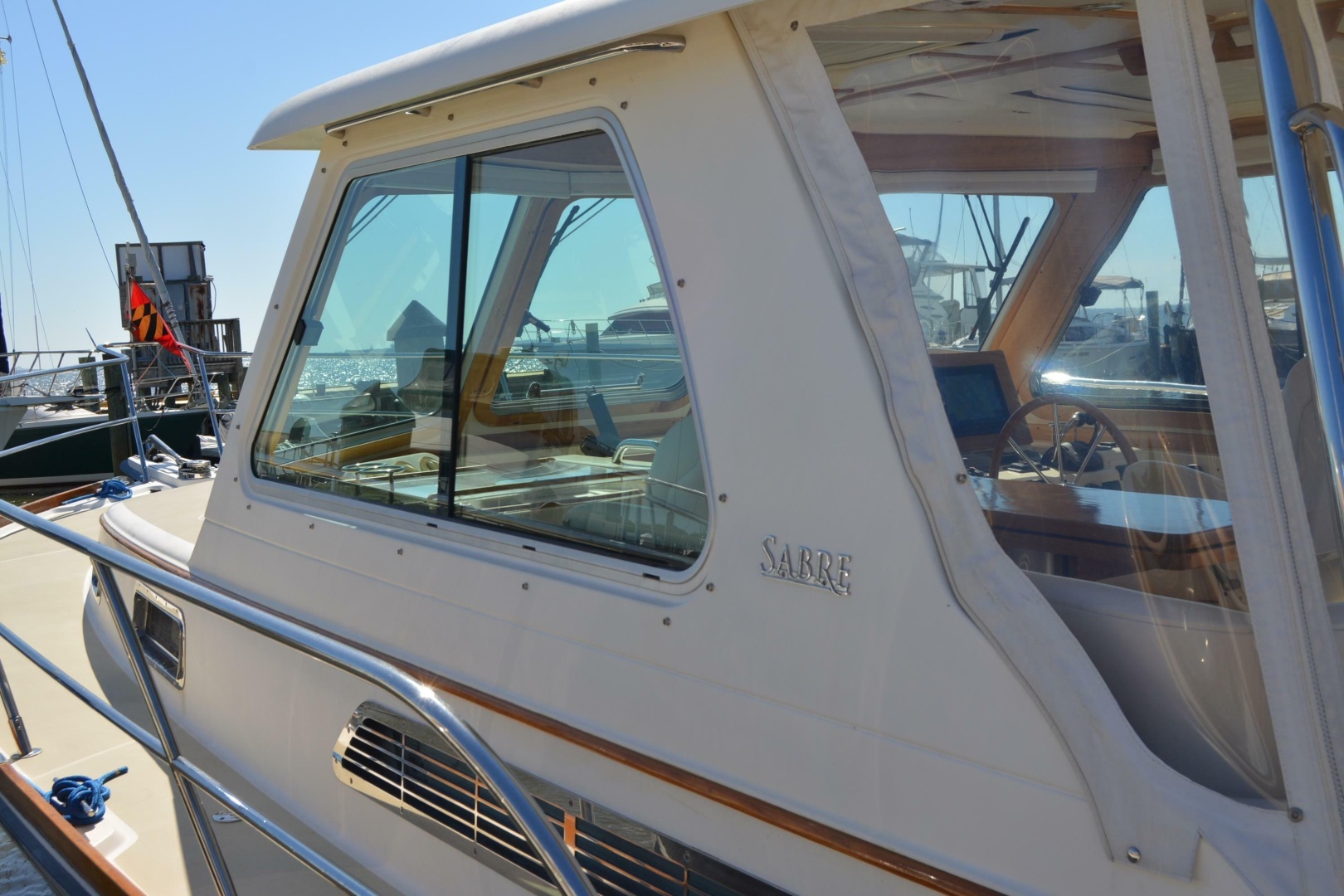

• Recessed windows in hard top with silver anodized frames.
• Inside walls to be sheathed w/high pressure laminate.
• In swinging Transom Door with latch system.

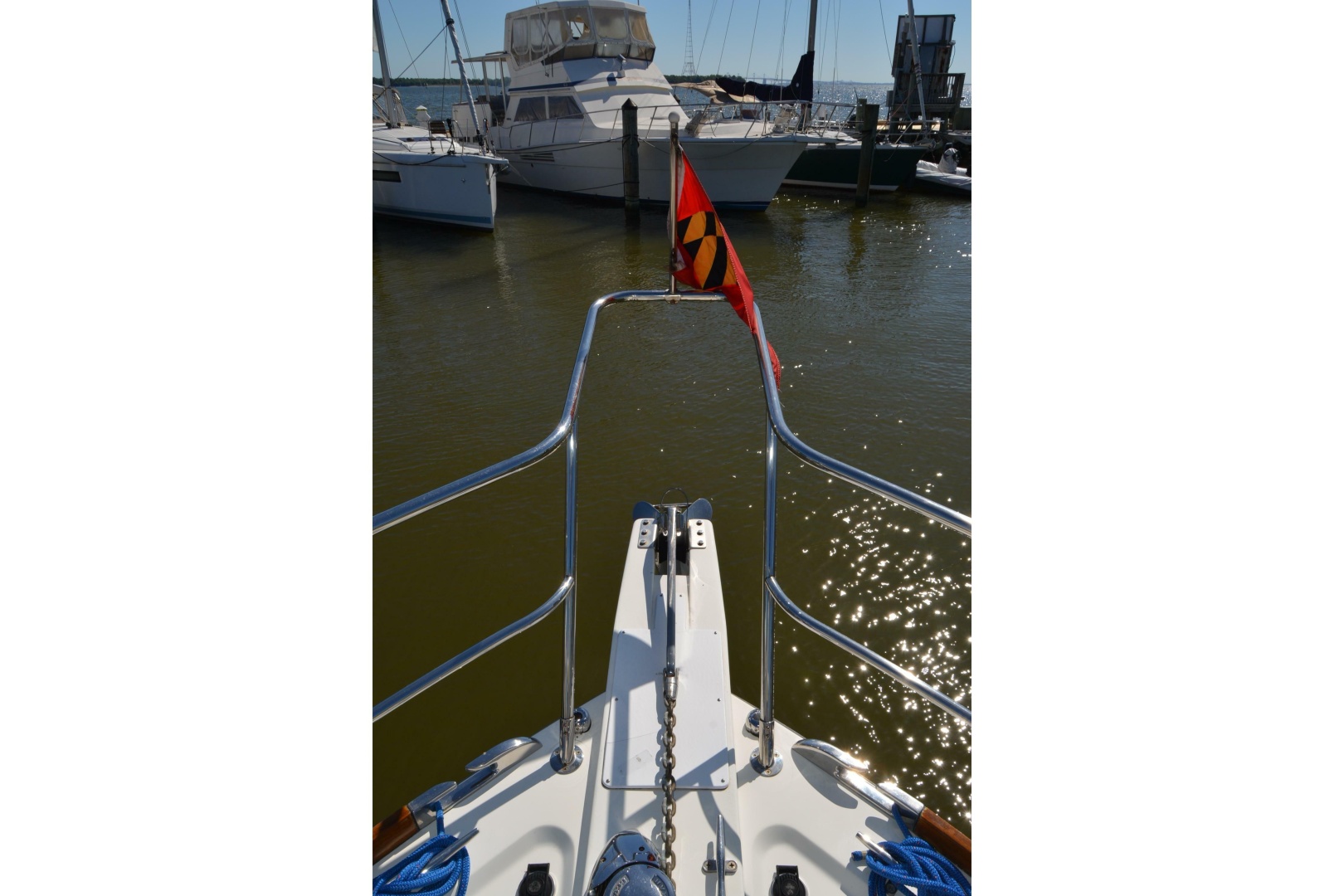

• Carbon fiber reinforced fiberglass bow pulpit with anchor roller and windlass location.
• Double sided anchor locker w/Southco latch.

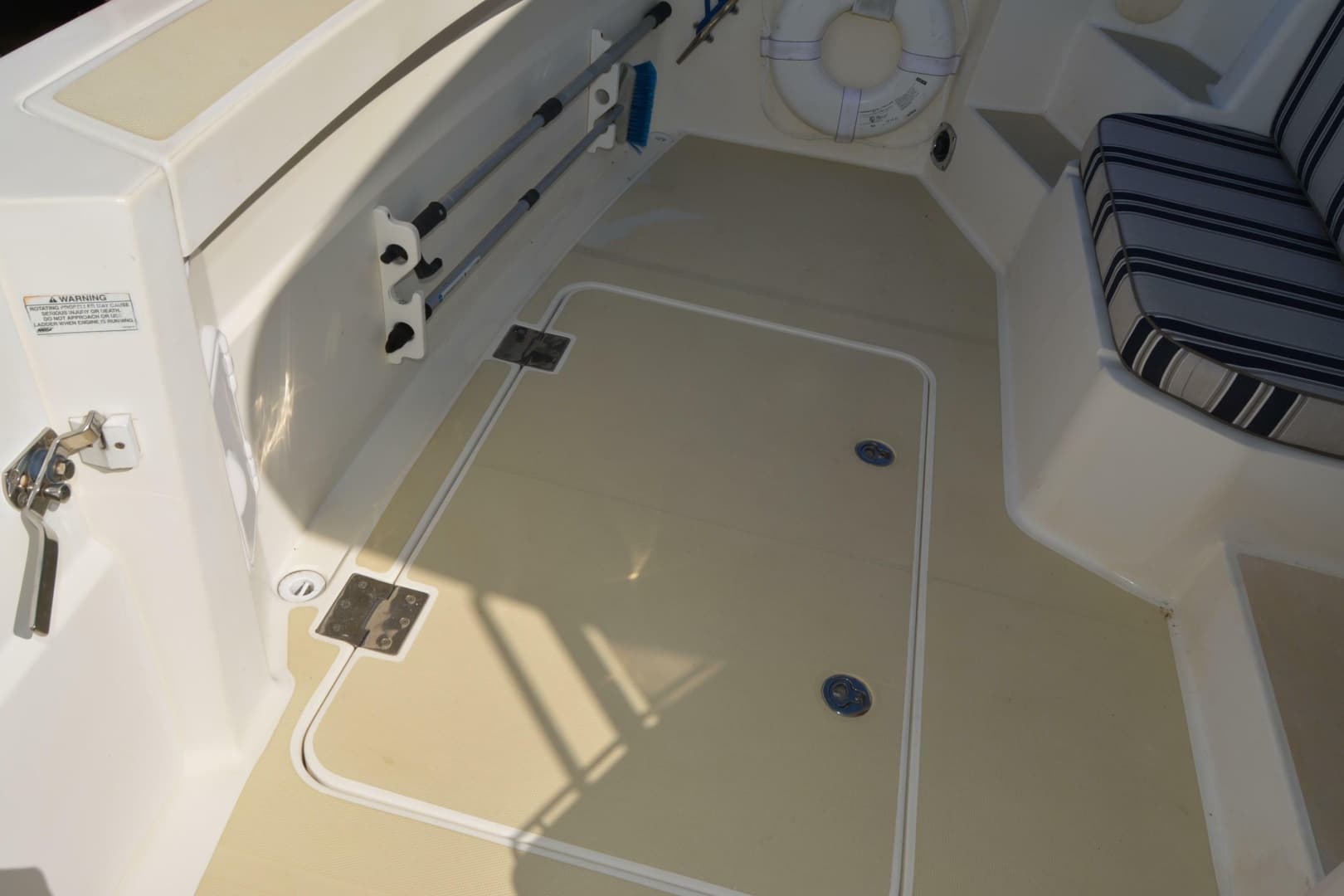

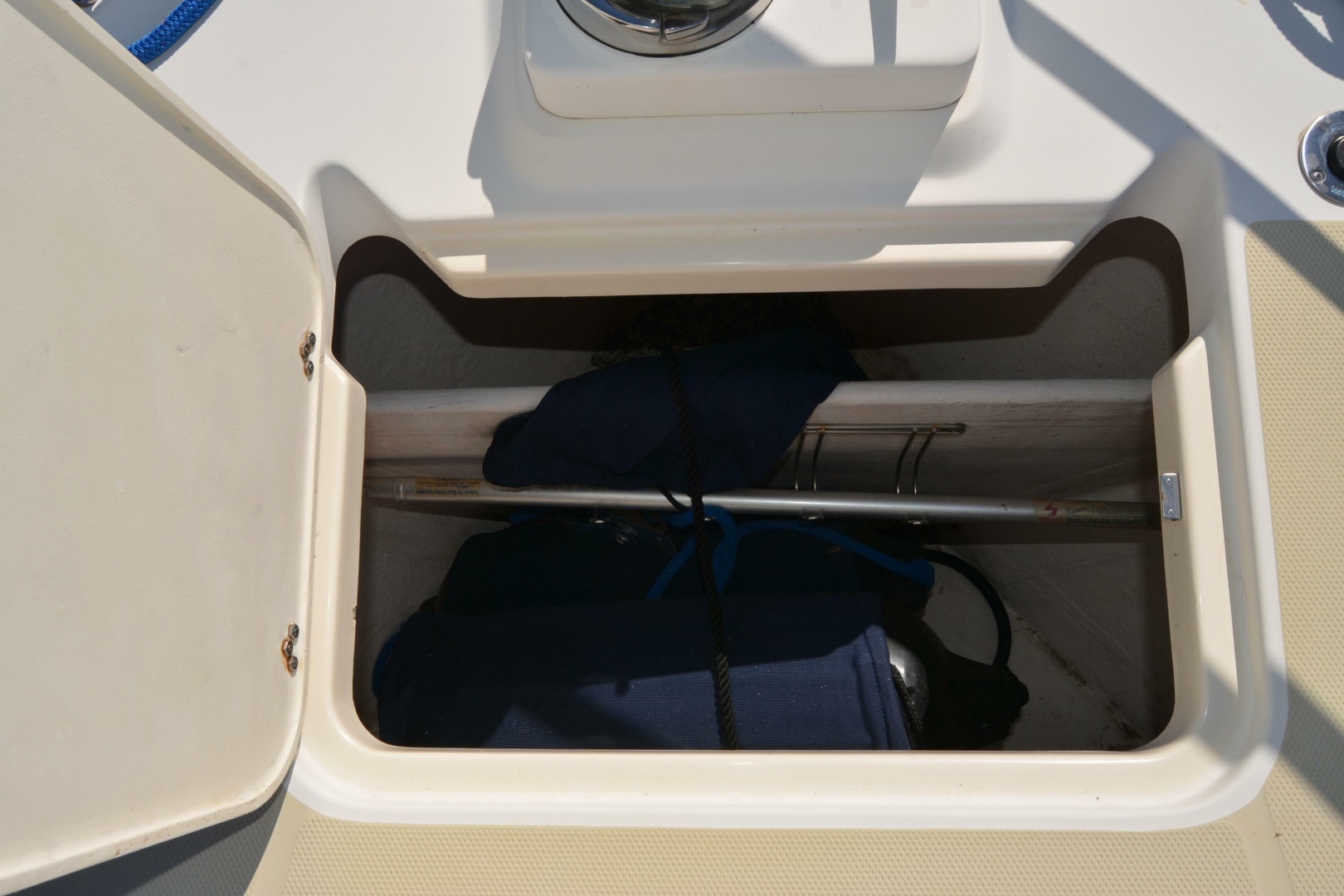

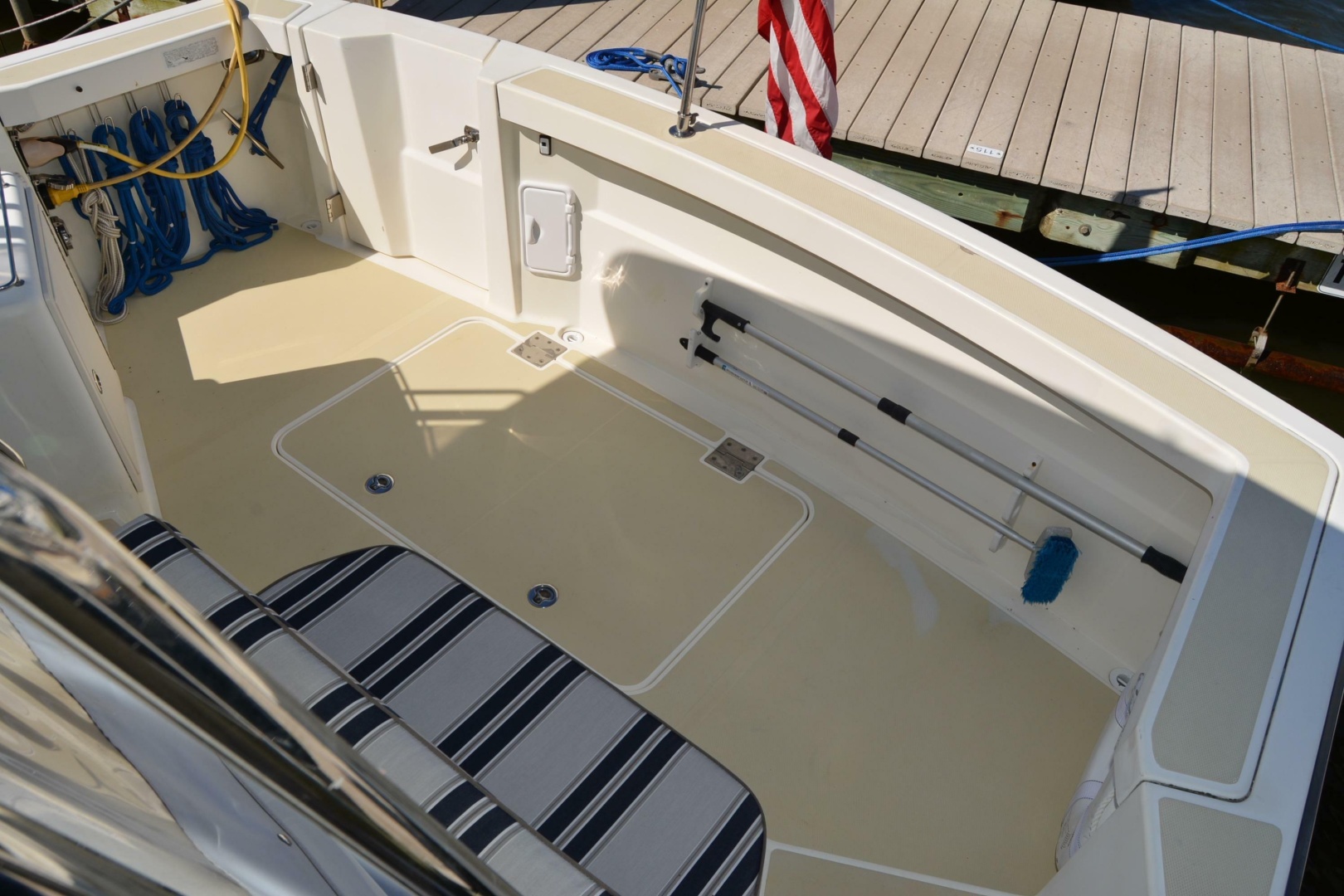

• (1) Large Aft hinged double sided lazzarette locker. hatch with gas struts and Southco (2) 3”dia. compression latches.
• (1) Large double-sided Engine Room hatch with (2) compression latches.
• Hinged helm instrument pod.

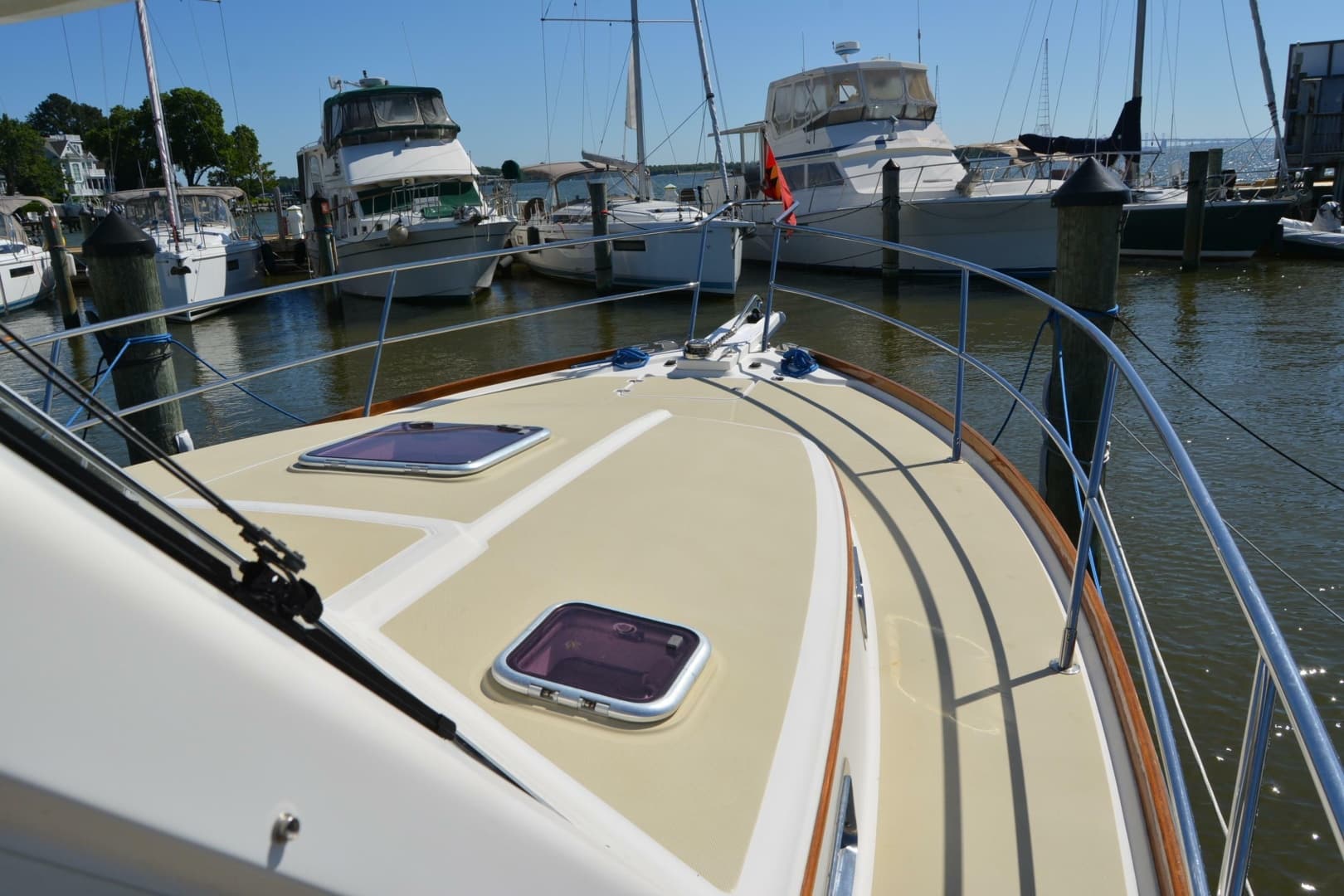

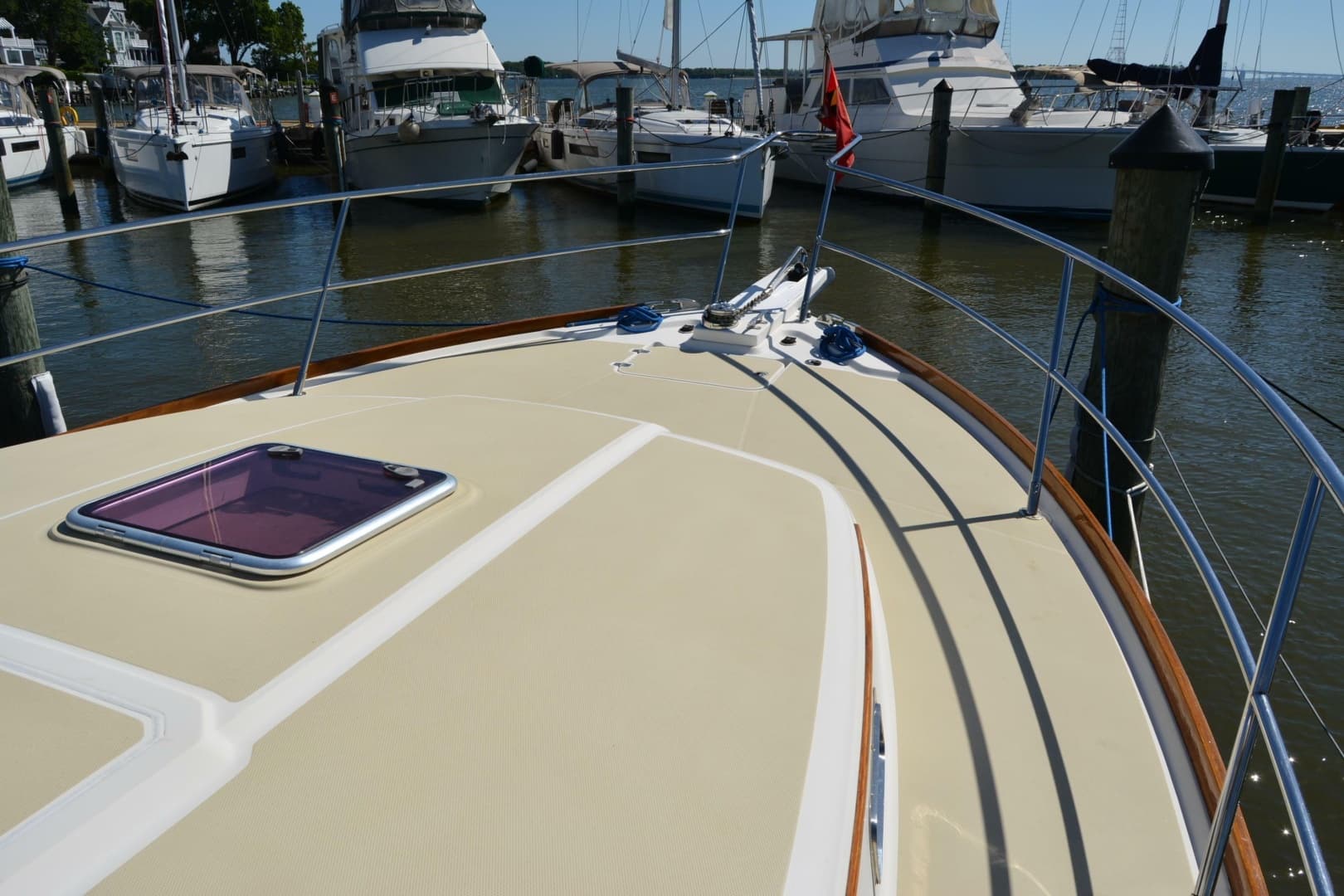

Deck Hardware

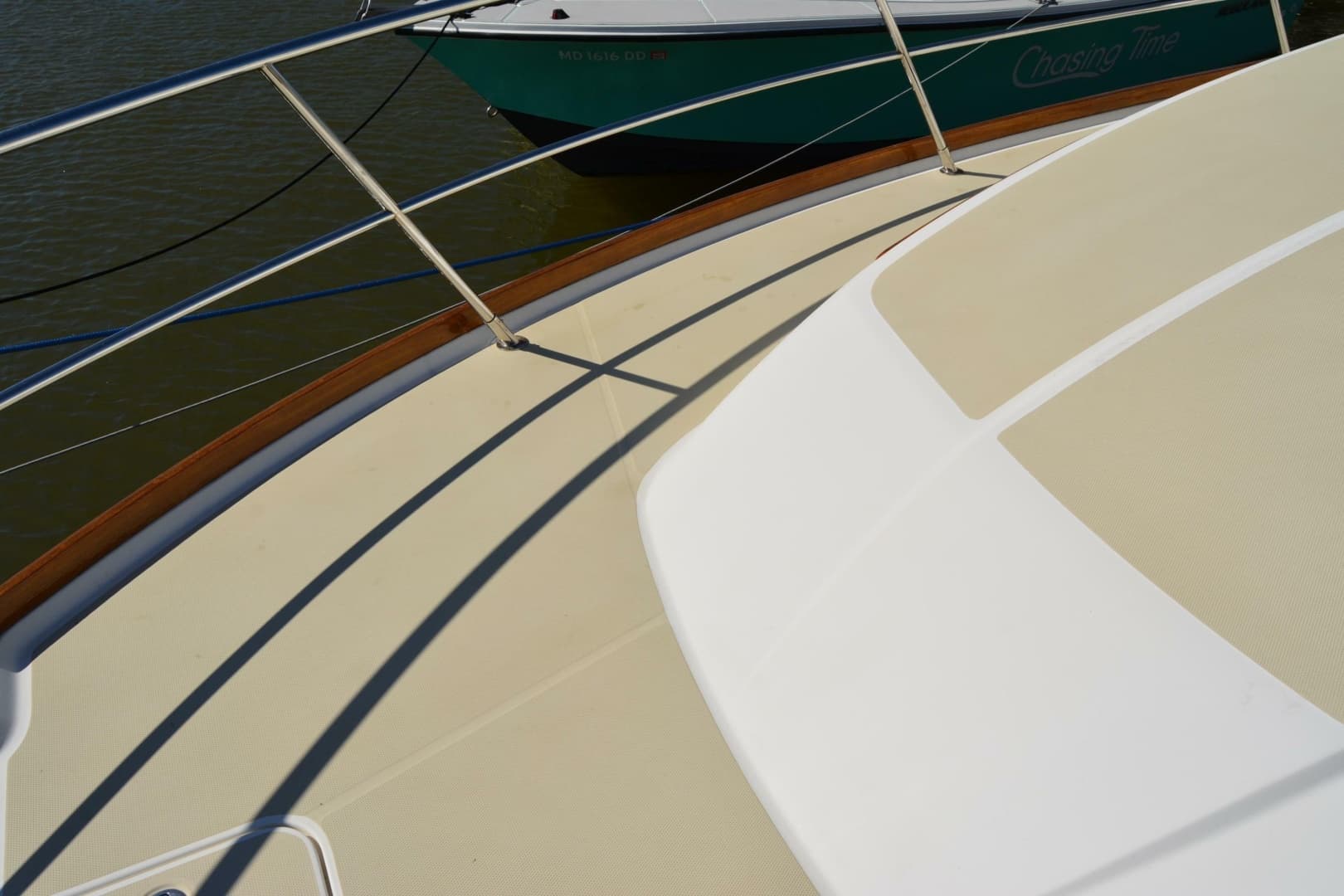

• 1 1/4" Diameter type 316 stainless steel perimeter rail system.
• (6) 12” Stainless Steel Cleats (2 fwd, 2 mid ship, 2 in aft cockpit).
• (1) 10” Stainless Steel Cleat to stb of windlass as anchor rode tie off.
• Single anchor roller sizes for 35# CQR or Delta.
• Flagpole holder and flag staff.

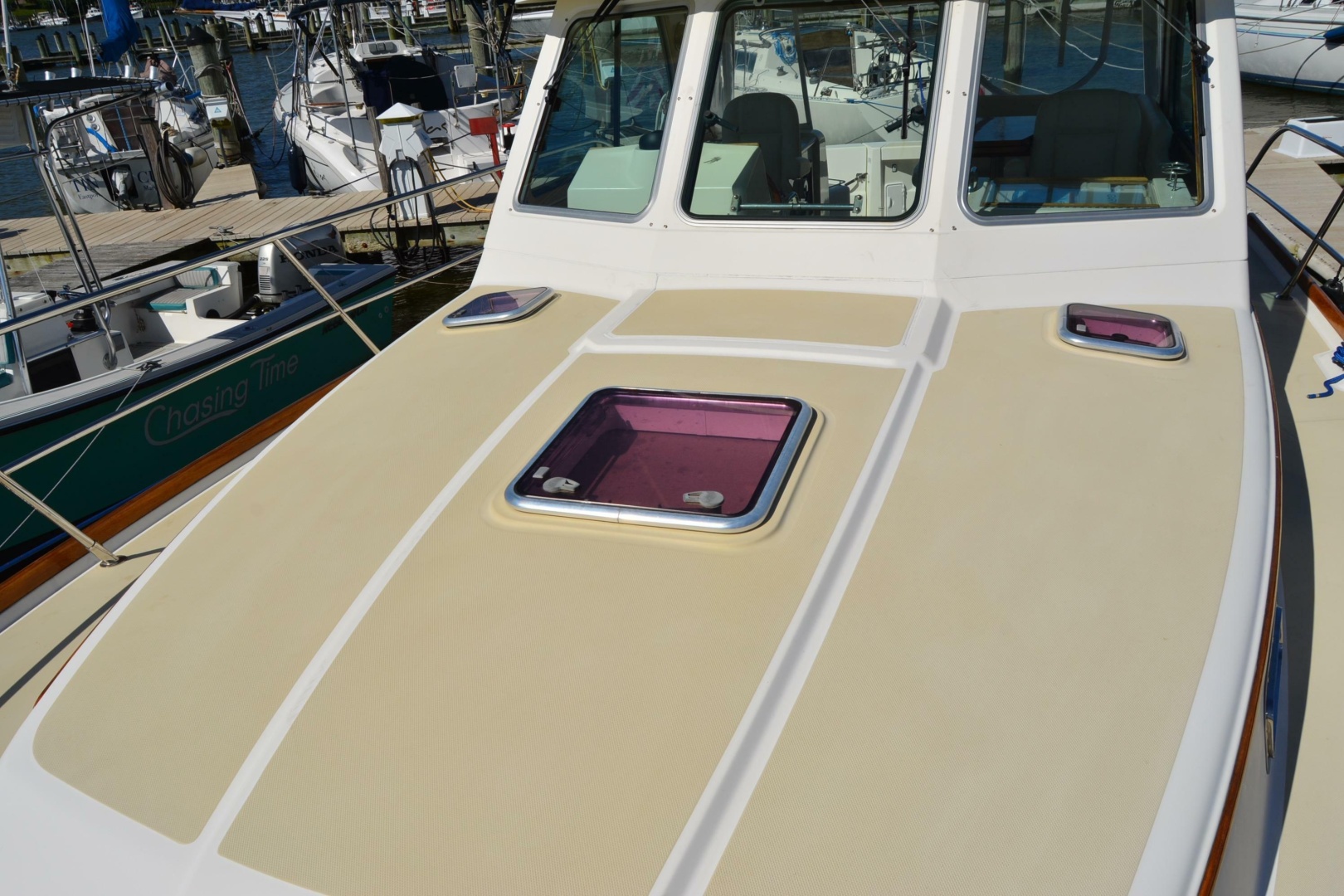

• On Deck - Lewmar Low Profile polished aluminum hatches w/screens.
• (2) Lewmar #60 Low-Profile Sliding hatches on hardtop.
• (4) Stainless steel opening ports.
• Teak toe rails port and starboard with custom cast mid rail chocks fwd skene chocks.
• Teak cabin side eye-brow.
• Custom cast stainless steel “SABRE” medallion.
• Cast stainless steel hawse pipes in cockpit through hull sides and transom.

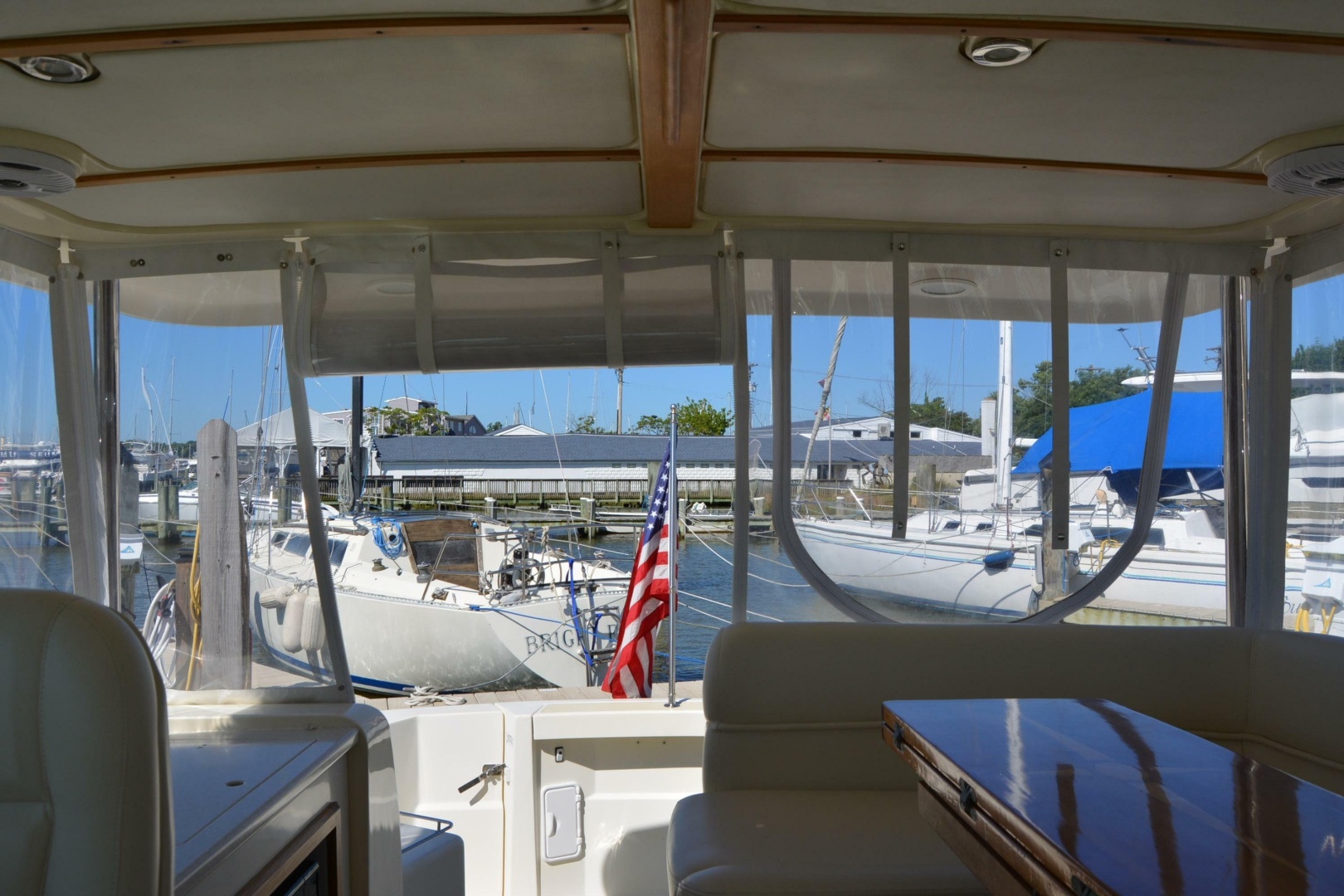

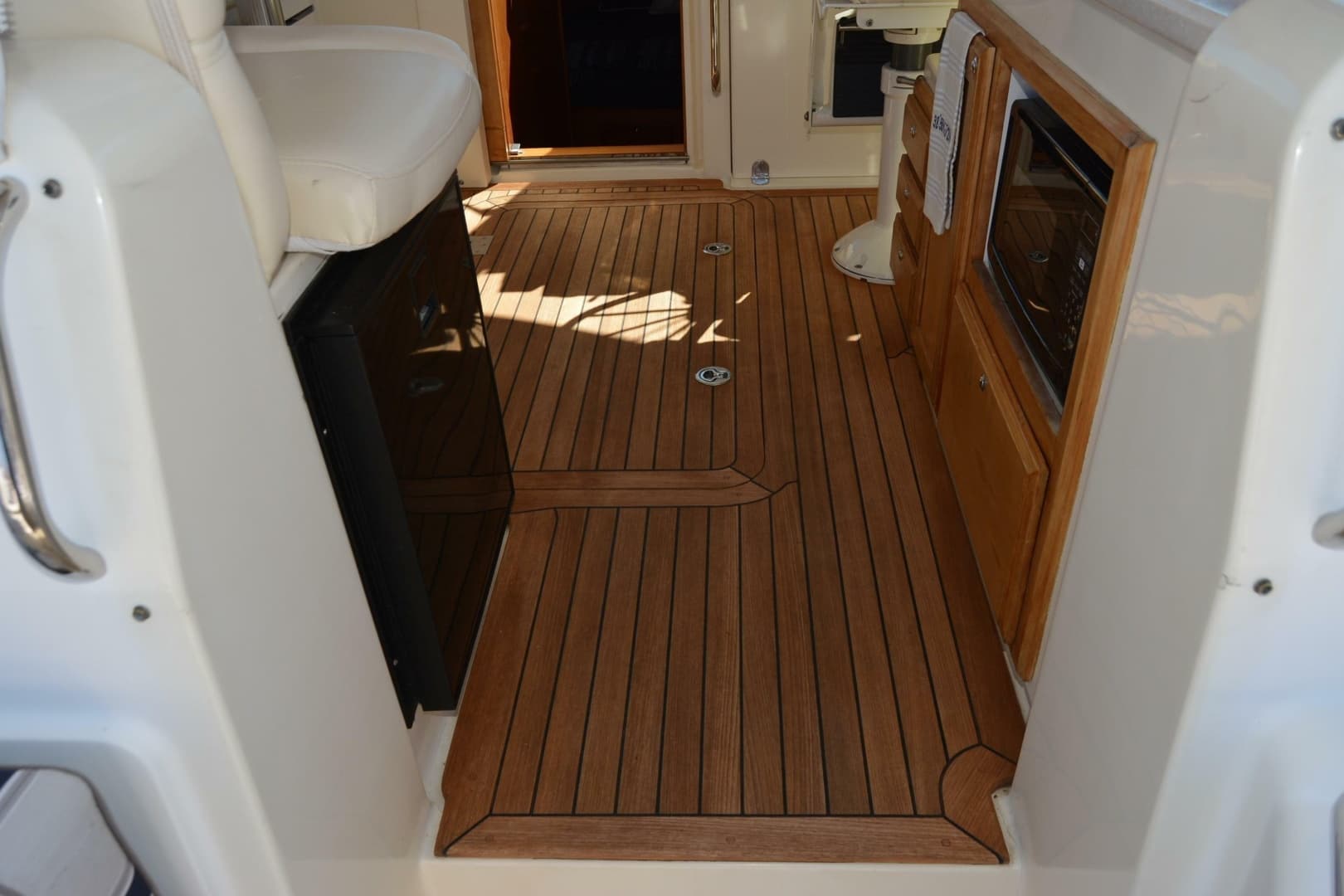

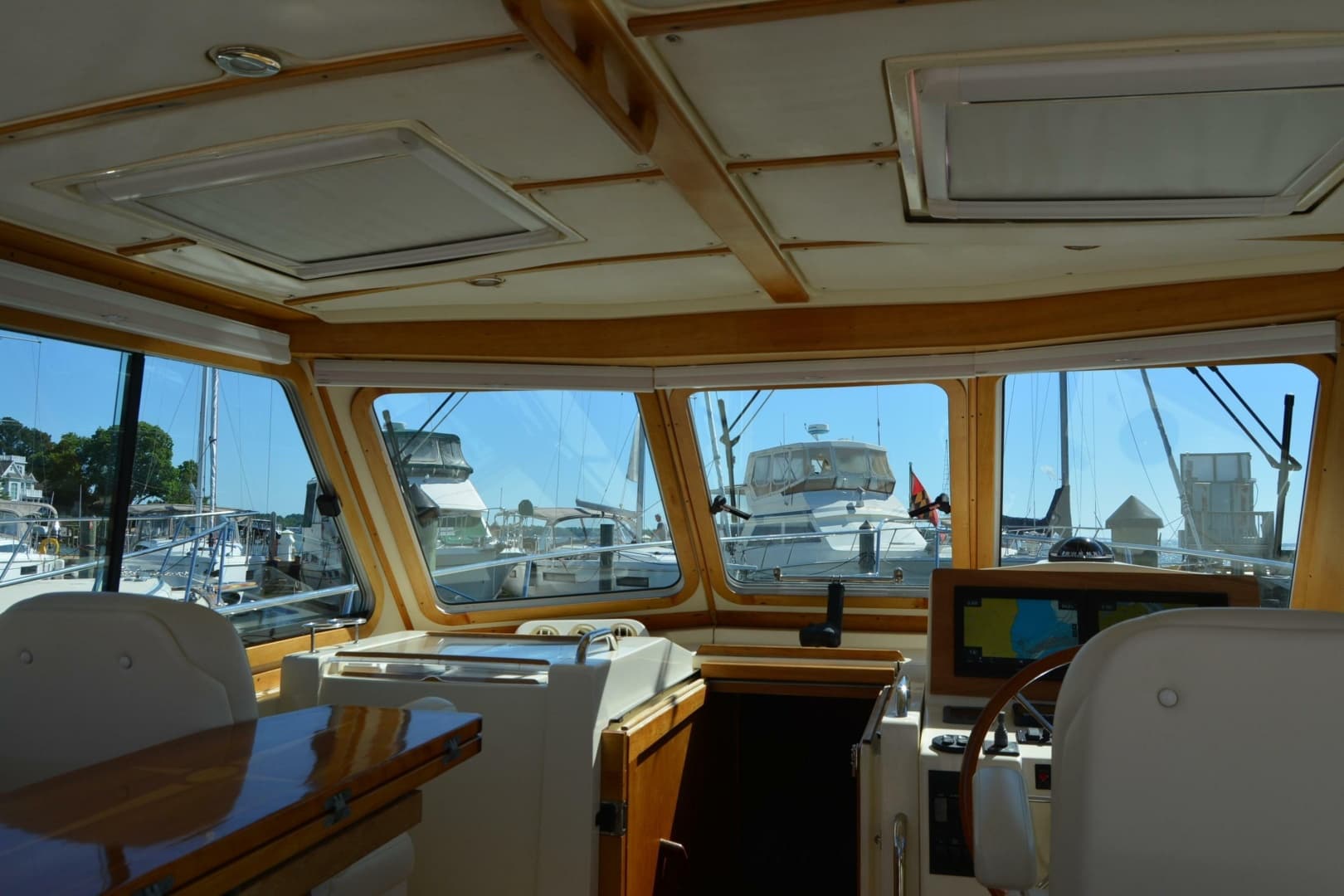

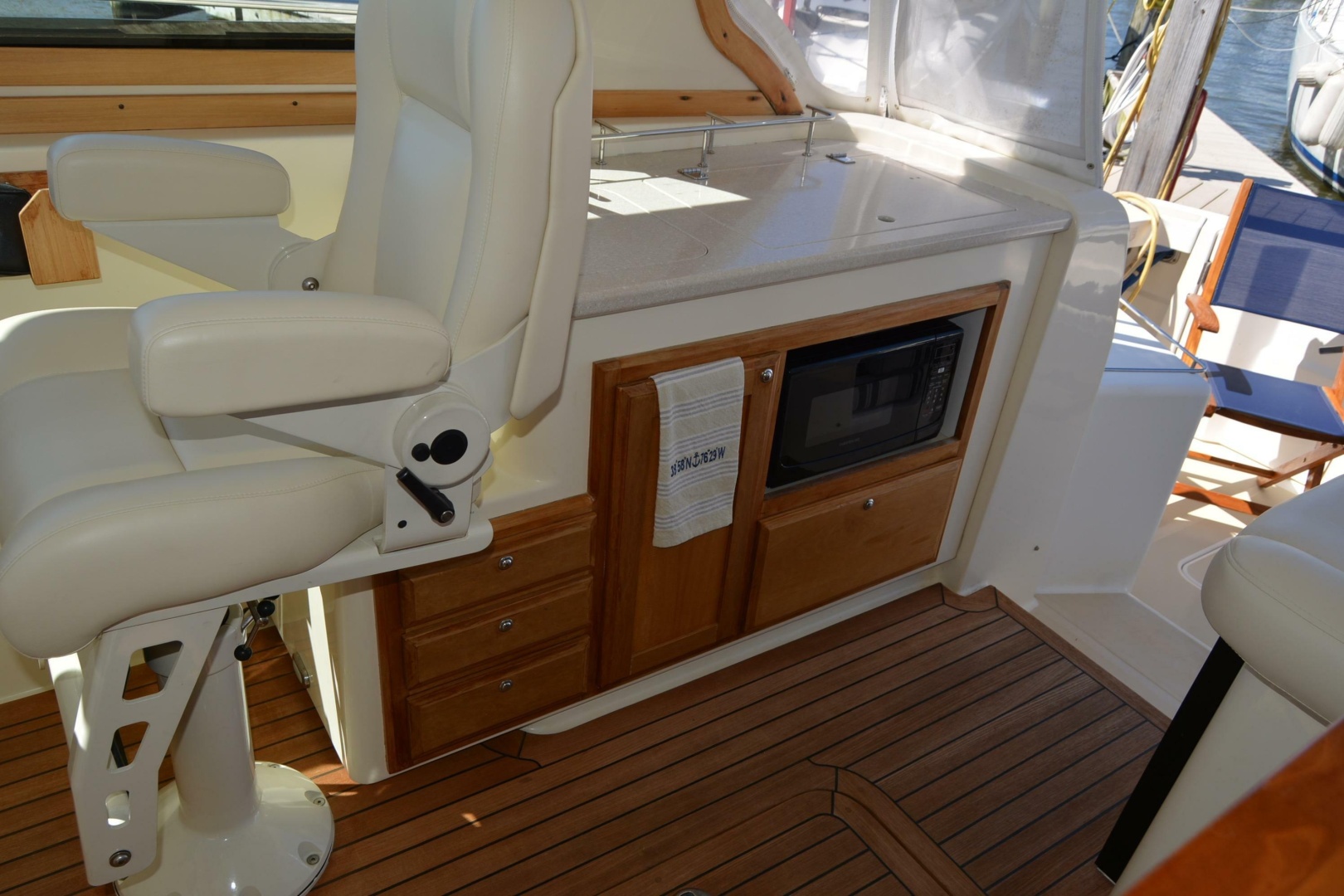

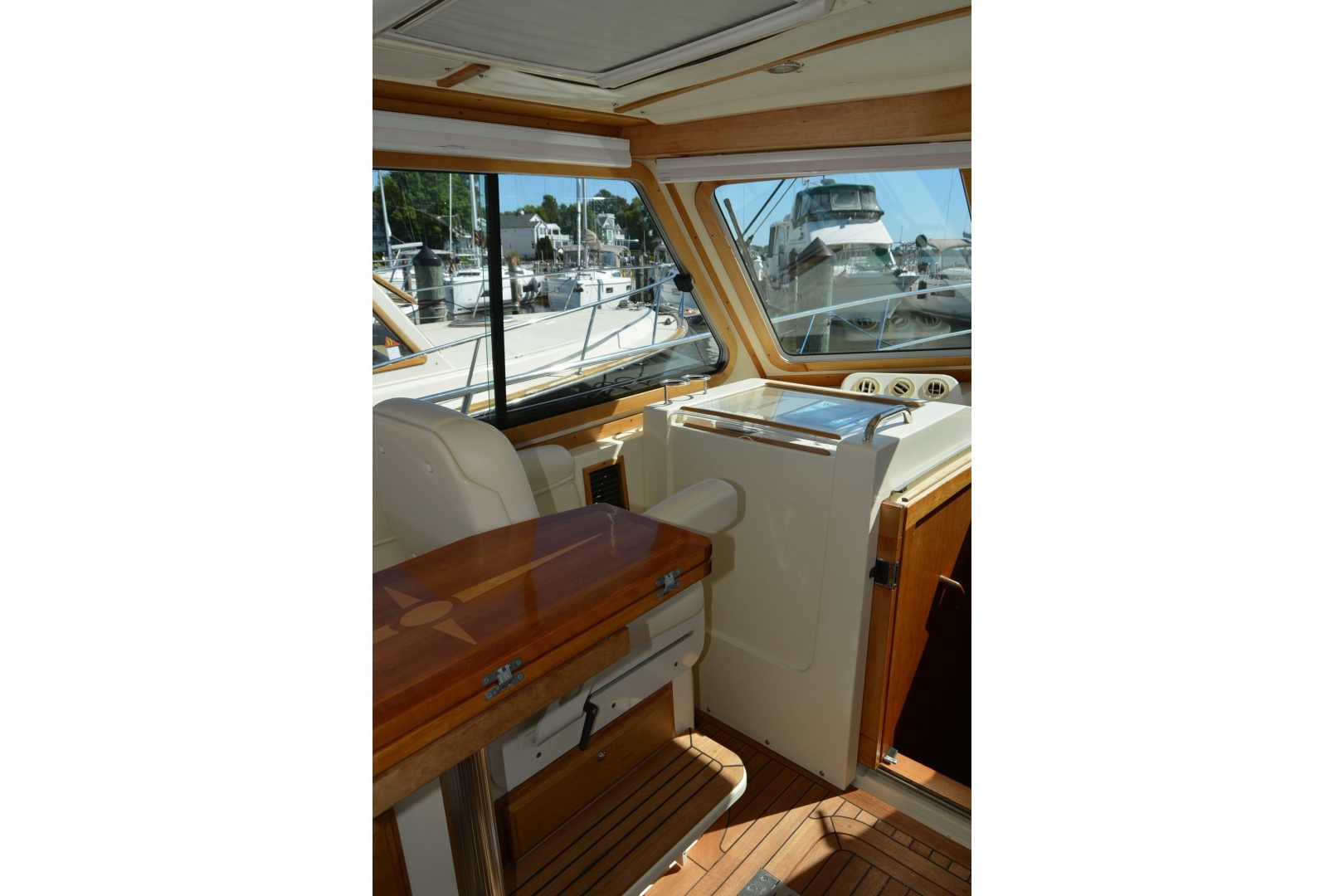

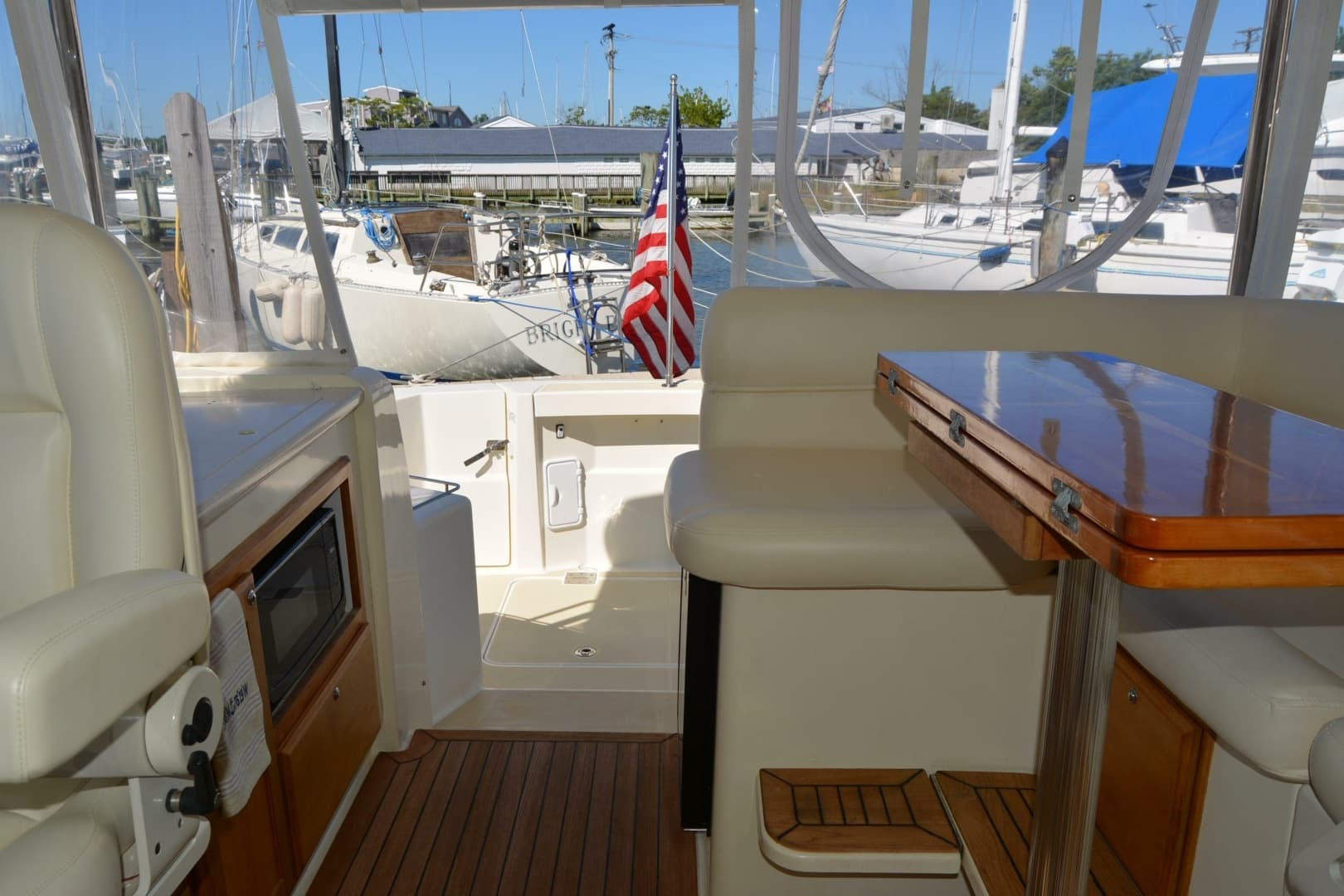

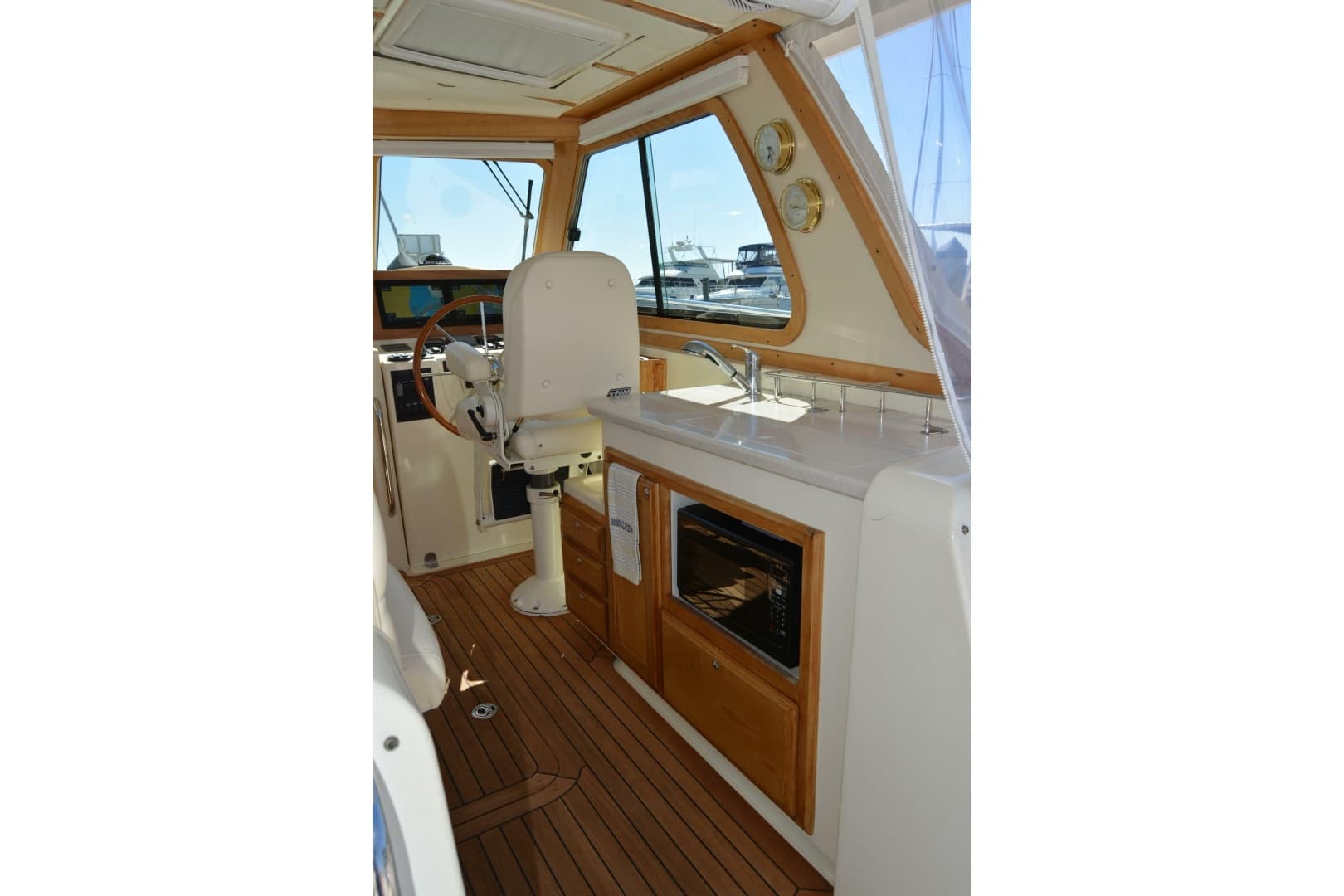

Upper Helm Deck/Galley

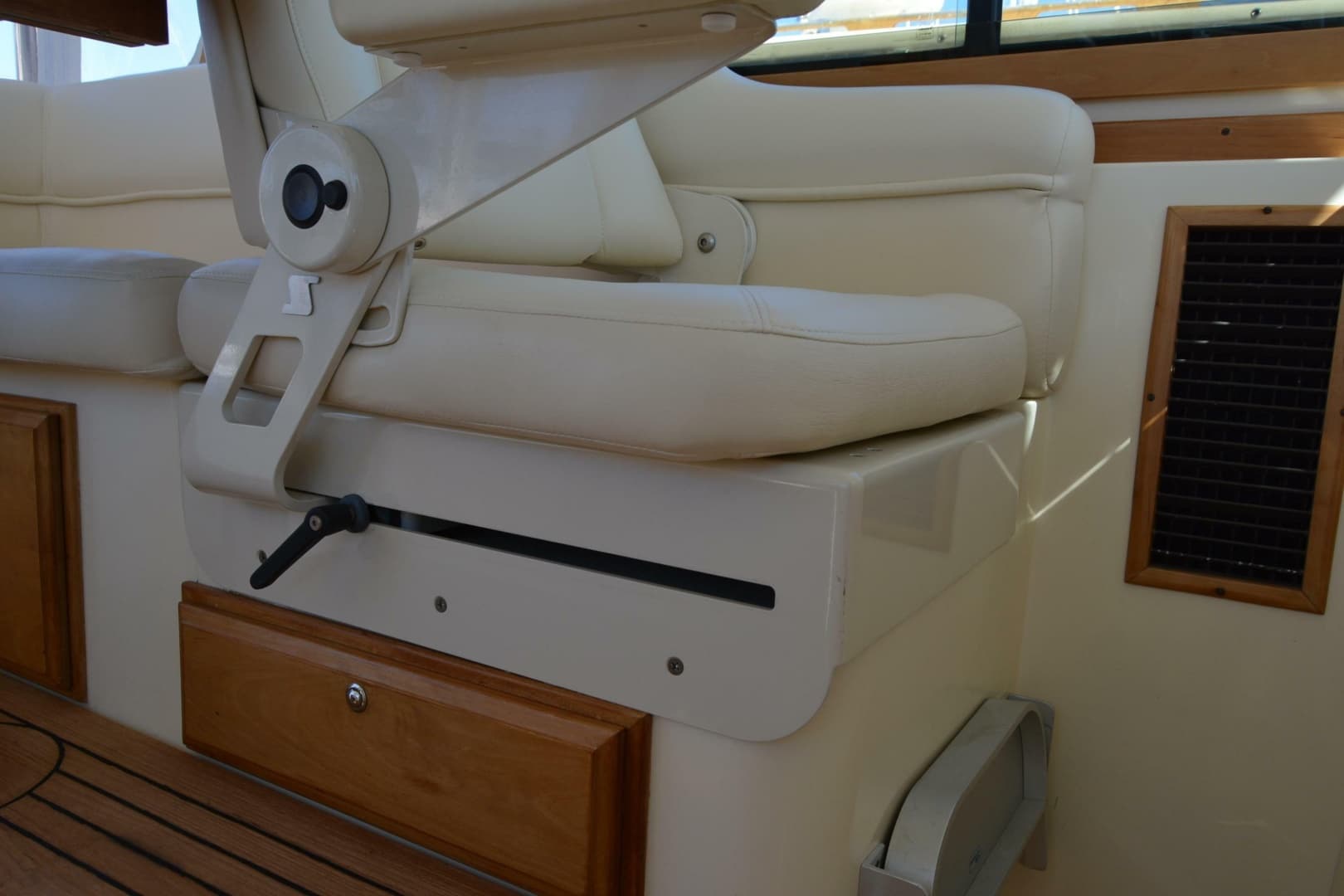

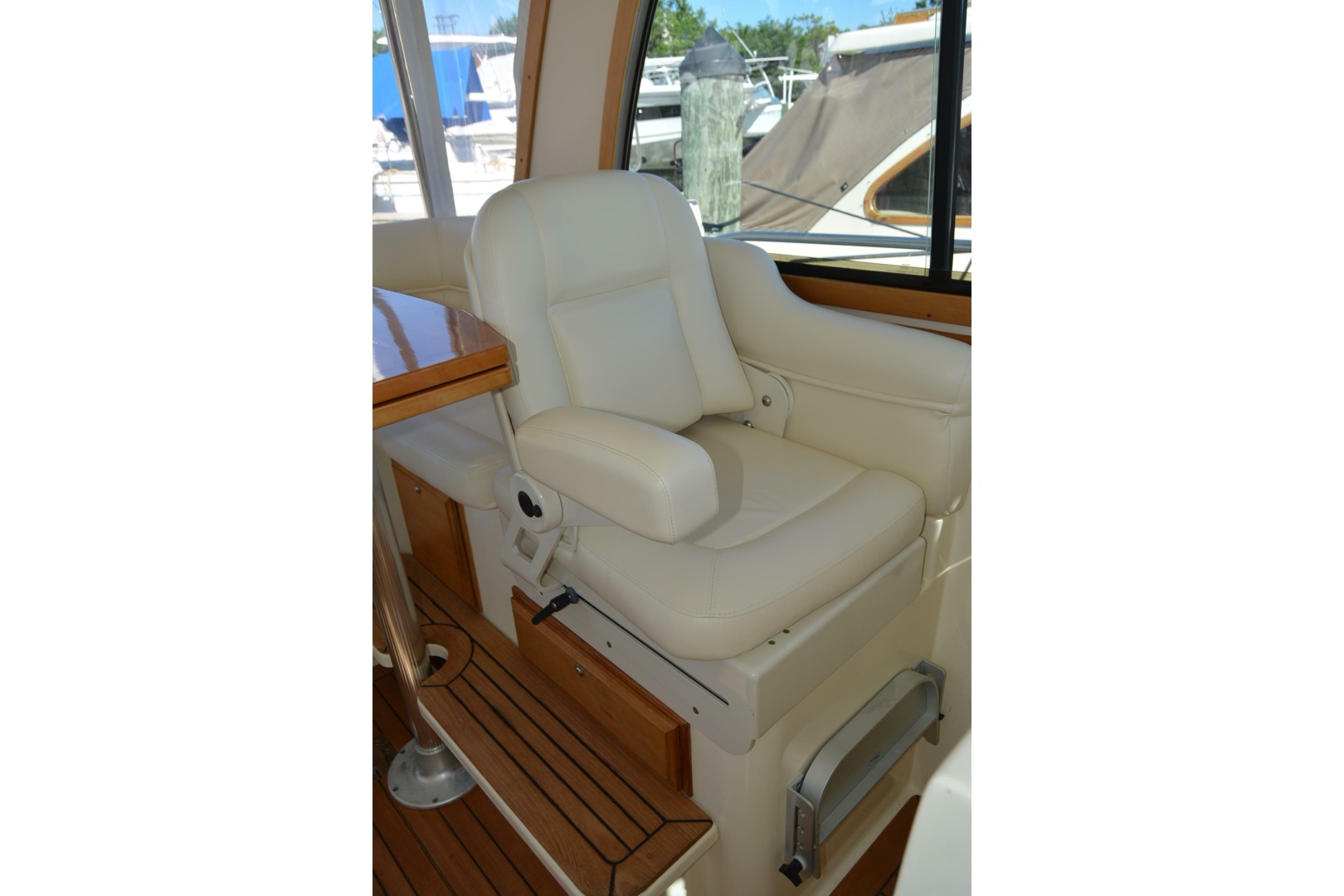

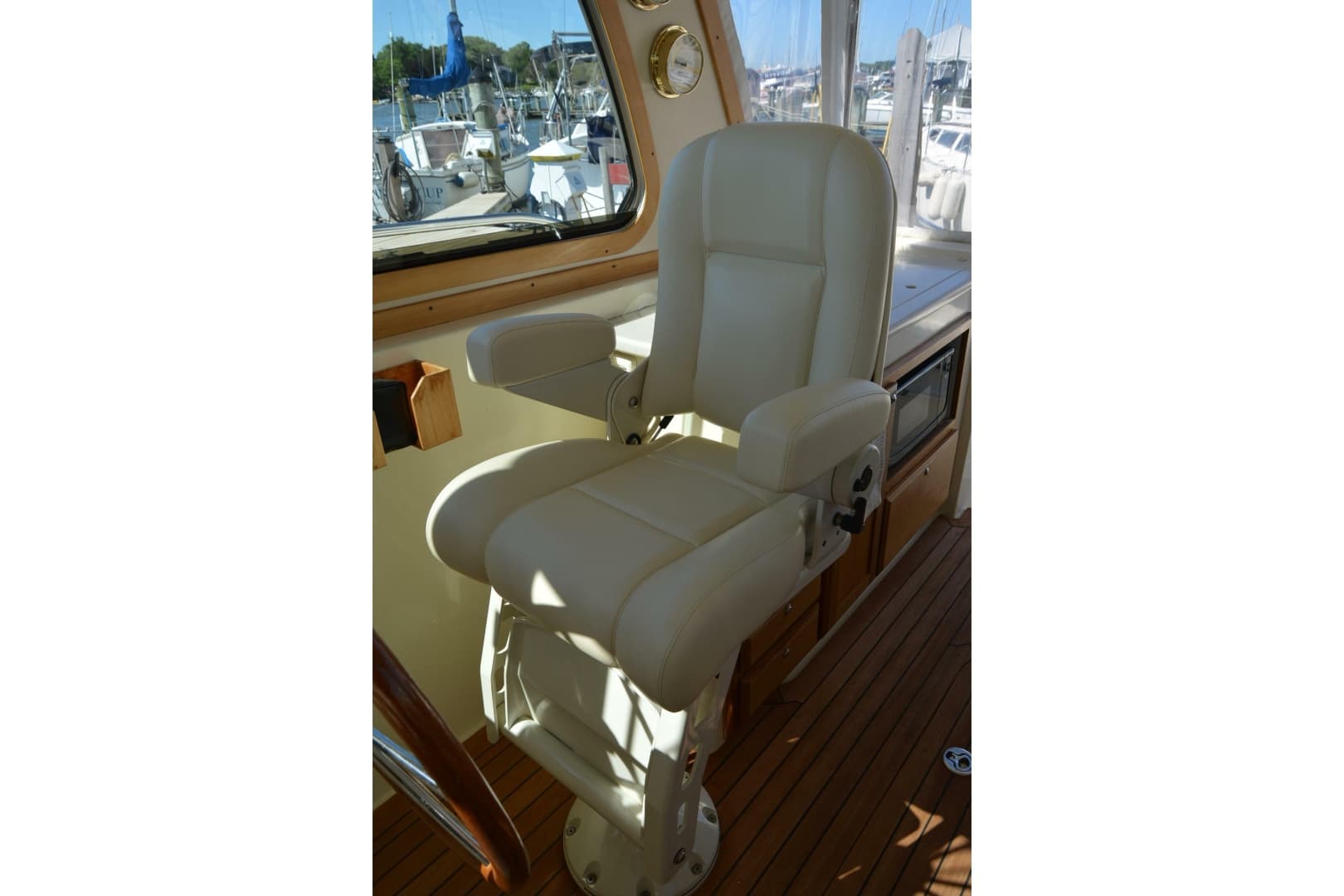

• Stidd helm seat.

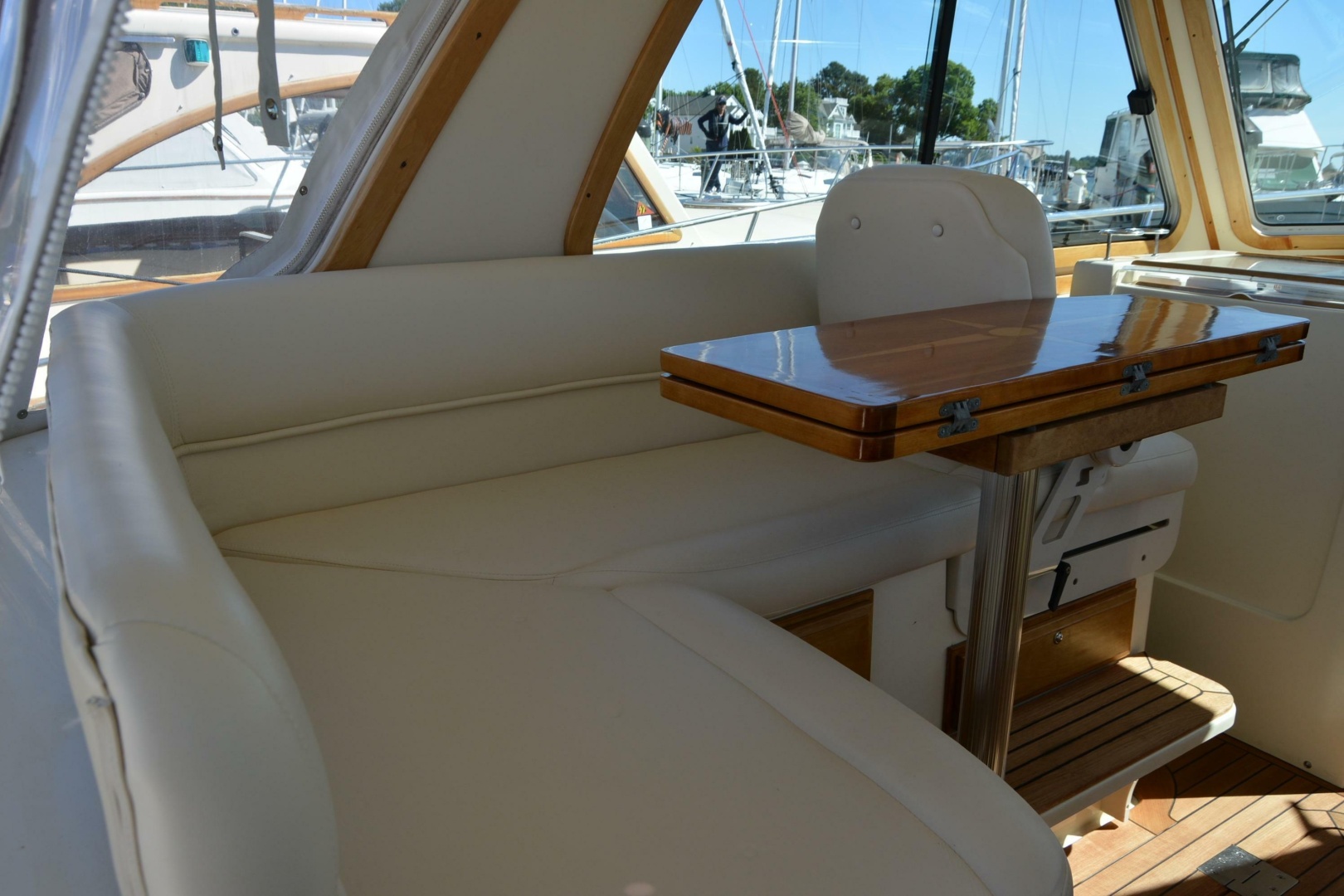

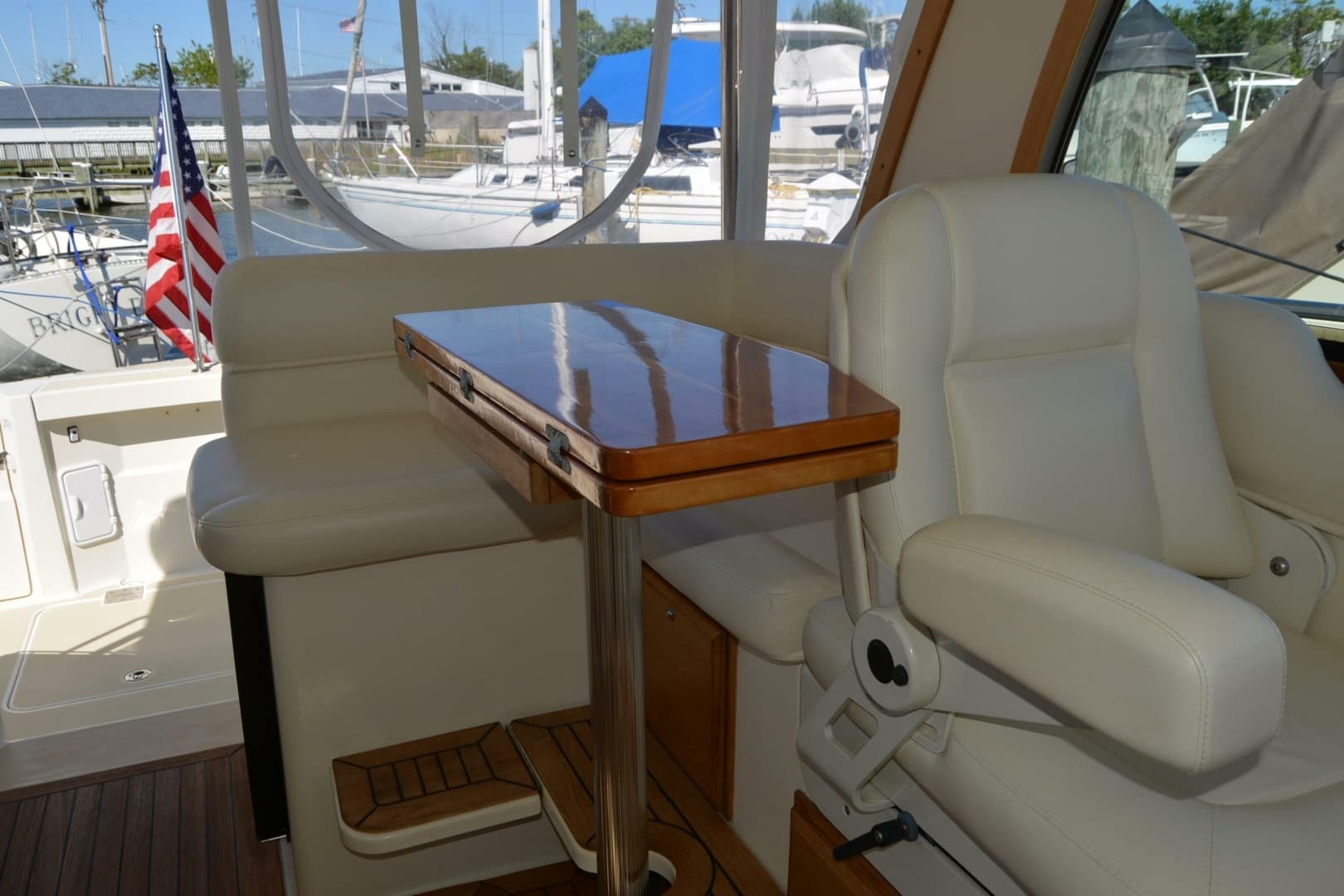

• Raised L Settee to port with custom Stidd convertible backrest for mates seat.
• Storage and drawers beneath settee.
• Standard wood in helm area to be Cherry.
• Molded in Air Conditioning ports on fwd end of dash.

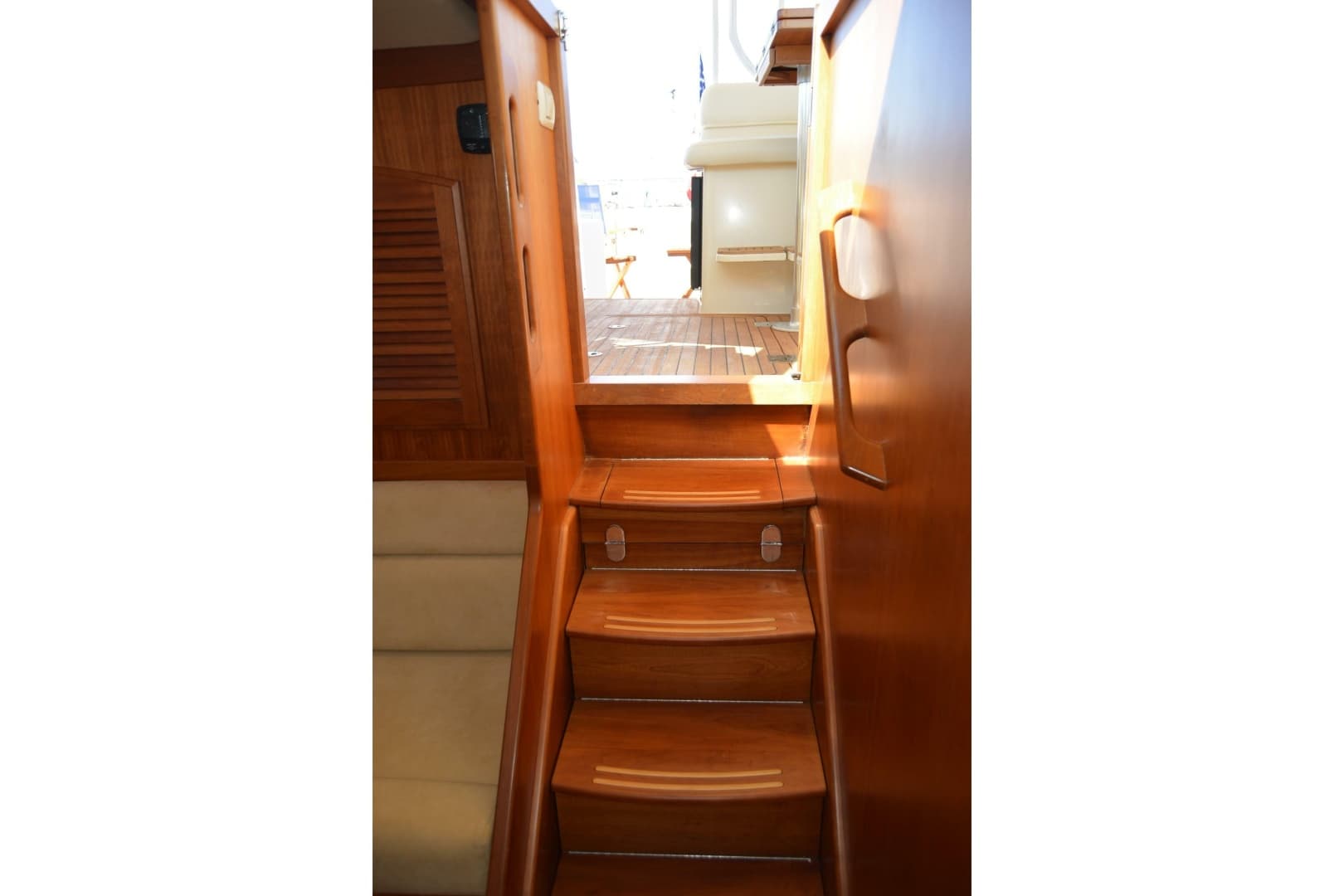

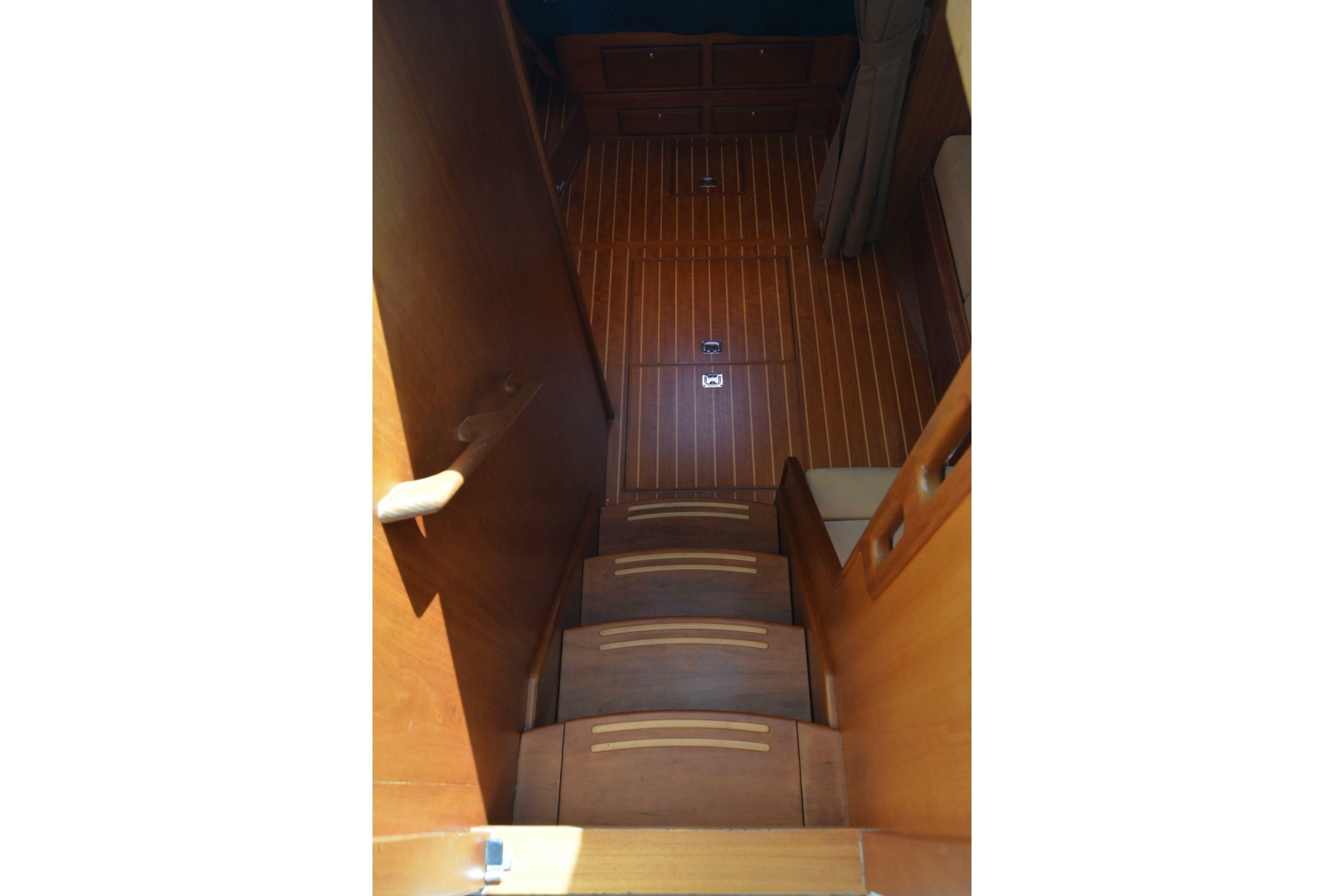

• Sliding companionway door and hatch system.

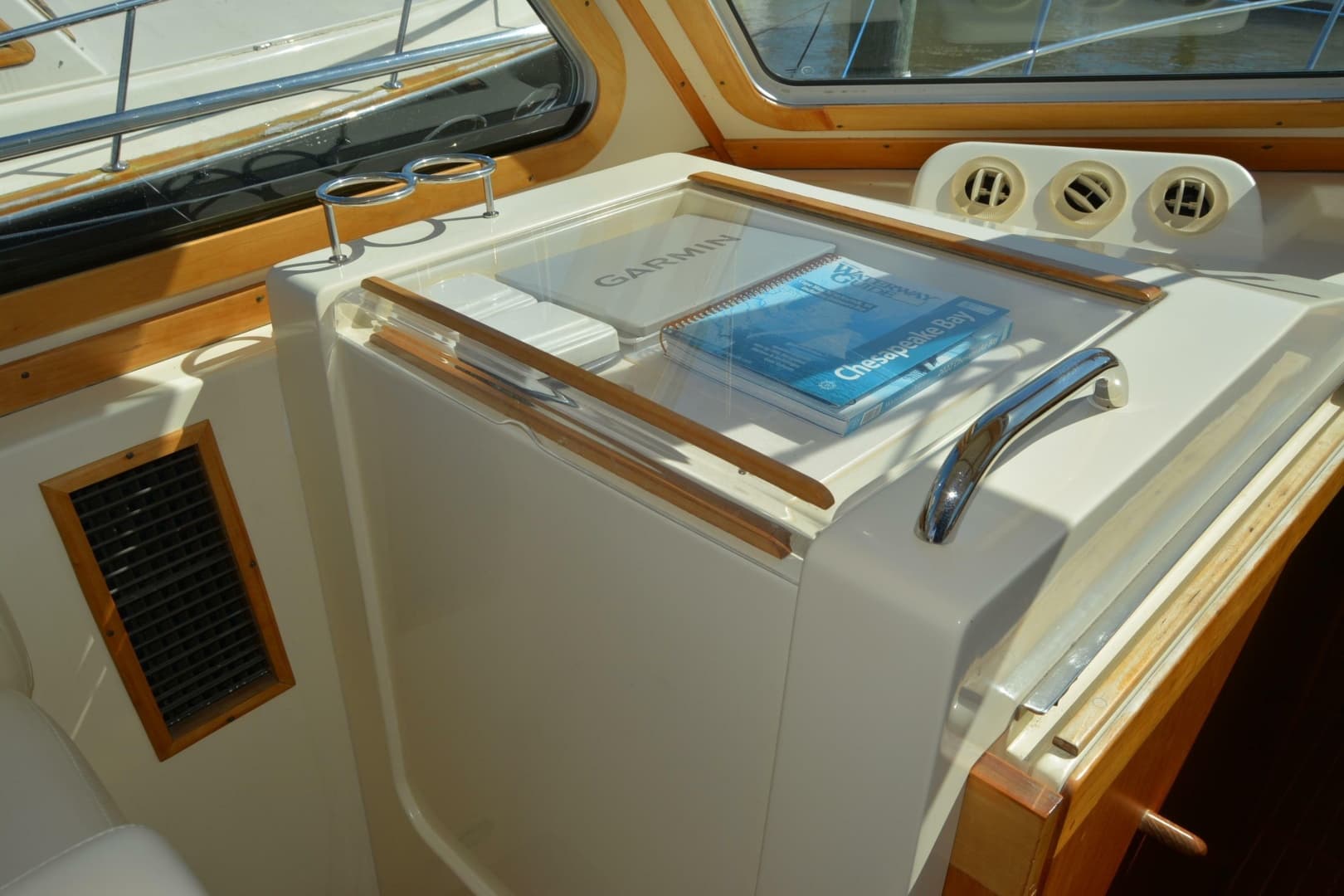

• Chart locker cover with clear cover.
• Galley area with solid surface laminate.

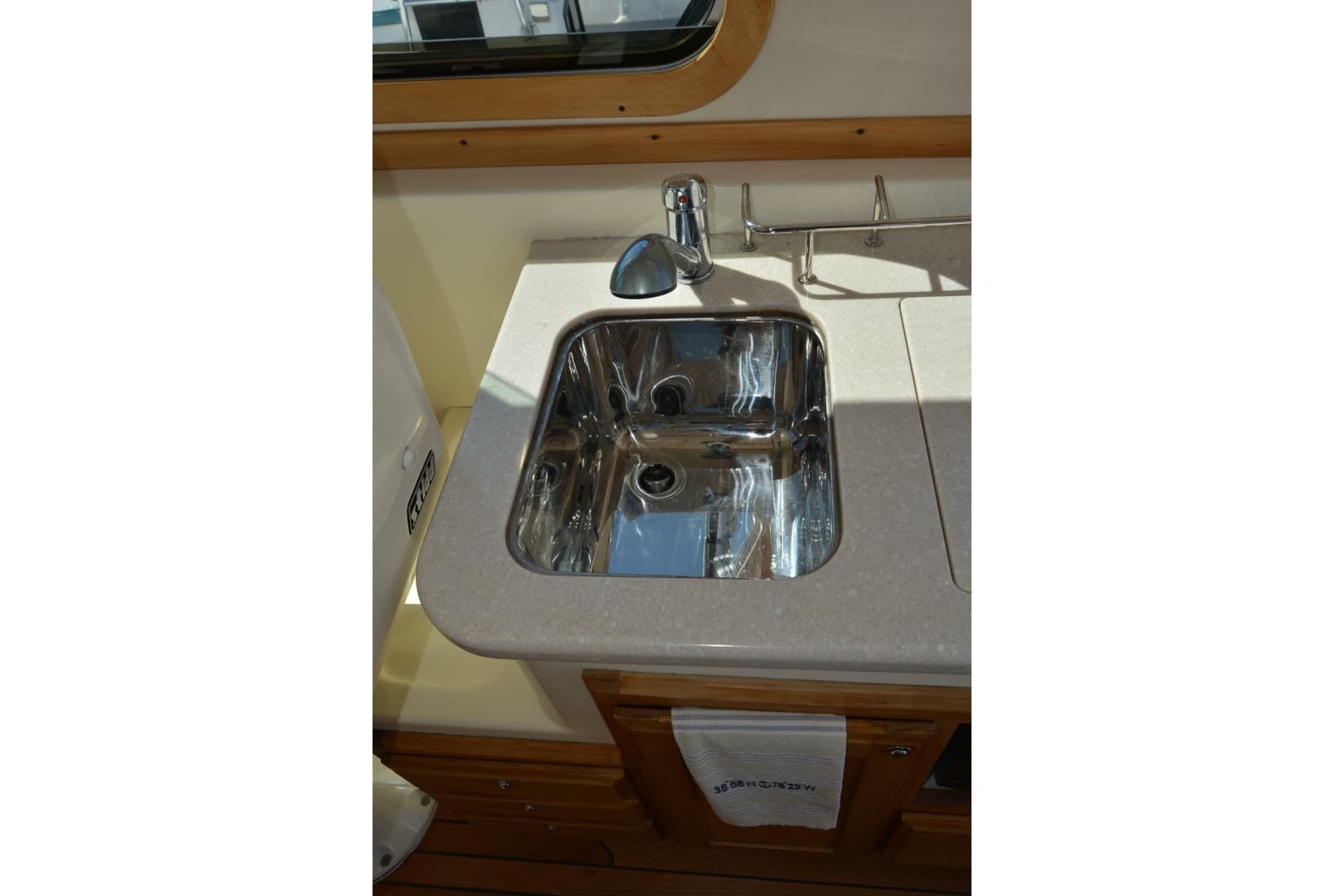

• Stainless steel sink with solid surface drop in cover.

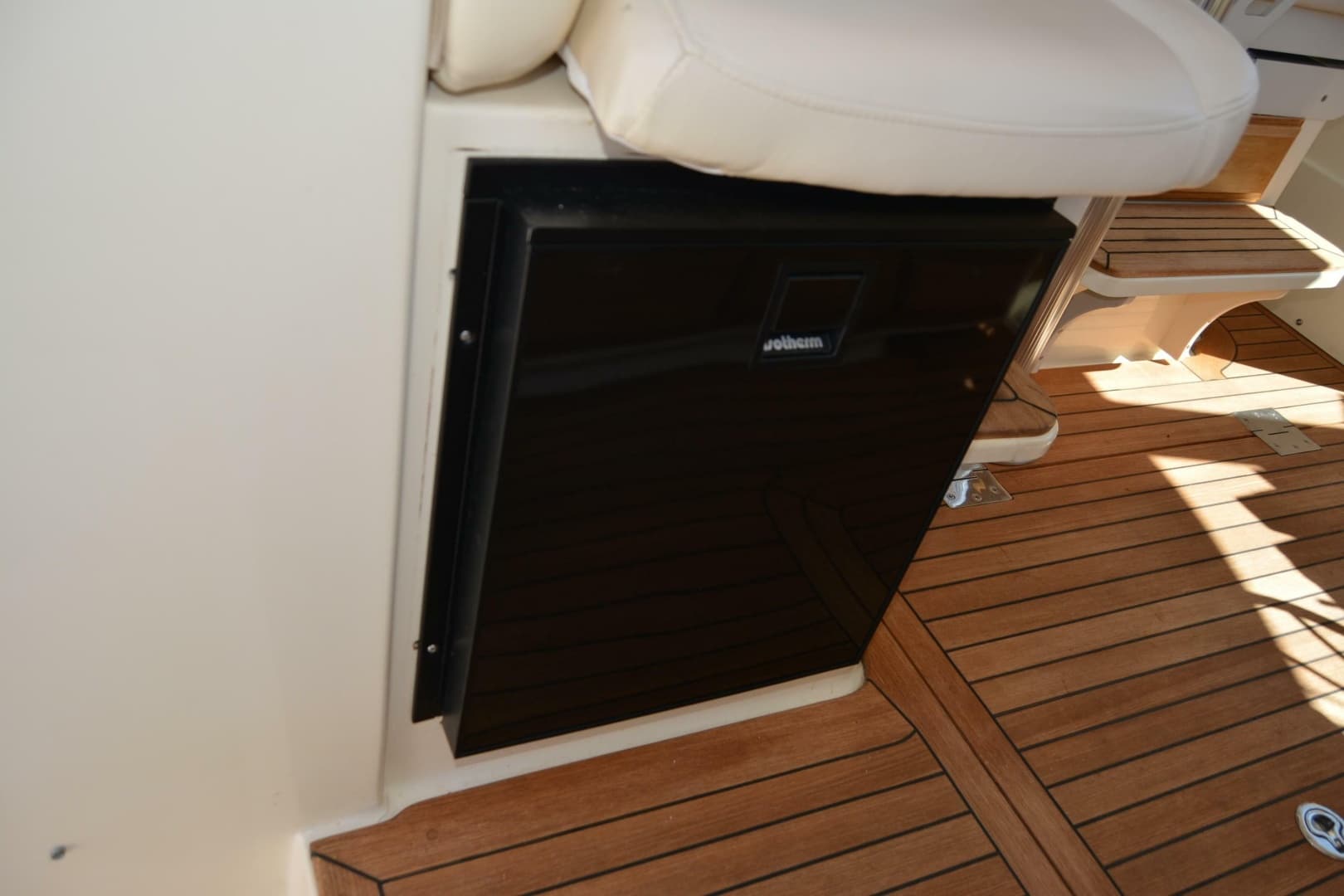

• Isotherm refrigerator.

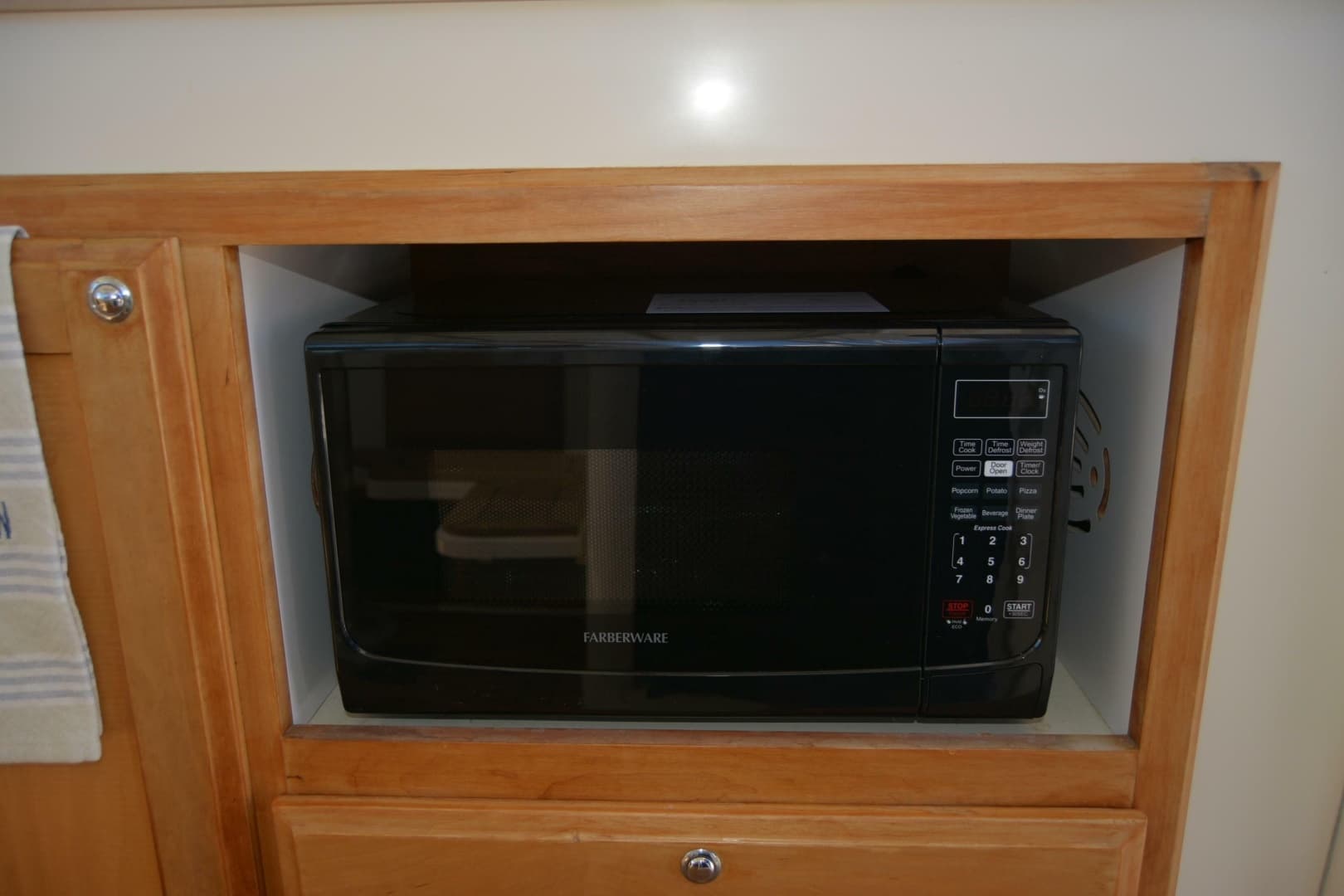

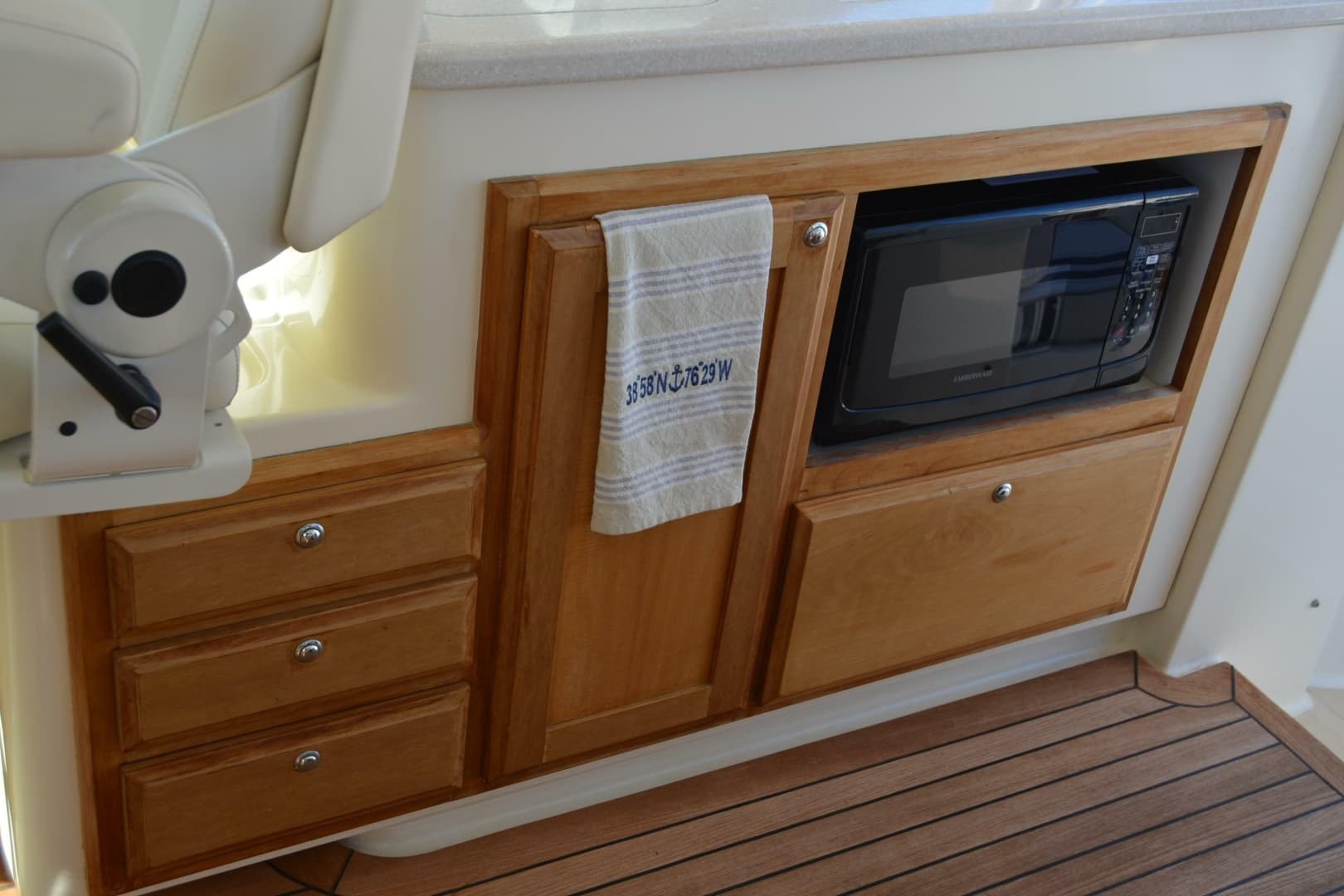

• Farberware microwave oven below counter.

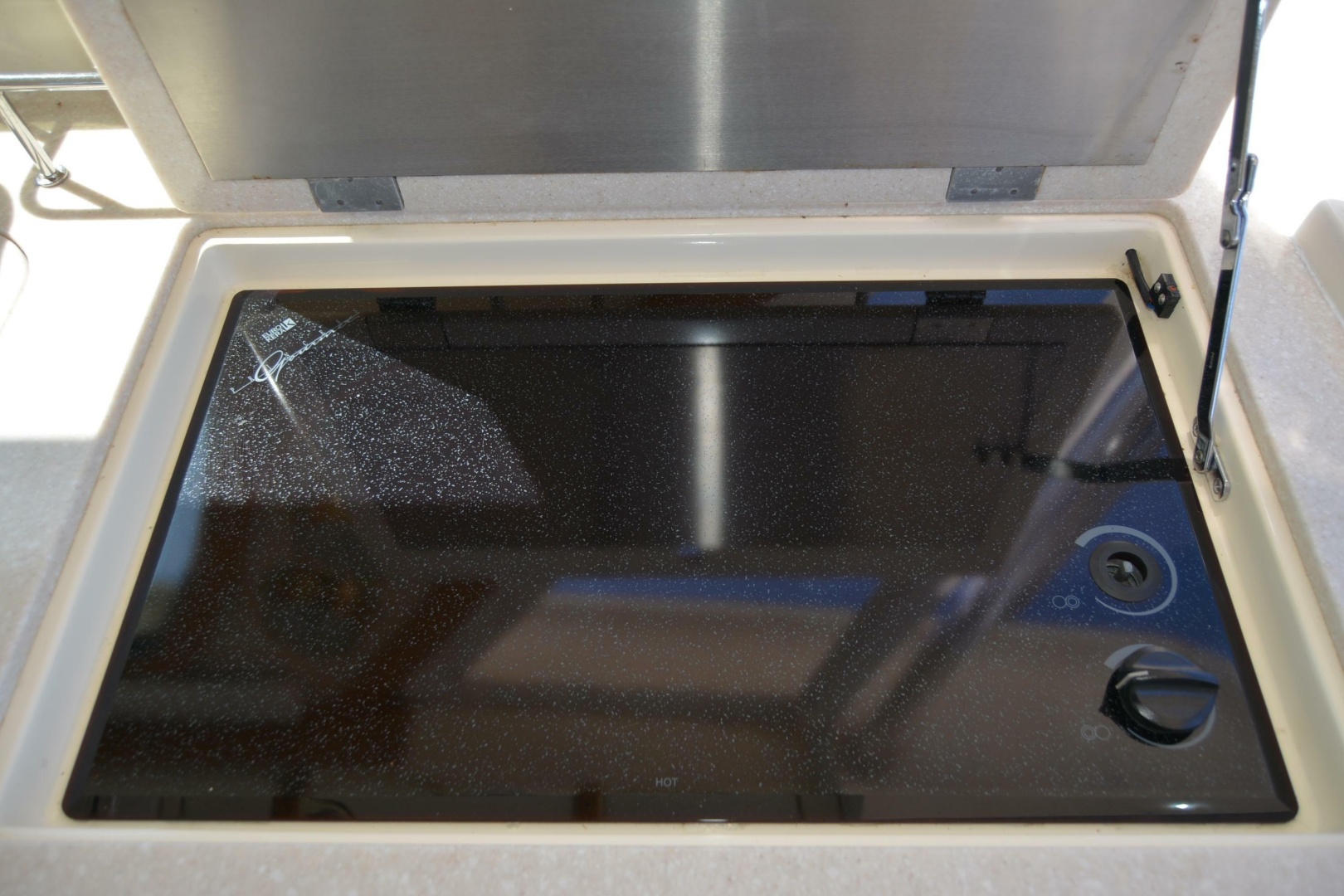

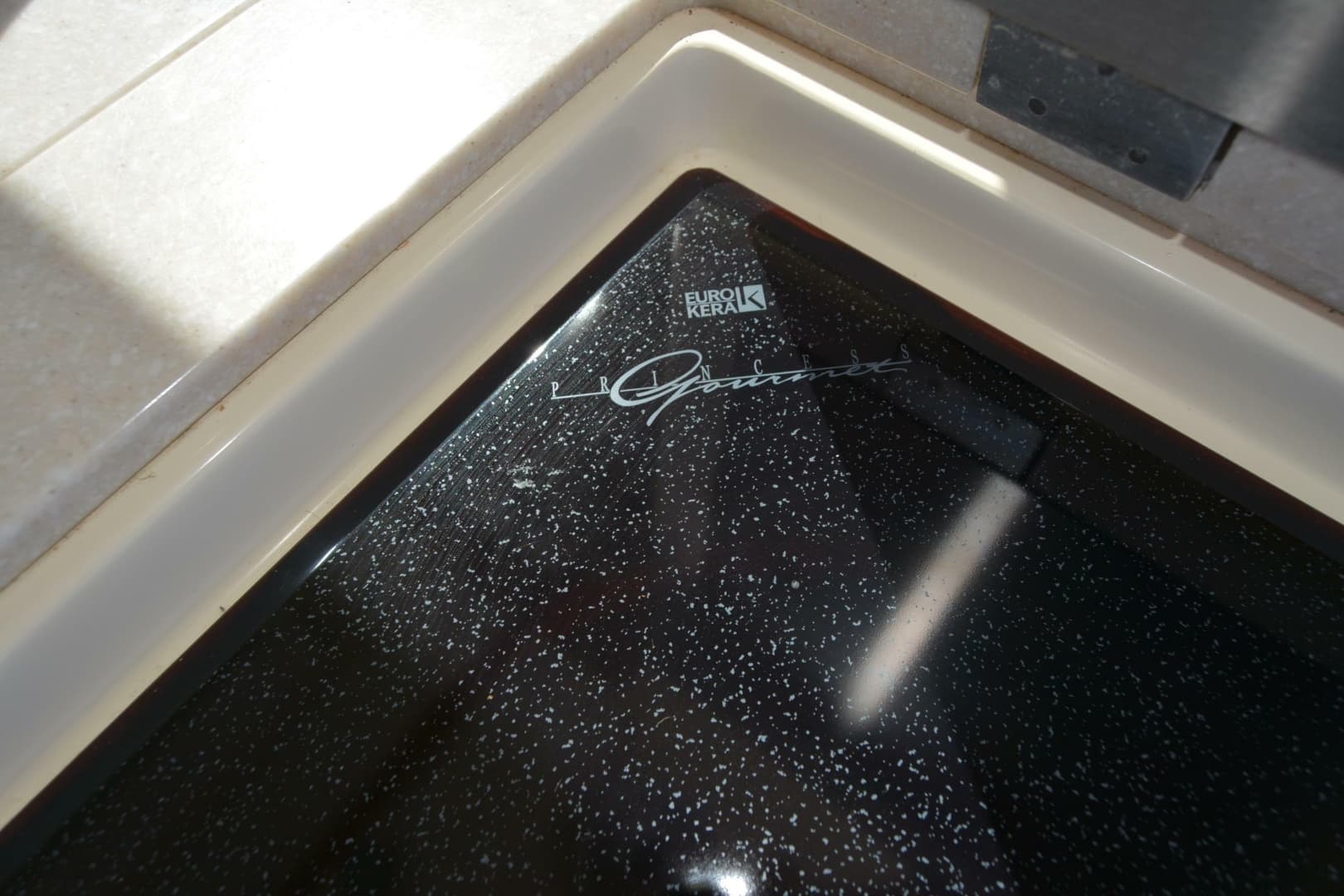

• Recessed two-burner electric cook top with solid surface hinged cover.
• Storage drawers.

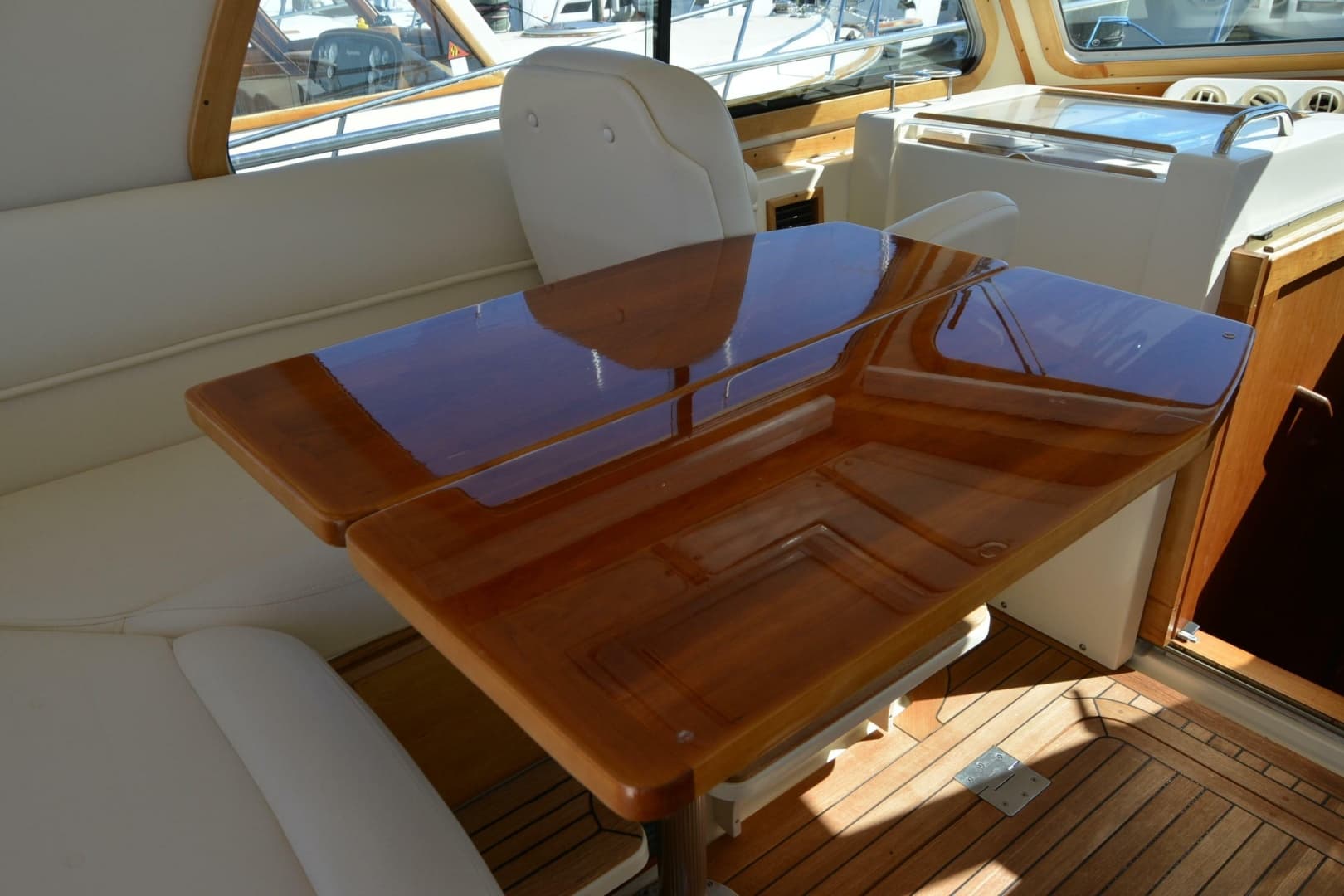

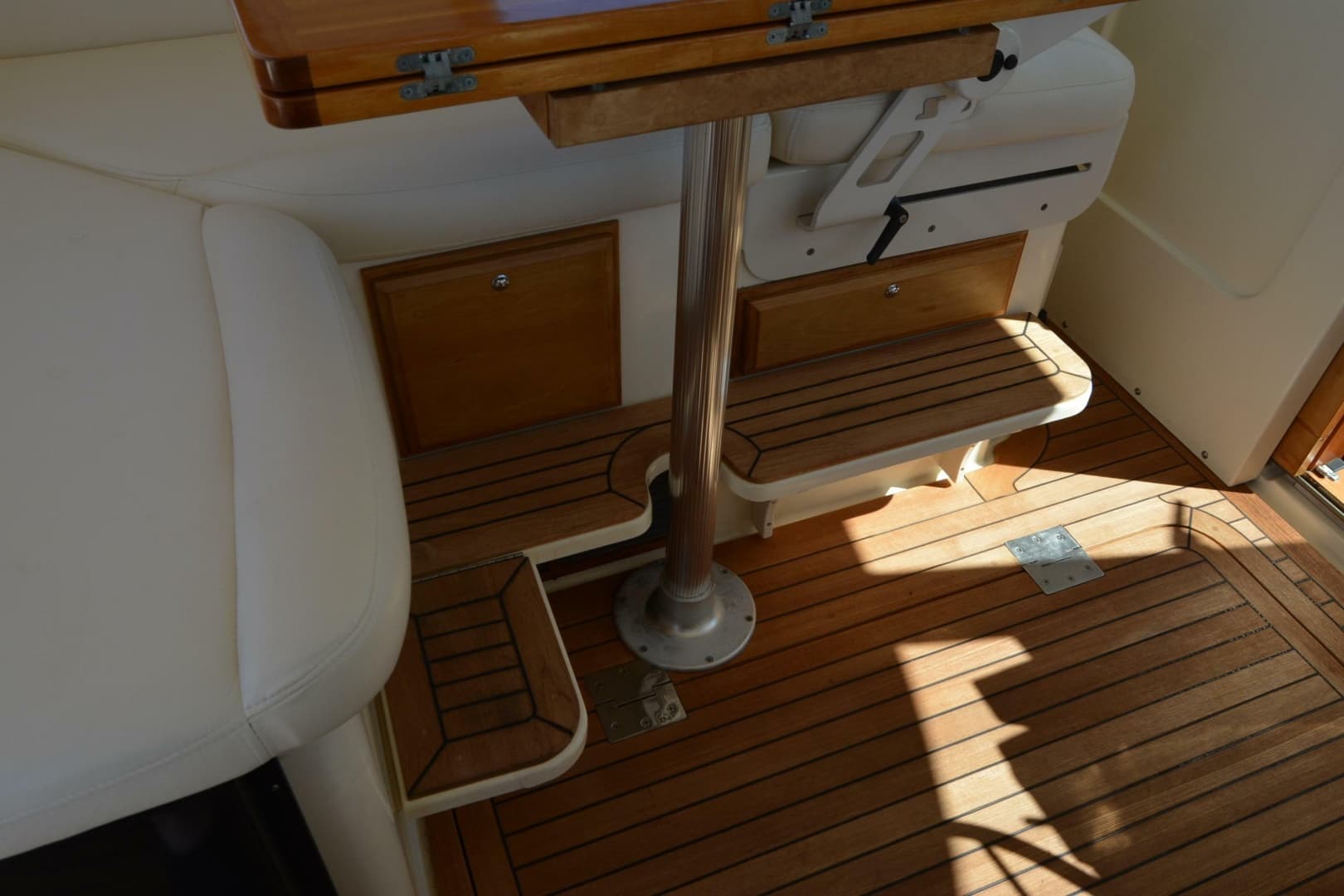

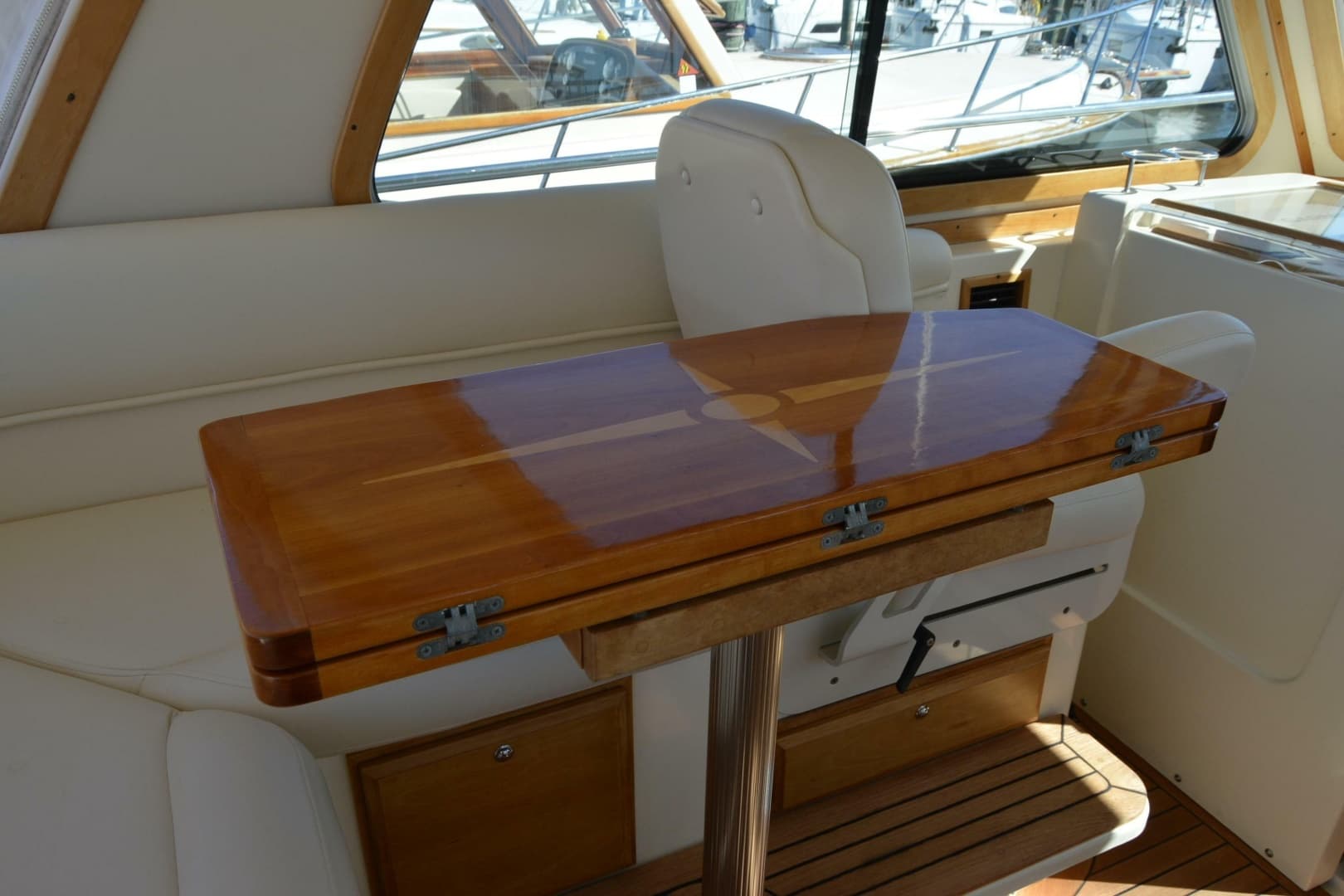

• Fixed pedestal table with starburst inlay and deep epoxy finish.

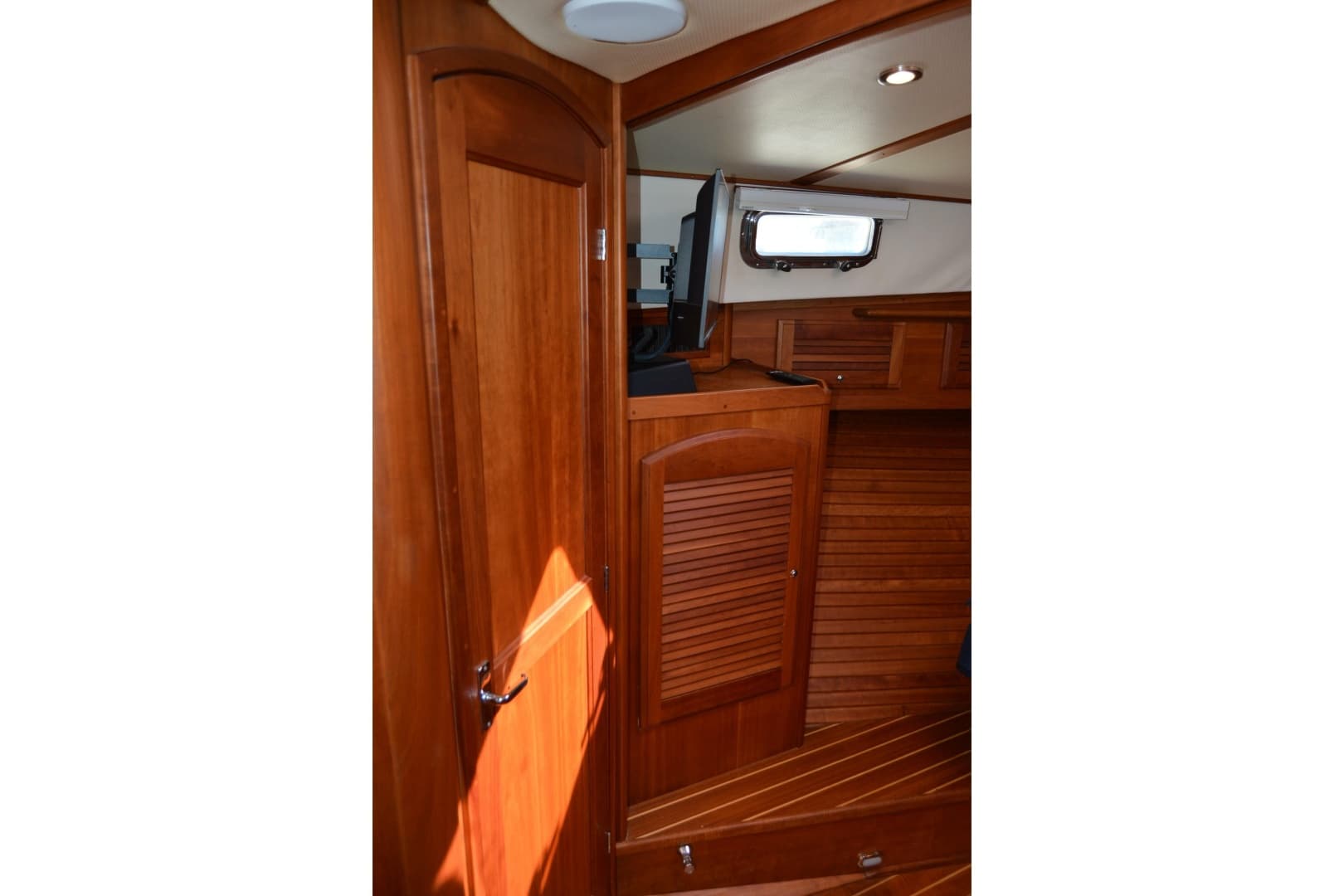

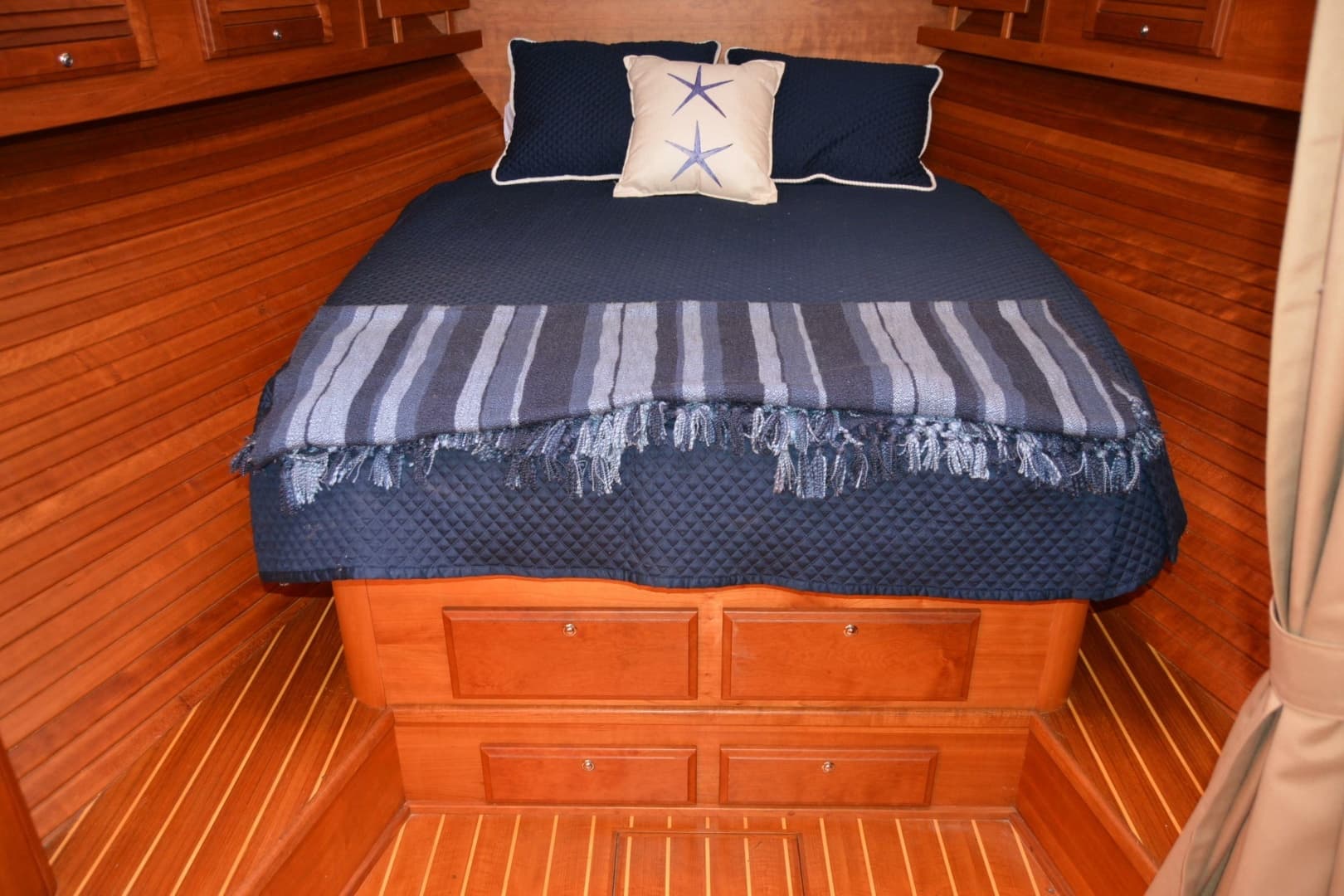

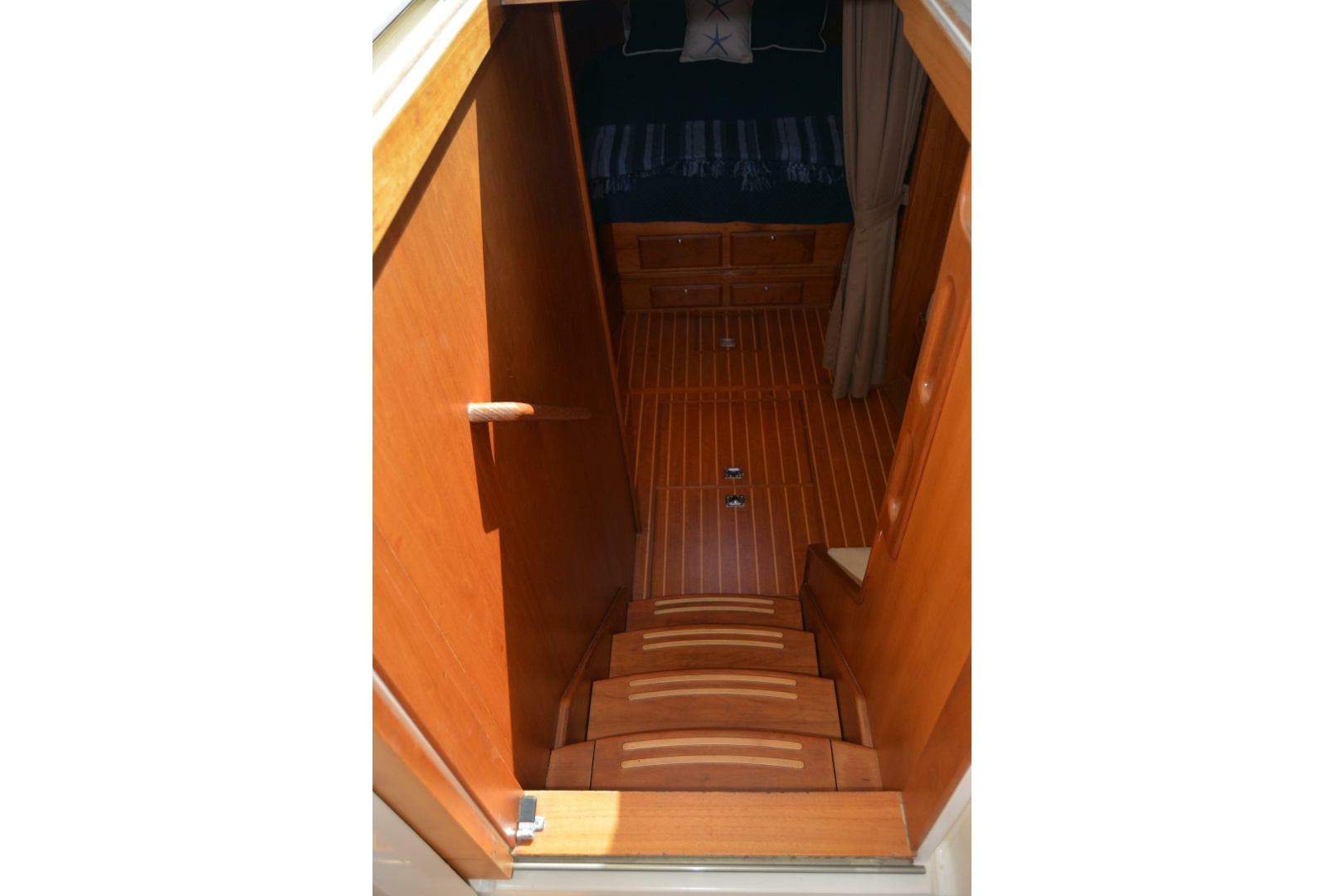

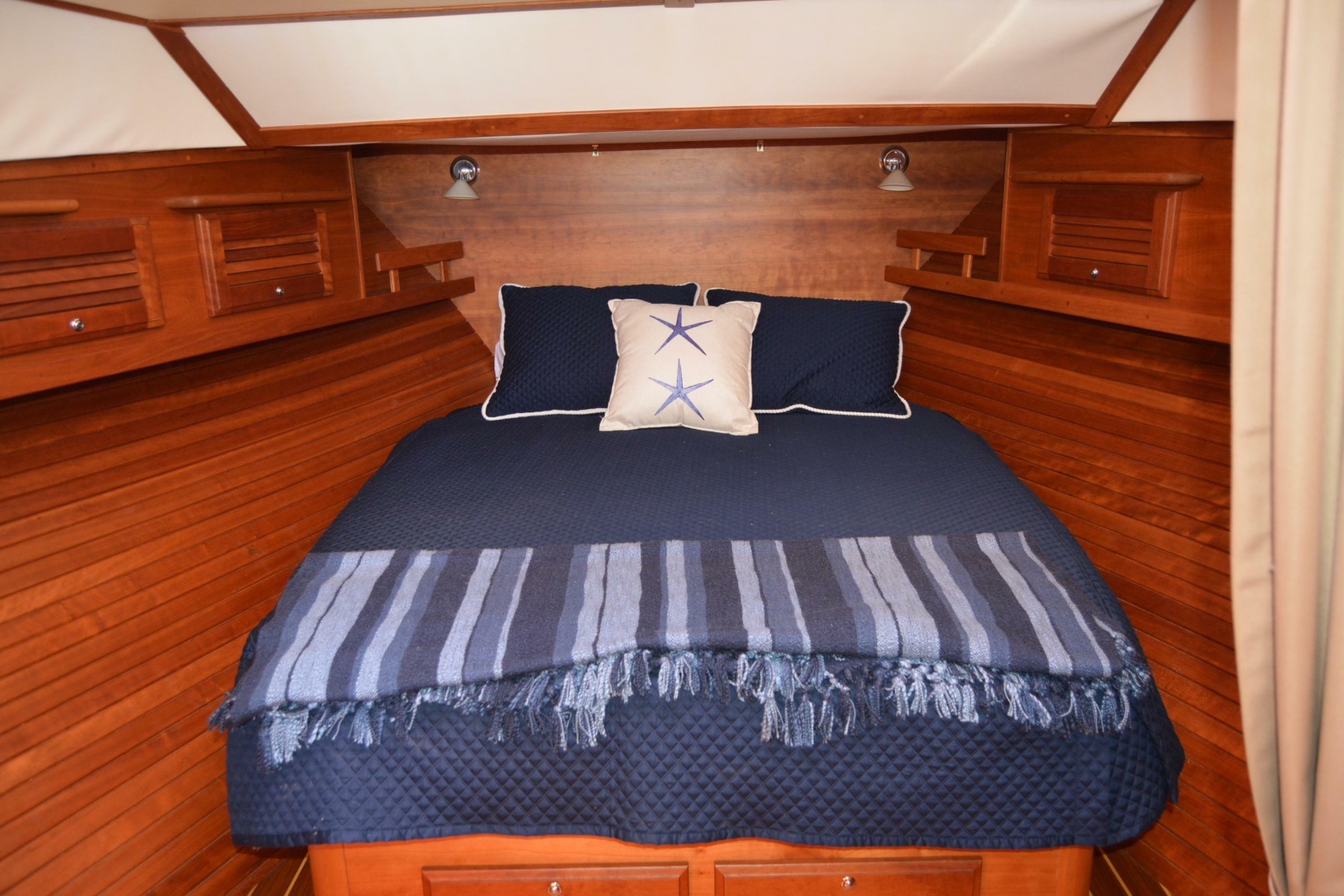

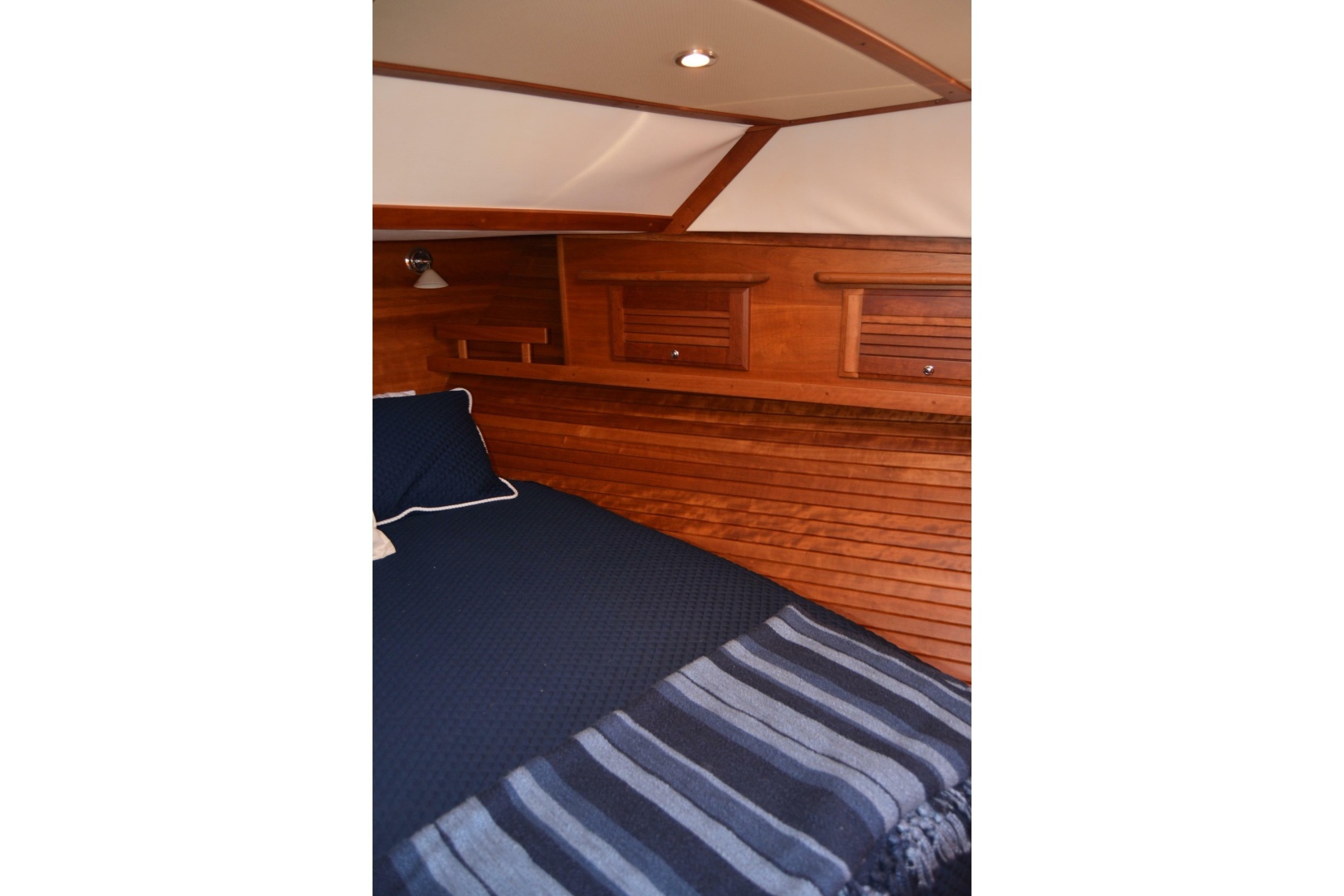

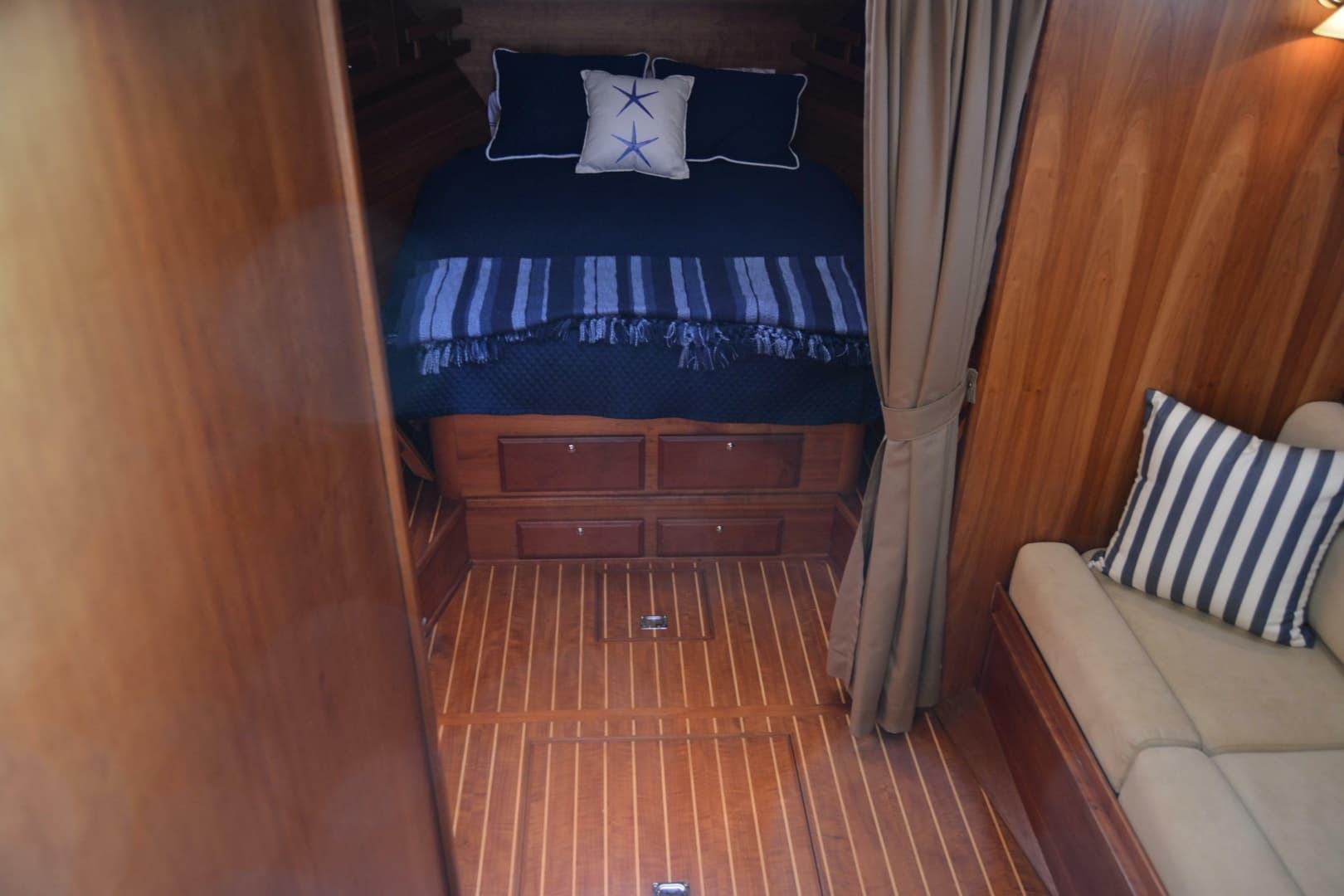

Forward Stateroom

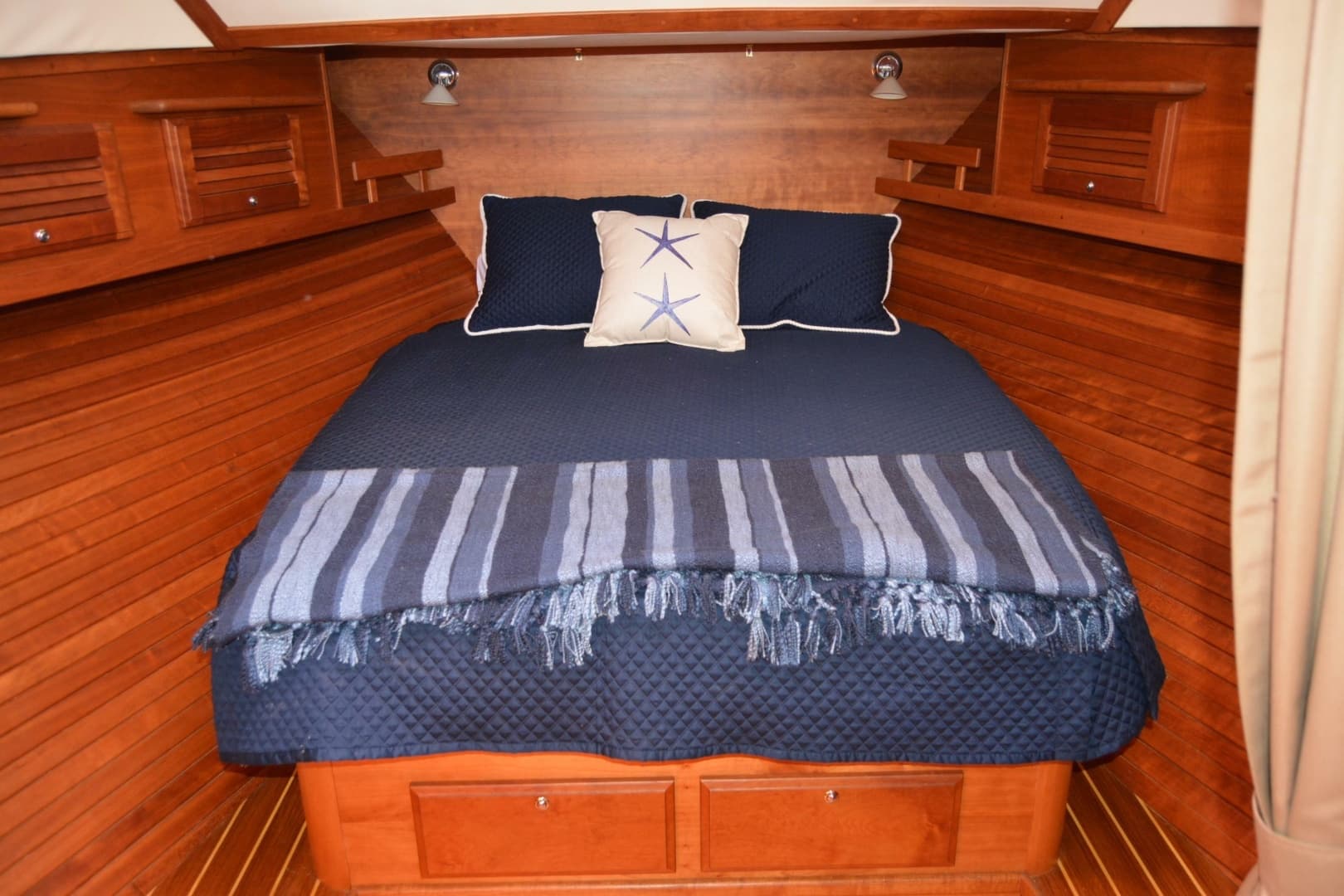

• Spacious Queen Island Berth layout with 5" cushion.
• ¾” laminated trim.
• Cherry hull ceilings.
• 4 Drawers under berth.

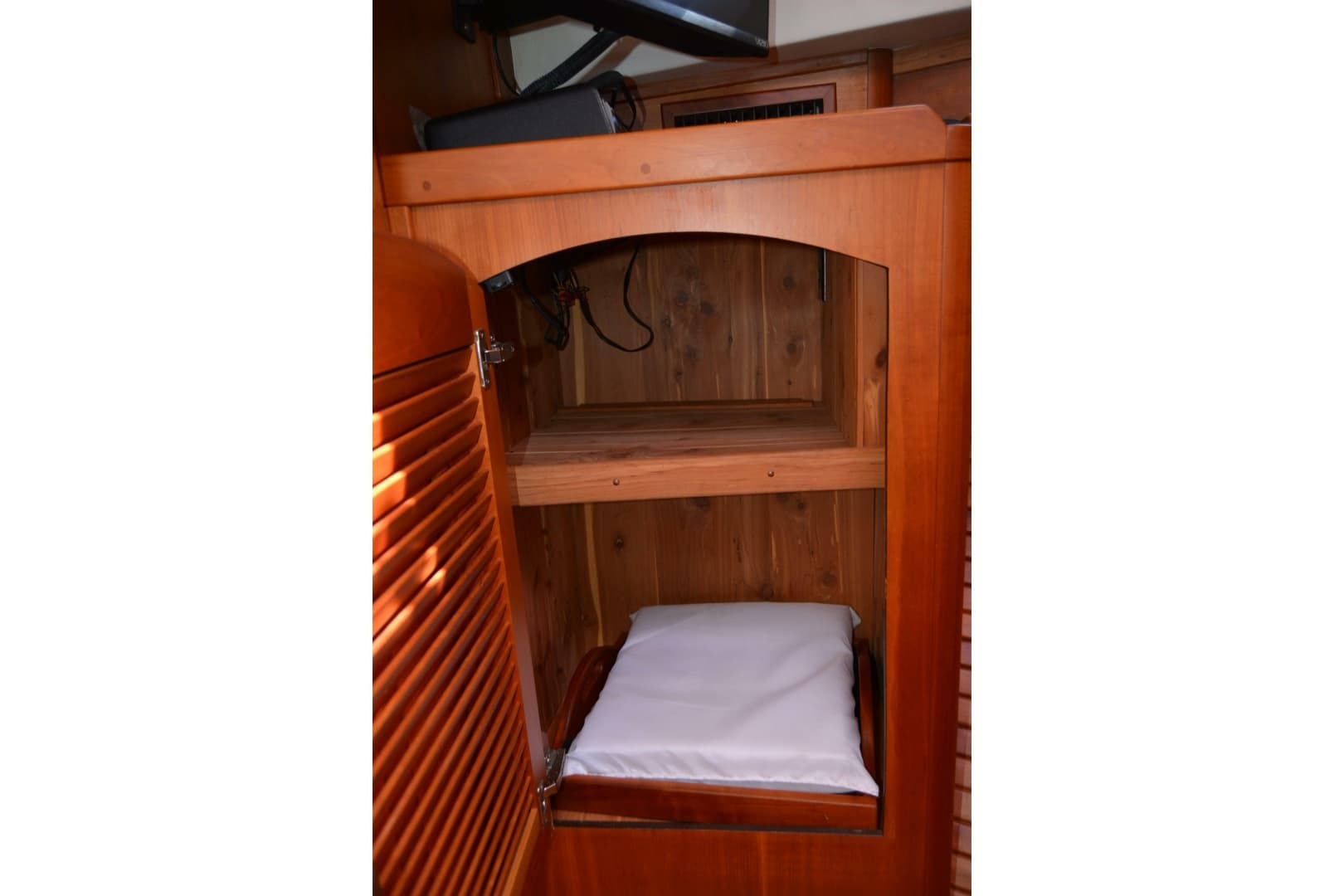

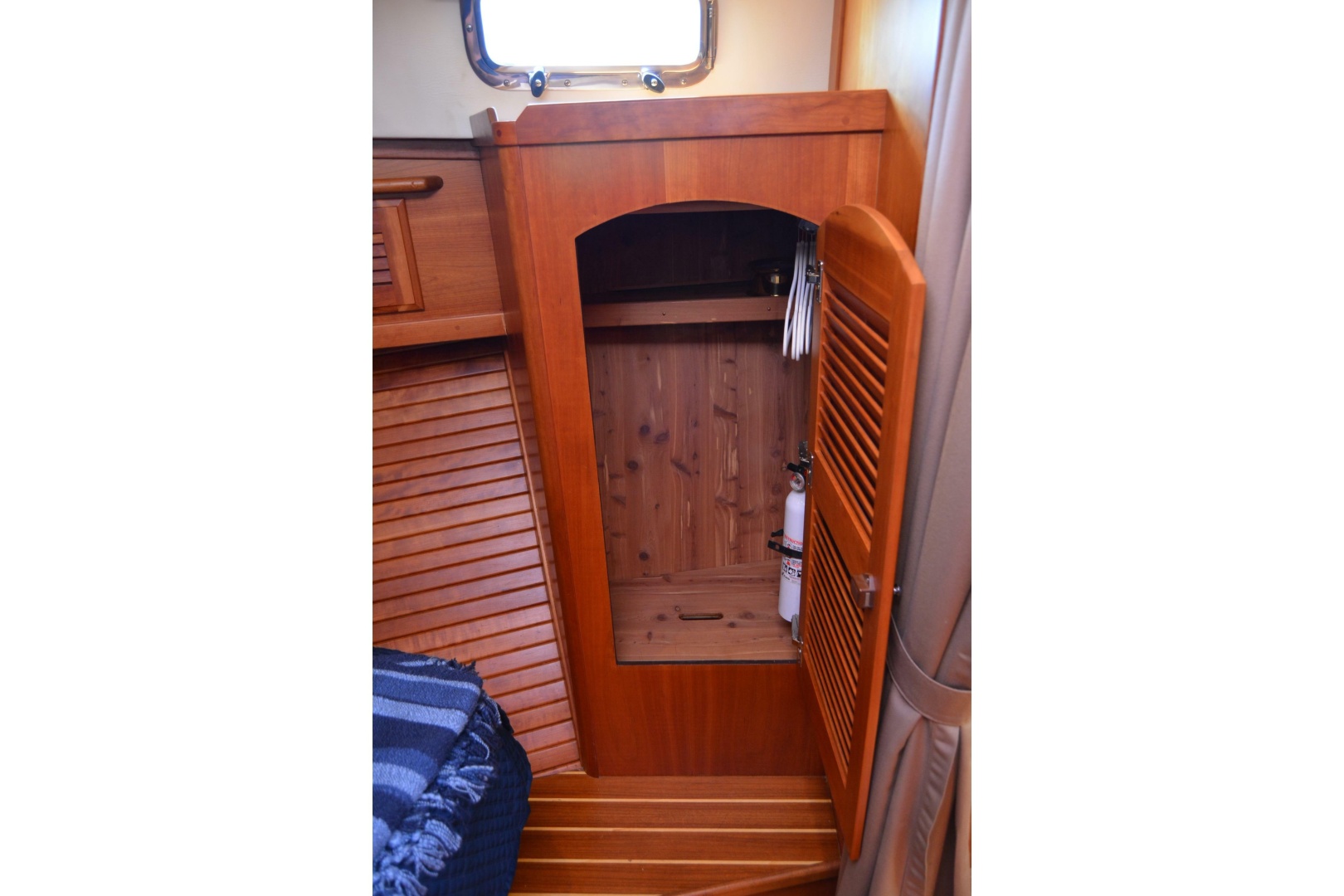

• Large Hanging Locker cedar lined with cedar shelf and closet pole. Open shelf above.
• Upper enclosed shelves with storage behind. Fwd most section to be open shelf w/fiddle. Locker face to have 2 solid doors. Each door accesses partitioned space with shelves in the aft two compartments. Locker doors hinged at top.

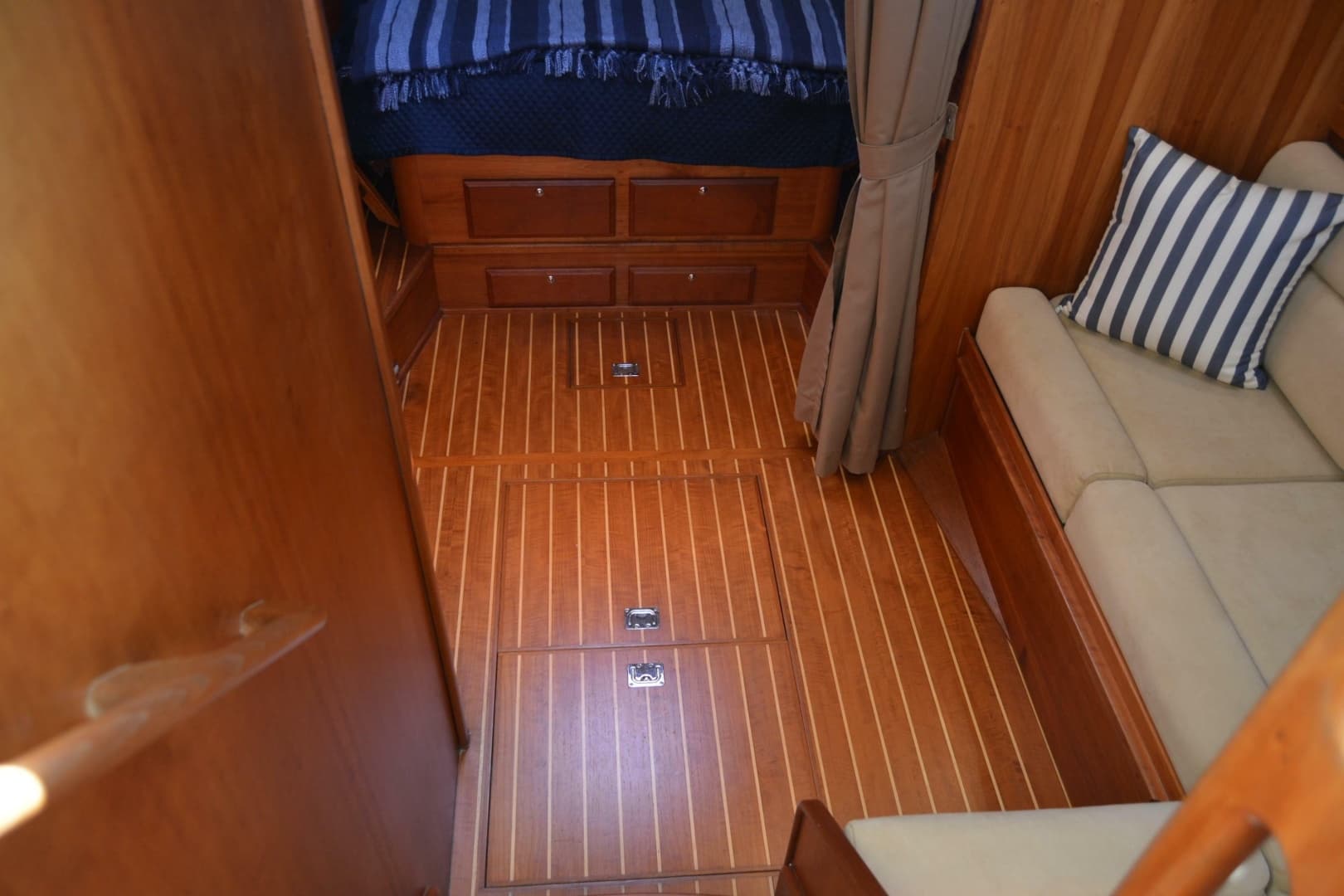

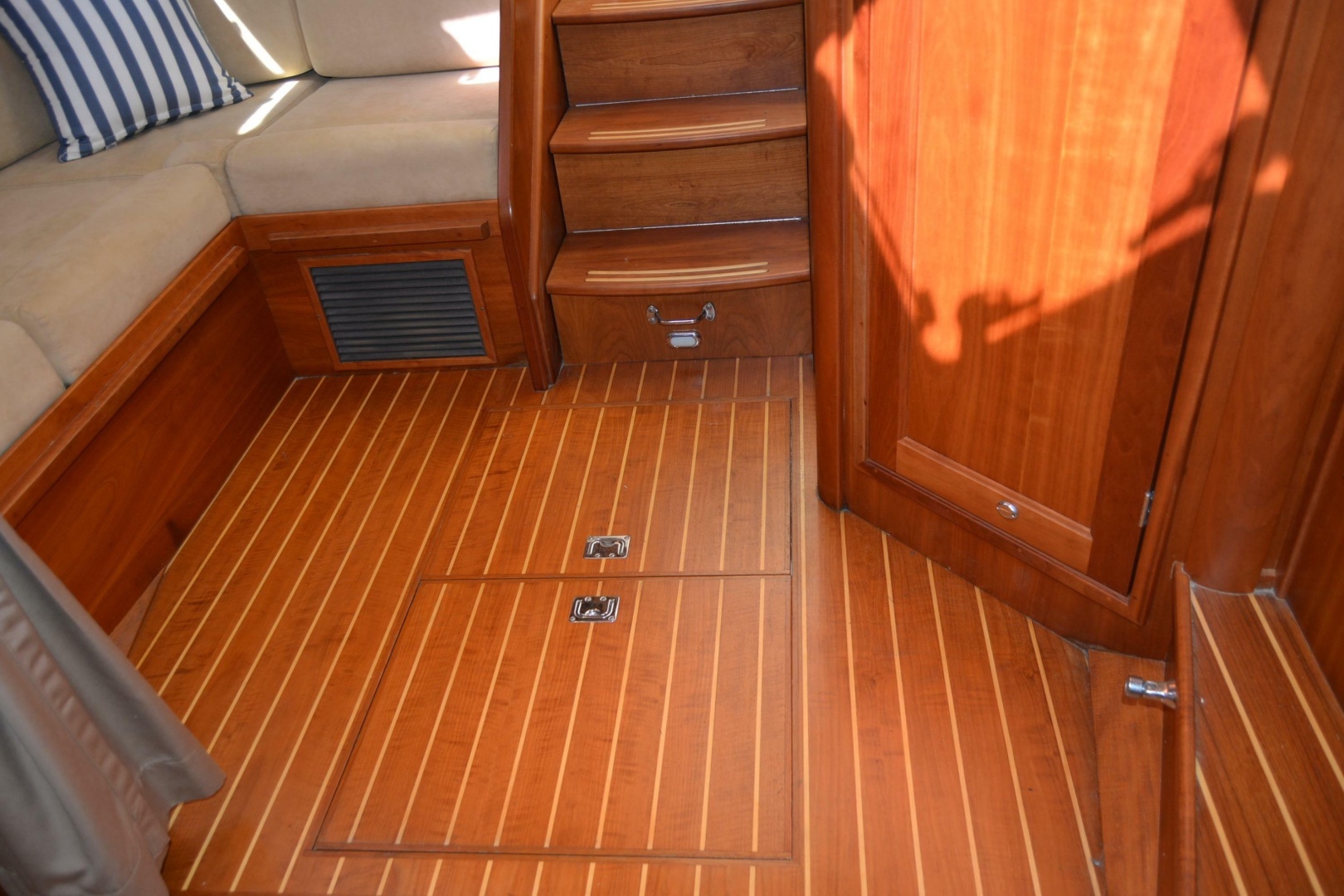

• Teak and holly sole with 2 coats of sealer.
• Soft headliner panels.
• Privacy curtain and curtain track.

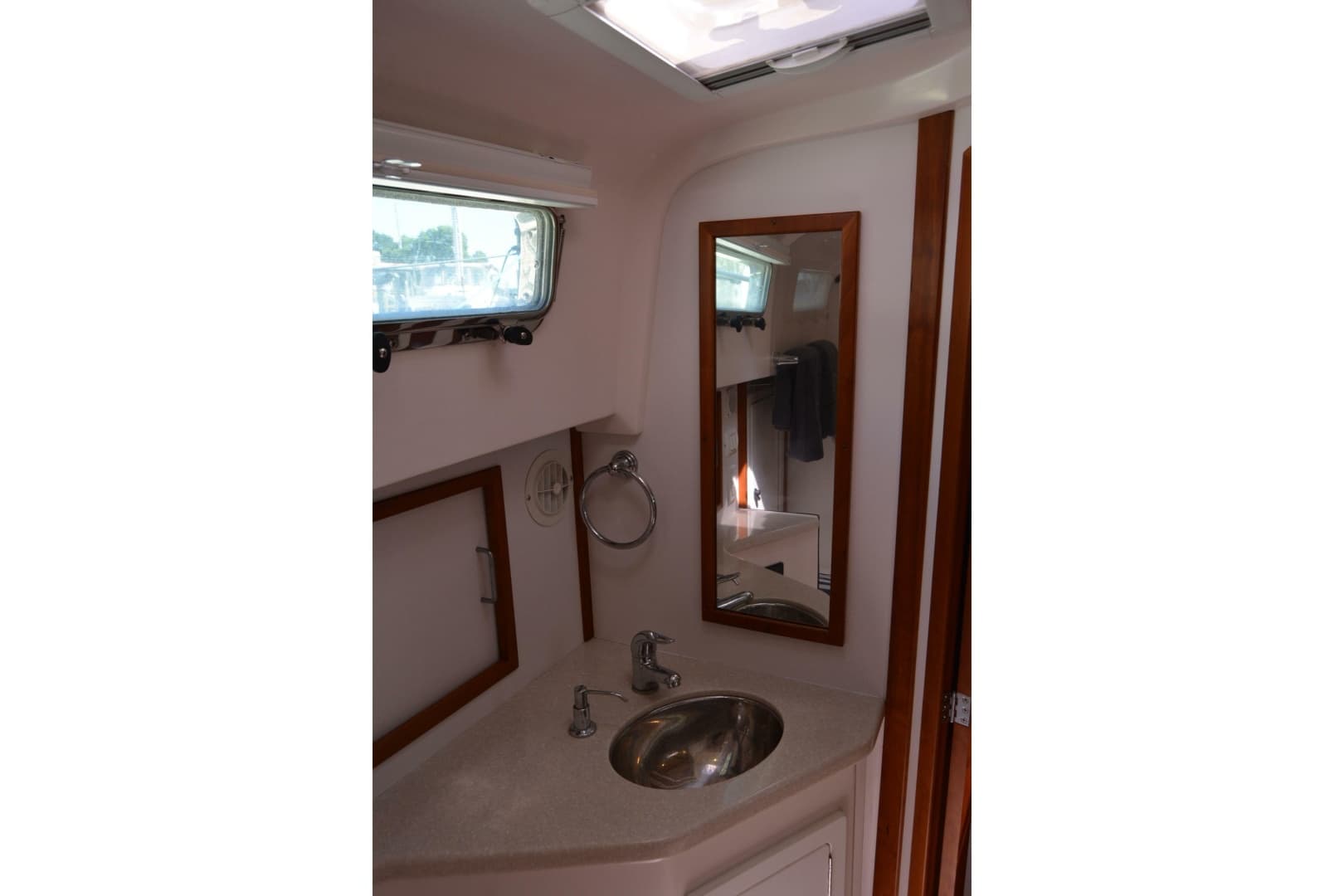

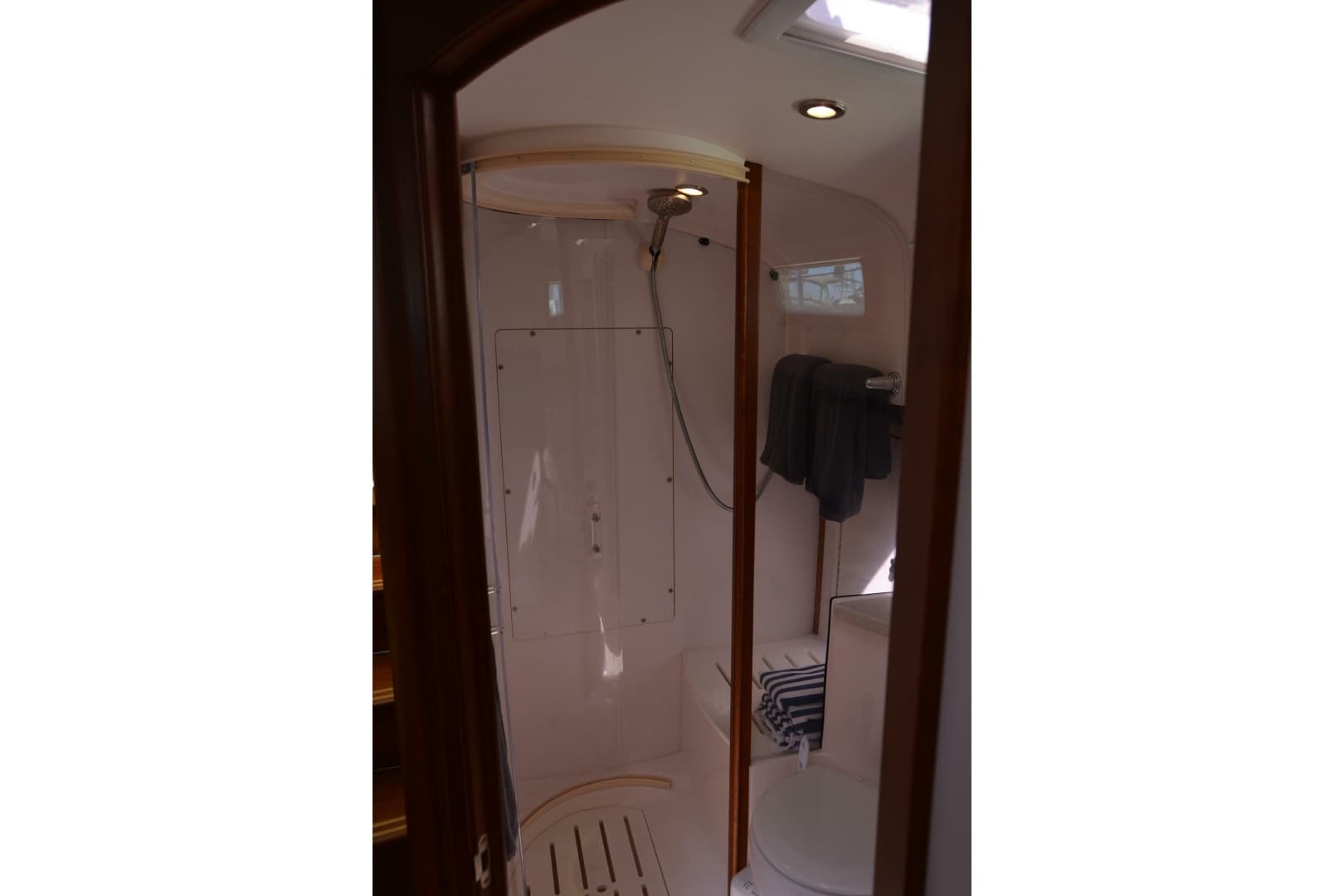

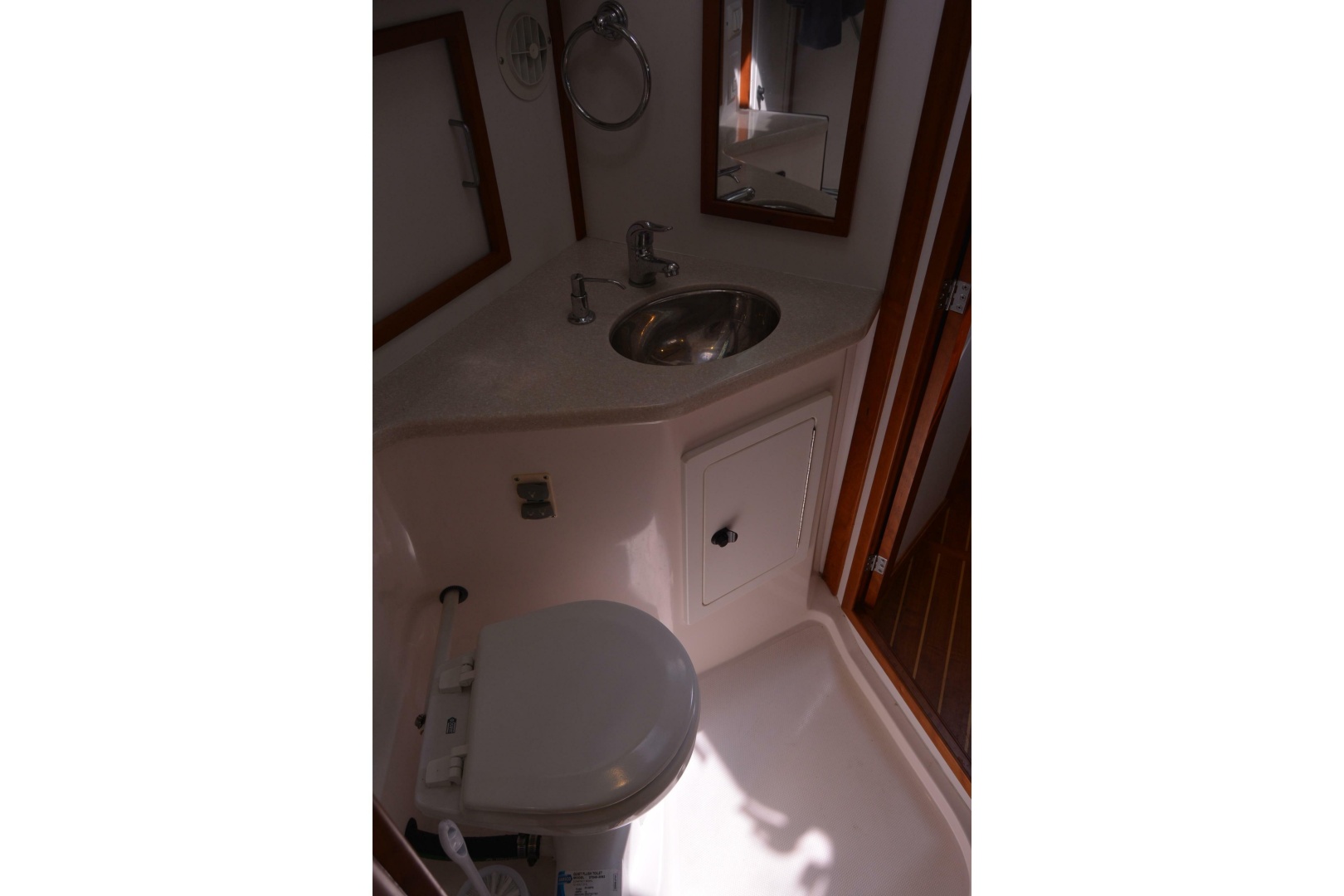

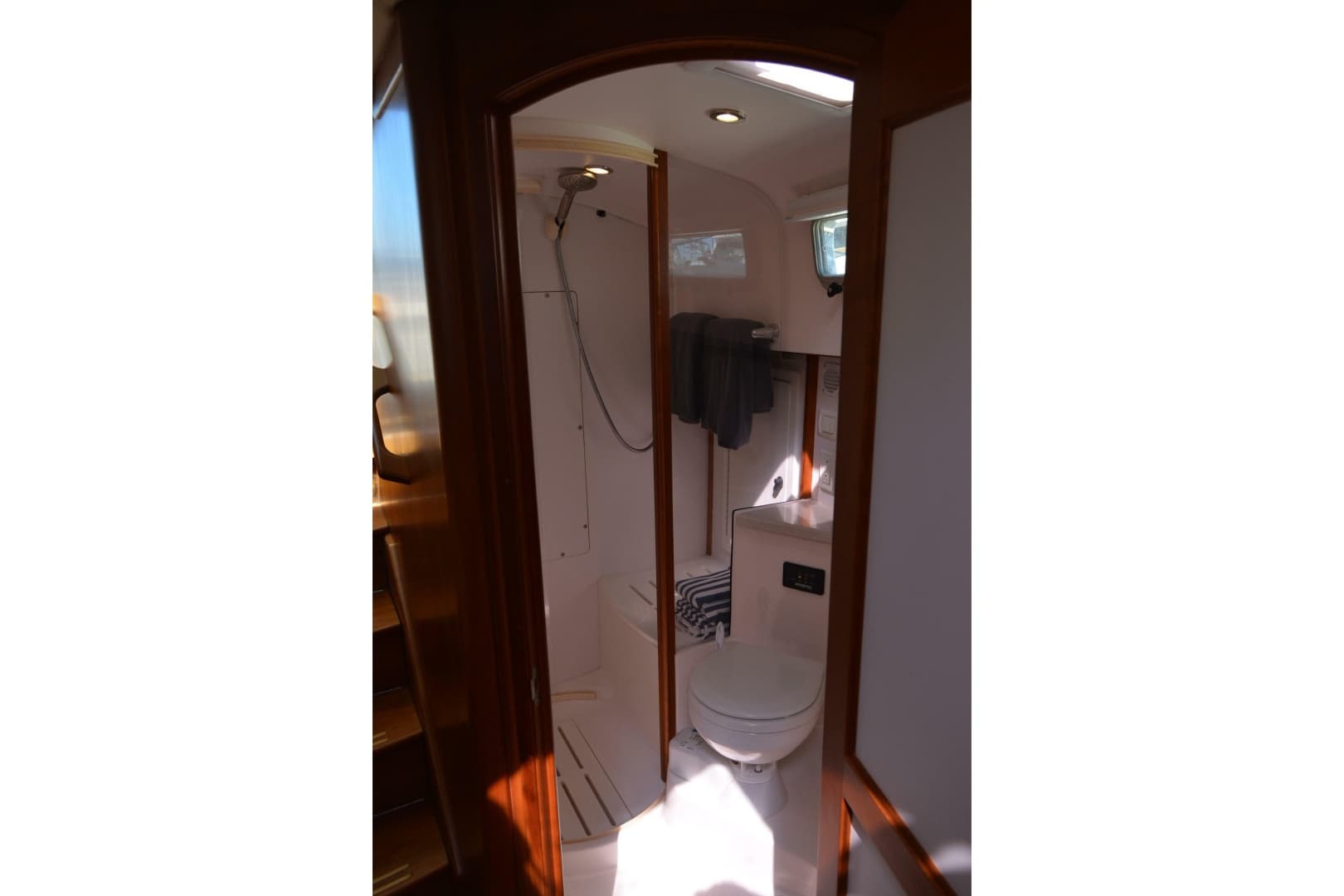

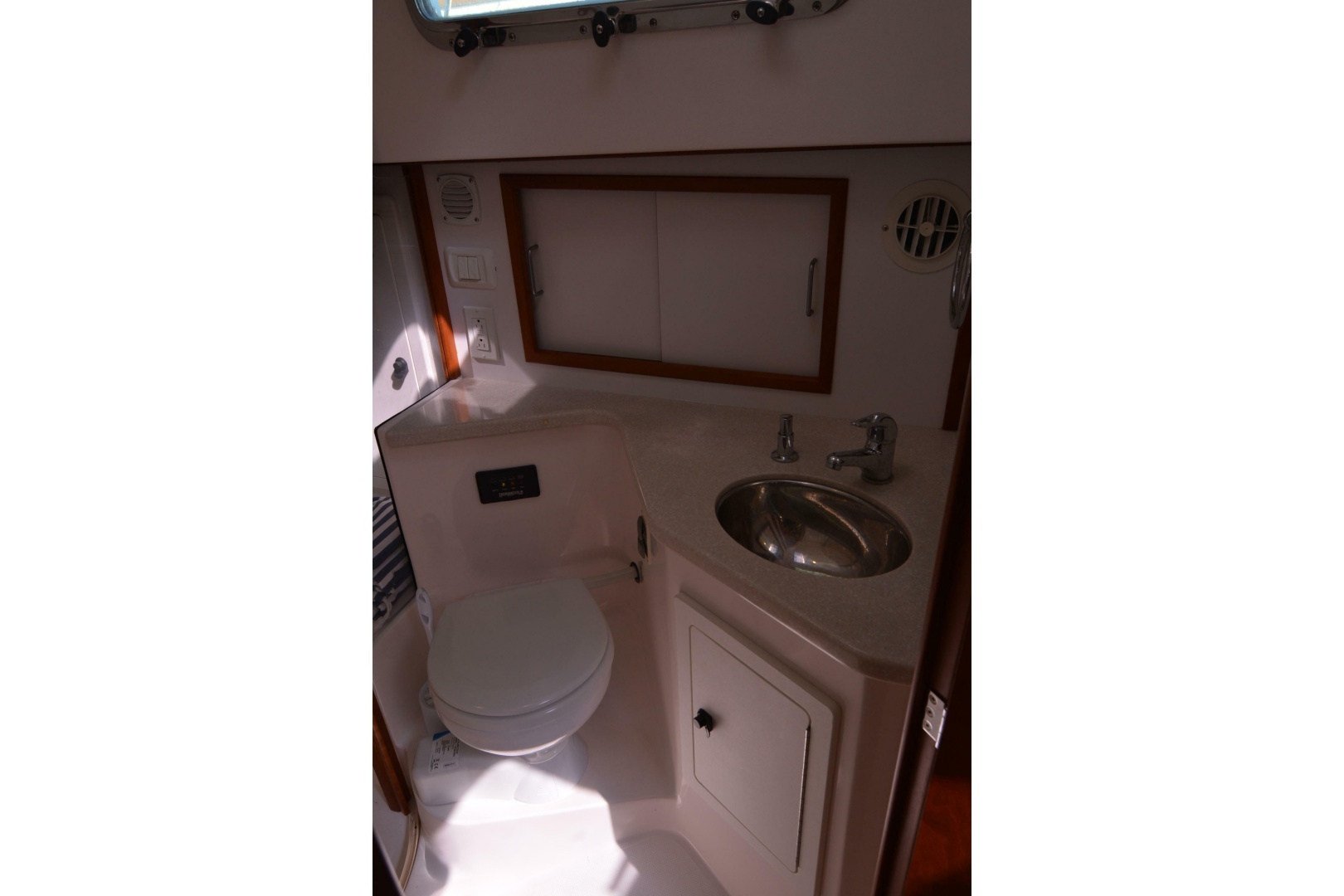

Head & Shower

• Stainless sink with faucet.

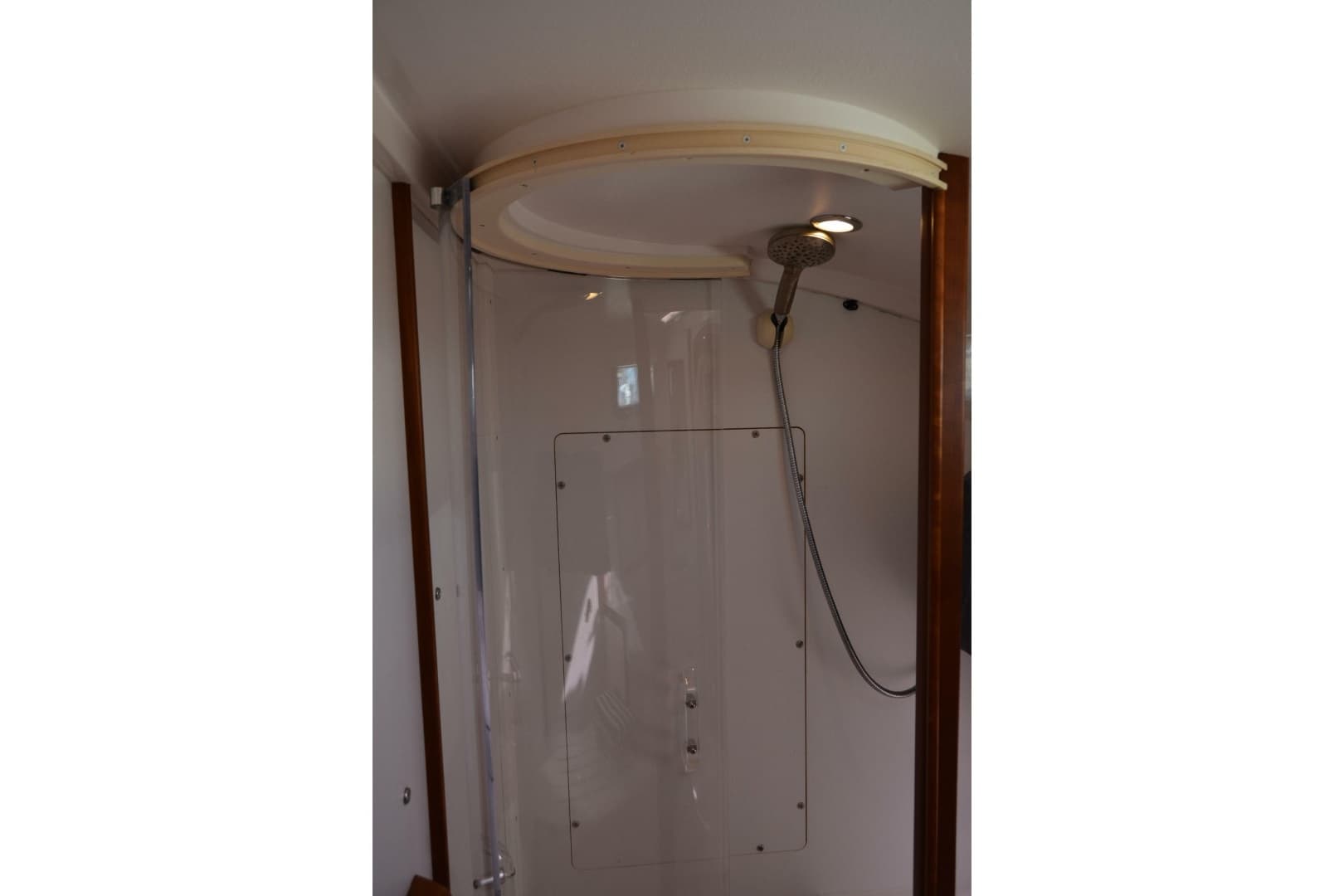

• Separate shower stall with circular acrylic door.
• Hot and cold pressure water.
• Electric shower sump pump.
• Storage lockers.
• Soap dispenser in counter.
• Solid surface counter with bull nose.
• Starboard plastic shower grate.
• Wood trimmed mirror over sink and mirror in top of passageway door (head side).
• Ventilation blower.

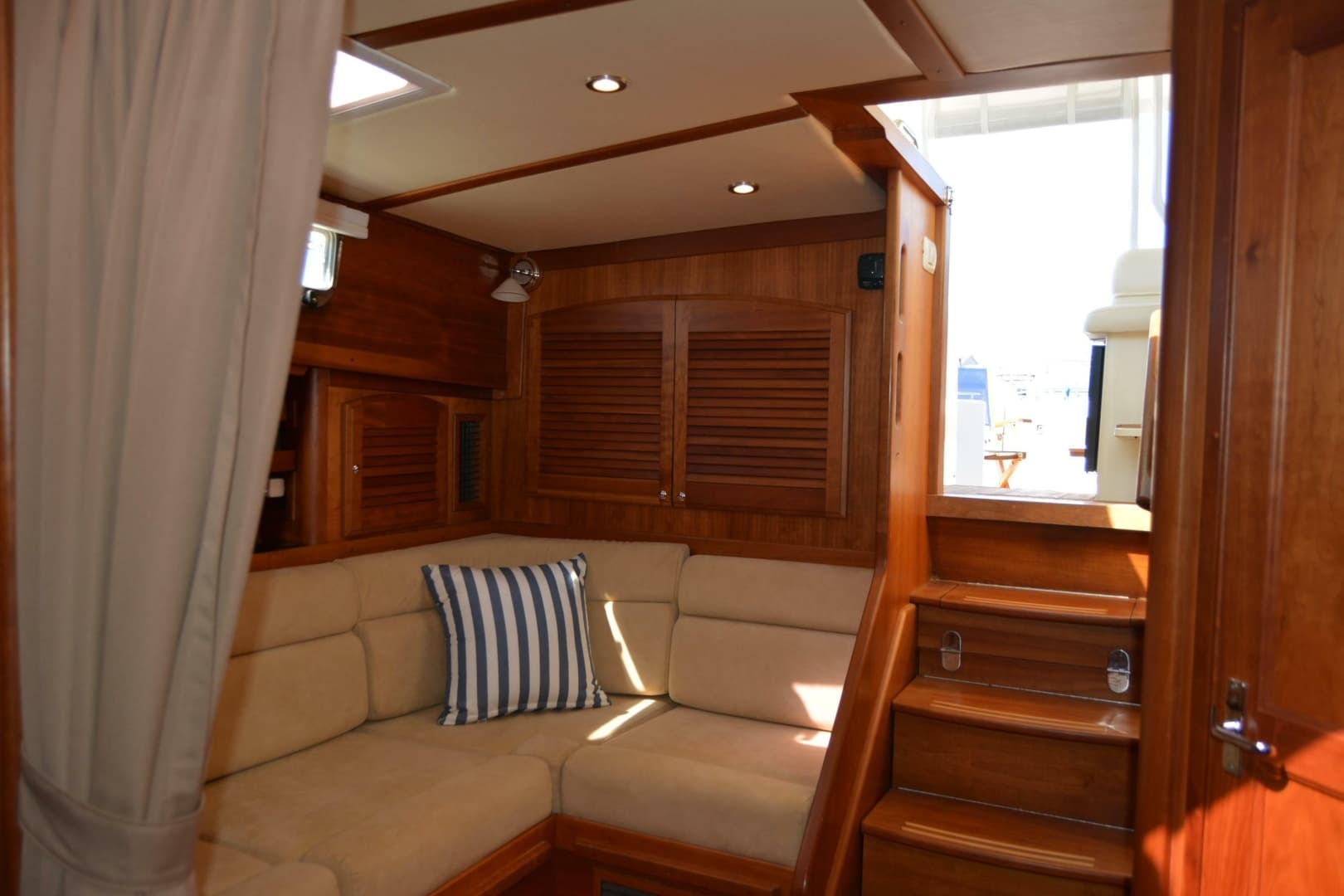

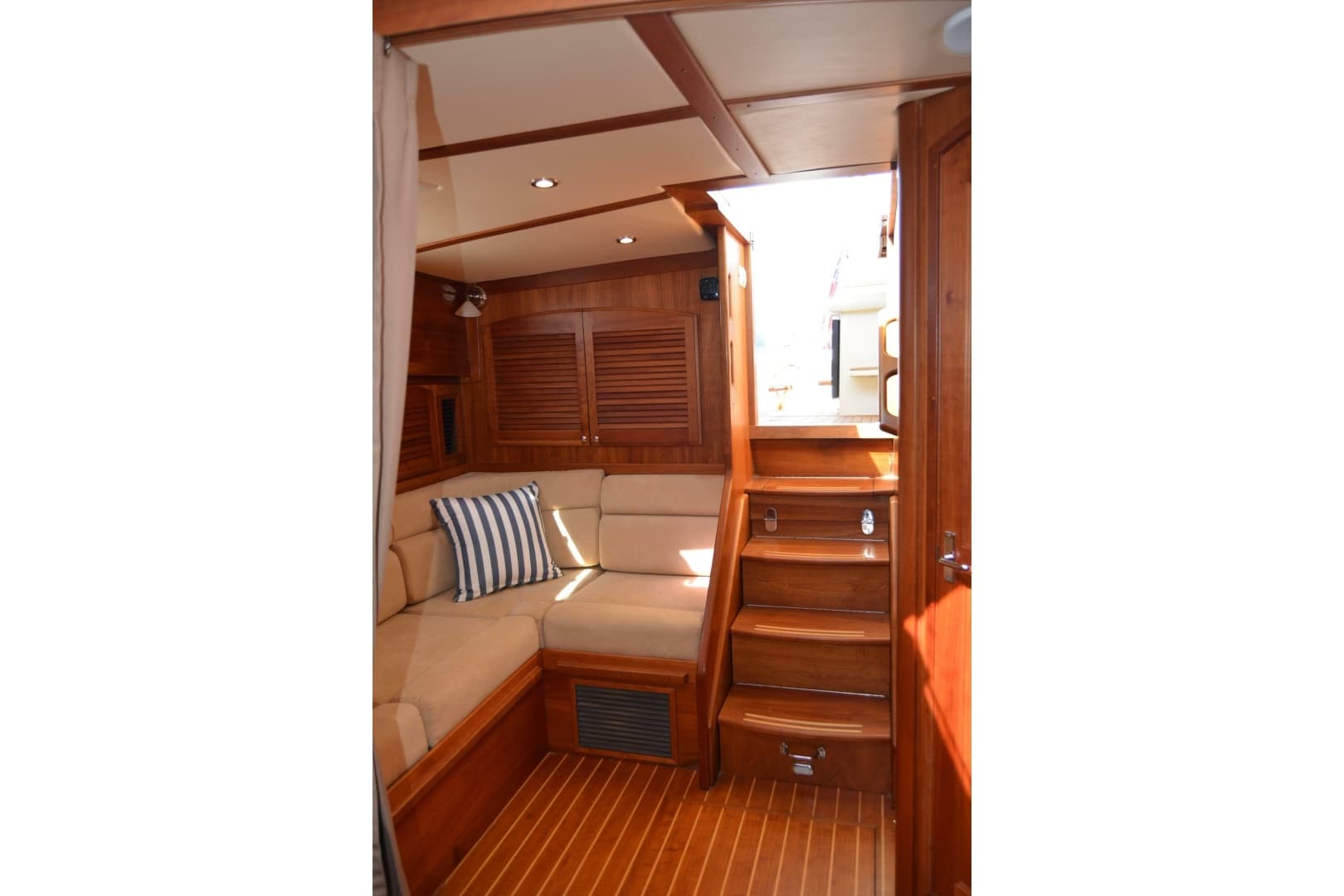

Salon

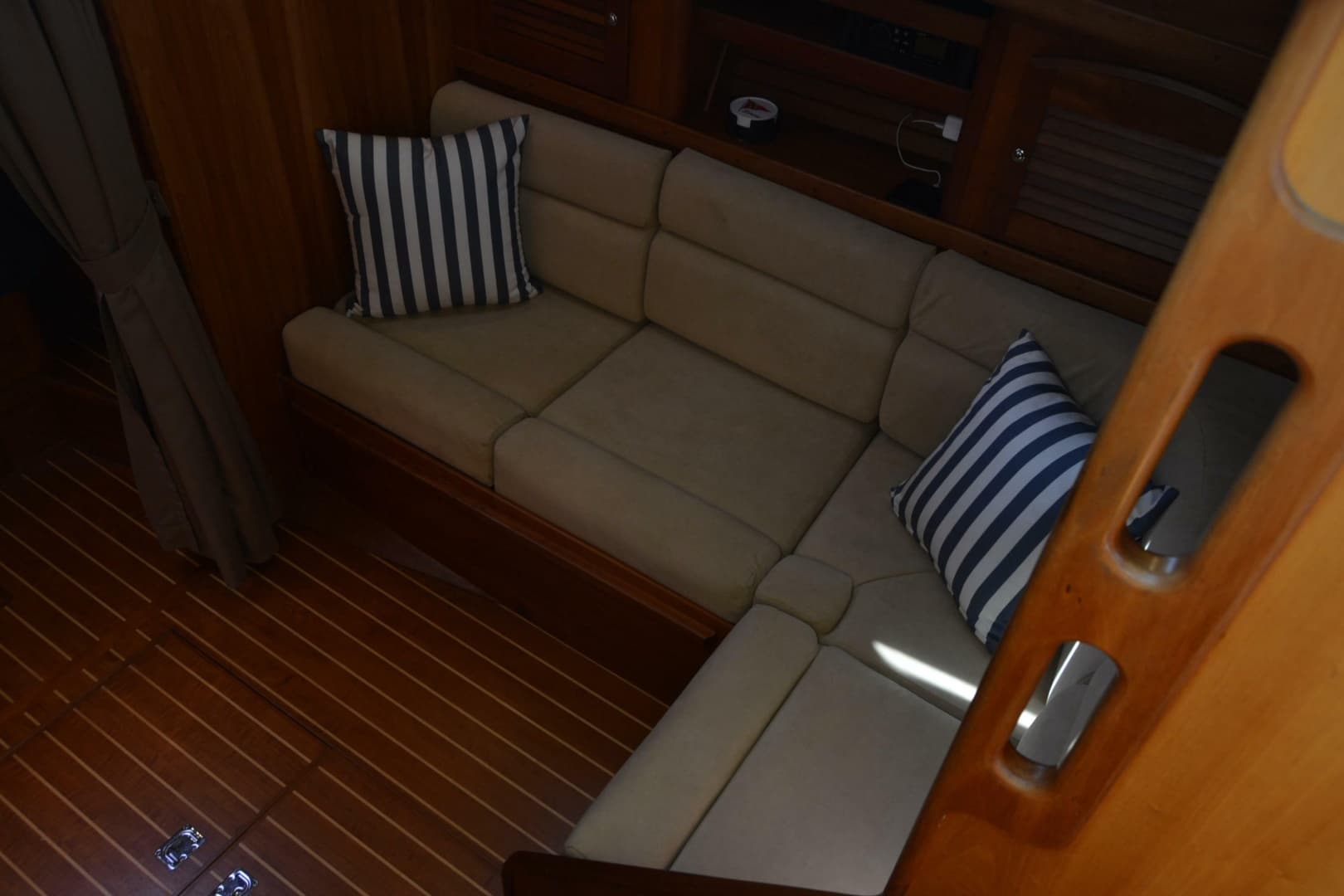

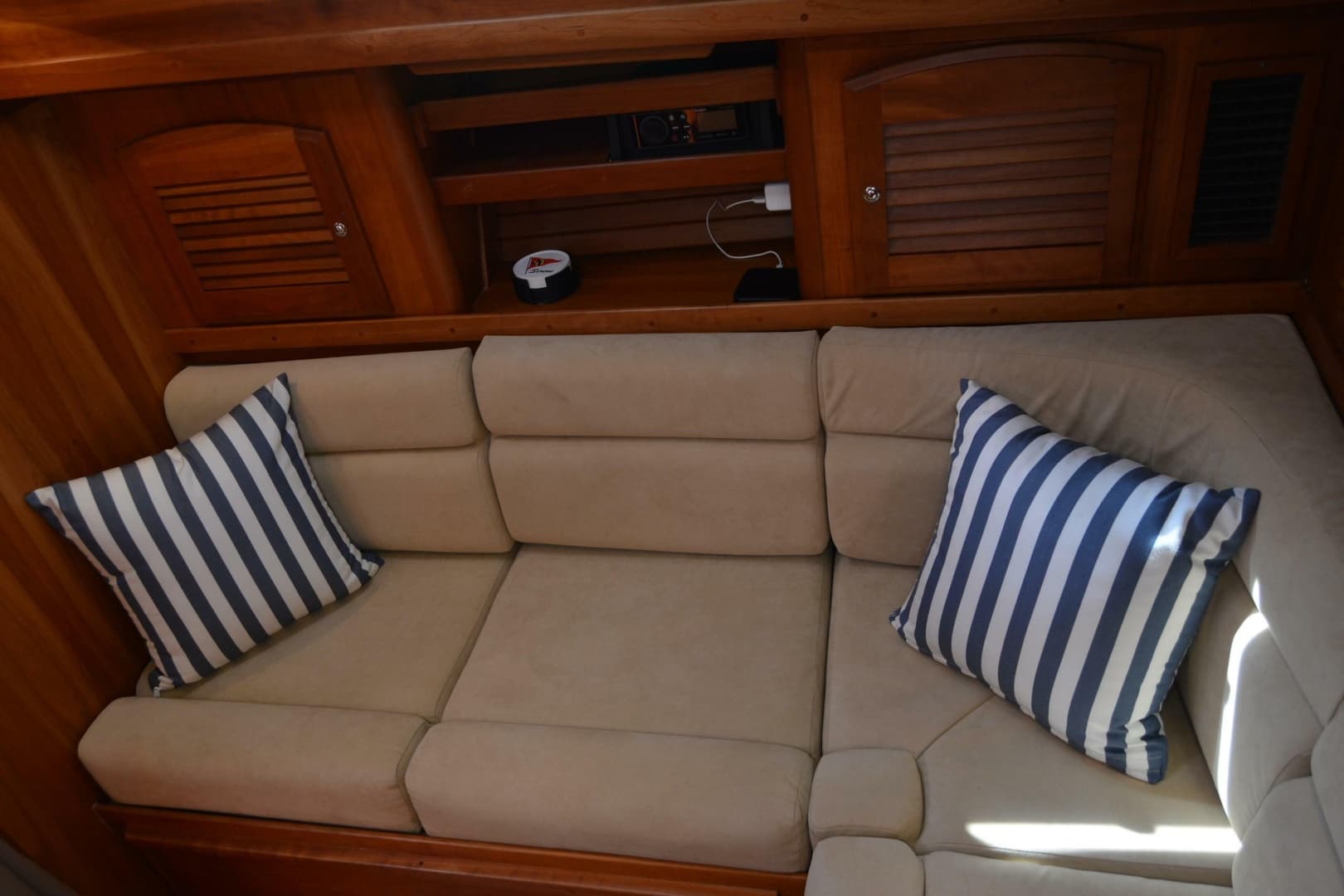

• "L" settee with 4 1/2" foam cushions.
• Storage under settee through top.
• (2) enclosed lockers outboard with open shelf and removable fiddle in between.

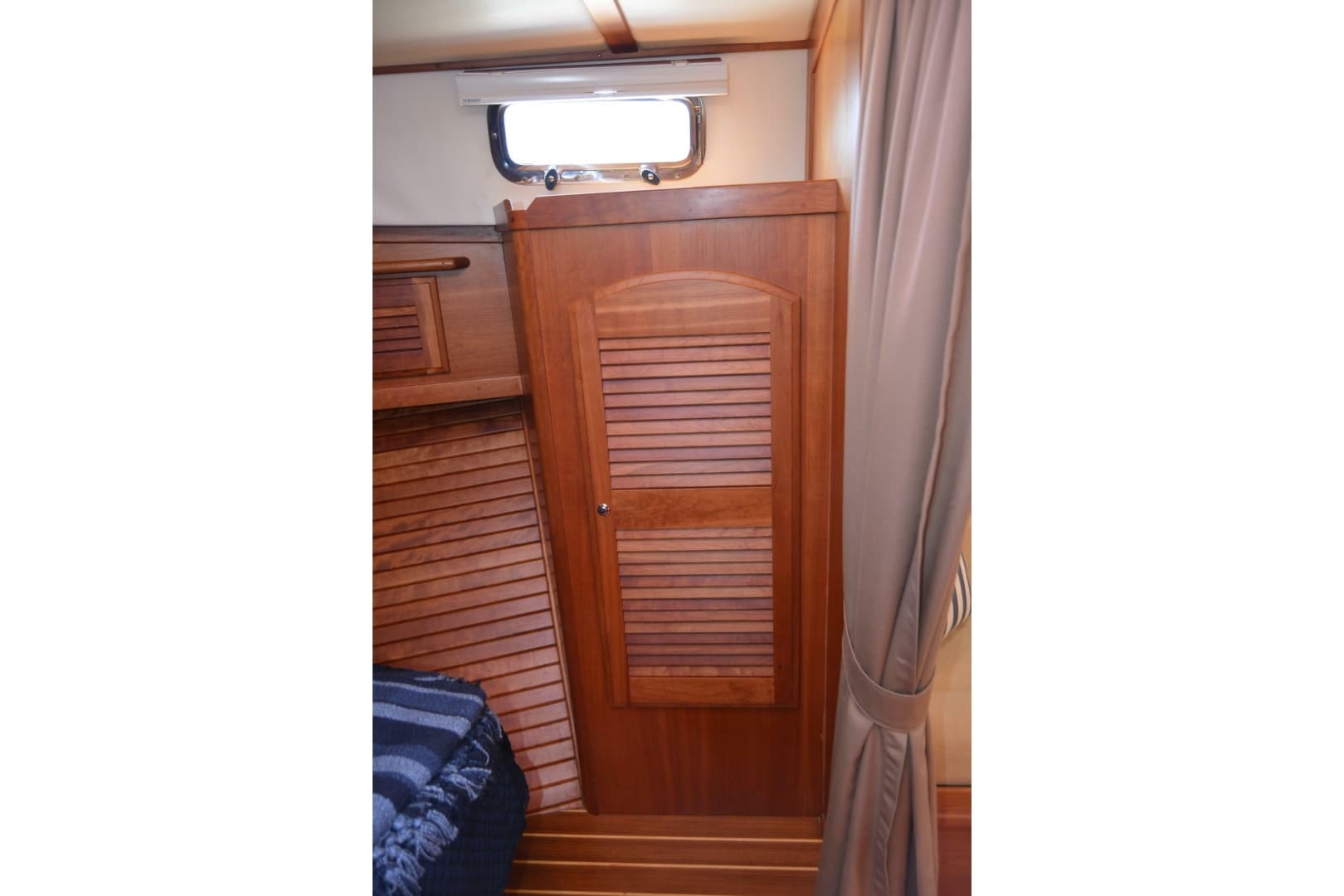

• Cherry louvered doors on fwd and aft lockers.

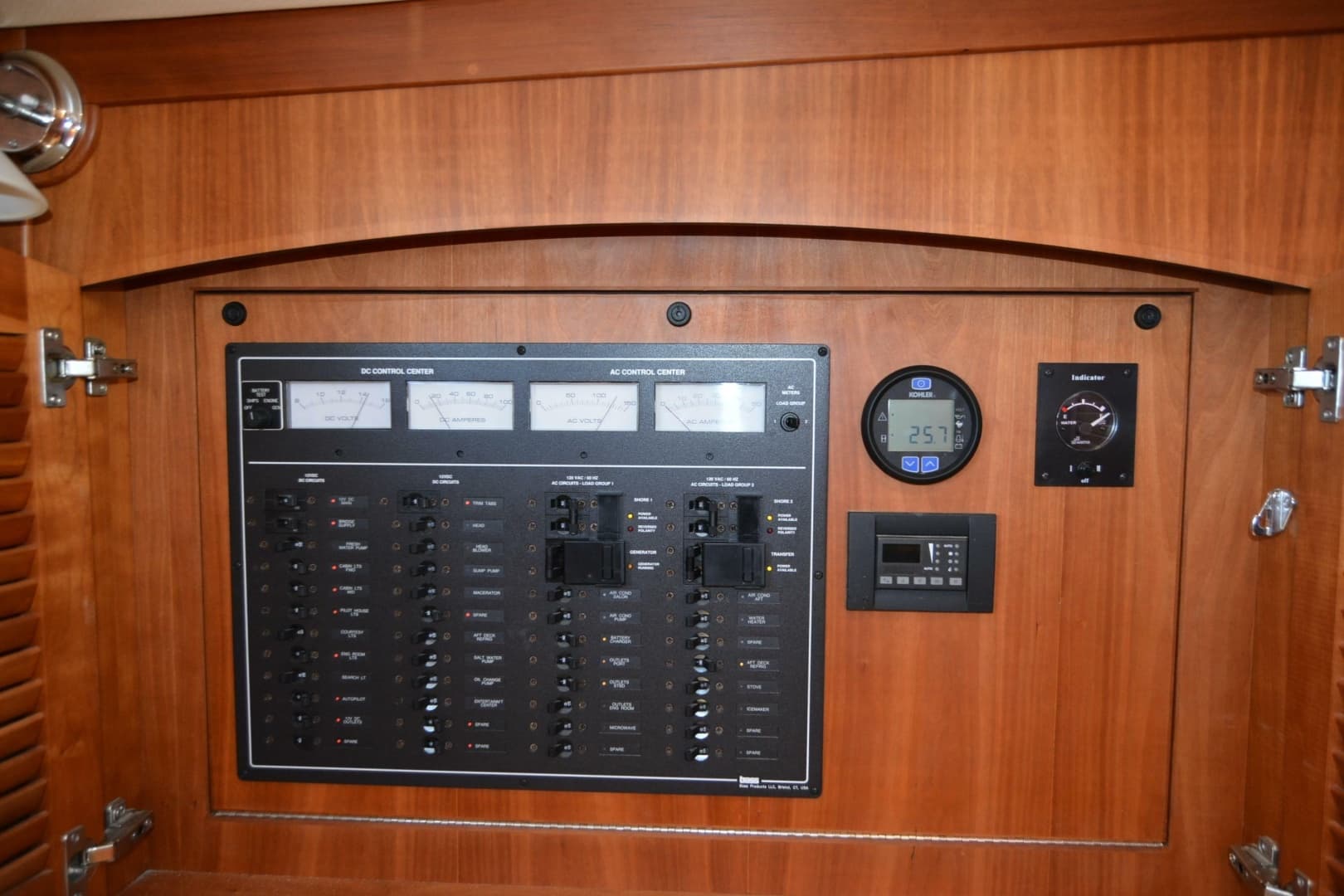

• Recessed Master AC/DC breaker panel facing fwd on aft bulkhead behind cherry doors.

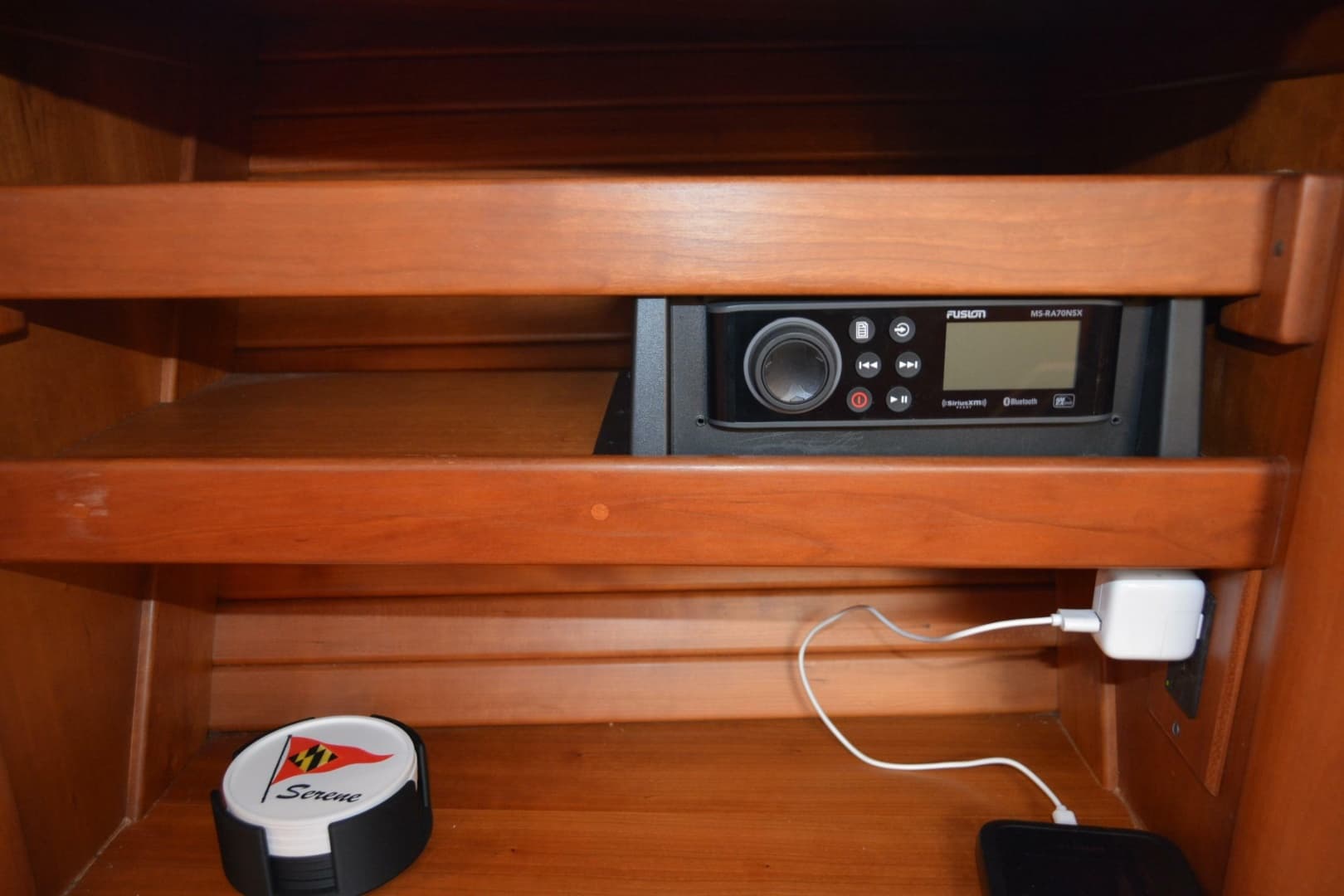

• Fusion stereo - MS-CD600 mounted in starboard book case.

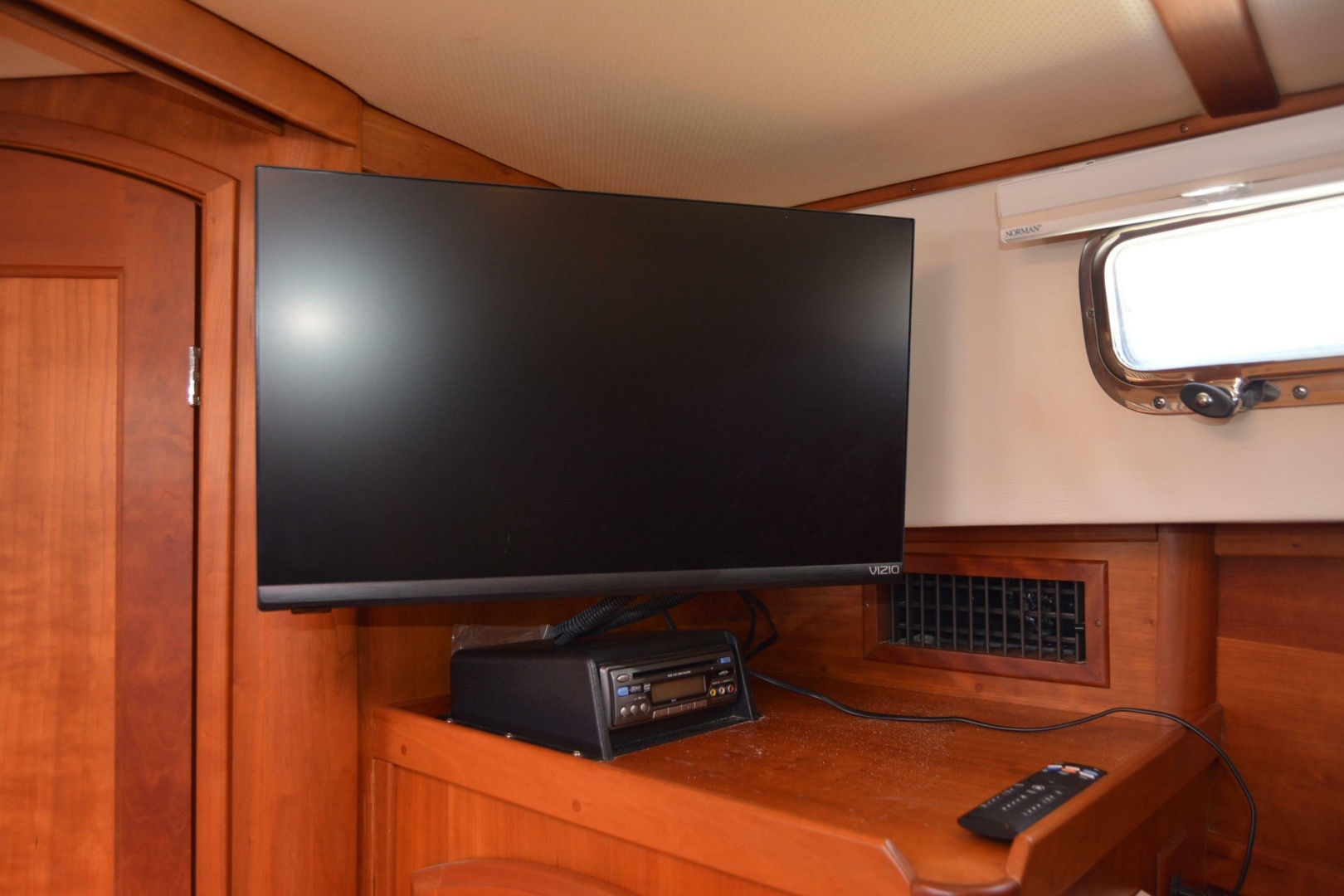

• TV w/ DVD player mounted on swivel bracket - viewed from salon or fwd berth.
• Sound deadening headliner panels.

Fresh Water System

• Water capacity approx. 60 gals. Single tank.
• 11 gal. Hot water heater off 110V and engine.
• Hot and cold water pressure system 12V.

Waste Disposal

• Polyethylene holding tank with 30 gallon capacity.
• Jabsco Quiet Flush Head.
• Macerator pump on holding tank to overboard sea valve.

Safety

• Fire extinguishers, (3) at 2 1/2 lbs.
• Bonding system to safeguard against galvanic corrosion.
• Automatic fire extinguishing discharge system with override.
• (3) Automatic 12V electric bilge pumps.
• (3) High water bilge alarms.

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
