Redefining spatial expectations within the 80-foot category, the FD80 Skyline Hull 19 places the lived-onboard experience above conventional dimensional boundaries. The latest build in the acclaimed Fast Displacement series introduces an airy, unhindered atmosphere that vastly exceeds what an 80-foo
About This Yacht
QUICK SPECS
Beach club + hydraulic swim platform
Four-stateroom layout, w/full-beam on-deck master suite
High-performance S-class 5-blade propellers
Side Power SPS93/VF1650 stabilizers
Side Power SH550 bow thruster + SH420 stern thruster
Steelhead Davit ES2500 (1130kg/2,500lbs)
Spot Zero fully automatic watermaker
Maretron monitoring system
Skylounge with two-level custom bar
On-deck Master Stateroom + three guest cabins below, all ensuited
Private crew quarters aft
Hydraulic Hi-Lo swim platform (maximum load capacity: 2,500 lbs.)
Beach club w/ hydraulic door
Large bow seating area + sun pads
Propane BBQ + Hot tub on boat deck
Pre-wired for wireless yacht controller (incl. storm covers)
DH Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Horizon Yacht USA. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Propulsion
Generators
Registration
Full Details
HULL AND MAIN STRUCTURE
White gelcoat finish
One-piece hull and superstructure utilizing
SCRIMP™ technology with Horizons patented 6D infusion, incl. longitudinal and transverse stringers
Hull, deck and superstructure built with licensed process SCRIMP™ for improved strength and less weight
Hybrid design hull bottom with sandwich construction and solid fiberglass
High-density foam cored hull sides, decks and superstructure
Stringers with high-density foam coring
Interior structural components all properly bonded to hull
Strong collision bulkhead for extra safety
International brand anti-fouling bottom paint with anti-osmosis treatment
PropSpeed/PropGold metal paint for underwater appendages
Tunnels for reduced draft
High-Performance Piercing Bow (HPPB) with S/S protection plates
Upper deck with bump-out design at PORT and STBD side
(2) 10-person life rafts

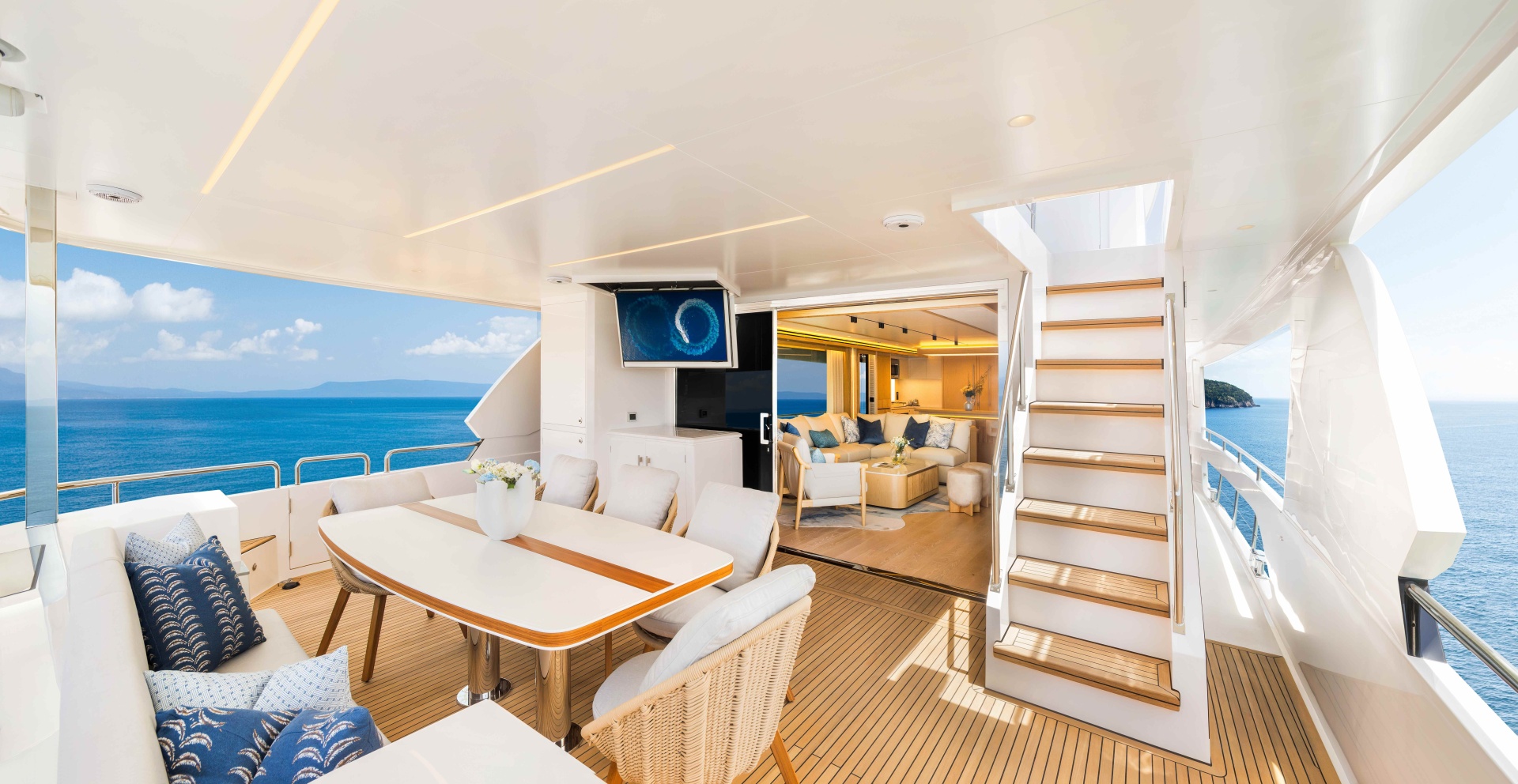

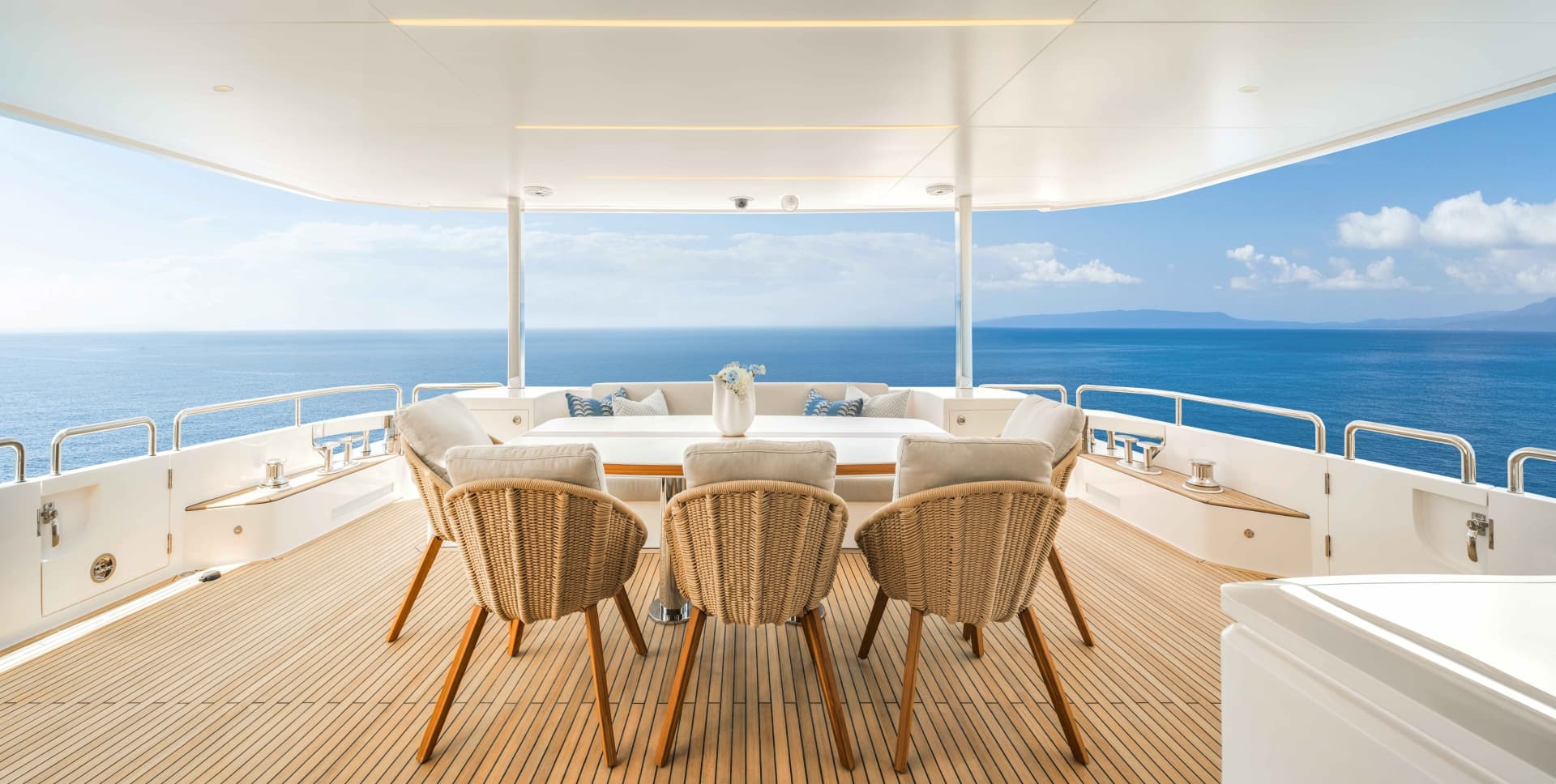

FOREDECK & AFT DECK
Teak aft deck
(2) ACCO 300ft high tensile 1/2” anchor chains (2) 90kg S/S anchors
(2) Maxwell VWC 3500 windlass
(3) Maxwell VC2500 electrical rope capstan on aft deck and bow deck
(2) Chain counters in pilothouse Freshwater & seawater anchor chain washdown system
Frameless windows, slightly tinted tempered laminated Low-E glass for windshield
Frameless windows, tinted tempered laminated glass for side windows
Foredeck accessed from STBD staircase/walk around on main deck

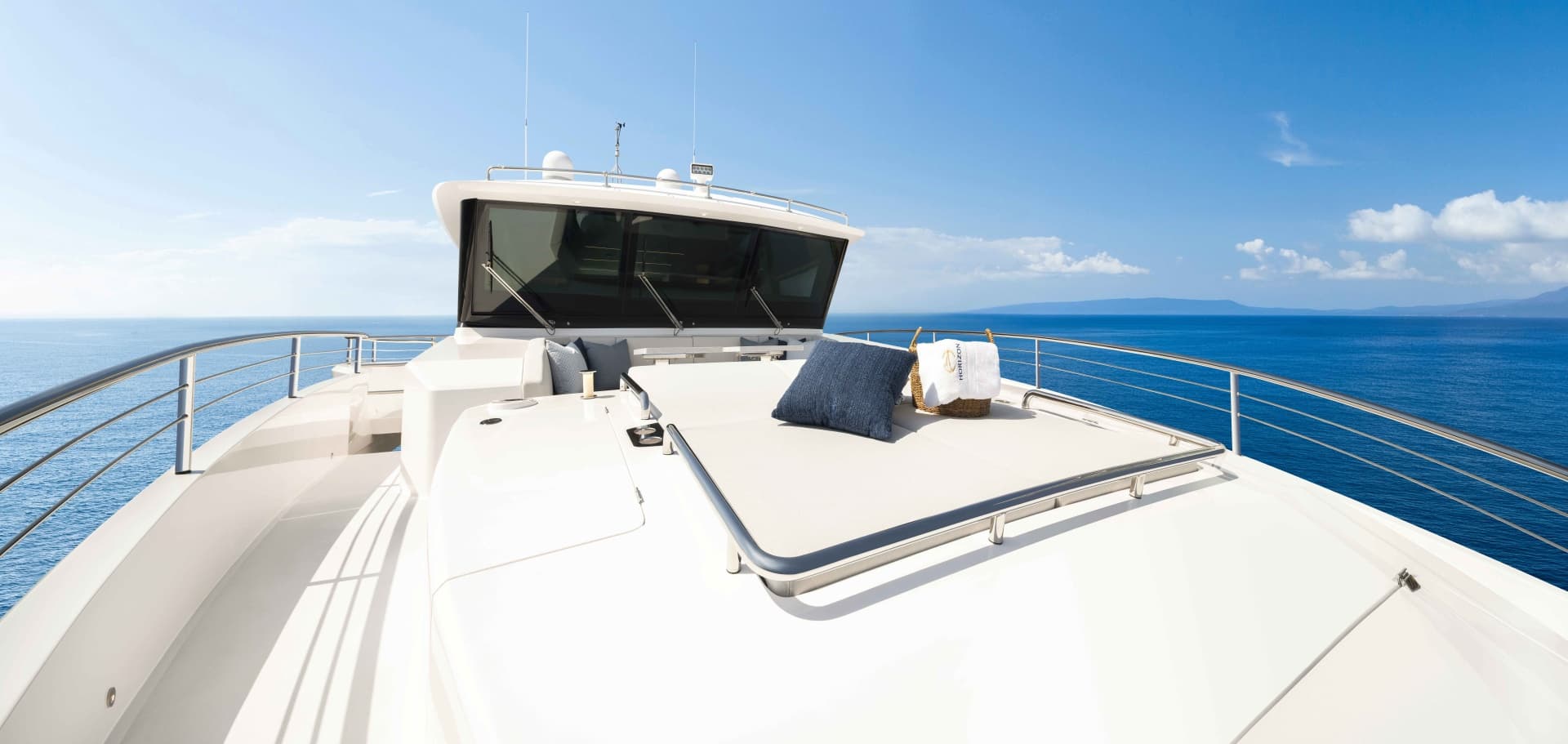

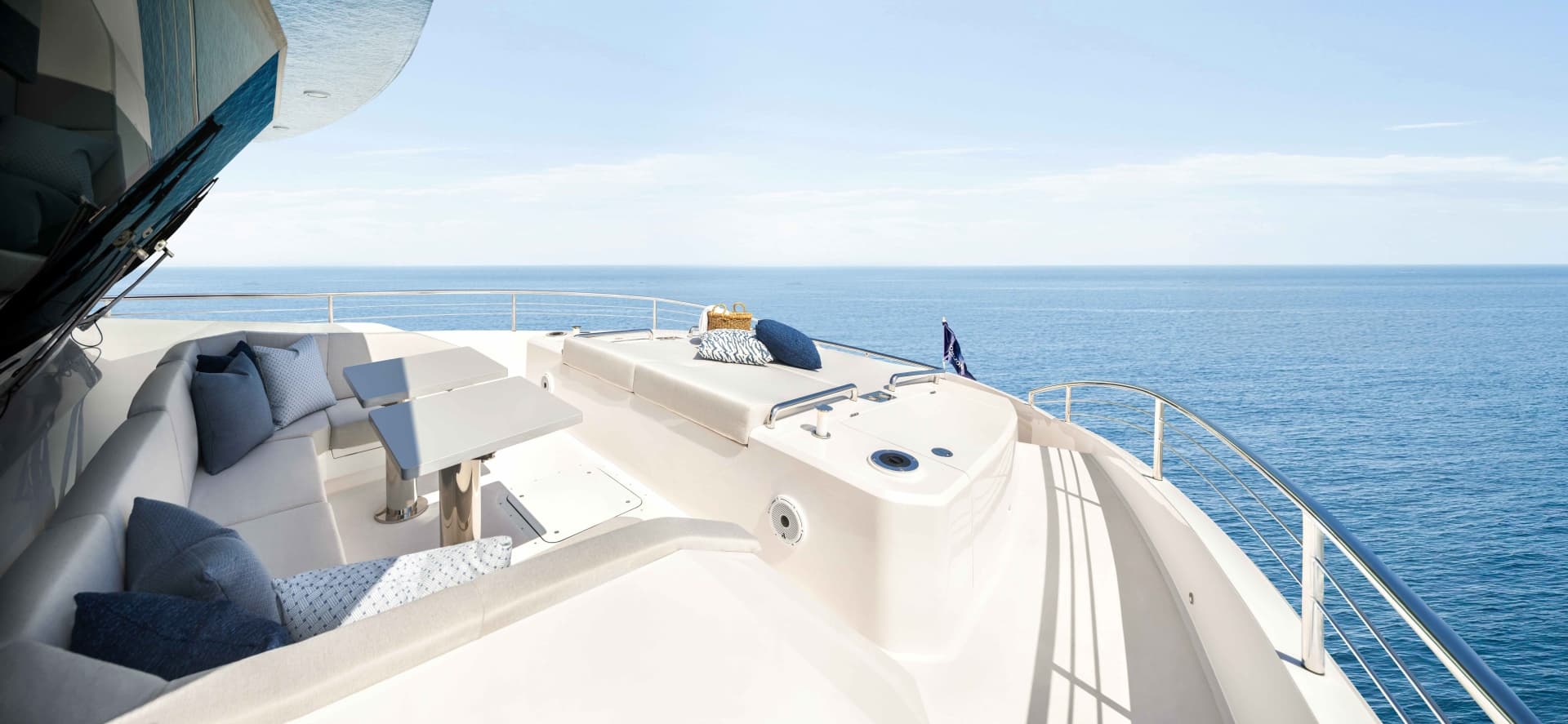

Foredeck built-in U-shaped seating w/ sliding tables
Foredeck sun pad w/ drink holders
Sunshades for bow seating, per layout
(2) Bulwark side doors close to aft deck for boarding
Wind/weather door on each side of the aft deck leading forward to the side decks
MarQuipt 7-step side boarding sea stairs
43” LED electrical flip-down TV

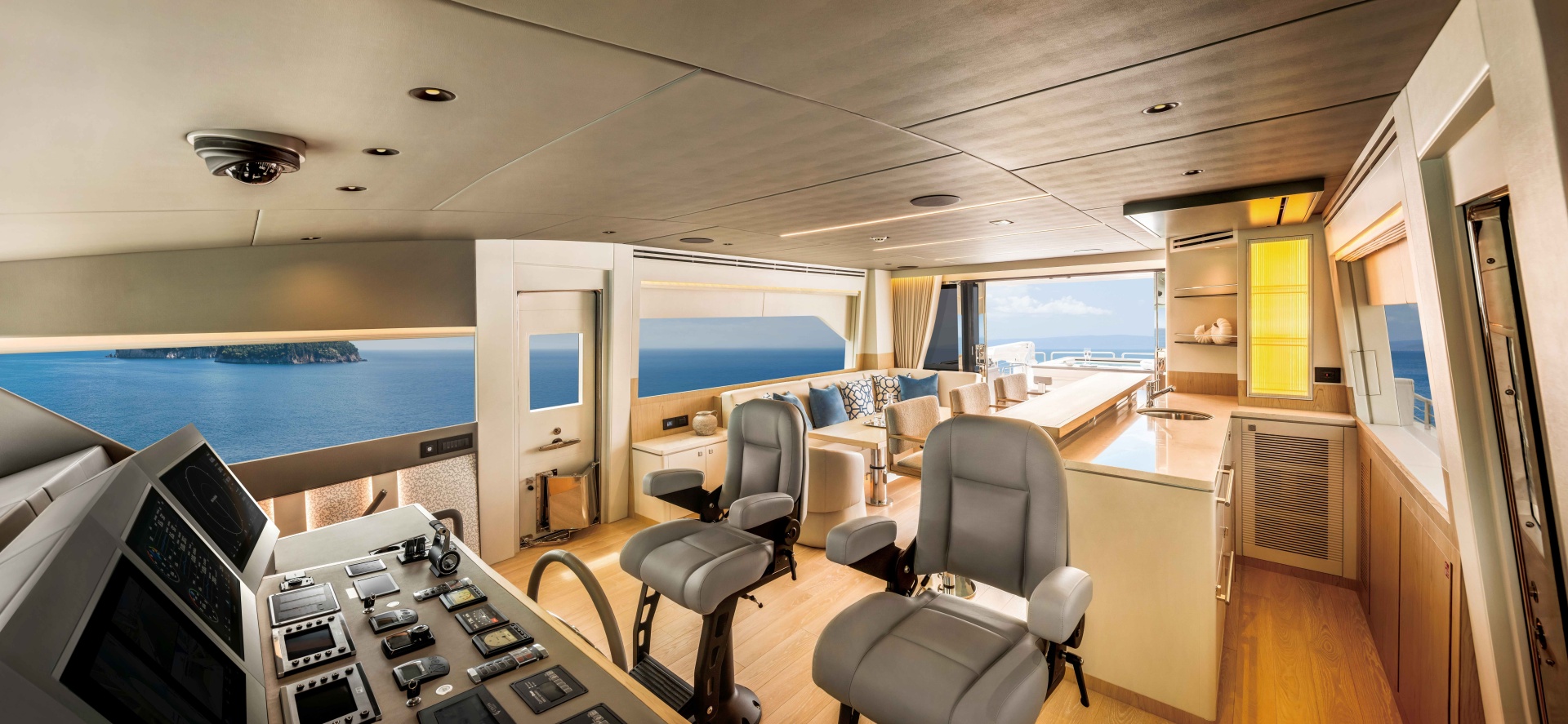

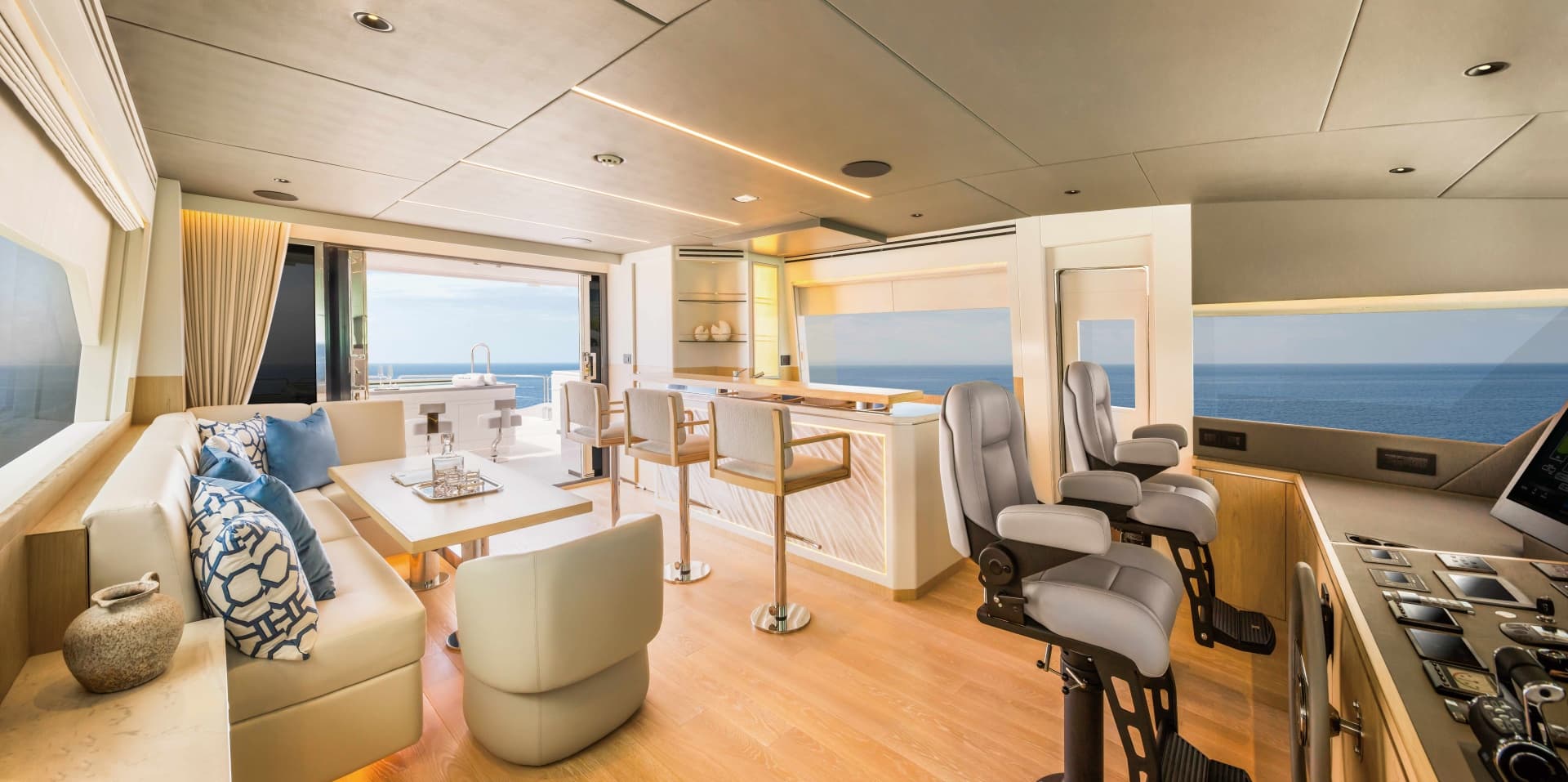

SKYLOUNGE & UPPER DECK

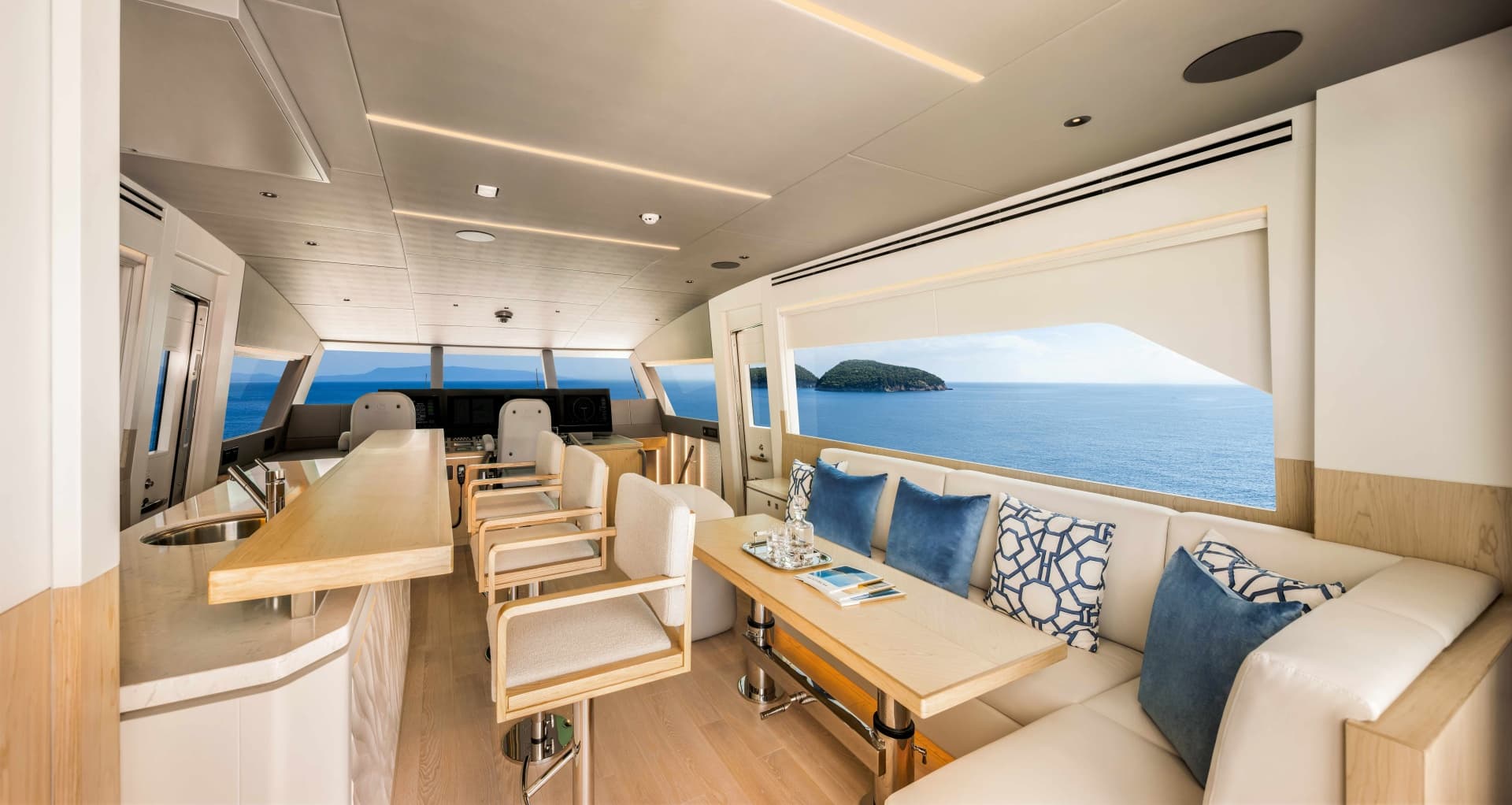

Enclosed Skylounge with dayhead, L-shaped settee, armchair, dayhead, and custom two-level bar (incl. 4 stools, refrigerator, ice maker, sink, glass cabinet, 43” LED electrical flip-down TV
(2) manual helm chairs
Custom-designed helm with full set of engine gauges, monitoring system for important equipment, fuel & water gauges, Riviera magnetic compass, surveillance camera system, bilge pump panel & navigational lights
Walk-around bridge design— PORT side bridge leads forward to bow deck
Non-skid boat deck

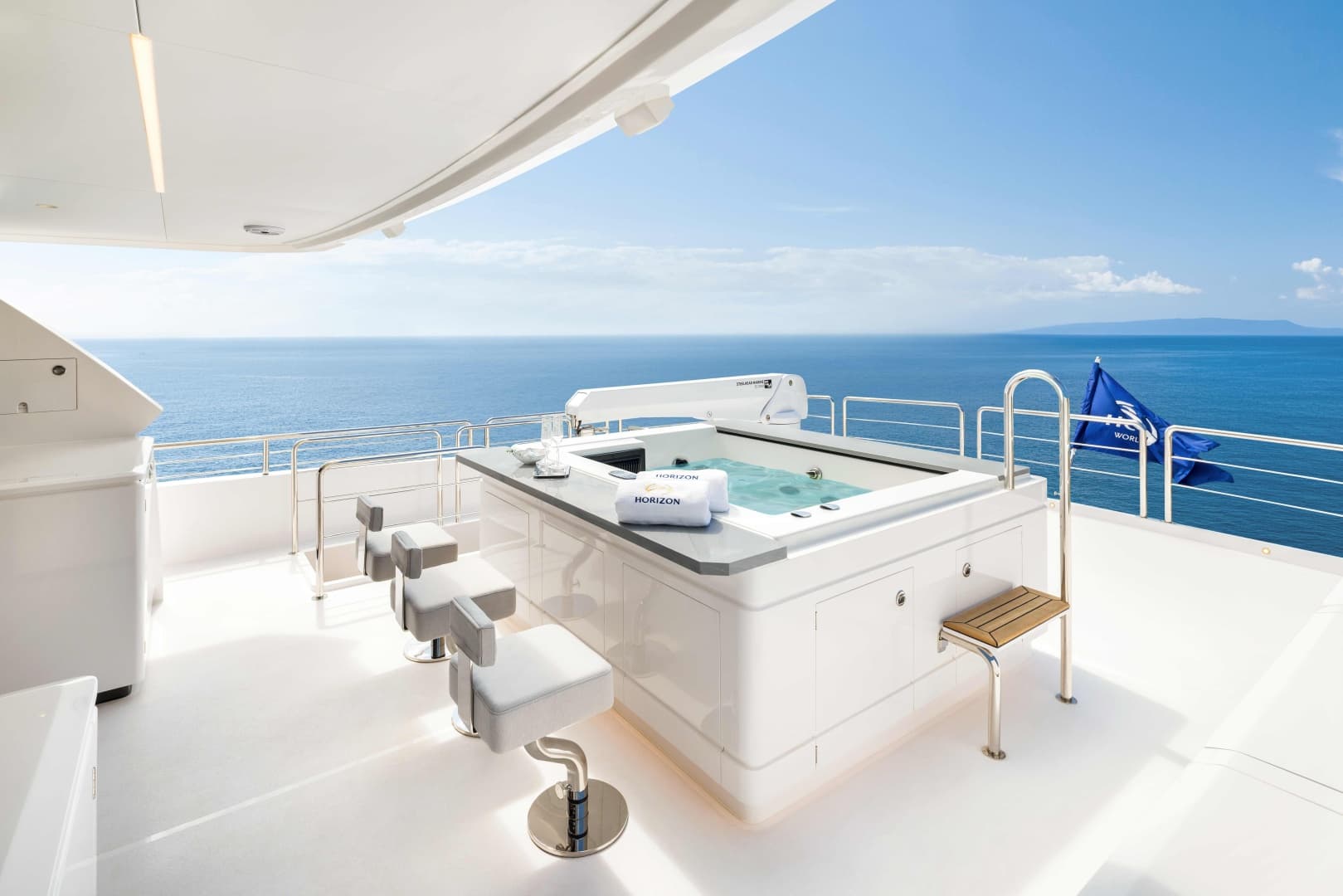

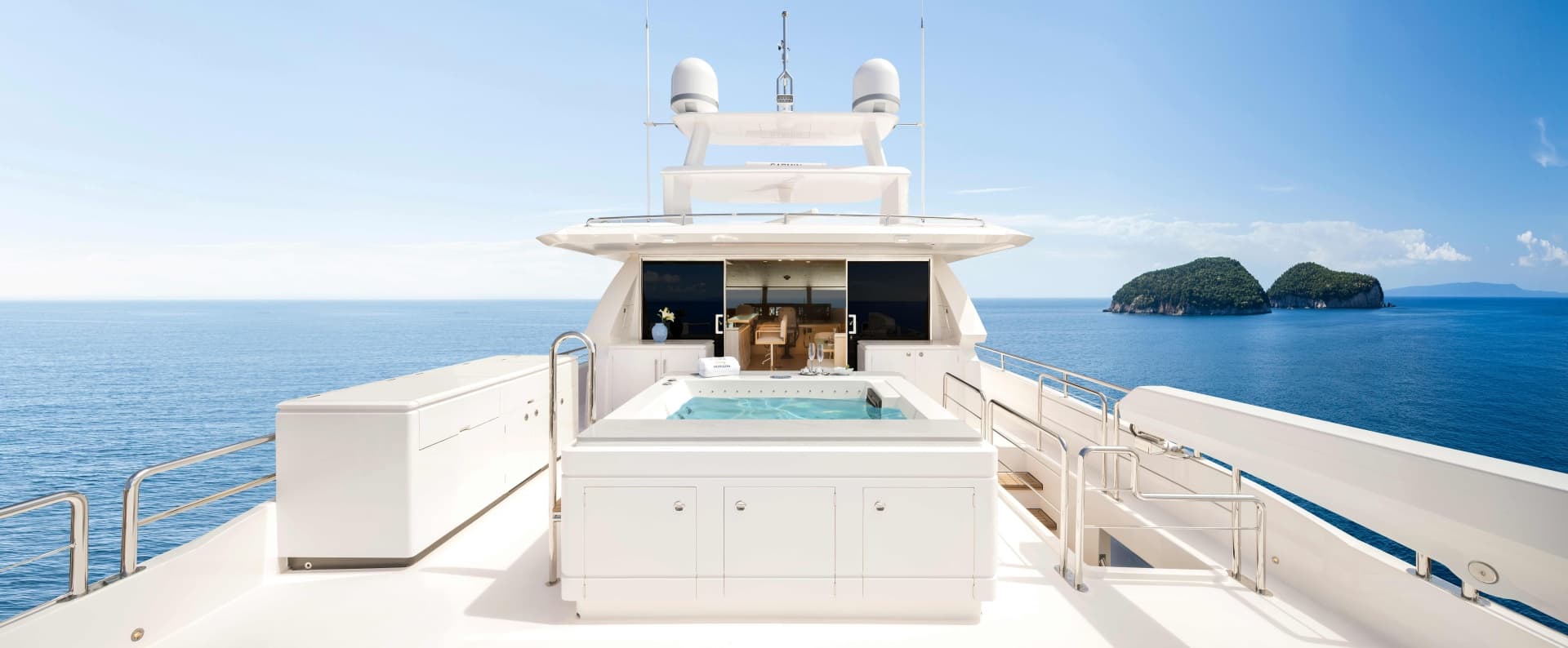

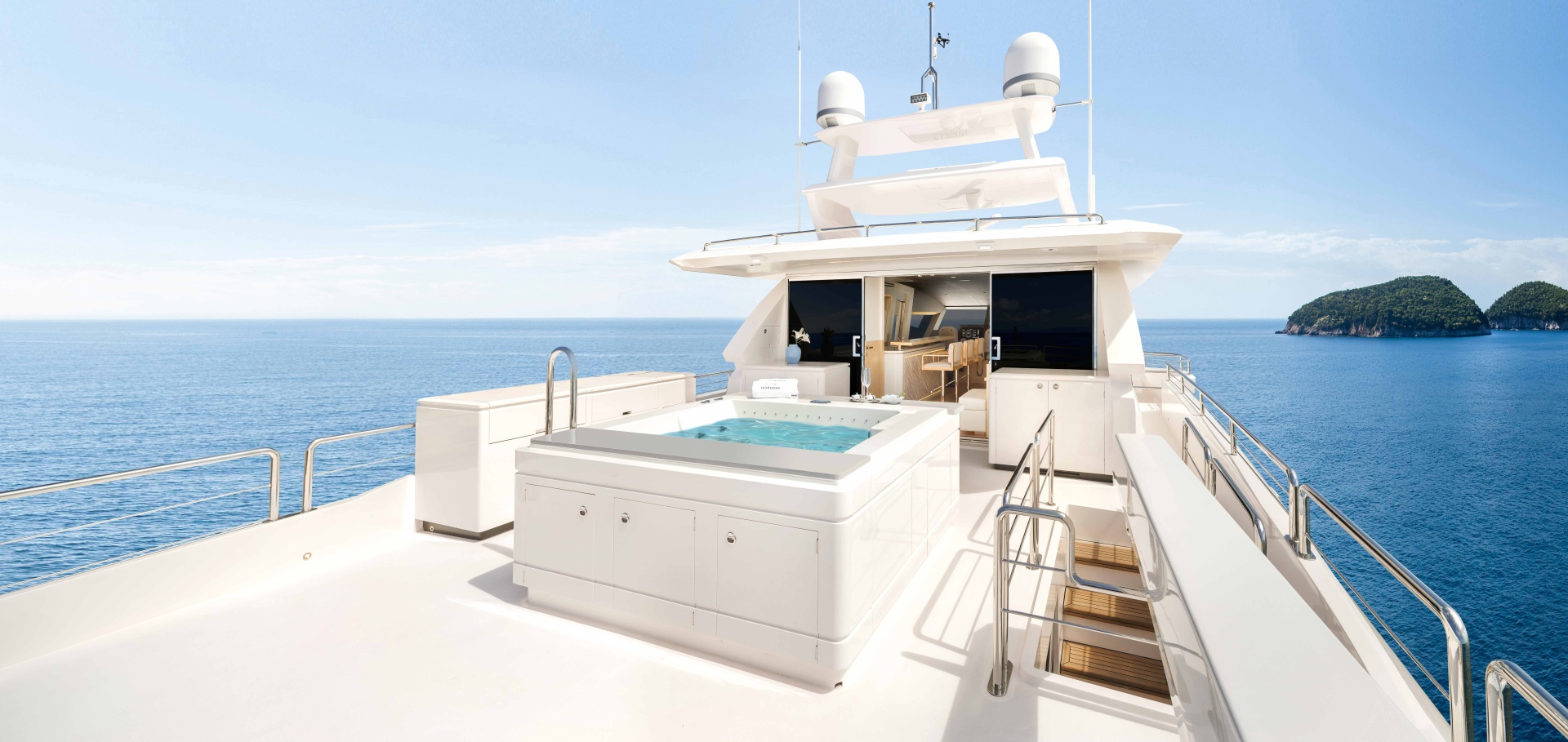

Hot tub w/ bar, 3 stools, and shower
Hydraulic Steelhead davit ES2500 (1130kg/2,500lbs)
Radar arch w/ antenna bracket
(1) hidden Propane 24" BBQ with manual Hi-Lo & hidden sink
Cabinets w/ refrigerator, ice maker, and storage
Sunshade for boat deck area, per layout

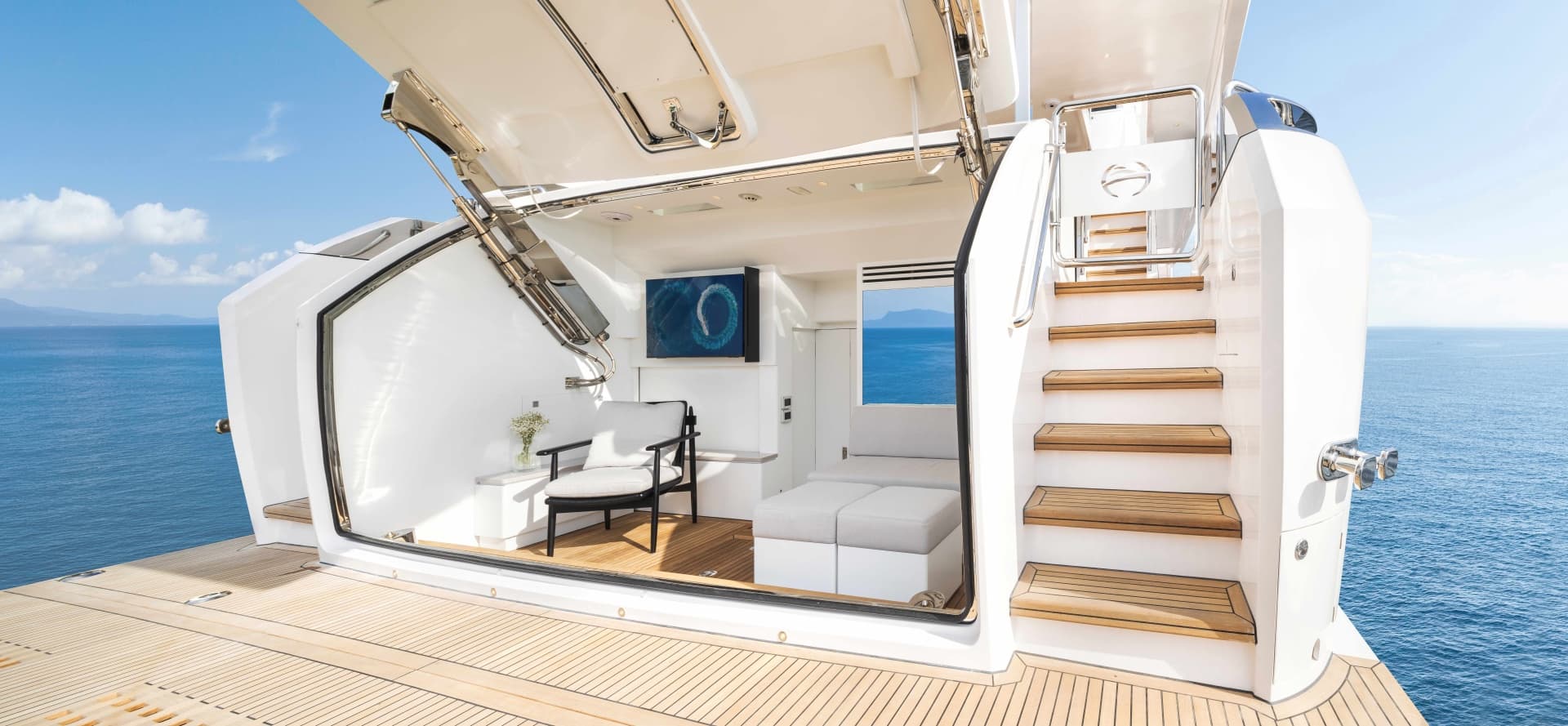

BEACH CLUB
Teak beach club and swim platform; teak steps to boat deck and swim platform
Hydraulic door w/ pantograph door in the middle
Hydraulic Hi-Lo swim platform (1130kg/2,500lbs lifting capacity) with two removable corner rails
Sofa seating with ottomans and 43" LED TV
ENGINE & PROPULSION DETAILS
Twin MTU 10V2000 1,600hp
Side Power SPS93/VF1650 stabilizers
Side Power SH550 bow thruster and SH420 stern thruster
Zipwake interceptor system
Engine load distributed through flexible mountings on S/S engine bed bonded to FRP hull girder
Engine alarm system as per engine standard
High-performance S-class 5 blade propellers
Bronze struts w/ backing plates
Shaft and Rudder packing glands with Tides Marine dripless seals
Tethered remote handheld controller w/ plug on aft deck & pilot house
Hypro Marine power steering system
Underwater exhaust system for engines w/ bypass mufflers
Engine room with lightweight floor
Heavy-duty Insulated engine room door
S/S overhead grab rail on each side of engine
Anti-noise treatment to exhaust system
Delta-T engine room demisters
Air compressor
ELECTRICAL SYSTEMS
GFI protection for all AC outlets in exterior, heads, galley and engine room
Electrolysis bonding system
Cathodic protection with zinc anodes for shafts, struts, etc.
LED lighting system throughout interior and exterior
(6) Underwater lights
(2) Onan Generators 29kW (60Hz) with sound shield
Pre-wired for wireless yacht controller
Maretron monitoring and control system
Glendinning shore power Cablemasters (x2) 100Amp with 75' power cable each
Shore power connection with (2) 100Amp boost polarization transformers, (2) galvanic isolators, (2) 100Amp shore power plugs and (2) 100Amp bow inlets.
(2) LED search lights
Pre-wired for LED boat name on stern, PORT, & STBD skylounge sides
Sonos stereo control by Control4 system
MECHANICAL SYSTEMS
2,700 USG (10,220 ltrs) fuel tanks w/ sight & electrical gauges
(2) Racor 500 MA fuel filters, one on each generator
(2) Electric fuel transfer pumps
Fuel polishing system (210GPH)
1,500ltrs FRP water tank
(2) 20-gal water heaters
High-volume AC Freshwater pressure pump and backup DC pump
Spot Zero SeaXchange XTC II 1200 watermaker and Spot Zero ZTC II 2000 water purifier
Charcoal filters are plumbed into the freshwater line: shore water inlet and galley
Hot water circulation pump
Marine Air VARCX chilled water conditioning system
Tecma toilet system
100 gals holding tank & deck fitting for dockside pump-out
Sump pump system for grey water
Electric level indicators for holding tank
Headhunter sanitary treatment system (TW-HMX-301LP)
Electric Rule Bilge Pumps
High water level bilge alarm
Bilge exhaust ventilation fans
Fire-resistant treatment for pipe penetrations
Automatic fire damper system
(4) Portable fire extinguishers
Integrated fire alarm system in pilothouse, with CO and smoke detectors in each cabin
INTERIOR DECOR & EQUIPMENT
Guest accommodation includes:
On-deck master stateroom, forward VIP stateroom, STBD VIP stateroom & PORT VIP stateroom, all ensuited

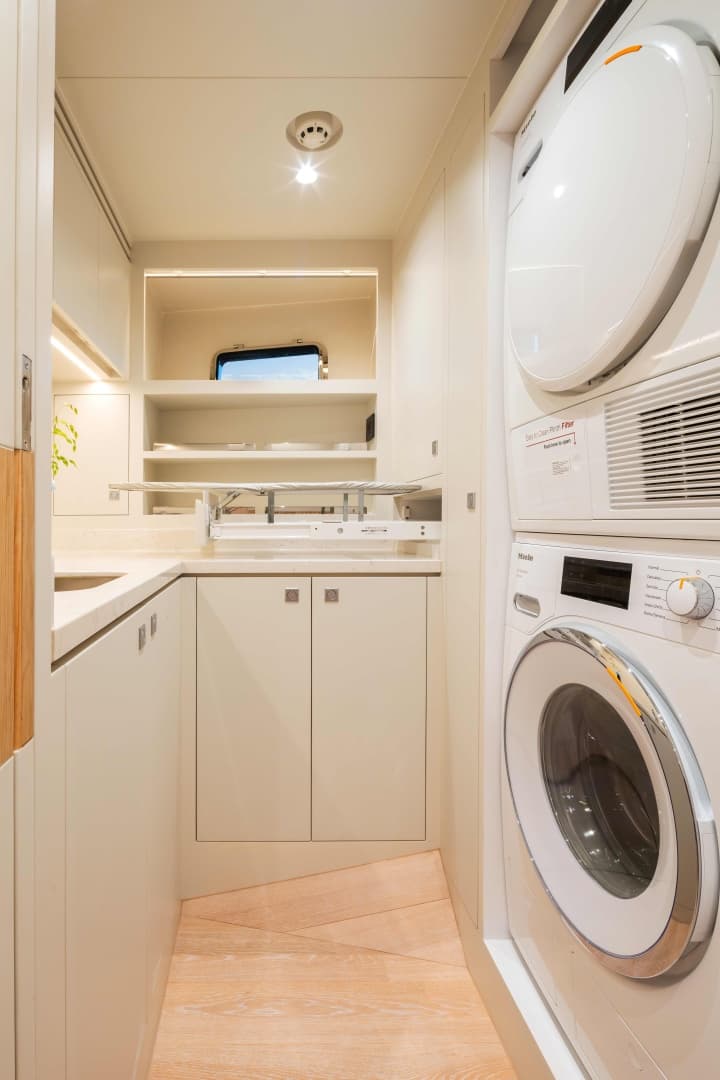

Laundry room w/ washer/dryer, storage, ironing board, and sink
Aft crew quarter w/ 2 crew cabins (one captain, one crew cabin, with one ensuite), access from STBD side Salon
Customized interior package for interior décor & lighting
Full set of Wedgwood (GIO) tableware for 10, incl. dish holder, pot/pan, dishes, plates, knives, forks, glasses… etc
Extra set of bed sheets for all guest cabins, including crews

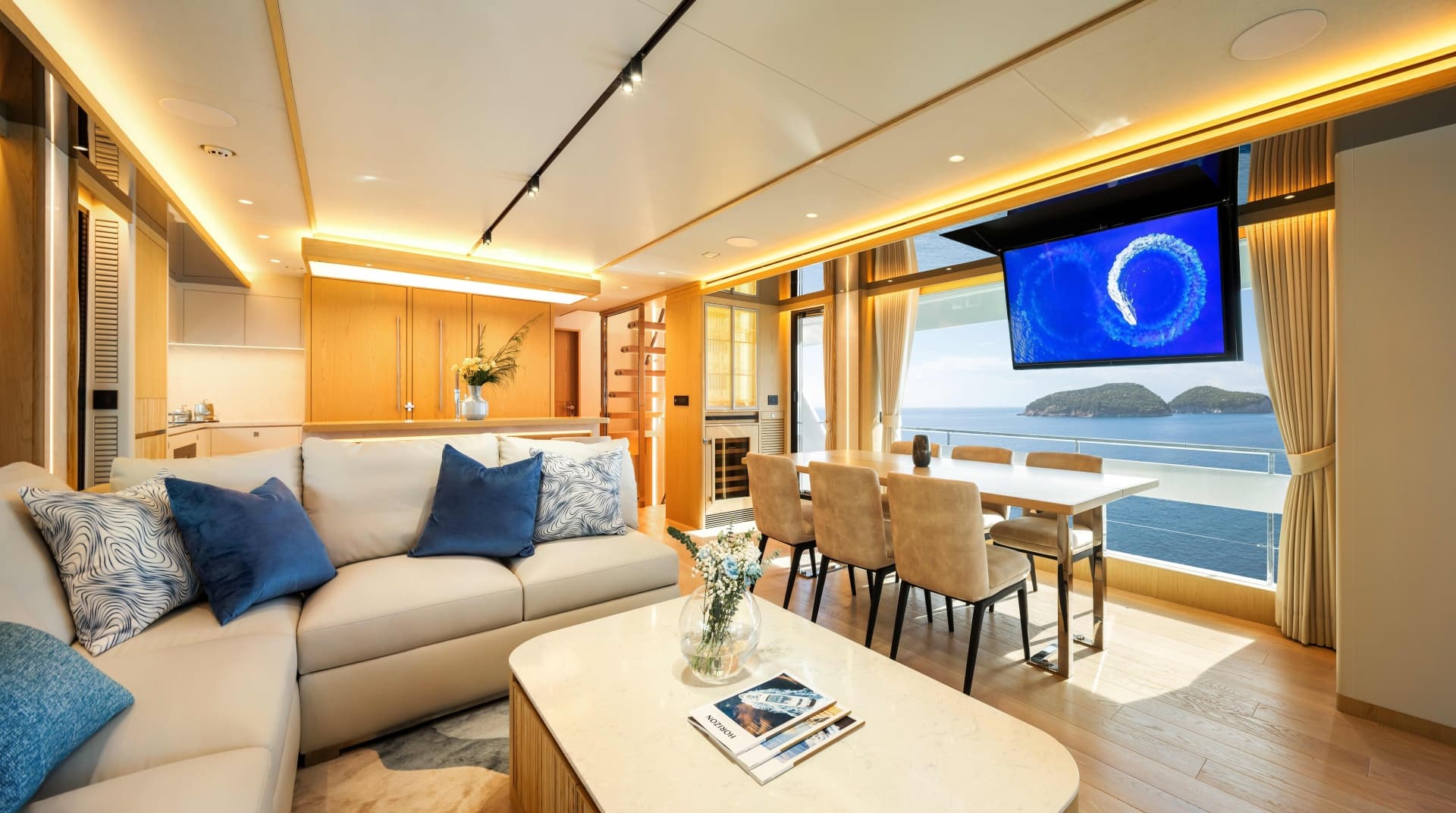

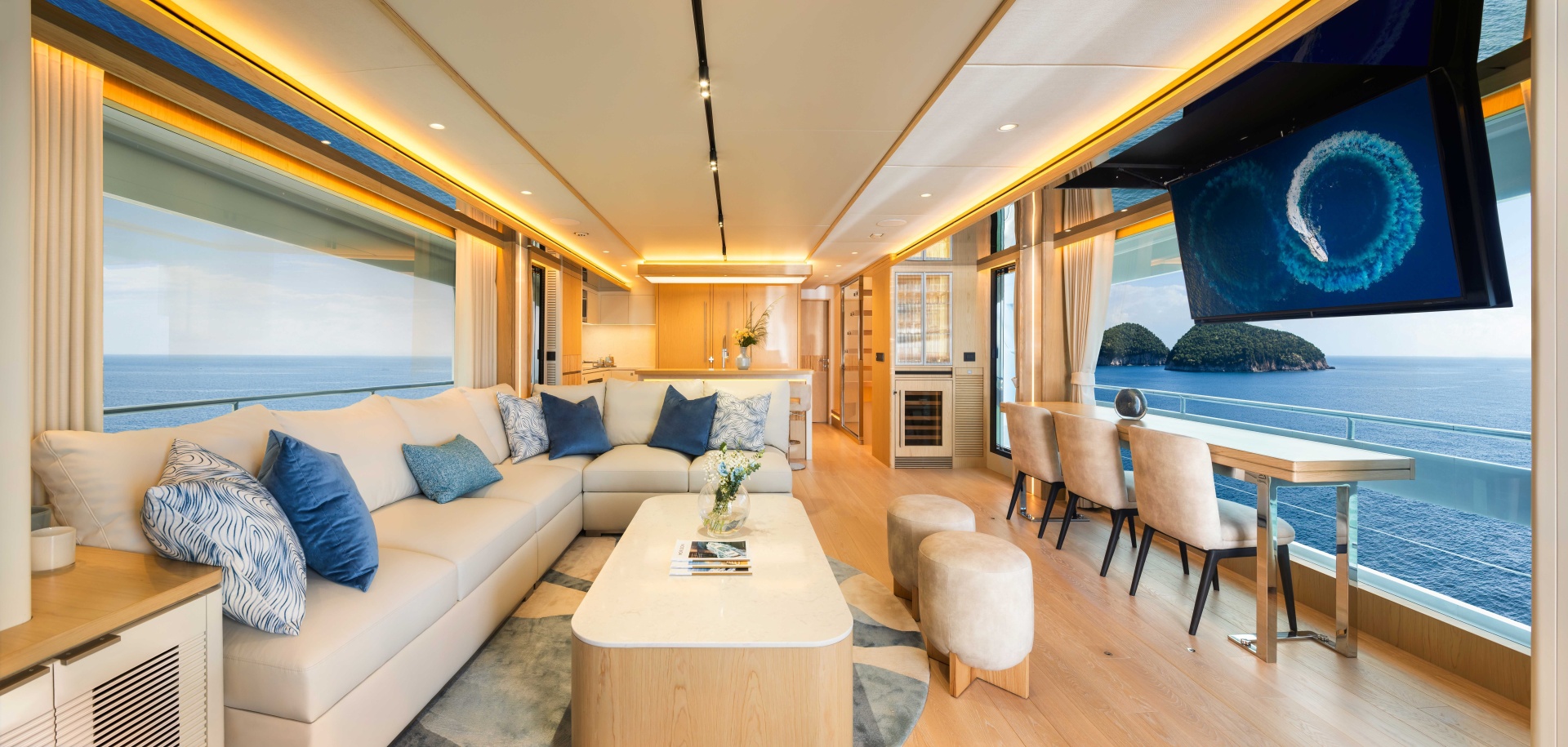

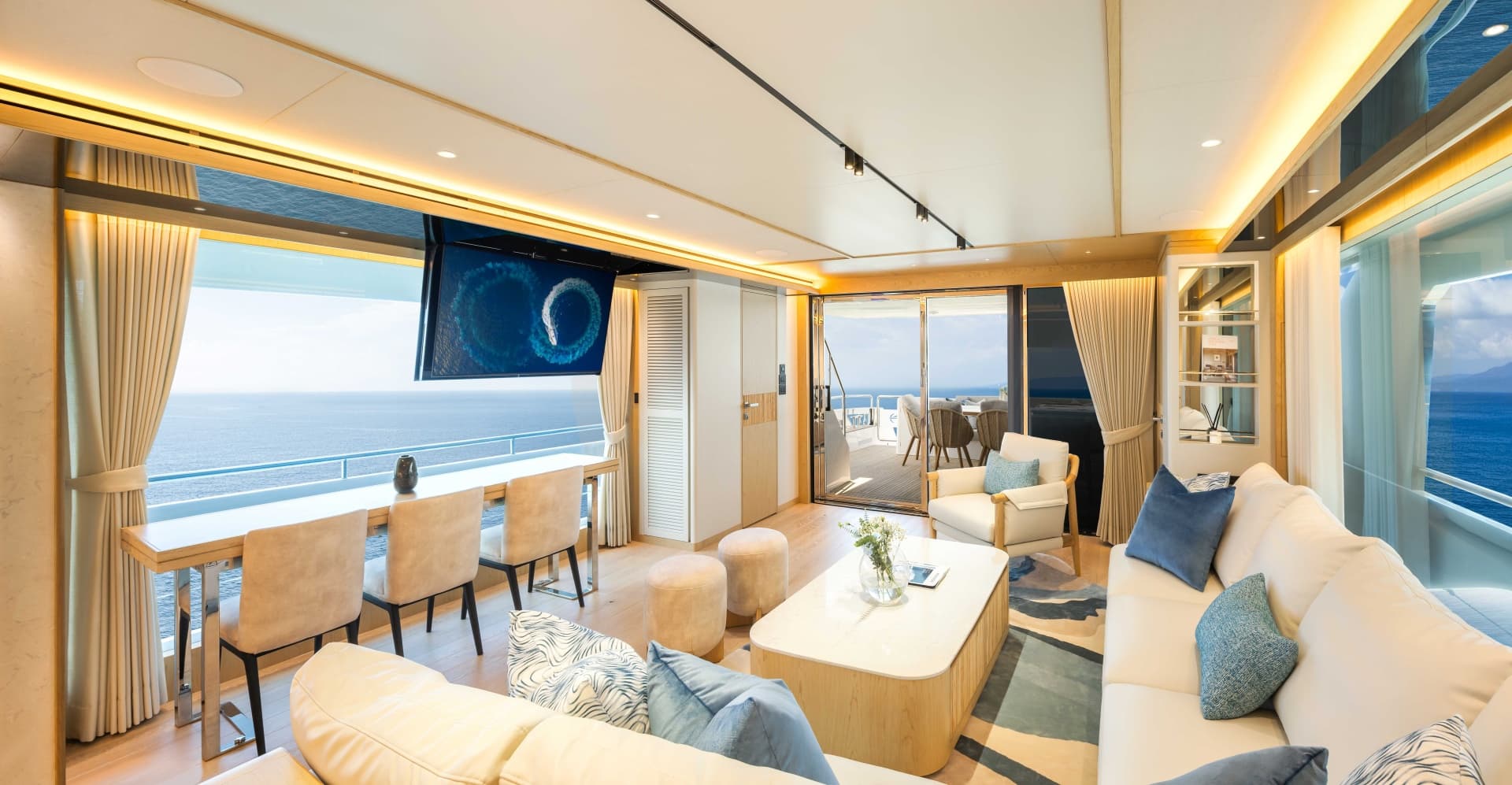

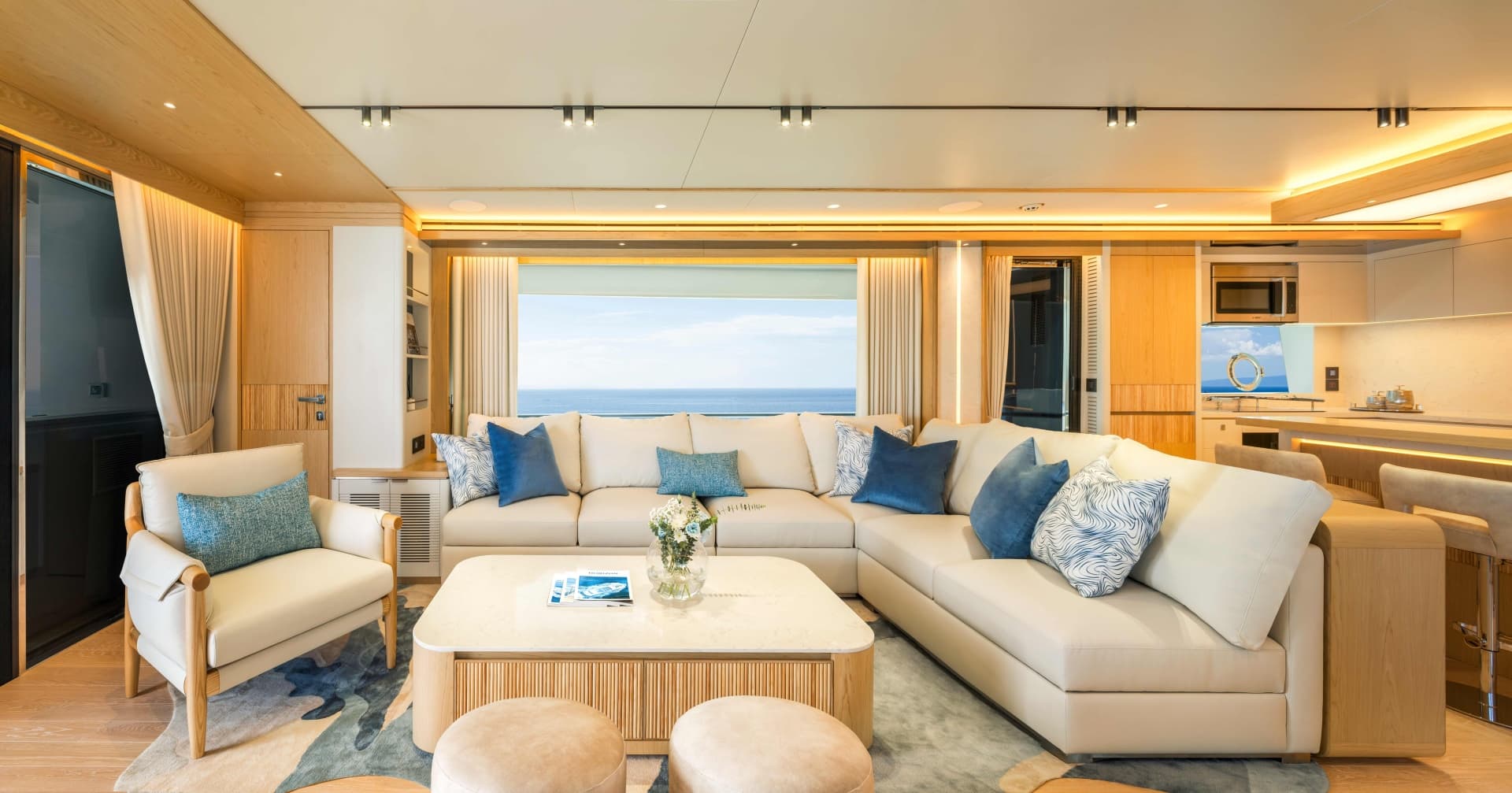

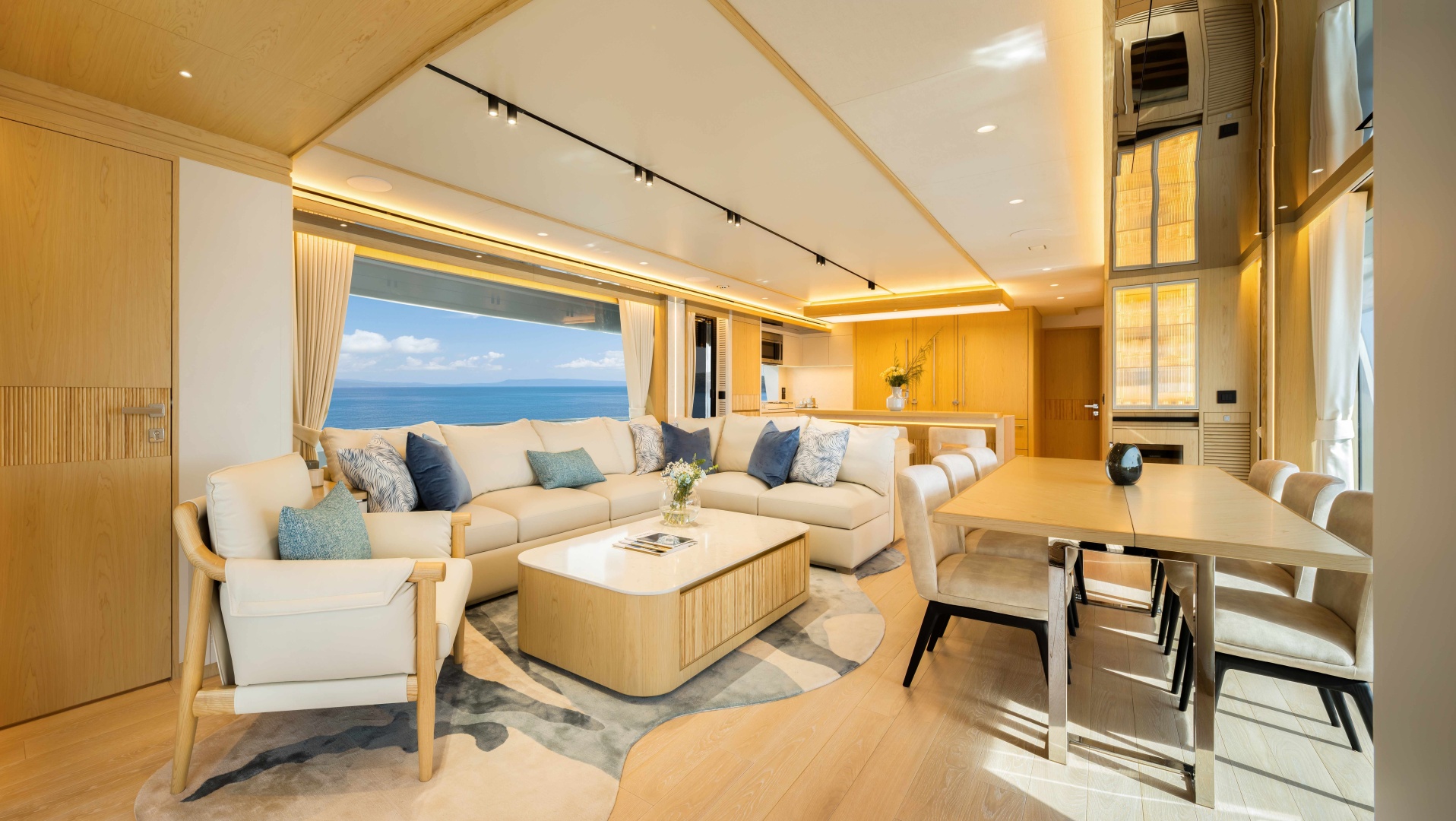

SALON
3-panel manual sliding salon door
Dayhead
L-shaped sofa w/ table, armchair, two ottomans
Electric blinds
Custom area rug
PORT side buffet cabinet behind sofa

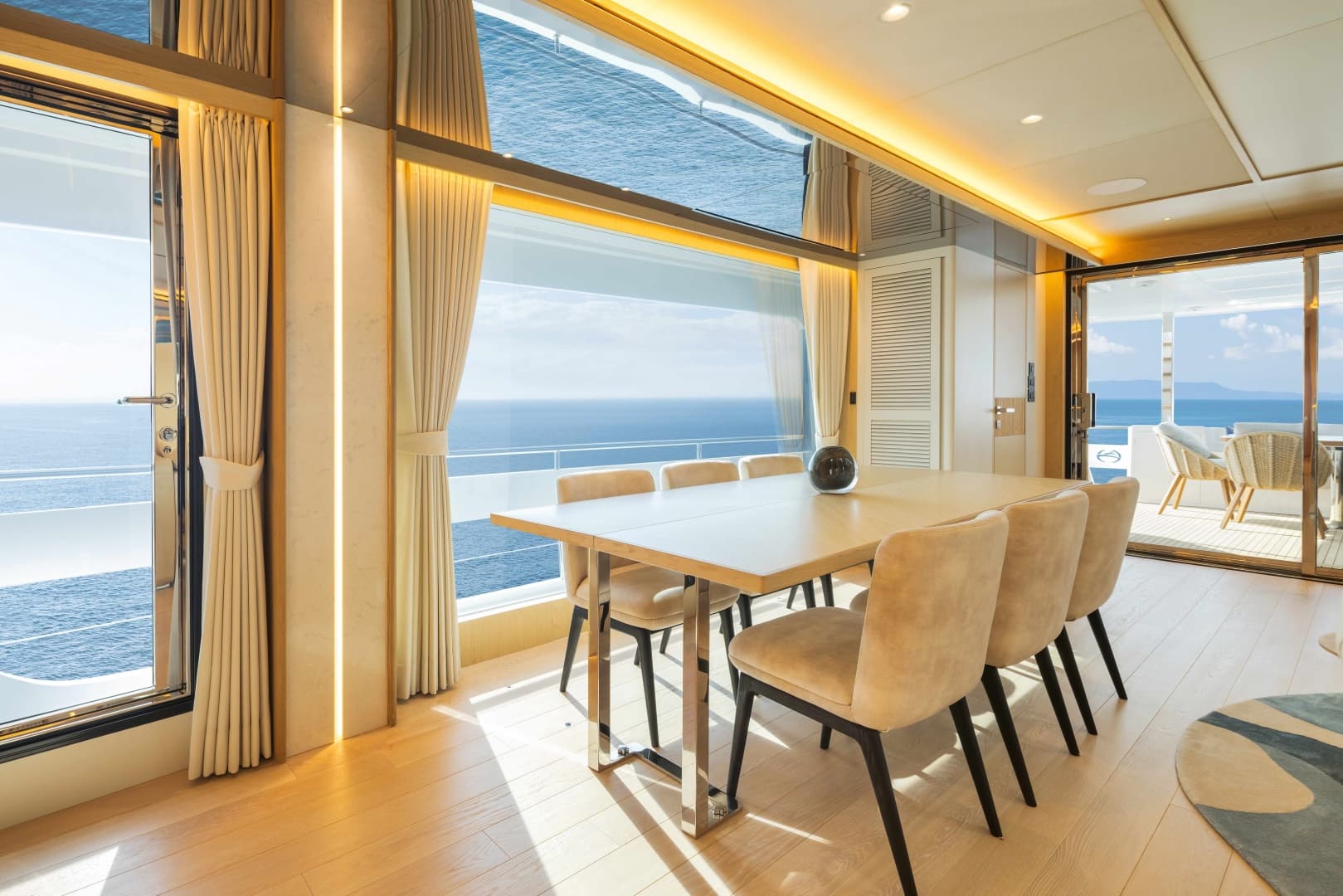

Convertible folding dining table & chairs, per layout

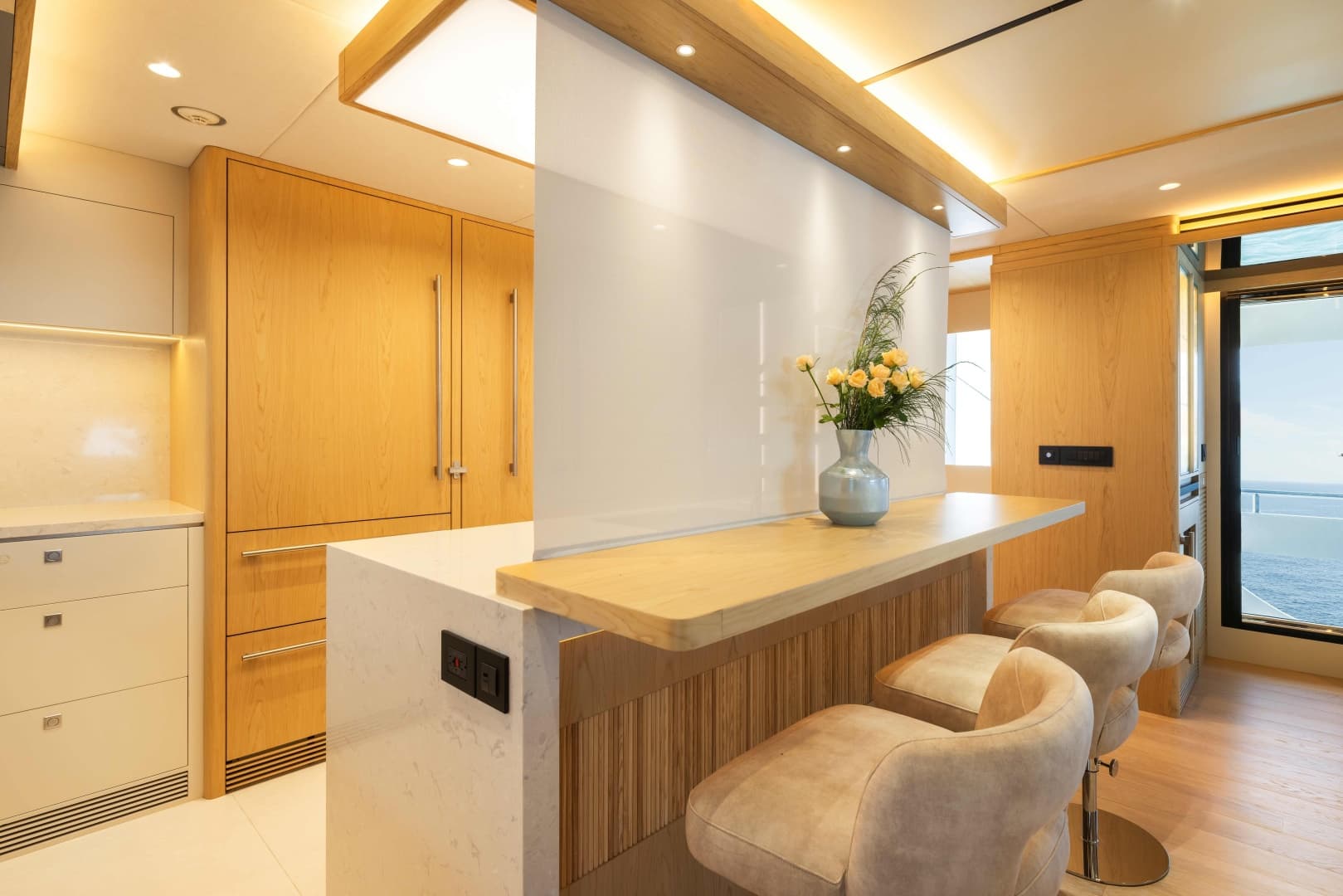

Breakfast bar design
55" LED fold down TV

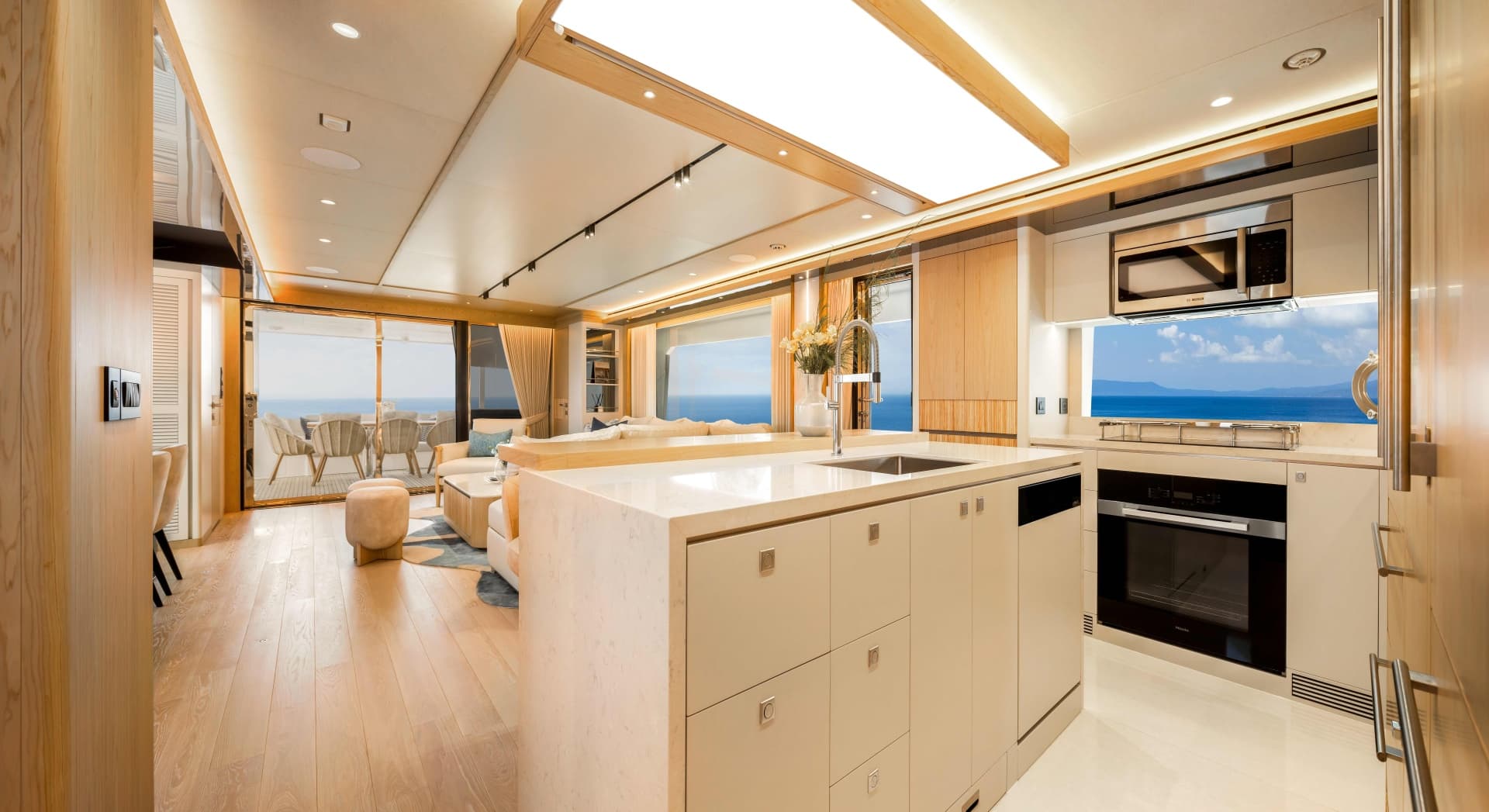

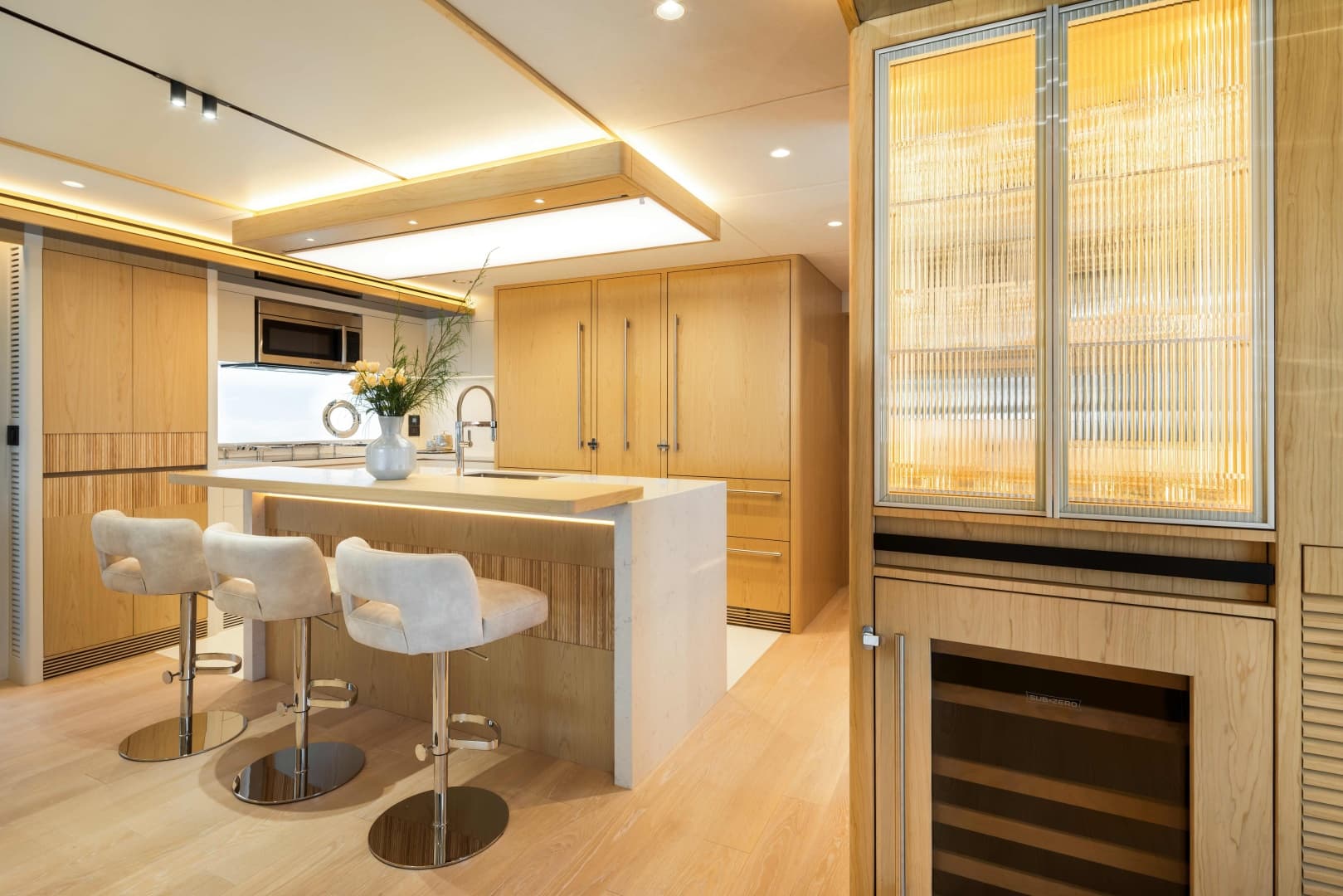

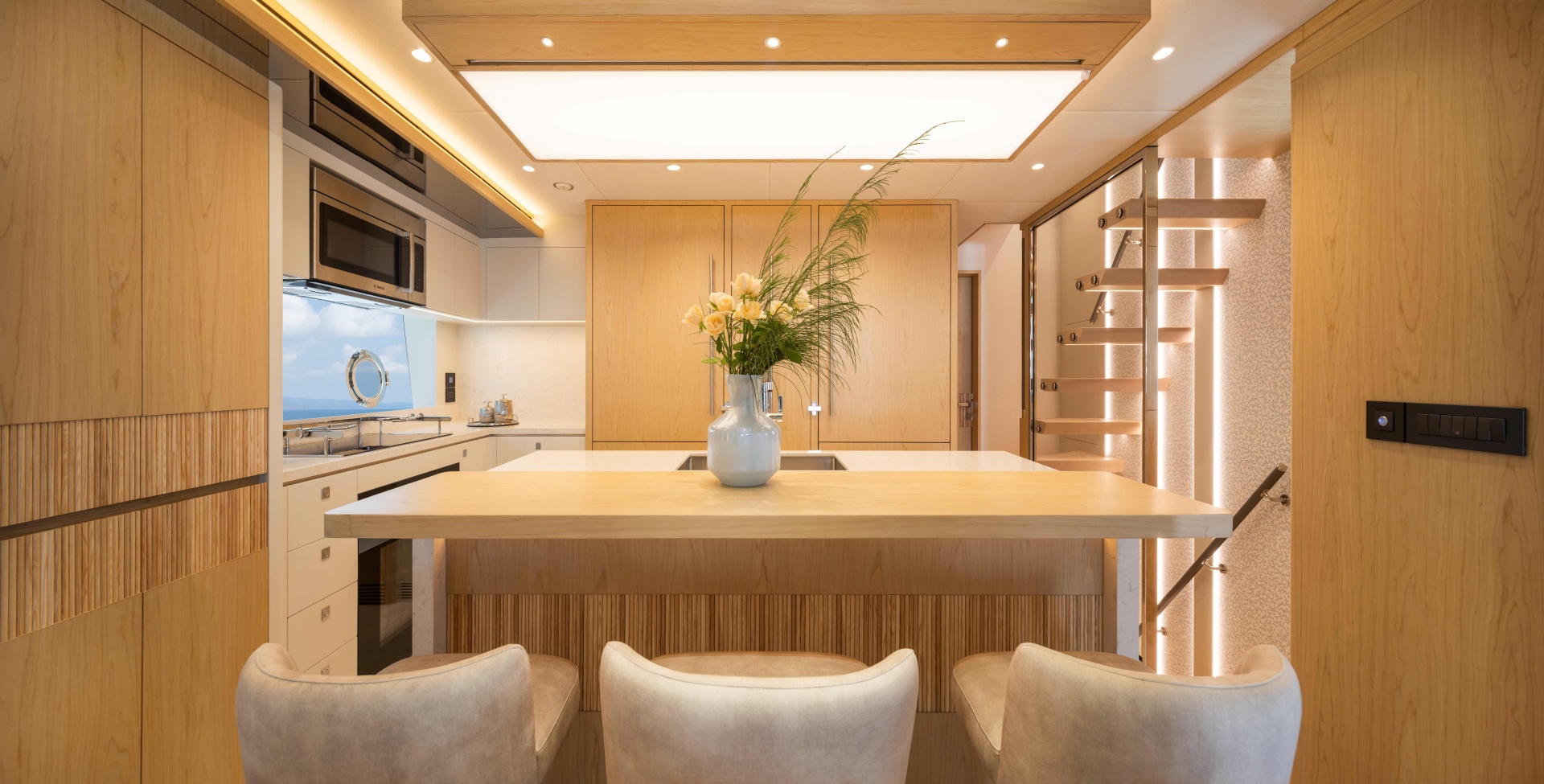

GALLEY
Enclosed galley design with Hi-Lo blind
Professional galley + extensive storage per layout
Full height Sub-Zero refrigerator + freezer
Miele cooktop, range hood, oven, microwave & dishwasher
Sub-Zero wine cooler
(1) opening porthole

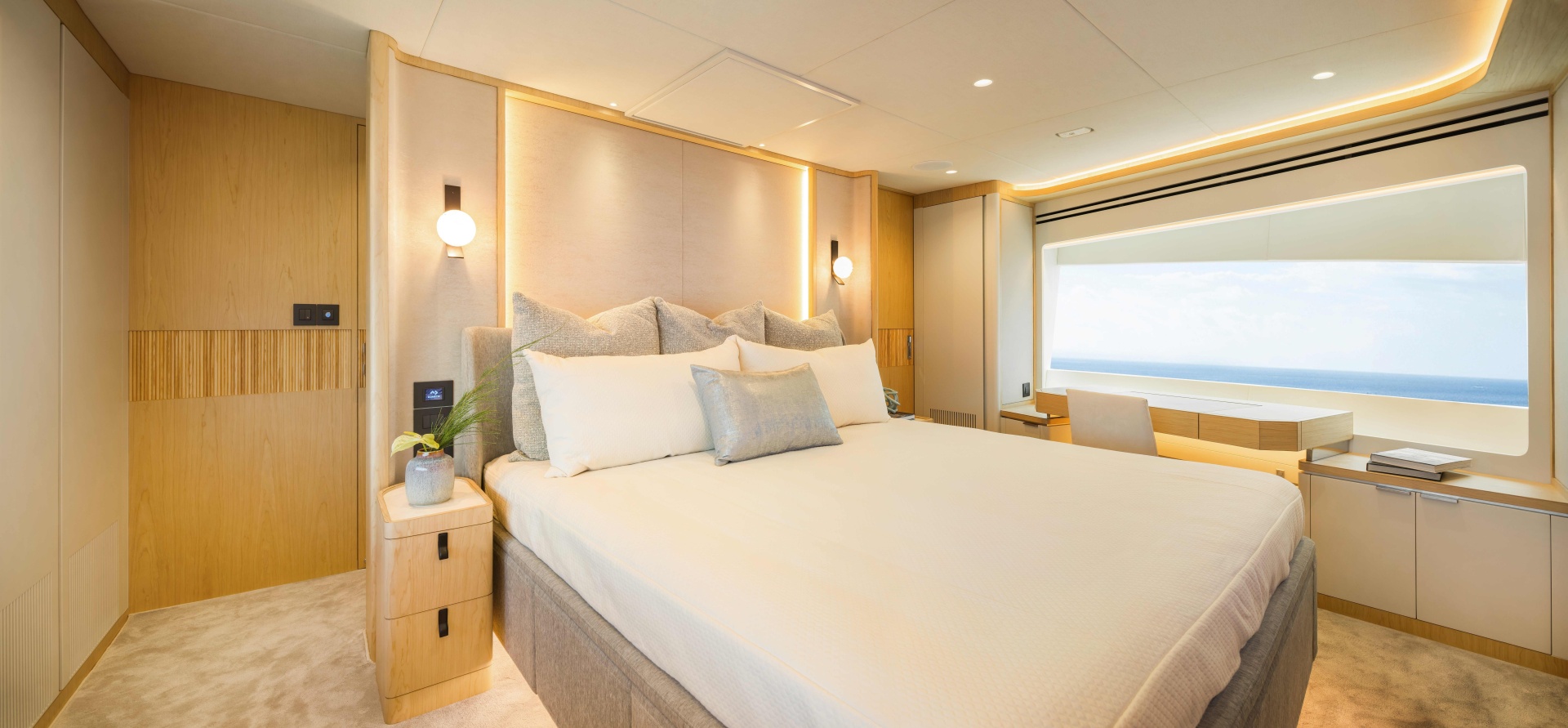

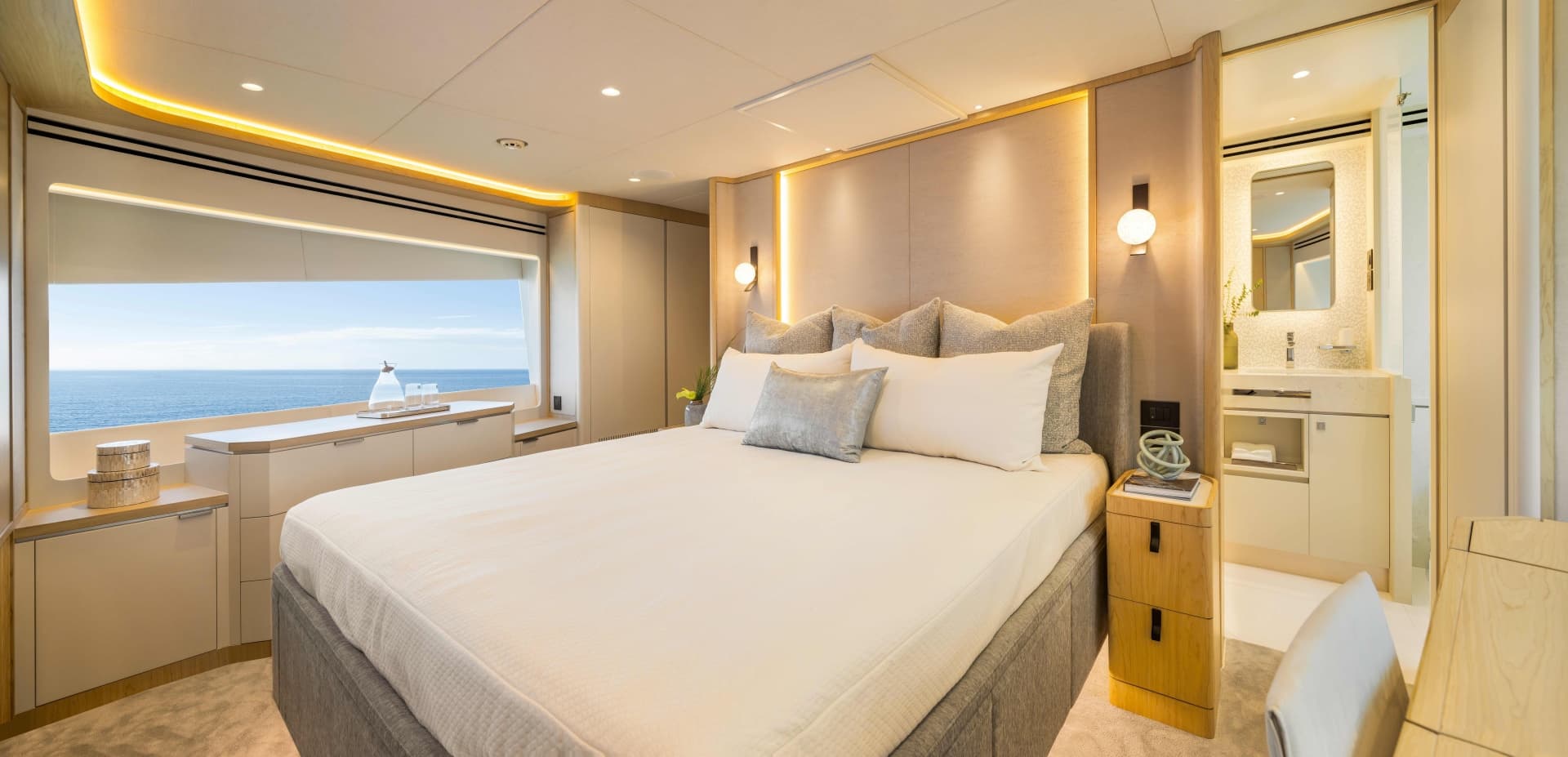

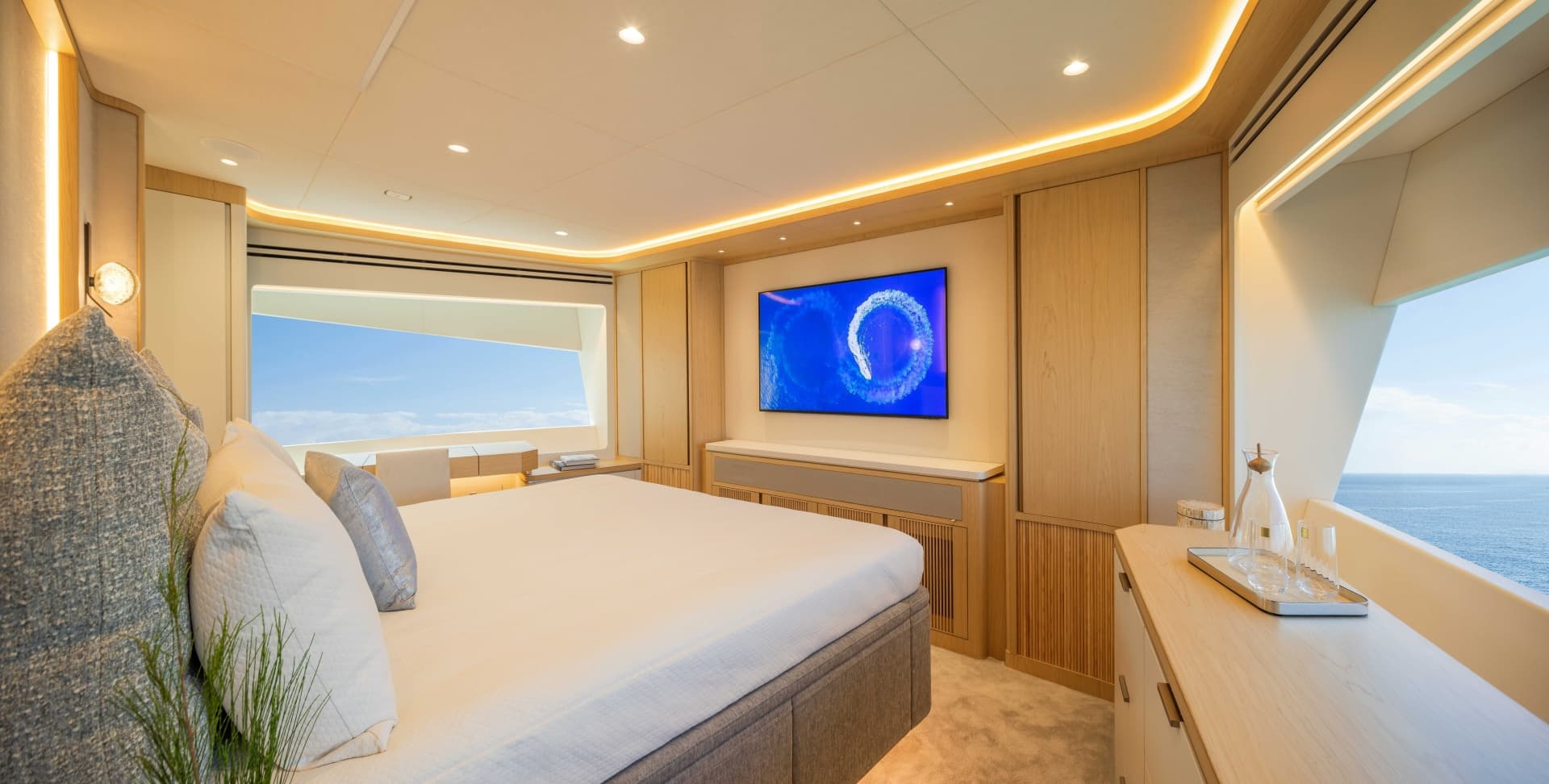

MASTER STATEROOM
King bed w/ storage drawers under, nightstands, safe
STBD chest of drawers; vanity/desk at PORT; hanging lockers

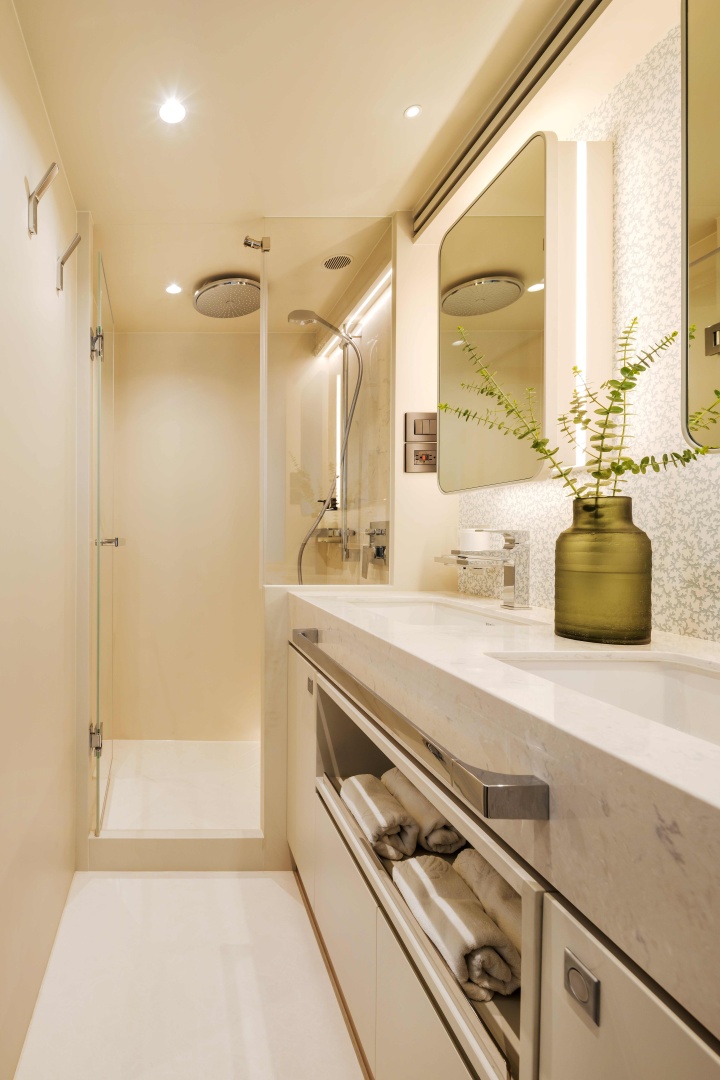

Ensuite head w/sink, rain shower & toilet
Electric shades
(1) Opening portholes in Master head
50" LED TV
Escape hatch in Master w/ ladder

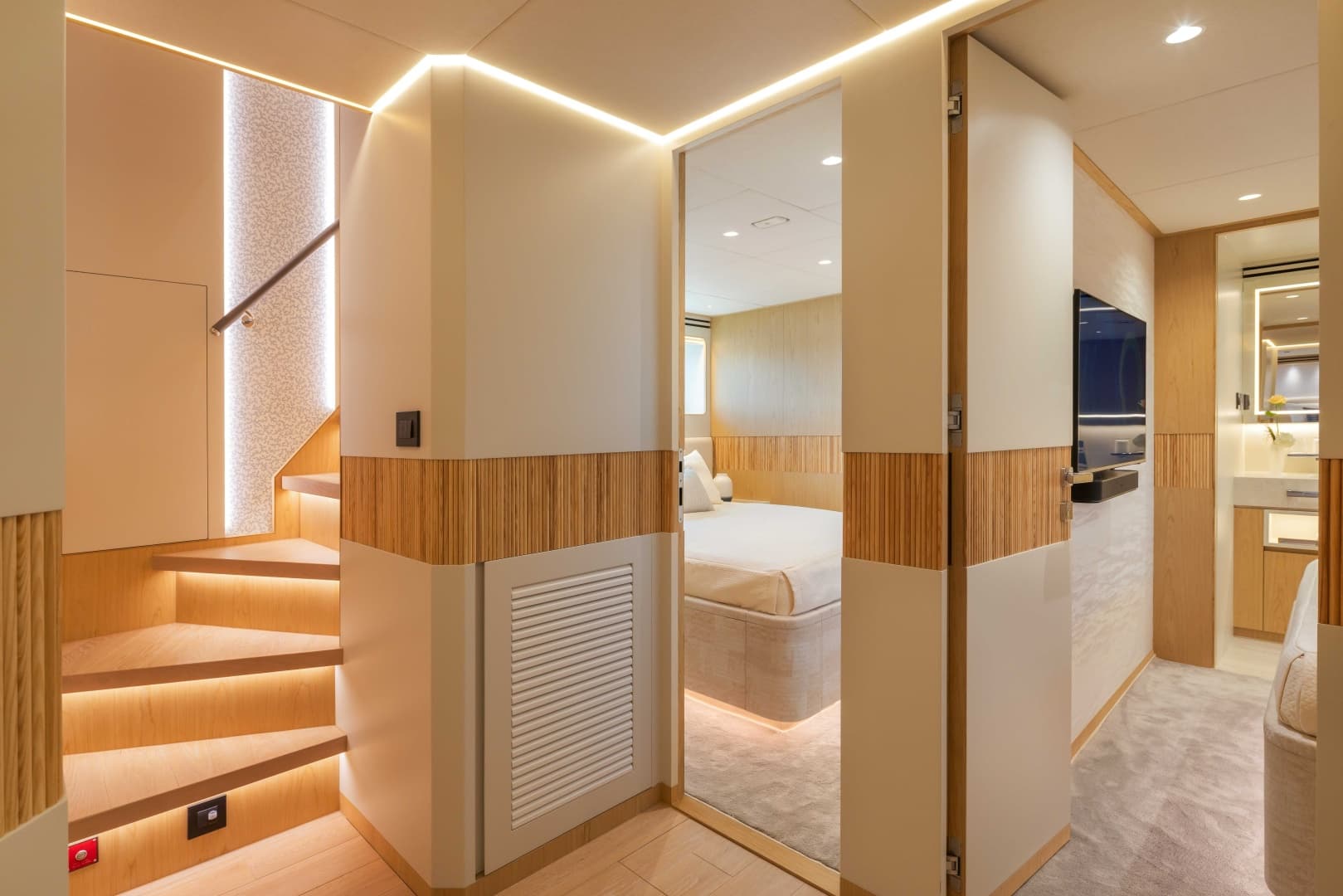

LOWER STATEROOMS

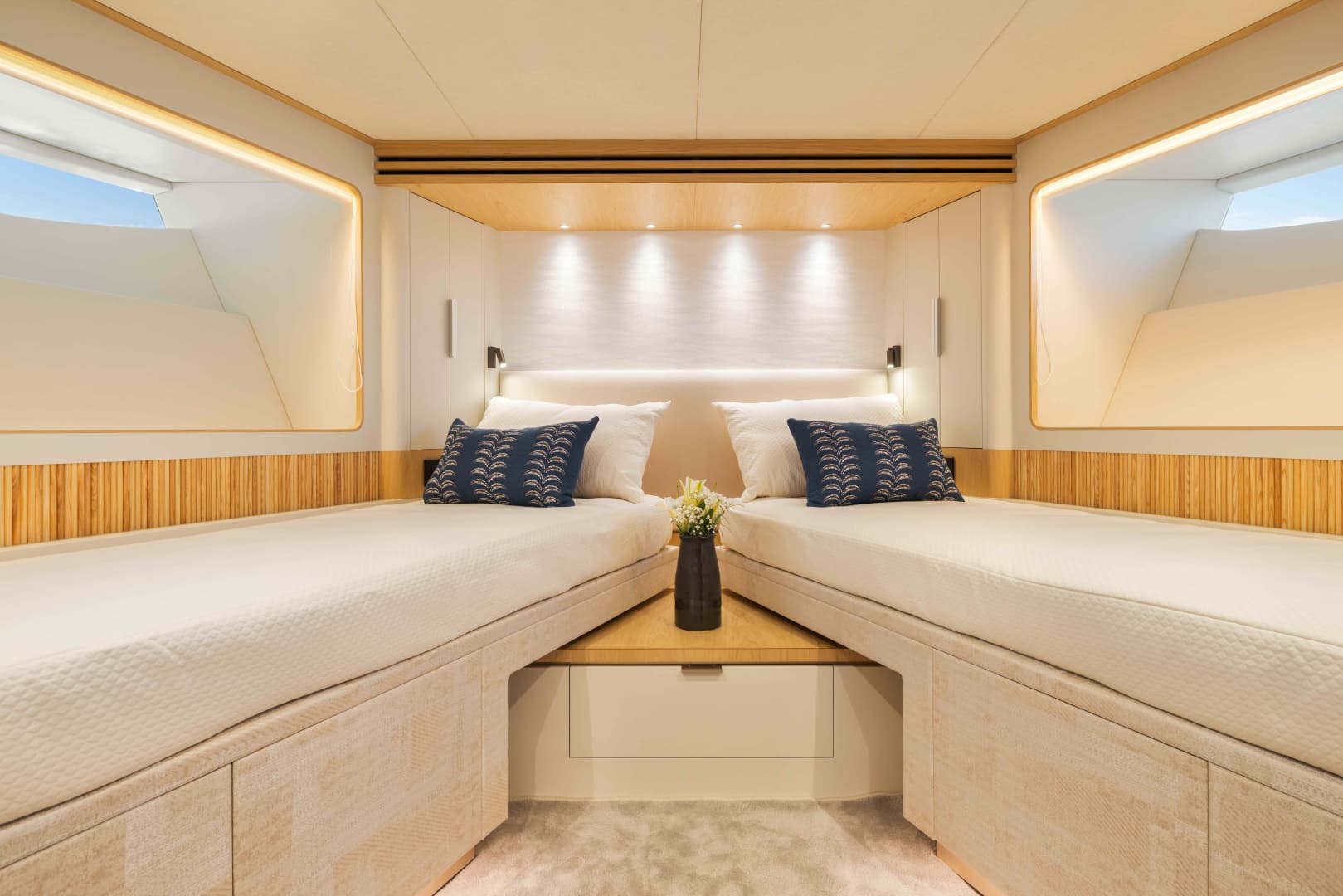

FWD VIP STATEROOM

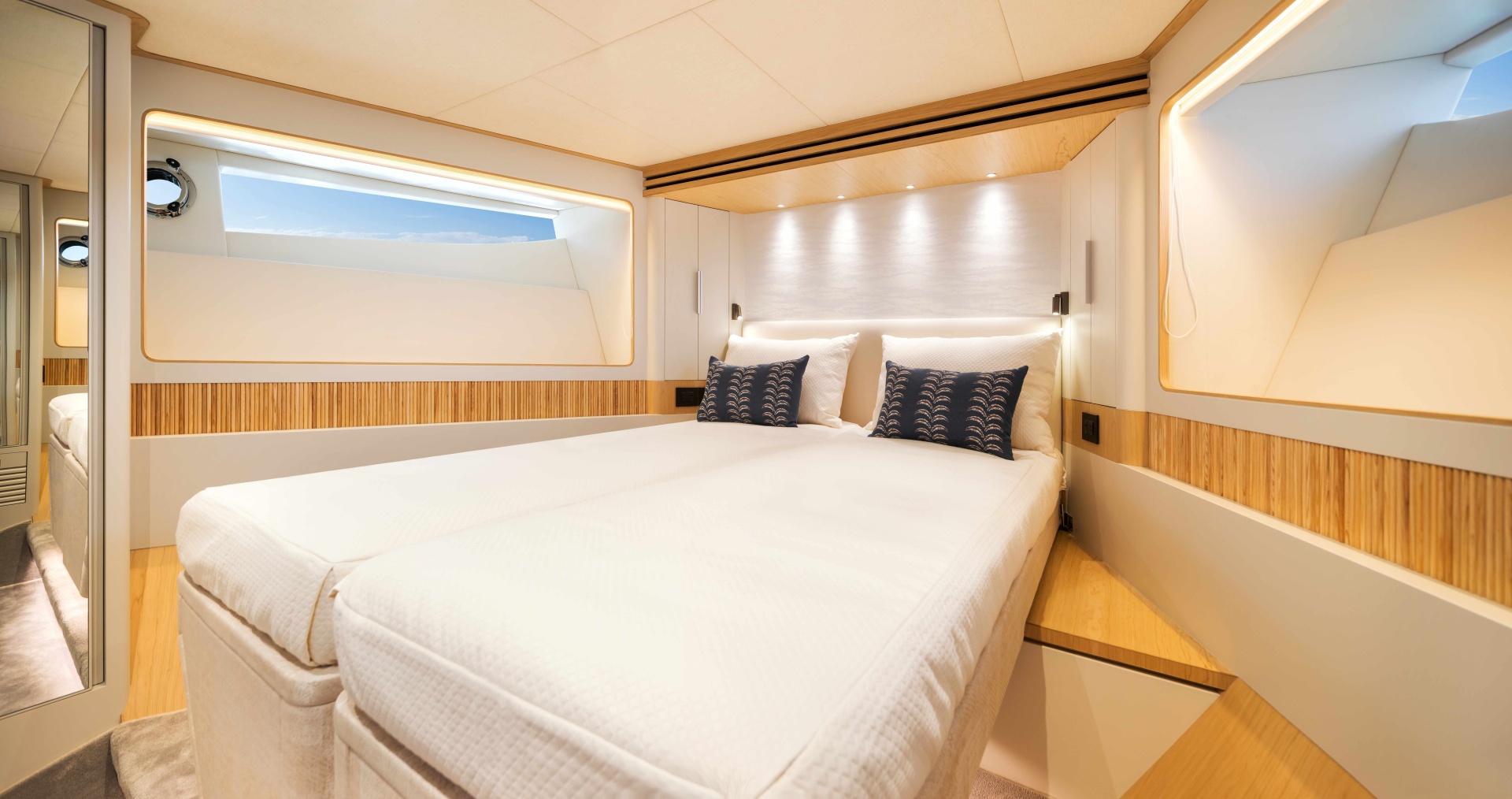

(2) Twin beds (with sliding function), drawer under, hanging lockers, and storage
Ensuite head w/ sink, rain shower & toilet 32" LED TV

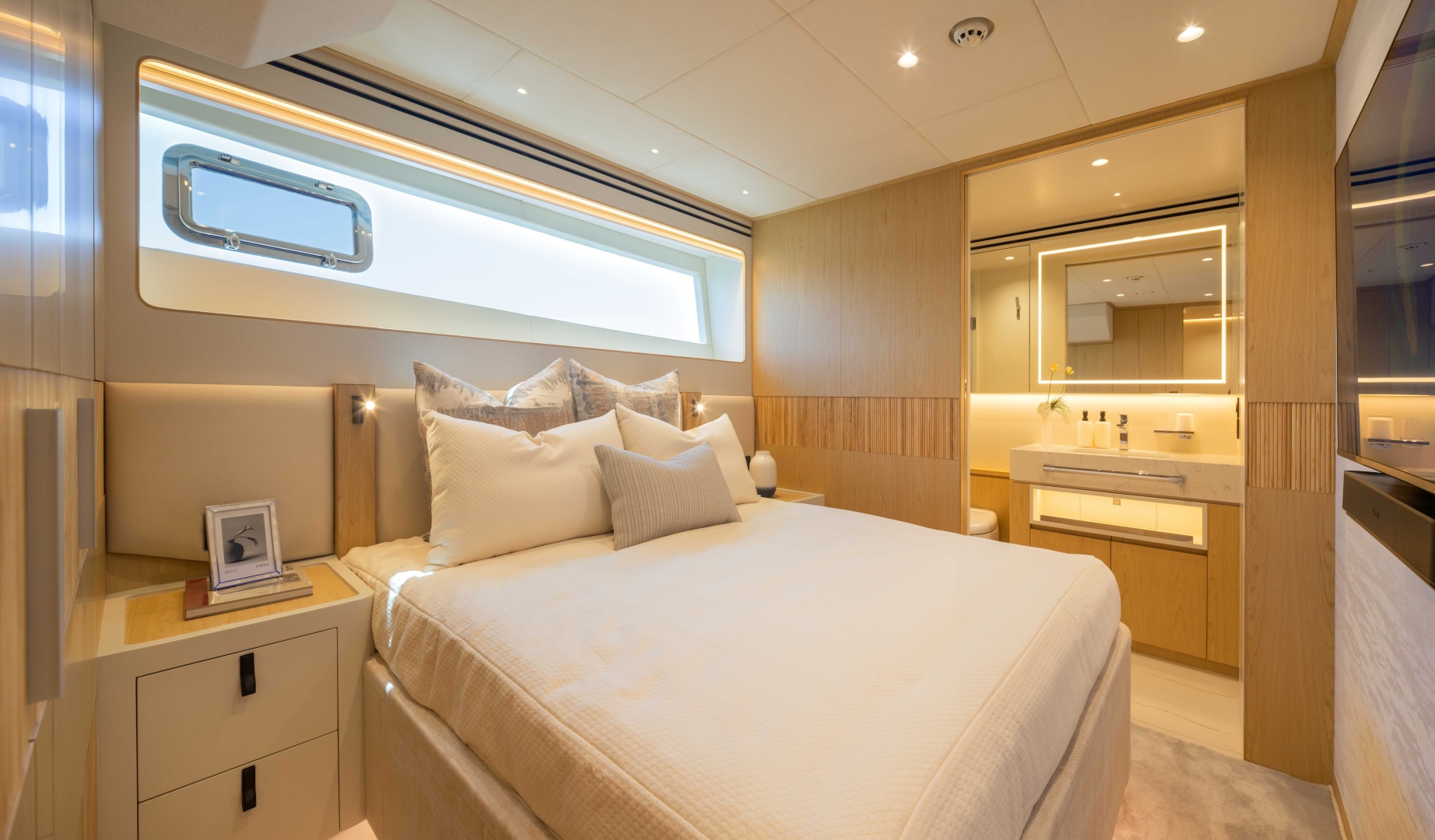

MIRROR VIP STATEROOMS

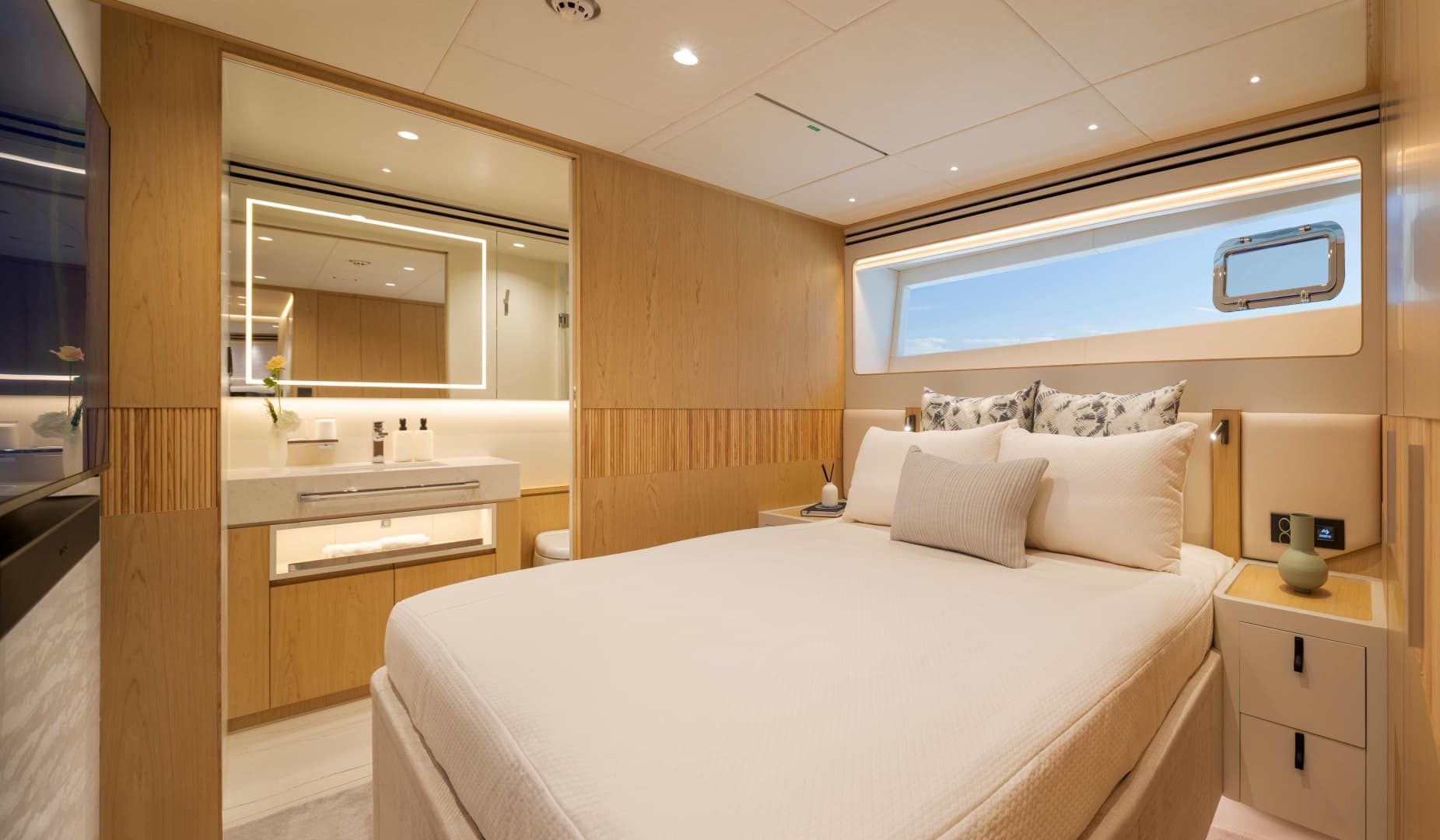

Queen bed w/ nightstands
Ensuite head w/ sink, rain shower & toilet 43" LED TV
Escape hatch up to salon with ladder from PORT VIP stateroom
CREW
PORT Captain Cabin with double bed, hanging locker, storage, and 43” LED TV
STBD crew cabin with bunk beds, hanging locker
Head w/ sink, shower & toilet
Crew area with burner, Miele washer/dryer, refrigerator/freezer, convection microwave, storage
Hi-Lo screen to enclose
ELECTRONICS AND NAVIGATION
ELECTRONICS
SAT TV antenna with a symmetric dummy dome & prewire for SAT phone
Reserve a cable conduit for Starlink system
4G/5G Cellular router system with WiFi on board
PILOTHOUSE NAVIGATION
Garmin navigational system incl.:
Garmin GPS w/ Satellite compass
(1) Garmin GMR™ 1236 xHD3 Open Array Radar
(1) Garmin Fantom 54 Solidstate Open Array Radar
(4) Garmin GPSMAP 9222 22" multifunction displays
MBB300C for inputting the Maretron info to GARMIN display
Garmin Autopilot system
Garmin Fishfinder/ Wind / Speed / Temp / Depth transducer
(2) Garmin VHF
Garmin AIS
Garmin Surround View Camera system
